Wuzno H15 Halogen Headlight Bulb Instruction Manual

1. Introduction

This manual provides instructions for the proper installation, operation, and maintenance of your Wuzno H15 Halogen Headlight Bulbs. These bulbs are designed to provide reliable illumination for your vehicle's headlamp system. Please read this manual thoroughly before installation and retain it for future reference.

Image 1.1: Two Wuzno H15 Halogen Headlight Bulbs with their packaging, ready for installation.

2. Product Features

• Plug and Play Design: These H15 halogen headlight bulbs (12V 55/15W) are manufactured to international standards, including CE and DOT. They feature the same bulb size, bases, and plugs as original equipment, ensuring straightforward installation without modifications.
• Enhanced Brightness: Equipped with a filament from Austria and high-purity quartz, these bulbs incorporate 28% more xenon gas, resulting in a 20% increase in light output compared to standard original bulbs. The brightness level exceeds international standards.
• Whiter Light Output: A specialized blue coating on these bulbs produces a whiter light, approximately 5000K. This color temperature is similar to natural sunlight, which can reduce visual fatigue and improve light penetration for better visibility.
• Extended Lifespan: Featuring anti-vibration upgrade filaments, UV-stop quartz glass filled with high-purity inert gas, and a high temperature-resistant base, these bulbs are designed for a longer operational life, up to 1320 hours.

3. Installation Guide

The Wuzno H15 Halogen Headlight Bulbs are designed for a direct replacement, offering a plug-and-play installation. Always ensure your vehicle's engine is off and the lights are cool before beginning installation.

3.1 Safety Precautions

• Always wear protective gloves to avoid touching the glass part of the bulb. Oils from your skin can create hot spots and reduce bulb life.
• Ensure the vehicle's ignition is off and the battery is disconnected before handling electrical components.
• Allow existing bulbs to cool down completely before removal to prevent burns.

3.2 Installation Steps

1. Locate the Headlight Assembly: Open your vehicle's hood and identify the rear of the headlight assembly.
2. Disconnect Power: Unplug the electrical connector from the back of the existing H15 bulb.
3. Remove Old Bulb: Depending on your vehicle model, you may need to unclip a retaining spring or twist the bulb counter-clockwise to remove it from the housing. Carefully pull out the old bulb.
4. Insert New Bulb: Holding the new Wuzno H15 bulb by its base (avoiding the glass), align the tabs on the bulb with the slots in the headlight housing. Insert the bulb firmly and secure it with the retaining clip or by twisting clockwise until it locks into place.
5. Reconnect Power: Plug the electrical connector back onto the base of the new bulb.
6. Test Functionality: Turn on your vehicle's headlights to ensure both low and high beams are functioning correctly.

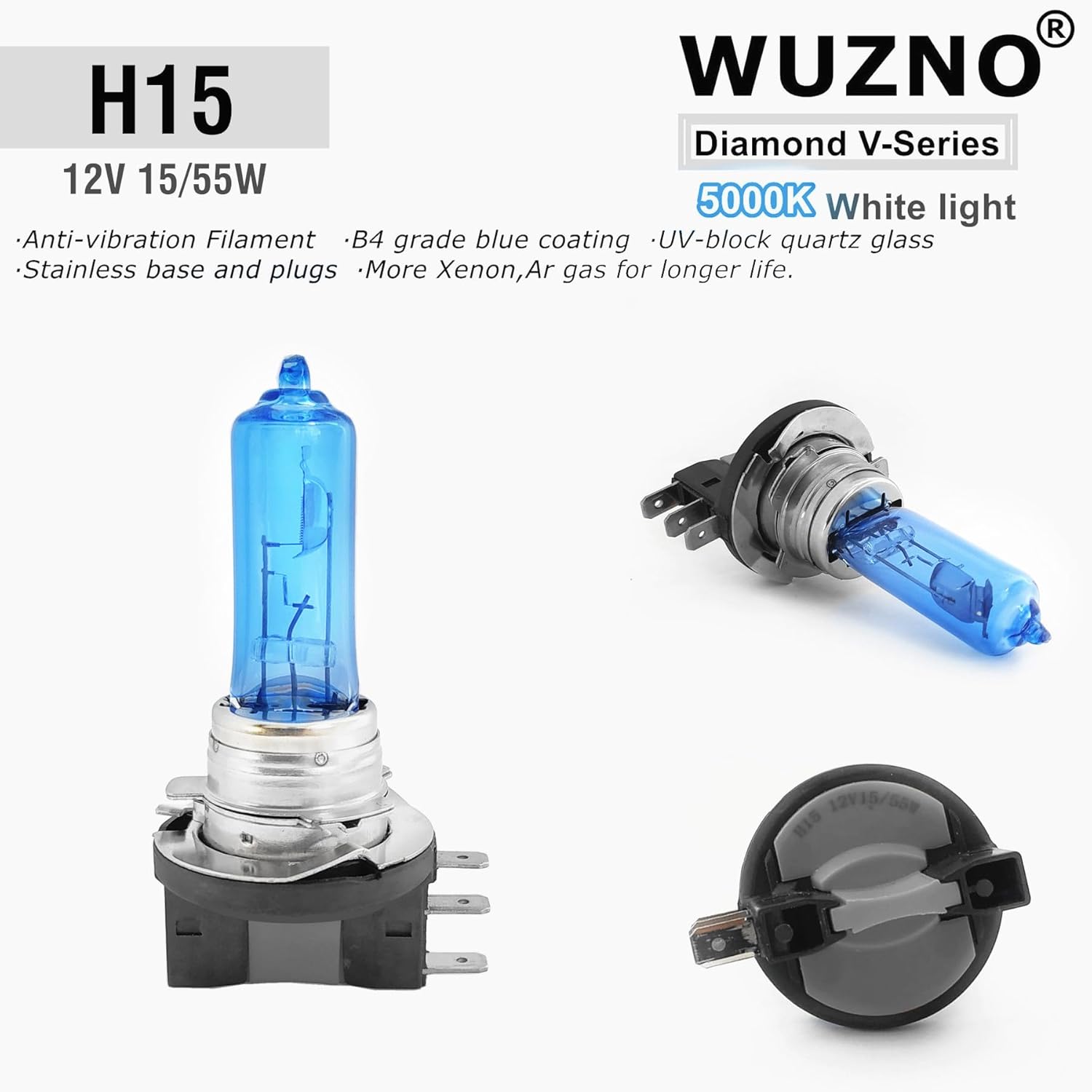

Image 3.1: A detailed view of the Wuzno H15 bulb, illustrating its base and glass construction for proper handling during installation.

Image 3.2: Various Wuzno bulb types demonstrating the standard bulb bases and plugs, highlighting the plug-and-play replacement feature.

4. Operation

Once installed, your Wuzno H15 Halogen Headlight Bulbs operate like your vehicle's original bulbs. They provide both low beam and high beam functionality, controlled by your vehicle's standard headlight switch.

4.1 Low Beam Function

The low beam setting provides a focused light pattern designed for general driving, illuminating the road ahead without dazzling oncoming traffic. This is the primary setting for night driving in most conditions.

4.2 High Beam Function

The high beam setting provides maximum illumination for extended visibility on unlit roads or highways. Use high beams only when there is no oncoming traffic or vehicles directly in front of you to avoid impairing other drivers' vision.

Image 4.1: Visual comparison of light output and beam patterns (low and high beam) between original halogen bulbs (3000K) and Wuzno H15 Diamond V-series bulbs (5000K).

Image 4.2: A vehicle demonstrating the effective illumination provided by the headlights on a dark road at night.

5. Maintenance

Wuzno H15 Halogen Headlight Bulbs require minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:

• Keep Clean: Periodically inspect your headlight lenses for dirt, grime, or haze. Clean them with a suitable automotive lens cleaner to ensure maximum light output.
• Avoid Touching Glass: As mentioned in installation, avoid touching the glass portion of the bulb with bare hands. If accidental contact occurs, clean the bulb with rubbing alcohol and a lint-free cloth before installation or continued use.
• Regular Inspection: Check your headlights regularly to ensure both low and high beams are functioning. Replace bulbs in pairs for consistent light output and color, as bulbs tend to dim over time.

6. Troubleshooting

If you encounter issues with your Wuzno H15 Halogen Headlight Bulbs, refer to the following common problems and solutions:

6.1 Bulb Not Lighting Up

• Check Connection: Ensure the electrical connector is securely plugged into the bulb's base.
• Inspect Fuse: Check the vehicle's fuse box for a blown headlight fuse. Replace if necessary.
• Verify Bulb Installation: Confirm the bulb is correctly seated and locked into the headlight housing.
• Test with Another Bulb: If possible, test the bulb in another working socket or try a known working bulb in the problematic socket to isolate the issue.

6.2 Dim or Flickering Light

• Check Voltage: Ensure your vehicle's electrical system is providing the correct 12V to the headlight circuit.
• Inspect Wiring: Look for any loose, corroded, or damaged wiring leading to the headlight assembly.
• Clean Lens: A dirty or hazy headlight lens can significantly reduce light output. Clean the lens thoroughly.

6.3 Uneven Light Pattern

• Bulb Seating: Ensure the bulb is correctly seated and oriented in the headlight housing. Improper seating can cause an incorrect beam pattern.
• Headlight Alignment: If the issue persists, your vehicle's headlight alignment may need adjustment. Consult a professional if unsure.

7. Specifications

8. Warranty and Support

Wuzno is committed to providing high-quality automotive lighting products. For any questions, concerns, or technical assistance regarding your H15 Halogen Headlight Bulbs, please refer to the retailer's return policy or contact Wuzno customer support through the official channels provided at the point of purchase.

Please retain your proof of purchase for any warranty claims.
