REDAFONE Electric Mason Jar Vacuum Sealer

1. Introduction

The REDAFONE Electric Mason Jar Vacuum Sealer (Model KZ-80) is a cordless, rechargeable device designed to efficiently remove air from Mason jars, extending the freshness and shelf life of your stored food. This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your vacuum sealer.

This electric vacuum pump offers a hands-free sealing experience, eliminating the need for manual pumping and simplifying your food preservation process. Its unique concave design ensures a comfortable and secure grip during use.

Image: The REDAFONE Electric Mason Jar Vacuum Sealer shown with included accessories, including various jar lids and labels.

Image: Examples of various foods, such as beans, rice, flour, fruits, and vegetables, stored in vacuum-sealed Mason jars, demonstrating the product's application for food preservation.

2. Package Contents

Please verify that all items listed below are included in your package:

• Electric Mason Jar Vacuum Sealer (1 pc)
• Regular Mouth Canning Lids (5 pcs)
• Wide Mouth Canning Lids (5 pcs)
• Jar Labels (12 pcs)
• Bottle Top Opener (1 pc)
• Type-C Charging Cord (1 pc)

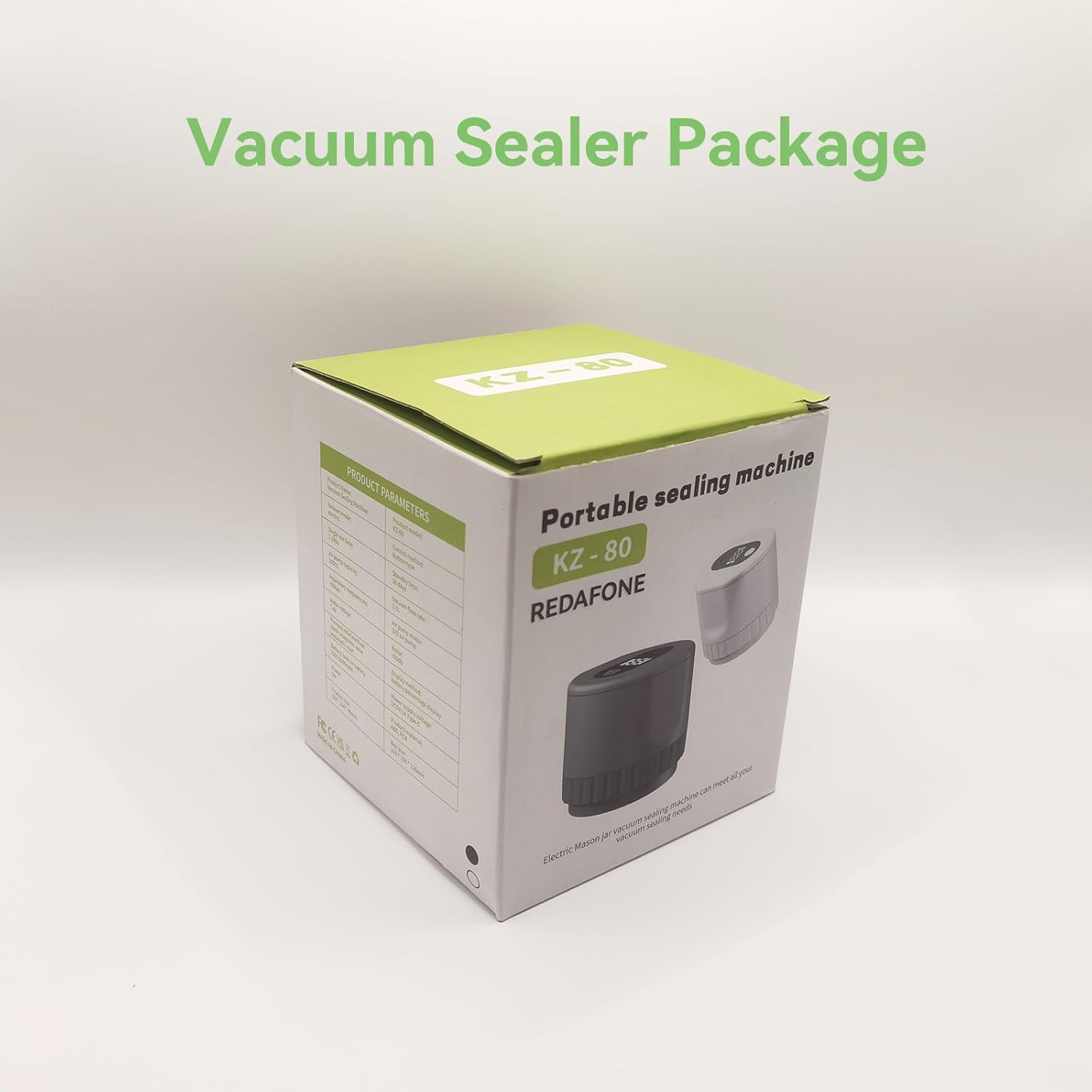

Image: The retail packaging box for the REDAFONE Electric Mason Jar Vacuum Sealer, labeled 'KZ-80 Portable sealing machine'.

3. Product Features

• Dual Jar Compatibility: The sealer is designed to work with both regular and wide mouth Mason jars. It includes a standard mouth seal converter. To switch between sizes, twist the unit to separate it for wide mouth function, and ensure correct alignment when reassembling for regular mouth use.

Image: A visual comparison showing the two different sealing adapters for regular mouth (2.75 inches) and wide mouth (3.4 inches) Mason jars, highlighting their compatibility.
• Rechargeable & Cordless: Equipped with a built-in rechargeable battery, providing long working time on a single charge. The digital display indicates the remaining power level.


Image: A detailed view of the vacuum sealer's top panel, showing the LED display for power indication and sealing time, the start/stop button, and the Type-C charging port.

• One-Key Operation: Simplifies the vacuum sealing process. Just press a button to start and stop the vacuum pump.
• Ergonomic Design: Features a side concave plane for easier handling and removal from jars, especially beneficial for users with smaller hands.

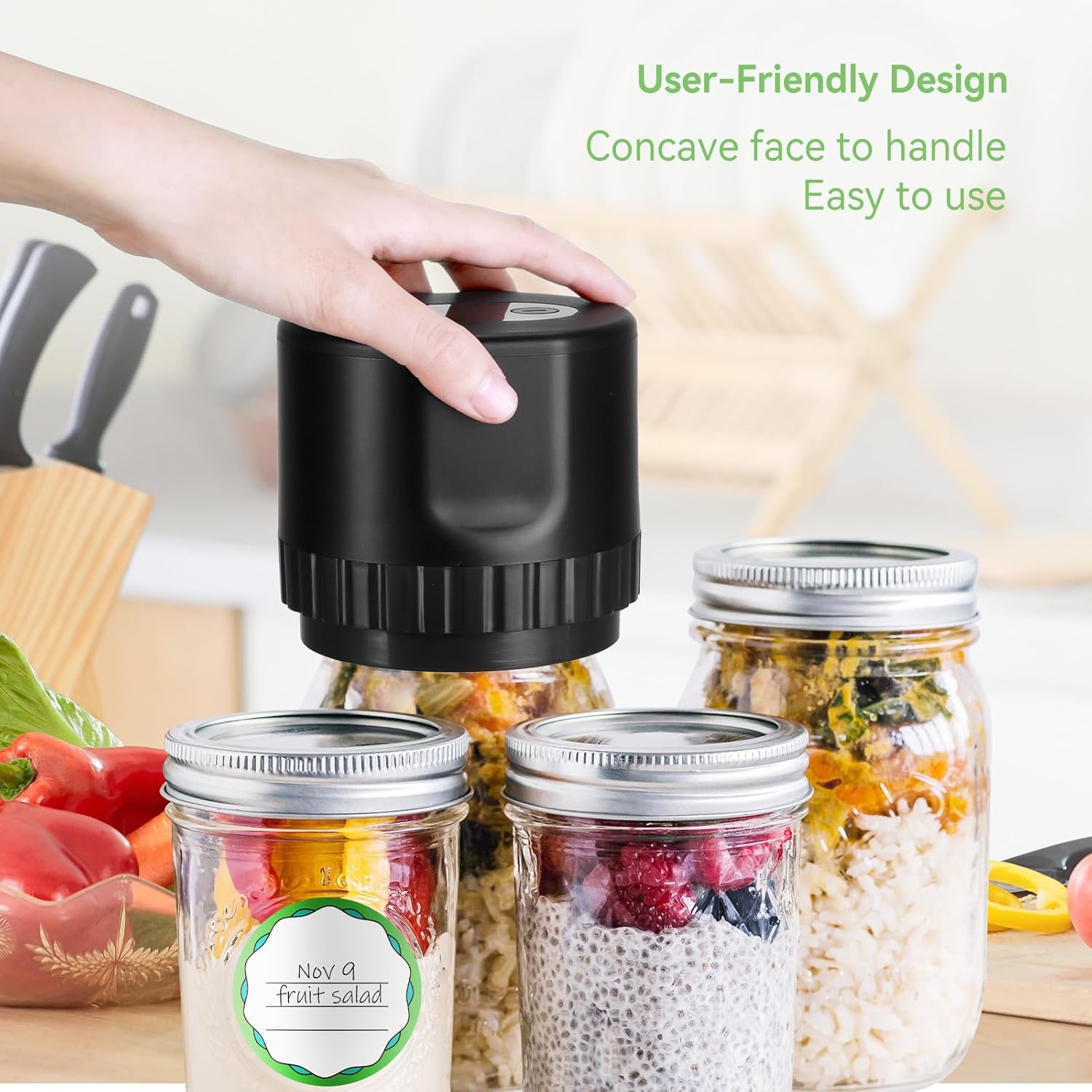

Image: A hand holding the REDAFONE Electric Mason Jar Vacuum Sealer, demonstrating its user-friendly concave design for easy handling and removal from Mason jars.

• Automatic Shut-off: The device automatically stops after approximately 20 seconds of sealing, or when a sufficient vacuum is achieved.
• Efficiency: Provides a quick and effective vacuum seal compared to manual methods.

Image: A side-by-side comparison illustrating the ease of use of the electric vacuum sealer (left) with a single button press versus the manual vacuum pump (right) requiring repeated hand presses.

4. Setup

1. Unpack: Carefully remove all components from the packaging and ensure all listed items in Section 2 are present.
2. Initial Charge: Before first use, fully charge the vacuum sealer using the provided Type-C charging cord. Connect the cord to the charging port on the device and a suitable USB power source. The digital display will show the charging progress.
3. Prepare Jars: Ensure your Mason jars are clean and dry, especially the rim where the lid will sit.
4. Select Sealer Size: Determine if you are using a regular or wide mouth Mason jar. The main unit is for wide mouth jars. If using a regular mouth jar, attach the standard mouth seal converter by twisting it onto the main unit until securely in place.

5. Operating Instructions

Follow these steps to vacuum seal your Mason jars:

1. Place Lid: Put the flat metal Mason jar lid on top of the jar. Ensure it is centered and flat.
2. Position Sealer: Place the electric vacuum sealer (with the correct size adapter if needed) directly over the lid. Press it down firmly, ensuring it is smooth and centered on the jar lid.
3. Start Sealing: Click the power button on the top of the sealer. The device will begin to pump air out of the jar. The digital display may show a countdown or progress.
4. Wait for Completion: Allow approximately 20 seconds or more for the vacuum sealing process to complete. The device is designed to automatically shut off once a sufficient vacuum is achieved.
5. Stop (Optional): If you need to stop the process manually before it completes, click the power button once again.
6. Remove Sealer: Once the sealing process is complete, carefully remove the electric Mason jar sealer from the jar.
7. Secure Jar: Cover the sealed jar with a split-type Mason jar band (not included with sealer, but typically used with Mason jars) to secure the lid for storage.

Image: A four-panel visual guide demonstrating the steps to use the vacuum sealer: 1) placing the lid, 2) positioning the sealer, 3) pressing the button to start, and 4) the final sealed jar.

6. Important Considerations

• When filling jars with soft or liquid food, avoid overfilling. The less air in the bottle, the shorter the sealing time and the more effective the seal. Leave a space of 1/4 to 1/2 inch from the rim.
• Always ensure the mouth of the Mason jar is dry and clean before attempting to seal. Moisture or debris can compromise the seal.

7. Maintenance and Care

• Cleaning: Wipe the exterior of the vacuum sealer with a soft, damp cloth. Do not immerse the device in water or any other liquid. Ensure the sealing rings are clean and free of food debris for optimal performance.
• Storage: Store the vacuum sealer in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the device frequently. Recharge it when the power indicator shows low battery.

8. Troubleshooting

• Device Not Turning On: Ensure the device is charged. Connect it to the Type-C charging cord and allow it to charge for at least 30 minutes before attempting to use it.
• Poor Seal / No Vacuum:
  • Check if the Mason jar rim is clean and dry.
  • Ensure the Mason jar lid is properly centered and flat.
  • Verify that the vacuum sealer is pressed down firmly and evenly on the lid.
  • Confirm the correct size adapter is used for the jar (regular or wide mouth).
  • Inspect the sealing rings on the device for any damage or debris. Clean if necessary.
• Device Stops Prematurely: This may indicate a successful seal has been achieved, or the battery is low. Check the seal. If no seal, recharge the device.

9. Specifications

10. Warranty and Support

This REDAFONE Electric Mason Jar Vacuum Sealer comes with a 24-month warranty from the date of purchase.

For any issues, questions, or support needs, please contact our customer service. We are committed to resolving your concerns within 24 hours.

Please refer to your purchase documentation for specific contact details or visit the official REDAFONE support website.
