Introduction
This manual provides comprehensive instructions for the assembly, safe use, and maintenance of your new vidaXL Day Bed with Pull-out Bed. Please read all instructions carefully before assembly and use to ensure proper function and safety. Keep this manual for future reference.
Image: The vidaXL Day Bed with Pull-out Bed, featuring a natural wood finish, is presented in a bedroom environment with white bedding. The bed is configured as a single bed with the pull-out section tucked underneath.
Safety Information
Warning: This bed contains moving parts that can cause injury if not used correctly. Ensure you follow the assembly instructions carefully to avoid the risk of accidents. This bed may also pose entrapment risks for children. Please use this bed with caution and in accordance with the provided instructions.
- Always ensure all bolts and fasteners are securely tightened before use.
- Do not allow children to play unsupervised on or around the pull-out bed mechanism.
- Regularly check for loose parts and tighten as necessary.
- Do not exceed the recommended weight capacity for the bed.
Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Bed frame components (headboard, footboard, side rails)
- Pull-out bed frame components
- Slats for both upper and pull-out beds
- Hardware pack (screws, bolts, nuts, Allen key, etc.)
- Assembly instructions (this document)
Setup and Assembly
Assembly is required for this product. Follow the assembly instructions included in the package or on the manufacturer's website to assemble the day bed. Ensure you use the correct tools and carefully follow each step to guarantee the stability and safety of the furniture.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Refer to the parts list and diagrams to identify each component.
- Assemble Main Bed Frame: Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
- Install Main Bed Slats: Place the slats onto the main bed frame, ensuring they are evenly spaced and secured according to the instructions.
- Assemble Pull-out Bed Frame: Construct the pull-out bed frame following similar steps to the main bed, attaching its side rails and end pieces.
- Install Pull-out Bed Slats: Secure the slats for the pull-out bed.
- Integrate Pull-out Bed: Carefully slide the assembled pull-out bed frame into position under the main bed frame. Ensure it moves smoothly.
- Final Check: Double-check all connections and fasteners to ensure they are tight and the bed is stable.
Image: An assembled modern day bed frame with a natural wood finish, complete with white bedding. The image also indicates available sizes: 90x200 cm, 90x190 cm, and 80x200 cm.
Image: A detailed close-up of the solid pine wood frame of the vidaXL day bed, highlighting the natural wood grain, knots, and the sturdy construction of the bed frame components.
Operating Instructions
The vidaXL Day Bed is designed for versatile use as both a sofa and a bed.
Using as a Sofa:
When used as a sofa, ensure the pull-out bed is fully retracted and secured underneath the main bed frame. Add cushions and throws for comfort and aesthetic appeal.
Converting to a Bed:
- Clear the Area: Ensure there is enough clear space in front of the day bed to fully extend the pull-out section.
- Pull Out: Gently pull the lower bed frame outwards from under the main bed. It should slide out smoothly on its runners.
- Position: Once fully extended, position the pull-out bed as desired, either adjacent to the main bed to create a larger sleeping surface or as a separate single bed.
- Retract: To convert back to a sofa, simply push the pull-out bed back underneath the main frame until it is fully nested.

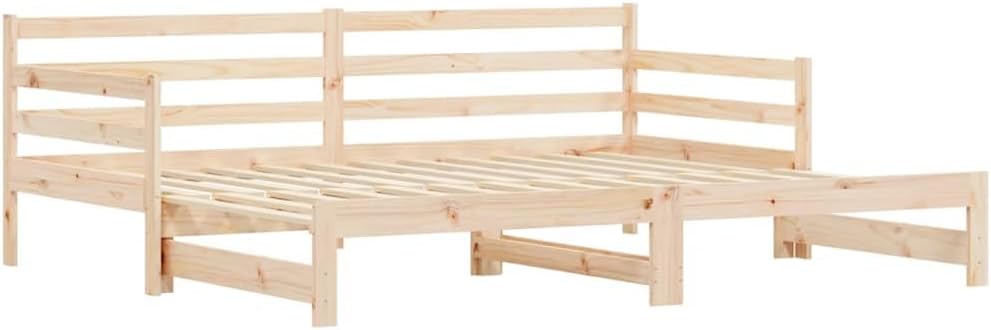

Image: A full view of the vidaXL day bed, demonstrating its functionality with the pull-out bed fully extended, creating a wider sleeping surface suitable for two individuals or a larger single bed.
Maintenance
Proper care and maintenance will extend the life of your vidaXL Day Bed.
- Cleaning: Clean the wood surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the natural wood finish.
- Dusting: Regularly dust the bed frame with a soft, dry cloth.
- Tightening Fasteners: Periodically check all bolts, screws, and connections. Tighten any loose fasteners to maintain the bed's stability and safety.
- Avoid Excessive Moisture: Protect the wood from prolonged exposure to moisture or direct sunlight to prevent warping or fading.
Troubleshooting
If you encounter any issues with your day bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable | Loose fasteners or incorrect assembly. | Check all bolts and screws and tighten them securely. Review assembly instructions to ensure all steps were followed correctly. |
| Pull-out bed does not slide smoothly | Obstruction, misaligned runners, or debris. | Inspect the runners for any obstructions or debris. Ensure the pull-out bed frame is correctly aligned within the main frame. |
| Squeaking noises | Loose connections or friction between wood parts. | Tighten all fasteners. If squeaking persists, apply a small amount of furniture wax or silicone spray to contact points between wood components. |
Specifications
Detailed specifications for the vidaXL Day Bed with Pull-out Bed:
- Model Number: 836147
- Material: Solid Pine Wood
- Color: Natural
- Style: Rustic
- Overall Dimensions (L x W x H): Approximately 203.5 cm x 97.5/184 cm (extended) x 69.5 cm (backrest height)
- Mattress Size (Main Bed): 90 x 200 cm (not included)
- Mattress Size (Pull-out Bed): 90 x 200 cm (not included)
- Ground Clearance: 21 cm
- Item Weight: 28.1 kg
- Special Features: Pull-out bed, Storage space underneath
- Assembly Required: Yes
- Age Range Description: Adult

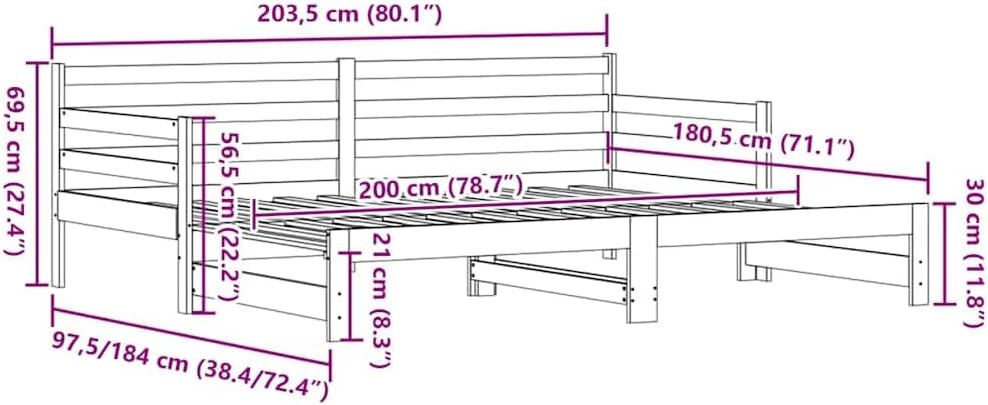

Image: A technical diagram illustrating the precise dimensions of the vidaXL day bed. Key measurements such as overall length (203.5 cm), width (97.5 cm / 184 cm when extended), and height (69.5 cm for the backrest, 21 cm ground clearance) are clearly marked in both centimeters and inches.
Warranty and Support
Warranty Information:
This vidaXL Day Bed comes with a Limited Warranty. Please refer to the warranty card included in your package or visit the official vidaXL website for detailed terms and conditions regarding coverage, duration, and claims process.
Customer Support:
For any questions, missing parts, or assistance with assembly or operation, please contact vidaXL customer support:
- Website: Visit the official vidaXL website for FAQs and support contact options.
- Email/Phone: Refer to your purchase documentation or the vidaXL website for specific contact details in your region.
