1. Product Overview
This manual provides essential information for the proper installation, operation, and maintenance of the Jeimgrso Water Pump, part number 65.02502-8220 (also known as 65025028220). This water pump is designed as a replacement component for specific heavy machinery engines, ensuring efficient coolant circulation.
2. Package Contents
Upon unpacking, please verify that all components are present and undamaged. The package typically includes:
- 1 x Jeimgrso Water Pump (Part Number: 65.02502-8220 / 65025028220)
- 1 x Gasket for Water Pump Installation
Image 1: The Jeimgrso Water Pump (part number 65.02502-8220) shown with its accompanying gasket. This is the primary component for engine cooling systems.
3. Compatibility
This water pump is specifically engineered for compatibility with the following heavy equipment and engines:
- Doosan Excavator: DH225-7
- Doosan Excavator: DH258-7
- Daewoo Engine: DB58
Important Note:
Before installation, always verify the part number (65.02502-8220 or 65025028220) and confirm compatibility with your specific excavator model and engine type. Incorrect part usage can lead to system malfunction and damage.
4. Safety Information
Always prioritize safety when working with heavy machinery components. Failure to follow safety precautions can result in serious injury or equipment damage.
- Ensure the engine is completely off and cooled down before beginning any work.
- Disconnect the battery to prevent accidental starting.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Handle coolant with care; it can be toxic. Dispose of old coolant responsibly.
- If you are not experienced with engine repair, seek assistance from a qualified technician.
5. Installation Guide
The installation of a water pump requires mechanical expertise. It is highly recommended that this procedure be performed by a certified technician. The following steps are a general guide and may vary based on the specific equipment model.
- Preparation:
- Park the excavator on a level surface and engage the parking brake.
- Allow the engine to cool completely.
- Drain the engine coolant into a suitable container for proper disposal.
- Remove any components obstructing access to the water pump (e.g., belts, hoses, covers).
- Removal of Old Water Pump:
- Carefully disconnect all hoses and electrical connections attached to the old water pump.
- Unbolt the old water pump from the engine block. Note the position of all bolts.
- Remove the old water pump and discard the old gasket.
- Clean the mounting surface on the engine block thoroughly, removing any old gasket material or corrosion.
- Installation of New Water Pump:
- Ensure the new gasket is correctly positioned on the new water pump or engine block.
- Carefully align the new Jeimgrso water pump with the mounting holes on the engine block.
- Insert and hand-tighten all bolts.
- Tighten the bolts to the manufacturer's specified torque settings, typically in a crisscross pattern to ensure even pressure. Refer to your equipment's service manual for exact torque specifications.
- Reconnect all hoses and electrical connections securely.
- Post-Installation:
- Refill the cooling system with the appropriate type and amount of coolant.
- Bleed the cooling system to remove any trapped air.
- Start the engine and check for leaks. Monitor the engine temperature.
- Allow the engine to reach operating temperature, then recheck the coolant level and top up if necessary.
Image 2: Top-down view of the water pump, showing the impeller shaft connection point and mounting bolt holes.
Image 3: Angled perspective of the water pump, highlighting the main body and the separate gasket.
6. Operation
Once correctly installed, the water pump operates automatically as an integral part of the engine's cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, and radiator, dissipating heat and maintaining optimal engine operating temperature. No direct user intervention is required for its operation.
7. Maintenance
Regular maintenance of the cooling system is crucial for the longevity of the water pump and the engine. While the water pump itself is a sealed unit, its performance relies on the overall health of the cooling system.
- Coolant Level Check: Regularly inspect the coolant reservoir level and top up with the correct coolant type as needed.
- Coolant Quality: Follow the manufacturer's recommendations for coolant flush and replacement intervals. Old or contaminated coolant can degrade pump seals and internal components.
- Belt Inspection: If the water pump is driven by a belt, inspect the belt for cracks, fraying, or excessive wear. Ensure proper belt tension.
- Leak Detection: Periodically check for any signs of coolant leaks around the water pump housing or hoses.
Image 4: Underside view of the water pump, showing the mounting plate and the gasket designed for a secure seal.
8. Troubleshooting
If you experience issues with your engine's cooling system after water pump installation, consider the following common problems:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine Overheating | Low coolant level, air in cooling system, faulty thermostat, clogged radiator, drive belt slippage. | Check coolant level and bleed air. Inspect thermostat, radiator, and drive belt. |
| Coolant Leakage | Improperly seated gasket, loose hose clamps, damaged hoses, crack in pump housing. | Inspect all connections and the pump housing. Re-tighten clamps or replace hoses/gasket as needed. |
| Unusual Noise (e.g., grinding, squealing) | Worn bearings, loose drive belt, foreign object in pump. | Inspect drive belt tension. If noise persists, the pump may require replacement. |
If troubleshooting steps do not resolve the issue, consult a qualified mechanic or the equipment's service manual.

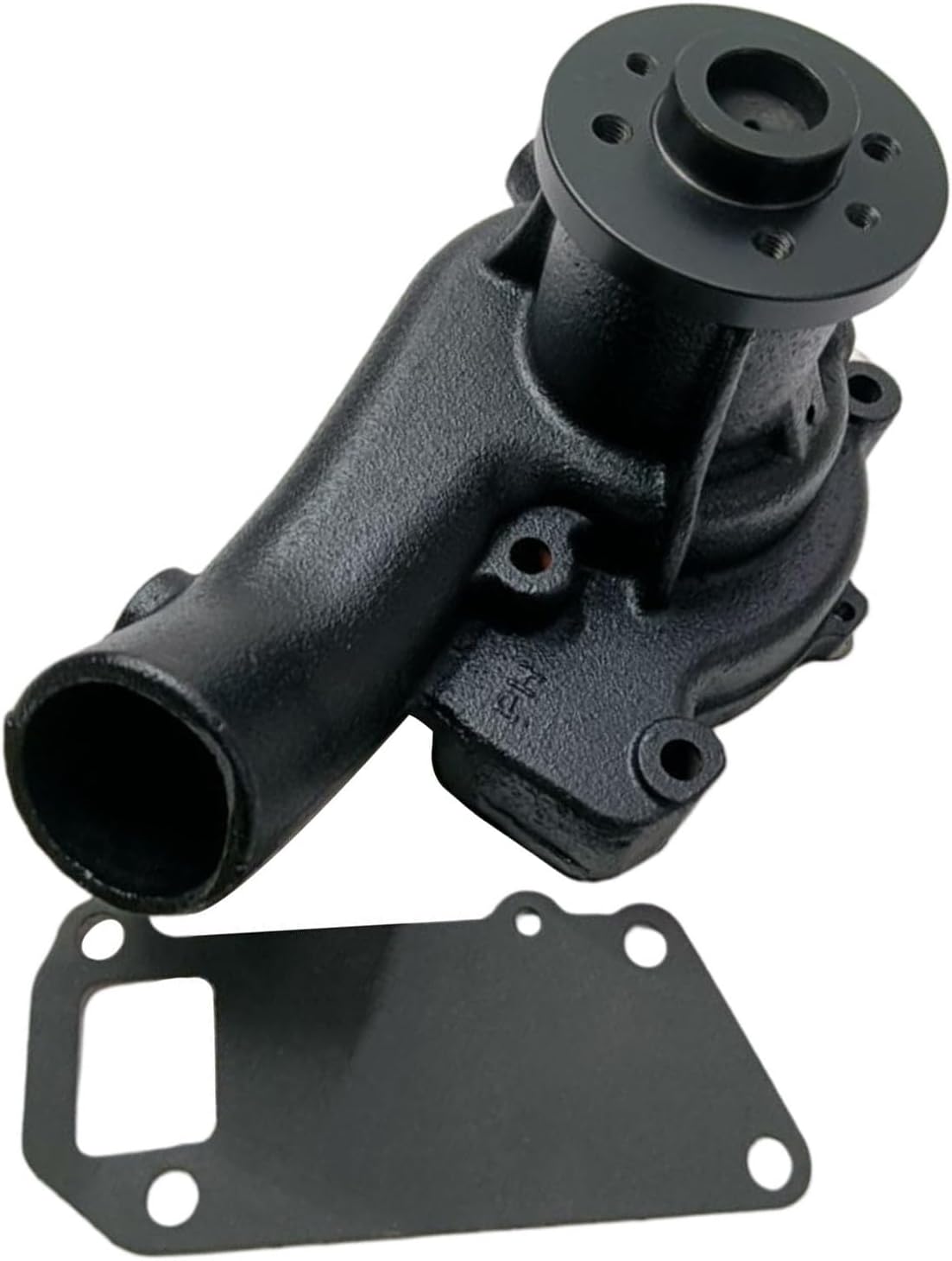

Image 5: A different angled view of the water pump, showing the main outlet and mounting points, along with the gasket.
9. Specifications
| Attribute | Detail |
|---|---|
| Part Number | 65.02502-8220 / 65025028220 |
| Brand | Jeimgrso |
| Application | Doosan Excavator DH225-7, DH258-7; Daewoo DB58 Engine |
| Package Includes | 1x Water Pump, 1x Gasket |
10. Warranty and Support
This Jeimgrso Water Pump comes with a 6-month warranty from the date of purchase. This warranty covers manufacturing defects under normal operating conditions.
For warranty claims, technical assistance, or further inquiries, please contact your point of purchase or the Jeimgrso customer support channel. Please have your purchase receipt and part number ready when contacting support.
For general information regarding Jeimgrso products, you may visit the brand's official presence on platforms like Amazon: Jeimgrso Brand Page.
