KEPWORTH 36V 100Ah LiFePO4 Battery User Manual

1. Setup and Installation

The KEPWORTH 36V 100Ah LiFePO4 battery is designed for easy integration as a replacement for traditional lead-acid batteries. Its compact size and lighter weight simplify installation in various applications.

1.1 Physical Dimensions and Weight

• Dimensions: 20.67" (L) x 9.06" (W) x 8.66" (H)
• Weight: Approximately 65 lbs
• Terminal Type: M8 Screw Terminal

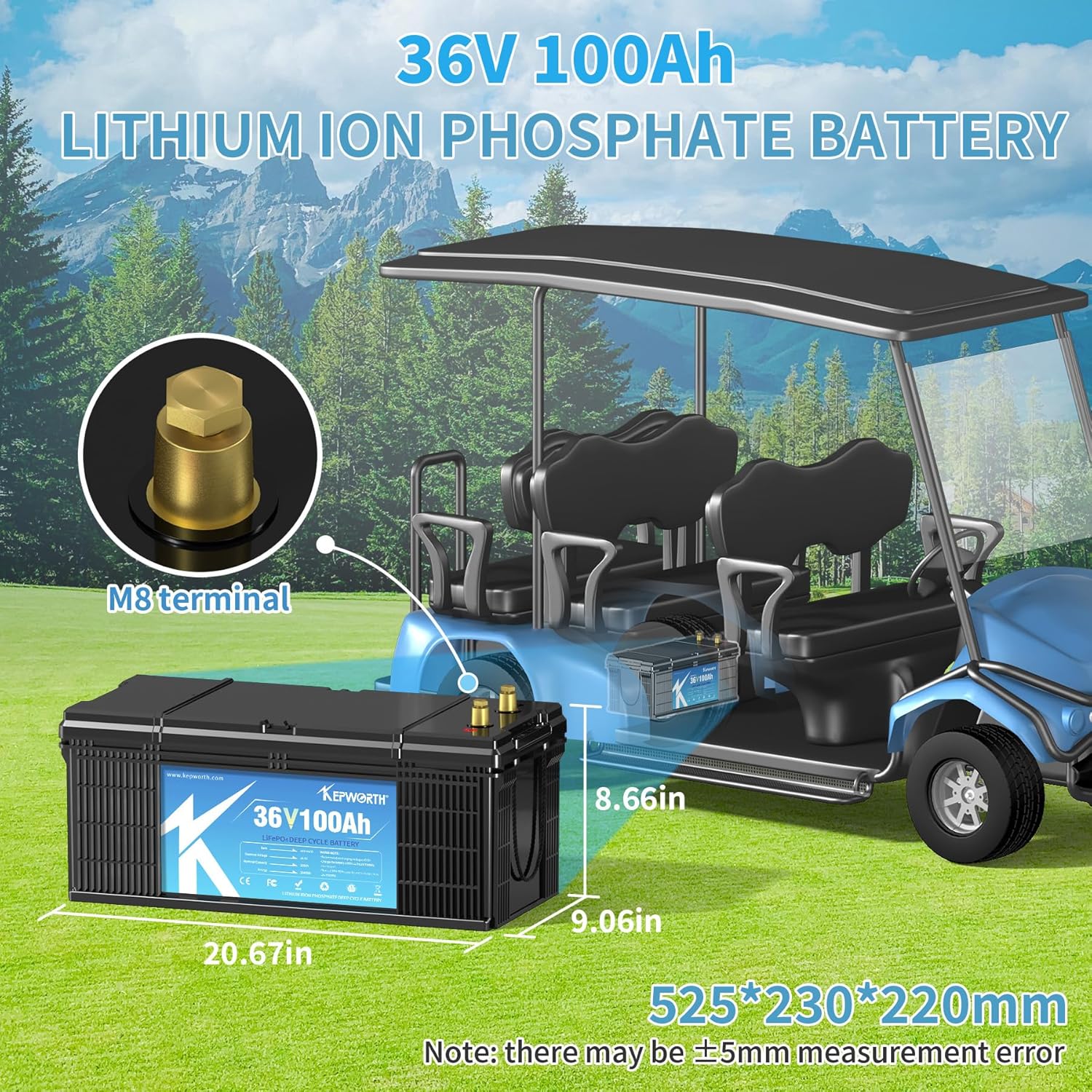

Figure 1: KEPWORTH 36V 100Ah LiFePO4 Battery showing its dimensions and M8 terminal type. The battery is designed to fit into standard golf cart battery compartments.

1.2 Installation Guidelines

1. Ensure the battery is placed on a stable, flat surface within the designated compartment.
2. Secure the battery using appropriate straps or mounting hardware to prevent movement during operation.
3. Connect the M8 screw terminals to your system's positive and negative cables. Ensure connections are tight and secure to prevent arcing or power loss.
4. Verify all connections are correct before powering on your system.

Figure 2: The KEPWORTH LiFePO4 battery is significantly lighter than lead-acid alternatives, simplifying the installation process and reducing overall vehicle weight.

2. Operating Instructions

The KEPWORTH 36V 100Ah LiFePO4 battery features an advanced Battery Management System (BMS) and Bluetooth connectivity for optimal performance and monitoring.

2.1 Smart 200A BMS Features

The built-in upgraded smart 200A BMS provides comprehensive protection and management for the battery:

• Over-charging Protection: Prevents damage from excessive charging voltage.
• Over-discharging Protection: Safeguards against draining the battery too low.
• Over-current Protection: Protects against excessive current draw.
• Short-circuit Protection: Automatically disconnects in case of a short circuit.
• Low-temperature Cut-off: Ensures safe operation and charging in cold environments.

Figure 3: The KEPWORTH battery features a 200A upgraded BMS for enhanced safety and performance, along with 2C rate Grade A cells for stable power delivery.

2.2 Bluetooth Monitoring via Mobile App

Monitor your battery's status in real-time using the dedicated mobile application. The app allows you to view:

• Battery status and charge level.
• Individual battery cell information.
• Current power information (voltage, current, temperature).
• Control charging and discharging toggles.

Figure 4: The mobile app provides a convenient interface to monitor and manage your KEPWORTH LiFePO4 battery's performance and health.

2.3 Performance Characteristics

• Continuous Discharging Current: 200A
• Inrush Current: 400A (for 35 seconds), 600A (for 3 seconds)
• Energy Density: 3-5 times higher than typical lead-acid batteries.
• Cell Type: Top Grade EV industry Lithium Iron Phosphate cells (2C Rate).

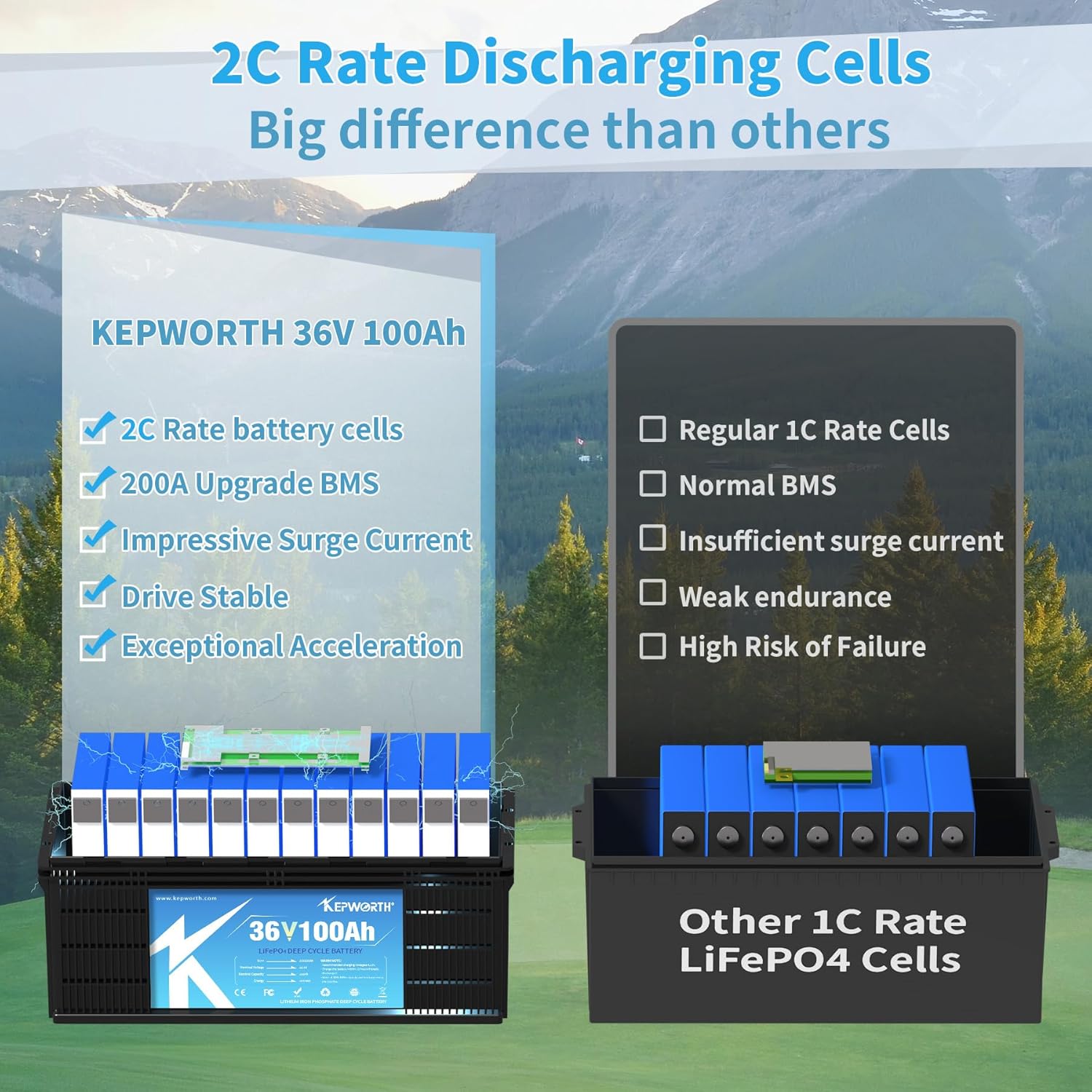

Figure 5: KEPWORTH's 2C Rate battery cells provide superior performance, including impressive surge current and stable drive, compared to standard 1C rate cells.

3. Maintenance

The KEPWORTH LiFePO4 battery is designed for minimal maintenance, offering a significant advantage over traditional lead-acid batteries.

• No Daily Maintenance: Unlike lead-acid batteries, this LiFePO4 battery does not require regular watering or acid level checks.
• Temperature Management: The built-in BMS includes low-temperature cut-off protection, ensuring safe use in various environments. Avoid prolonged exposure to extreme temperatures outside the recommended operating range.
• Cleaning: Keep the battery terminals clean and free from corrosion. Use a dry cloth to wipe down the battery case as needed.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% capacity and stored in a cool, dry place.

4. Troubleshooting

The KEPWORTH LiFePO4 battery's Smart BMS is designed to prevent most common battery issues. If you experience problems, consider the following:

• No Power Output:
  • Check all cable connections to ensure they are secure and free from corrosion.
  • Verify the battery's charge level using the mobile app. If the battery is deeply discharged, the BMS may have entered protection mode.
  • Check for any fault indicators on the mobile app, which can provide specific error codes or warnings.
• Charging Issues:
  • Ensure you are using a compatible LiFePO4 charger. Lead-acid chargers are not suitable.
  • Confirm the charger is properly connected and receiving power.
  • The BMS may prevent charging if the battery temperature is too low (low-temperature cut-off). Move the battery to a warmer environment if necessary.
• Reduced Performance:
  • Check the battery's state of health and individual cell balance via the mobile app.
  • Ensure the battery is fully charged before use.

For persistent issues or advanced diagnostics, refer to the detailed information available through the Bluetooth mobile app or contact KEPWORTH customer support.

5. Specifications

6. Warranty and Support

KEPWORTH is committed to providing high-quality products and customer satisfaction.

• Product Lifetime: The KEPWORTH 36V 100Ah LiFePO4 battery is designed for a 10-year lifetime with 4000+ deep cycles.
• Warranty Information: For detailed warranty terms and conditions, please refer to the official KEPWORTH website or the warranty card included with your product.
• Customer Support: If you have any questions, require technical assistance, or need to report an issue, please contact KEPWORTH customer support through their official channels.
