RAF R.5350 Digital Air Fryer Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation of your RAF R.5350 Digital Air Fryer. Please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Instructions

WARNING: To prevent electric shock, fire, or injury, always follow basic safety precautions.

• Read all instructions before using the appliance.
• Do not immerse the cord, plug, or the appliance housing in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use attachments not recommended by the appliance manufacturer.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use the appliance for other than intended use.
• Ensure the voltage indicated on the appliance corresponds to the local mains voltage before connecting the appliance.
• Do not block any ventilation openings.
• The appliance operates at high temperatures. Do not touch hot surfaces. Use handles or knobs.
• Always ensure the frying basket is properly inserted before operation.

3. Product Overview

The RAF R.5350 Digital Air Fryer utilizes rapid air circulation technology to cook food with little to no oil, offering a healthier alternative to traditional frying. It features an 8-liter capacity and a powerful 1500W heating element.

Components

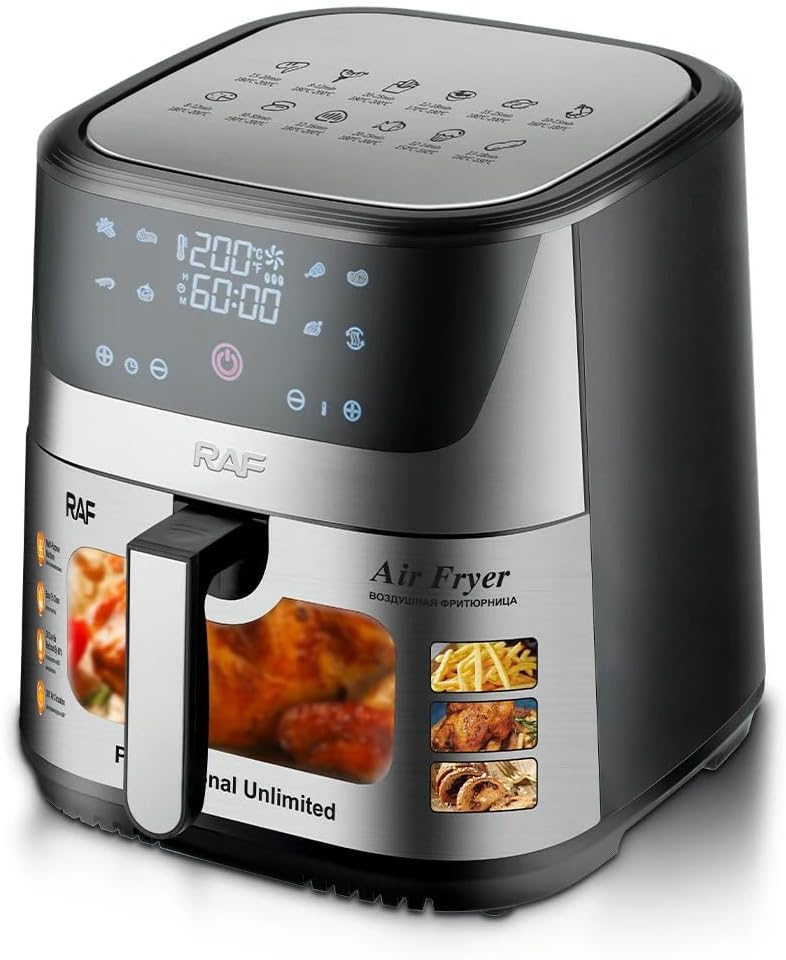

Figure 3.1: Front view of the RAF R.5350 Digital Air Fryer with the cooking basket fully inserted.

Figure 3.2: Close-up of the digital touch control panel and the main body of the air fryer.

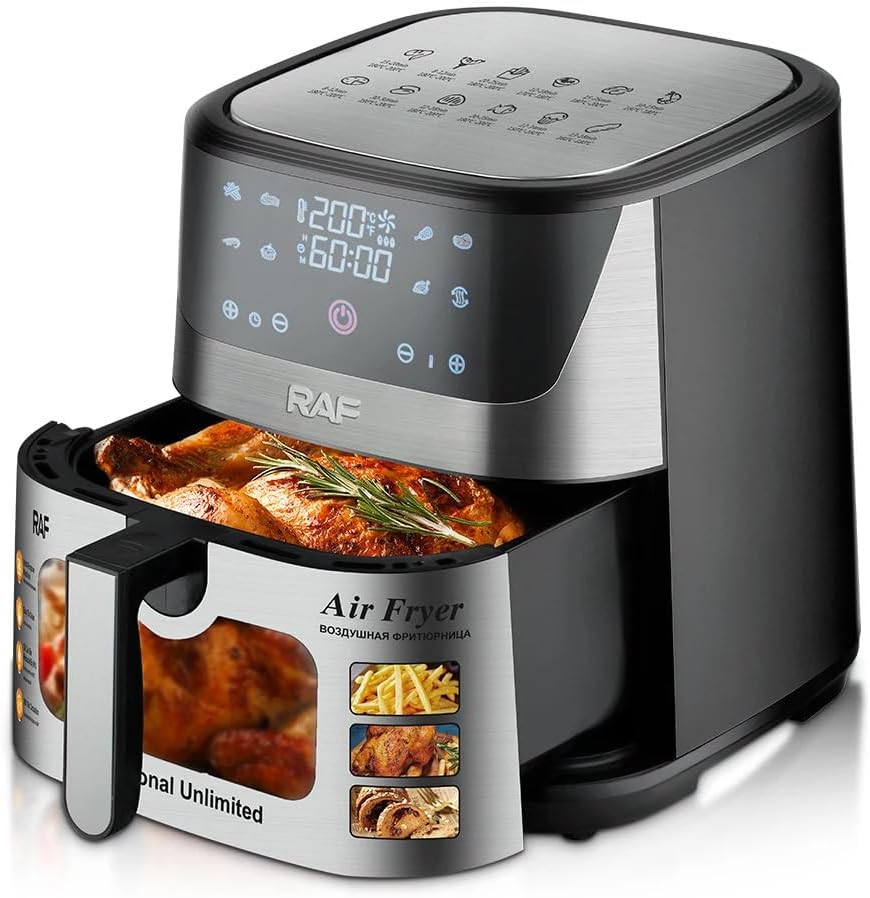

Figure 3.3: The air fryer with its cooking basket partially pulled out, showing the interior space.

Figure 3.4: The air fryer alongside its removable crisper plate, designed for optimal air circulation.

The air fryer consists of a main unit with a digital touch control panel, a removable cooking basket, and a crisper plate. The handle allows for safe removal of the hot basket.

Key Features

• 8-Liter Capacity: Large cooking volume suitable for family meals.
• 1500W Power: Ensures rapid heating and efficient cooking.
• Digital Touch Control: Intuitive interface for setting time and temperature.
• Temperature Control: Adjustable temperature for various recipes.
• Non-Stick Basket: Easy to clean and prevents food from sticking.

4. Setup and First Use

1. Unpack: Carefully remove all packaging materials and any promotional labels or stickers from the air fryer.
2. Clean: Wash the cooking basket and crisper plate thoroughly with hot water, dish soap, and a non-abrasive sponge. Rinse and dry completely. Wipe the interior and exterior of the appliance with a damp cloth.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance to allow for proper air circulation. Do not place it directly against a wall or under cabinets.
4. Initial Run (Optional but Recommended): Plug the air fryer into a grounded wall outlet. Set the temperature to 200°C (390°F) and the timer to 10 minutes. This helps to burn off any manufacturing residues and odors. A slight odor may be present during this first use; this is normal.
5. Cool Down: After the initial run, unplug the appliance and allow it to cool down completely before proceeding with cooking.

5. Operating Instructions

General Operation

1. Prepare Food: Prepare your ingredients as desired. For best results, lightly coat food with oil if specified in recipes.
2. Place Food: Pull the handle to slide the cooking basket out of the air fryer. Place the crisper plate inside the basket, then arrange your food on the crisper plate. Do not overfill the basket to allow for proper air circulation.
3. Insert Basket: Slide the cooking basket back into the air fryer until it clicks securely into place.
4. Power On: Plug the air fryer into a grounded electrical outlet. The digital display will illuminate.
5. Set Temperature and Time:
   • Use the temperature control buttons (usually '+' and '-') to adjust the desired cooking temperature.
   • Use the timer control buttons (usually '+' and '-') to set the desired cooking time.
6. Start Cooking: Press the Start/Pause button to begin the cooking process. The air fryer will start heating, and the timer will count down.
7. Shake/Flip Food (Optional): For even cooking, especially with smaller items like fries, pull out the basket halfway through the cooking time and gently shake or flip the food. Then, reinsert the basket. The air fryer will resume cooking automatically.
8. Cooking Complete: When the timer reaches zero, the air fryer will beep, indicating that cooking is complete.
9. Remove Food: Carefully pull out the cooking basket using the handle. Use heat-resistant tongs to remove the cooked food from the basket. Avoid touching the hot basket or crisper plate directly.
10. Power Off: Unplug the air fryer from the wall outlet after use.

Using Preset Functions

The RAF R.5350 Digital Air Fryer may include several preset cooking functions for common foods. These are typically represented by icons on the control panel.

1. After placing food in the basket and inserting it into the air fryer, press the Power button.
2. Press the 'M' (Mode) or preset selection button repeatedly to cycle through the available preset options (e.g., fries, chicken, fish, steak, cake).
3. Once you select a preset, the air fryer will automatically set the recommended temperature and time.
4. You can usually adjust the preset temperature and time manually if desired using the '+' and '-' buttons.
5. Press the Start/Pause button to begin cooking.

6. Maintenance and Cleaning

Always unplug the air fryer and allow it to cool completely before cleaning.

Cleaning the Cooking Basket and Crisper Plate

Figure 6.1: Interior view of the cooking basket, showing the non-stick surface.

• Remove the cooking basket and crisper plate from the air fryer.
• Wash them in hot soapy water using a non-abrasive sponge. For stubborn food residues, soak them in hot water for about 10 minutes before cleaning.
• The basket and crisper plate are generally dishwasher-safe, but hand washing is recommended to prolong the life of the non-stick coating.
• Rinse thoroughly and dry completely before reassembling or storing.

Cleaning the Exterior and Interior

• Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
• Clean the interior of the appliance with a damp cloth. If necessary, a soft brush can be used to remove food residues from the heating element.
• Never immerse the main unit in water or any other liquid.

Storage

Ensure the air fryer is clean and completely dry before storing. Store it in a cool, dry place, away from direct sunlight and moisture.

7. Troubleshooting

8. Specifications

Figure 8.1: Diagram showing the physical dimensions of the air fryer.

9. Warranty and Support

For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or contact the retailer where the product was purchased. For technical support or service inquiries, please contact the manufacturer's customer service department.
