Bazargame 58cc Gas Chainsaw User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Bazargame 58cc Gas Chainsaw. Please read this manual thoroughly before operating the chainsaw to ensure proper use and to prevent injury or damage.

Image: The Bazargame 58cc Gas Chainsaw, showcasing its orange and grey design with a 20-inch guide bar and chain.

2. Safety Information

WARNING: Chainsaws can be dangerous if not operated correctly. Always follow all safety precautions to minimize the risk of serious injury.

• Personal Protective Equipment (PPE): Always wear appropriate PPE including a helmet with face shield, hearing protection, safety glasses, heavy-duty gloves, chainsaw protective pants/chaps, and steel-toed boots.
• Work Area: Ensure the work area is clear of bystanders, pets, and obstacles. Maintain a safe distance from others.
• Fuel Handling: Handle fuel in a well-ventilated area, away from ignition sources. Do not smoke while refueling.
• Kickback Prevention: Be aware of kickback. Always hold the chainsaw firmly with both hands. Avoid cutting with the tip of the guide bar.
• Pre-Operation Check: Before each use, inspect the chainsaw for loose parts, damage, or fuel leaks. Ensure the chain brake is functional.
• Dual Switches: This chainsaw is designed with dual switches that need to be pressed simultaneously to start, preventing accidental activation.
• Emergency Braking: The high-quality brake plug can be used for emergency braking to protect hands and ensure safe use.

3. Components and Parts Identification

Familiarize yourself with the various parts of your chainsaw before assembly and operation.

Image: Diagram illustrating key components of the chainsaw, including the guide bar, saw chain, front guard, front handle, oil tank, starter knob, air cleaner, choke knob, throttle interlock, rear handle, engine switch, throttle trigger, and throttle lock button.

• Guide Bar: Supports and guides the saw chain.
• Saw Chain: The cutting element of the chainsaw.
• Front Guard: Protects the operator's hand.
• Front Handle: Provides a secure grip for the left hand.
• Oil Tank: Reservoir for chain lubrication oil.
• Starter Knob: Used to engage the pull start mechanism.
• Air Cleaner: Filters air entering the engine.
• Choke Knob: Used for cold starting the engine.
• Throttle Interlock: Safety lever that must be pressed before the throttle trigger can be engaged.
• Rear Handle: Provides a secure grip for the right hand, containing controls.
• Engine Switch: Turns the engine on or off.
• Throttle Trigger: Controls engine speed and chain movement.
• Throttle Lock Button: Locks the throttle in a certain position (if applicable, refer to specific model features).

4. Setup and Assembly

Follow these steps to assemble your chainsaw:

1. Install the Jam Teeth: Ensure the jam teeth are installed in the correct direction.
2. Install the Guide Bar: Securely attach the guide bar to the chainsaw body.
3. Install the Chain: Carefully place the saw chain around the guide bar and sprocket, ensuring the cutting edges are facing the correct direction.
4. Cover the Side Cover: Reattach and secure the side cover.
5. Adjust Chain Tightness: Adjust the chain tension. The chain should be snug but still able to be pulled freely around the guide bar by hand. Refer to the specific tensioning mechanism for your model.
6. Tighten the Screw: Secure all screws and fasteners, ensuring the guide bar and chain are firmly in place.

Image: Visual guide demonstrating the assembly process of the chainsaw, including installing the guide bar and chain.

5. Operating Instructions

Before starting, ensure the fuel tank is filled with the correct fuel mixture (gasoline and 2-cycle oil, typically 25:1 ratio) and the chain oil reservoir is full.

Starting the Chainsaw:

1. Engage the Brake: Push the chain brake forward to engage it. This is a critical safety step.
2. Move On/Off Switch: Move the On/Off switch to the "On" position.
3. Pull Choke Knob: Pull the choke knob fully out to the choke position for cold starts.
4. Pull Start Handle: Pull the starter handle firmly and smoothly until the engine briefly fires (usually 1-6 pulls). Do not pull more than 6 times with the choke out.
5. Push Choke Knob Back: Once the engine fires, push the choke knob fully back in.
6. Restart: Pull the starter handle again until the engine starts and runs.
7. Disengage Brake: Once the engine is running, disengage the chain brake by pulling it back towards the handle.

Cutting Operation:

• Always maintain a firm grip with both hands on the handles.
• Ensure stable footing and balance.
• Let the chain reach full speed before beginning a cut.
• Use the bumper spike (jam teeth) as a pivot point for stability during cuts.
• Be aware of falling branches and logs. Plan your escape route.
• Avoid cutting above shoulder height.

Image: The 58cc Gas Chainsaw in operation, demonstrating its high-speed cutting capability for wood. This model features a 2.4kW engine and a 20-inch chain.

6. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your chainsaw.

• Chain Sharpening: Keep the saw chain sharp. A dull chain can cause kickback and poor cutting performance.
• Chain Lubrication: Ensure the automatic lubrication system is functioning and the oil tank is filled with appropriate chain oil.
• Air Filter Cleaning: Regularly clean or replace the air filter to maintain engine performance.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn.
• Guide Bar Maintenance: Clean the guide bar groove and oil holes. Flip the guide bar periodically to ensure even wear.
• General Cleaning: Clean the chainsaw after each use, removing sawdust and debris from the engine fins and housing.

7. Troubleshooting

8. Specifications

Image: Visual representation of the chainsaw's key specifications, including engine type, displacement, bar length, weight, output power, and maximum speed.

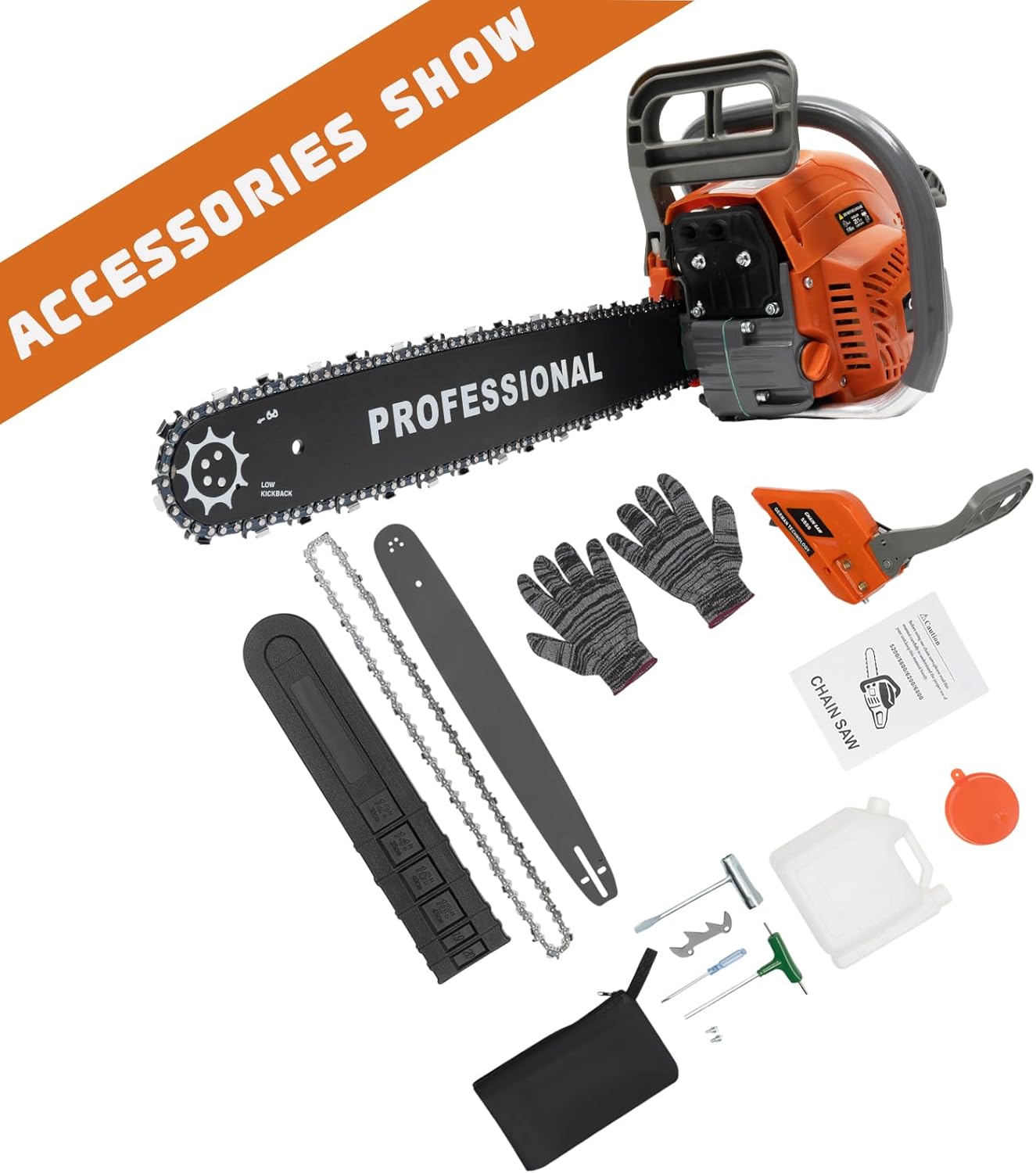

Image: A display of the accessories included with the chainsaw, such as the chain, guide bar, chain bar cover, fuel tank, tool bag, gloves, screwdriver, funnel, and English manual.

9. Warranty and Support

For any questions, technical assistance, or warranty inquiries regarding your Bazargame 58cc Gas Chainsaw, please contact the manufacturer or seller directly. Refer to your purchase documentation for specific warranty terms and contact information.

You may also visit the Bazargame Store on Amazon for additional product information and support.
