1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your FLTXNY POWER 3KW 48V Wind Turbine Generator Kit. This system is designed to convert wind energy into electrical power, suitable for various applications including hybrid solar-wind systems. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
2. Safety Information
Warning: Installation and maintenance of wind turbines involve working at heights and with electrical components. Improper handling can lead to serious injury or death. Always follow local electrical codes and safety regulations.
- Ensure all power sources are disconnected before performing any installation or maintenance.
- Wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and hard hats.
- Do not install the turbine during strong winds, storms, or lightning.
- Keep children and unauthorized personnel away from the installation area.
- Consult a qualified electrician for all electrical connections.
- Ensure the mounting pole is securely anchored and capable of withstanding wind loads.
3. Product Overview
The FLTXNY POWER 3KW 48V Wind Turbine Generator Kit is a robust system designed for efficient wind energy conversion. It features a patented permanent magnet AC generator and is supplied with an MPPT charge controller for optimized battery charging.
Key Components:
- Wind Turbine Generator: Converts wind energy into electrical energy.
- Blades (3x): Designed for efficient wind capture.
- MPPT Charge Controller: Maximizes power extraction from the wind turbine and regulates charging for the battery bank.
- Tail Fin: Orients the turbine into the wind.
Features:
- Estimated 20-year service life.
- High efficiency for optimal power generation.
- Compatible with hybrid solar panel systems.
- Patented permanent magnet AC generator with a special stator design to effectively reduce torque.
- CE certified for safety and quality.
- Versatile applications: Marine, Boat, Streetlights, Home, and Open Plaza lighting.
Figure 3.1: System Diagram showing Wind Power Generator, Controller, Storage Battery, Inverter, and AC Load.
Figure 3.2: The 3KW 48V Wind Turbine Generator Kit with its MPPT charge controller, installed in an outdoor setting.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your wind turbine. It is highly recommended to have this system installed by qualified professionals.
4.1 Site Selection
Choose a location with consistent and unobstructed wind flow. Avoid areas with significant turbulence caused by buildings, trees, or other obstacles. The turbine should be mounted on a sturdy pole at an appropriate height.
Figure 4.1: Diagram illustrating optimal wind turbine placement relative to obstacles. Ideal placement is high and clear of obstructions.
4.2 Assembly Steps
- Mounting Pole Preparation: Ensure the mounting pole is robust, properly grounded, and securely installed.
- Turbine Body Installation: Secure the main body of the wind turbine to the top of the mounting pole.
- Blade Assembly: Attach the three blades to the turbine hub. Ensure all fasteners are tightened according to specifications.
- Tail Fin Attachment: Install the tail fin to the rear of the turbine body.

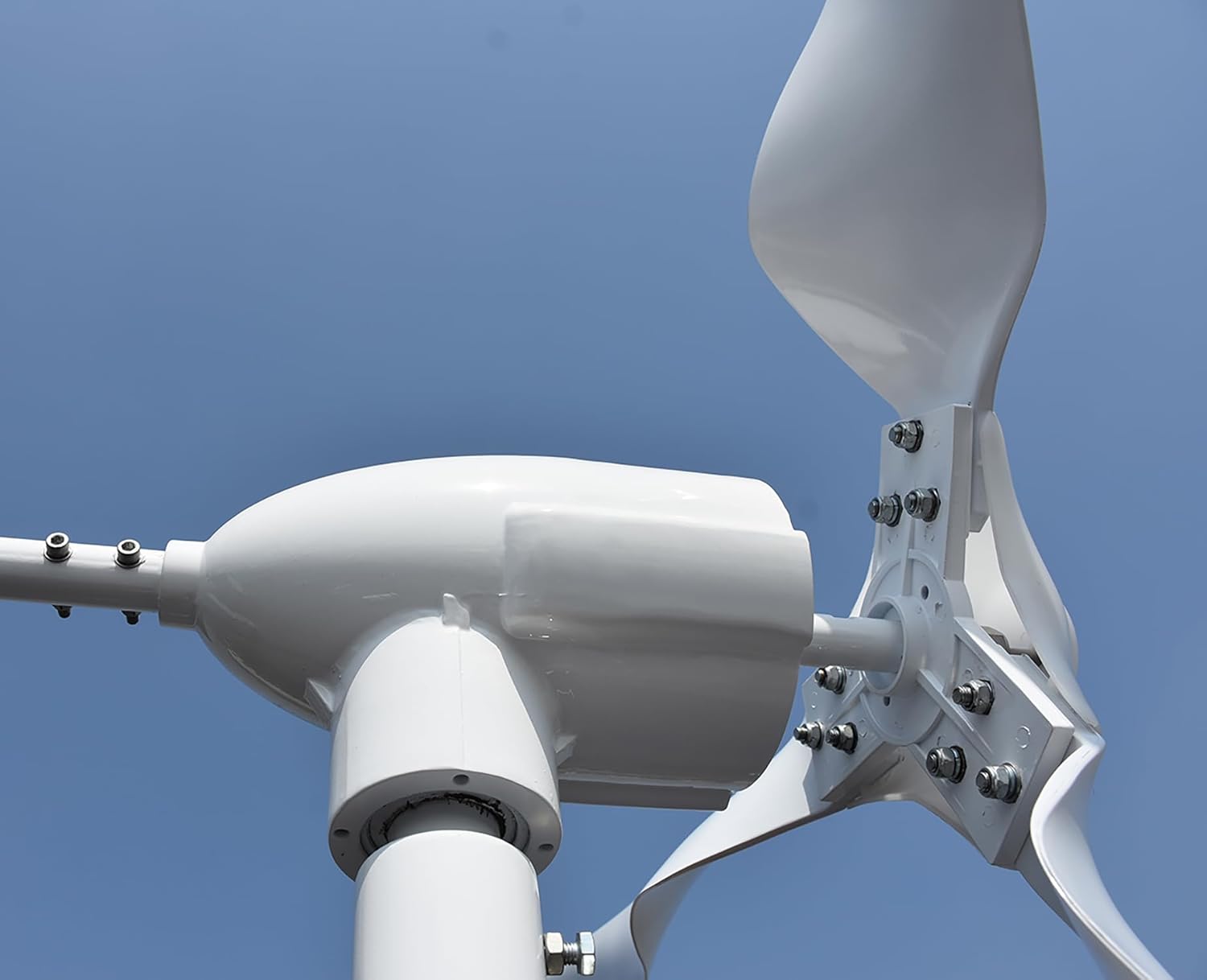

Figure 4.2: Detailed view of the turbine head and blade attachment points.

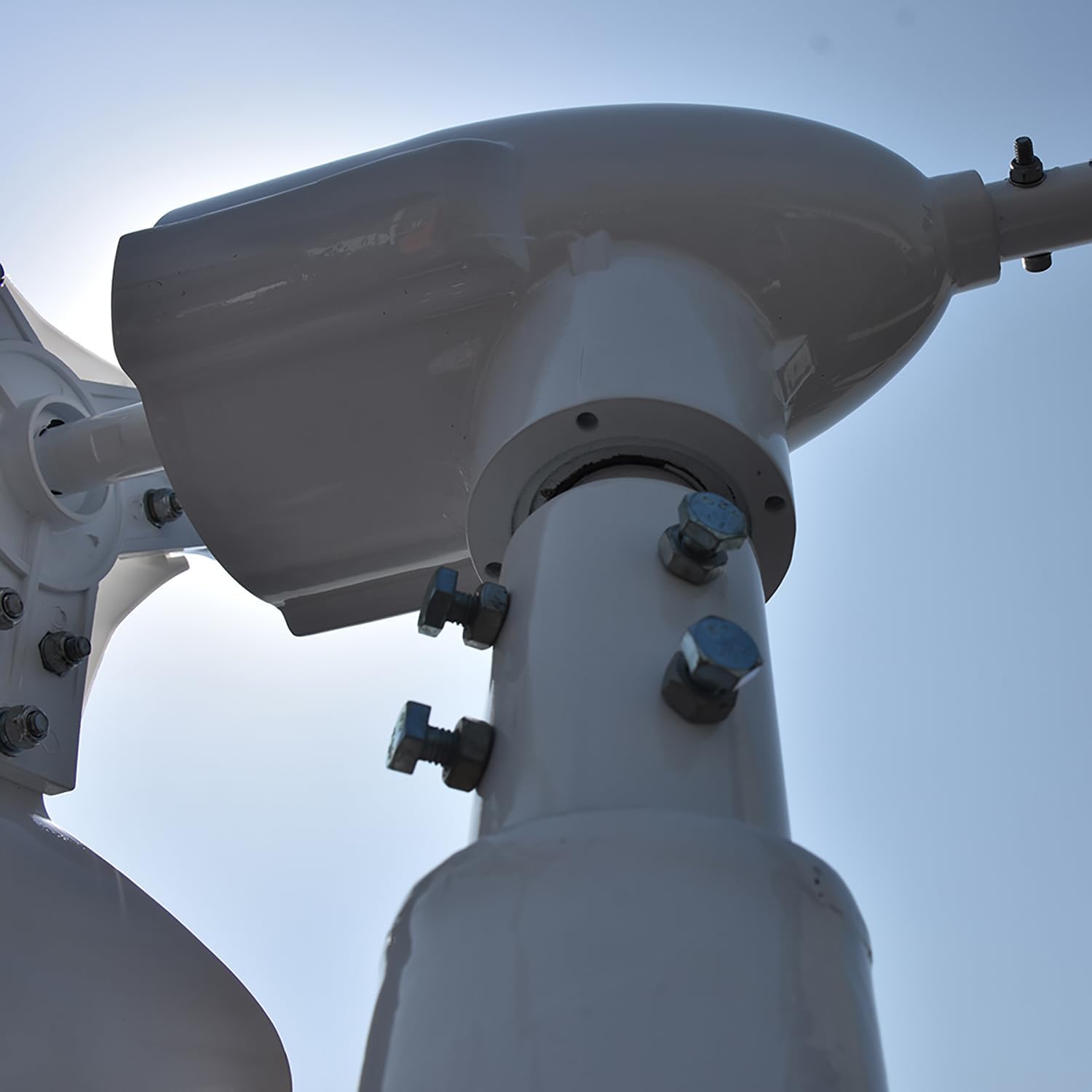

Figure 4.3: Connection point of the wind turbine to its mounting pole, showing secure bolting.
4.3 Electrical Connections
All electrical wiring must be performed by a certified electrician to prevent electrical hazards and ensure system integrity.
- Turbine to Controller: Connect the output wires from the wind turbine generator to the designated input terminals on the MPPT charge controller. Observe correct polarity.
- Controller to Battery: Connect the MPPT charge controller's output to your 48V battery bank. Ensure the battery bank is correctly sized for your system and properly connected.
- Battery to Inverter (Optional): If converting to AC power, connect the battery bank to a suitable inverter.
- Grounding: Ensure the entire system, including the mounting pole and turbine, is properly grounded according to local electrical codes.
5. Operating Instructions
Once installed, the wind turbine system operates largely automatically. The MPPT charge controller manages the power flow to the battery bank.
- Initial Startup: After all connections are verified, the turbine will begin to rotate and generate power when sufficient wind is present.
- MPPT Controller: The controller will automatically adjust to maximize power harvest from the turbine and ensure the battery bank is charged efficiently and safely.
- Power Output: The power generated will vary with wind speed. Higher wind speeds result in greater power output.
- System Monitoring: Periodically check the MPPT controller's display (if available) for system status, battery voltage, and charging current.
Figure 5.1: Example of a hybrid solar and wind power system, demonstrating the integration capabilities of the wind turbine.
6. Maintenance
Regular maintenance ensures the long-term reliability and efficiency of your wind turbine system.
- Annual Inspection: Conduct a thorough visual inspection of the turbine, blades, tail fin, mounting pole, and all electrical connections at least once a year.
- Blade Check: Inspect blades for any cracks, damage, or excessive wear. Clean blades if significant dirt or debris has accumulated, as this can affect aerodynamic efficiency.
- Fastener Tightness: Check and re-tighten all bolts and fasteners on the turbine body, blades, and mounting pole.
- Electrical Connections: Verify that all electrical connections are secure and free from corrosion.
- Bearing Check: Listen for unusual noises from the turbine head, which could indicate bearing wear.
- Controller Inspection: Ensure the MPPT charge controller is clean and free from dust or moisture. Check for any error indicators.
Caution: Always disconnect power to the turbine and controller before performing any maintenance. If working at height, use appropriate safety equipment.
7. Troubleshooting
This section provides solutions to common issues. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output | Insufficient wind; Loose electrical connections; Controller fault; Damaged turbine components. | Check wind speed; Verify all wiring connections; Inspect controller for error codes; Examine turbine for visible damage. |
| Low power output | Low wind speed; Obstructions blocking wind; Dirty or damaged blades; Battery issues. | Ensure clear wind path; Clean blades; Check battery health and connections; Verify controller settings. |
| Unusual noise or vibration | Loose components; Damaged blades; Bearing wear. | Inspect and tighten all fasteners; Check blades for damage; Contact support if bearing noise persists. |
| Controller not functioning | No power input from turbine/battery; Internal fault. | Check turbine and battery connections to controller; Consult manual for controller-specific troubleshooting; Contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Rated Power | 3000W |
| Rated Voltage | 48V |
| Number of Blades | 3 |
| Generator Type | Patented Permanent Magnet AC Generator |
| Controller Type | MPPT Charge Controller |
| Certifications | CE |
| Estimated Service Life | 20 years |
| Applications | Marine, Boat, Streetlights, Home, Open Plaza lighting |
9. Warranty and Support
9.1 Warranty Information
This FLTXNY POWER Wind Turbine Generator Kit comes with a 1-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage resulting from improper installation, misuse, neglect, accidents, unauthorized modifications, or natural disasters.
9.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your FLTXNY POWER product, please contact the manufacturer directly. Refer to your purchase documentation for specific contact details or visit the official FLTXNY POWER website.
