Introduction
Thank you for choosing the Body-Solid Precise 7° Angle Smith Machine Home Gym. This equipment is designed to provide a comprehensive strength training experience in a home environment. It combines the safety of a Smith machine with the versatility of a half rack, allowing for a wide range of exercises. Please read this manual thoroughly before assembly and use to ensure proper operation and safety.
Figure 1: Body-Solid Precise 7° Angle Smith Machine Home Gym (Model GS348Q)
Safety Information
Before using this equipment, consult with a physician. It is essential to understand all safety warnings and instructions. Failure to do so may result in serious injury or death.
- Always inspect the machine for damaged or worn parts before each use. Do not use if any components are compromised.
- Ensure all nuts, bolts, and fasteners are securely tightened before and during use.
- Keep children and pets away from the equipment during operation.
- Use the adjustable safety stops at an appropriate height for your exercise to prevent injury.
- Do not exceed the maximum weight capacity of 724 pounds.
- Wear appropriate athletic footwear and clothing.
- Perform exercises with controlled movements. Avoid sudden or jerky motions.
- If you experience pain or dizziness, stop exercising immediately.
Figure 2: Safety Warning Label. Keep hands and fingers away from moving parts to avoid crushing injuries.
Package Contents
The Body-Solid Precise 7° Angle Smith Machine Home Gym is delivered in multiple boxes. Verify all components are present and undamaged before beginning assembly. The primary components include:
- Mainframe Steel Construction (various beams and uprights)
- Smith Bar with linear bearings
- Adjustable Safety Stops
- J-Hooks for free-weight barbell use
- Olympic Weight Plate Storage Posts (6 posts)
- Assembly Hardware (bolts, nuts, washers, etc.)
- Instruction Manual (this document)
Note: Optional attachments such as lat/pec stations, pull-up bars, or weight benches are sold separately and are not included with this model.
Figure 3: Smith Machine with optional attachments shown for illustrative purposes. These attachments are not included with the GS348Q model.
Setup and Assembly
Assembly typically requires two people and can take approximately 3-4 hours. Follow the detailed assembly instructions provided in the separate assembly guide. Ensure you have adequate space for assembly and operation (dimensions: 69"D x 69"W x 83"H).
Assembly Tips:
- Lay out all parts and hardware before starting.
- Do not fully tighten bolts until instructed, or until the entire frame is assembled.
- Use the provided tools or your own appropriate wrenches and sockets.
- Place the machine on a level, stable surface.

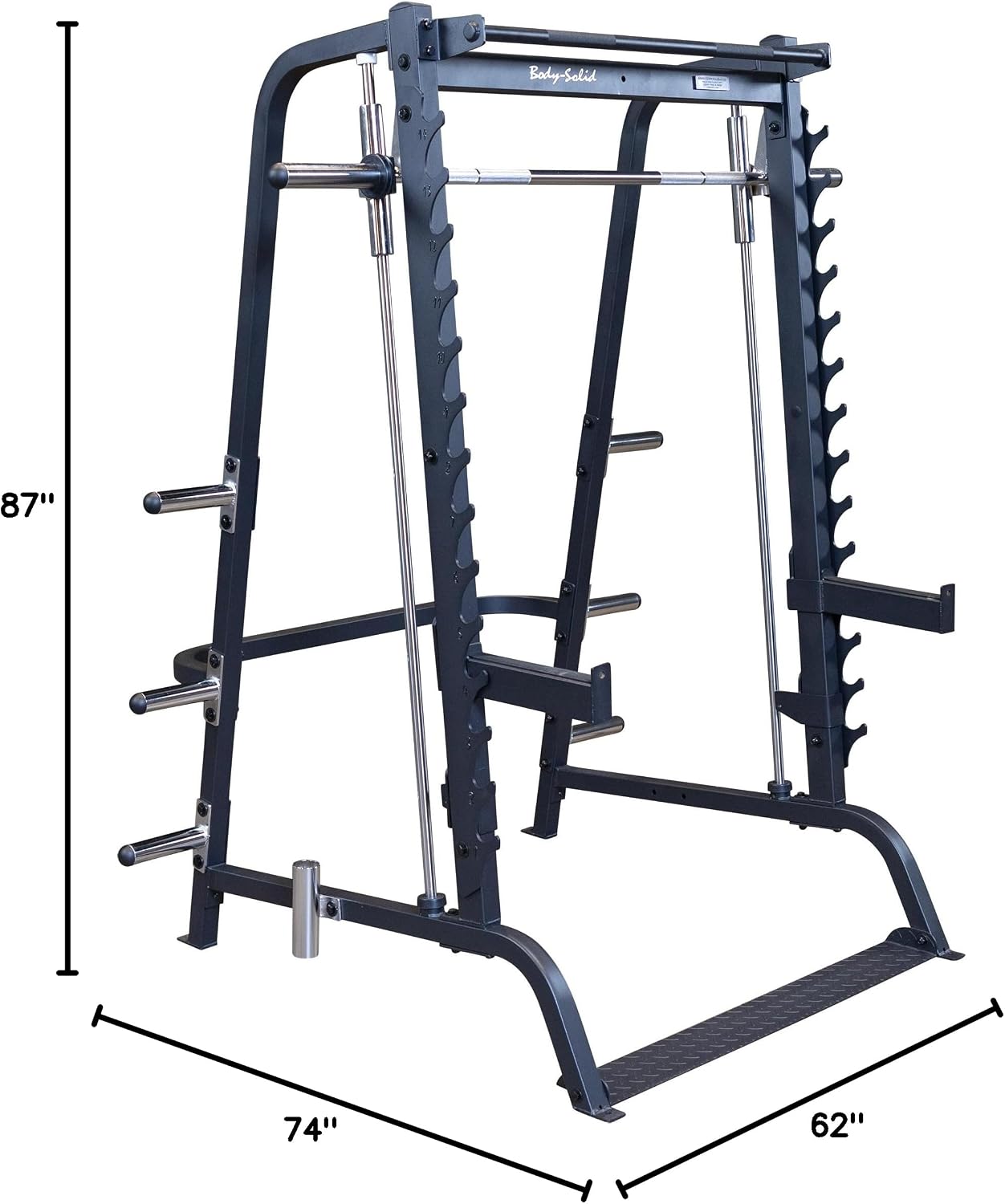

Figure 4: Product Dimensions. The machine measures approximately 69 inches deep, 69 inches wide, and 83 inches high.
Operating Instructions
The Smith Machine offers both guided barbell movements and a half-rack for free-weight exercises. Always warm up before exercising and cool down afterward.
Using the Smith Bar:
- Loading Weights: Carefully slide Olympic-sized weight plates onto the ends of the Smith bar. Ensure an even distribution of weight on both sides.
- Adjusting Safety Stops: Position the adjustable safety stops to prevent the bar from descending below a safe point during your exercise. This is crucial for safety, especially when lifting heavy.
- Unracking the Bar: To begin an exercise, rotate the Smith bar slightly to disengage it from the catches.
- Racking the Bar: To end an exercise, lift the bar to the desired height and rotate it backward to engage the catches securely.
Figure 5: Smith Bar Locking Mechanism. Rotate the bar to engage or disengage from the safety catches.
Figure 6: Adjustable Safety Stop. Position these at a safe height to prevent injury during lifts.
Using the Half Rack (Free Weights):
- Positioning J-Hooks: Insert the J-hooks into the desired height on the front uprights for exercises like squats or bench presses. Ensure both J-hooks are at the same height and fully seated.
- Using Safety Spotters: For free-weight exercises, always use the adjustable safety spotters (often called safety bars or safeties) to catch the barbell if you fail a lift. Adjust them to a height just below your lowest point in the exercise.
- Loading Barbell: Load your own Olympic barbell onto the J-hooks.
Figure 7: J-Hooks for Free Weight Barbell. Insert into the uprights for barbell exercises.
Example Exercises:
- Smith Machine Squats: Position yourself under the bar, unrack, and perform squats with the guided path.
- Smith Machine Bench Press: Use a weight bench inside the machine, unrack the bar, and perform bench presses.
- Smith Machine Rows: Position yourself in front of the bar, grasp it, and perform bent-over rows.
- Free Weight Squats: Using the J-hooks and safety spotters, perform squats with a free barbell.
- Free Weight Bench Press: Using a weight bench, J-hooks, and safety spotters, perform bench presses with a free barbell.
Figure 8: User performing bent-over rows using the Smith bar.
Figure 9: User performing bent-over rows using the Smith bar.
Video 1: Body-Solid GS348B Smith Machine Highlight Video. This video demonstrates various exercises and features of the Smith Machine.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Smith Machine. Perform checks as outlined below.
Figure 10: Maintenance Schedule. Refer to this chart for routine inspection and care.
Key Maintenance Tasks:
- Weekly: Check all nuts, bolts, and fasteners for tightness. Tighten as needed.
- Monthly: Inspect the Smith bar's linear bearings and guide rods for smooth operation. Clean and lubricate guide rods with a silicone-based lubricant if movement becomes stiff.
- Quarterly: Inspect the frame for any signs of damage, cracks, or rust. Clean the entire machine with a damp cloth.
- Annually: Check all welds for integrity. Replace any worn or damaged parts immediately.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Smith bar movement is not smooth. | Guide rods are dirty or lack lubrication. | Clean guide rods and apply a silicone-based lubricant. |
| Machine feels unstable or wobbly. | Loose fasteners; uneven floor surface. | Check and tighten all nuts and bolts. Ensure the machine is on a level surface. |
| Difficulty engaging/disengaging Smith bar catches. | Misalignment or obstruction. | Inspect the catches and the bar for any obstructions. Ensure the bar is rotated correctly. |
Specifications
- Model: GS348Q
- Dimensions (Assembled): 69" D x 69" W x 83" H (175.3 cm D x 175.3 cm W x 210.8 cm H)
- Product Weight: Approximately 276 lbs (125 kg)
- Maximum Weight Capacity: 724 lbs (328 kg)
- Material: Heavy-duty Alloy Steel (11 gauge and 12 gauge 2"x3" mainframe)
- Bar Angle: Precise 7° reverse pitch
- Weight Plate Storage: 6 Olympic weight plate storage posts
- Included Components: Smith Machine frame, Smith bar, J-hooks, adjustable safety stops, hardware.
Warranty
Body-Solid provides the following warranty for the GS348Q Smith Machine:
- Lifetime Warranty: Frame and Welds
- 3 Years: Pulleys, Bushings, Bearings, Hardware, Plates, Guide Rods
- 1 Year: Cables, Upholstery, Grips (Normal Wear)
This warranty applies to the original purchaser and covers manufacturing defects. Normal wear and tear, misuse, or improper assembly are not covered. Please retain your proof of purchase.
Support
For technical assistance, parts replacement, or warranty claims, please contact Body-Solid customer service. Have your model number (GS348Q) and proof of purchase ready when contacting support.
- Website: www.bodysolid.com
- Customer Service: Refer to the Body-Solid website for current contact information (phone numbers, email).
