Introduction
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your YOURLITE 24" Bathroom Vanity with Sink. Please read all instructions carefully before beginning installation to ensure safe and proper use of the product.
For customer support, please visit the YOURLITE Store.
Safety Information
Important Safety Warnings:
- Ensure the cabinet is securely mounted to prevent tipping.
- Do not exceed the recommended weight limit for the vanity and shelves.
- Be aware of potential pinch points during assembly and installation.
- Always follow proper safety procedures when handling tools and materials.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
Package Contents
Verify all components are present before beginning assembly.
The YOURLITE 24" Bathroom Vanity with Sink package includes the main vanity cabinet, the ultra-clear tempered glass vessel sink, a black finish faucet, and a pop-up drain set. All necessary installation accessories, including water supply lines, are provided.
- Vanity Cabinet (1)
- Glass Vessel Sink (1)
- Faucet (1)
- Pop-Up Drain (1)
- Water Supply Lines (2)
- Assembly Hardware Kit (1)
- Instruction Manual (this document)
Product Dimensions and Features

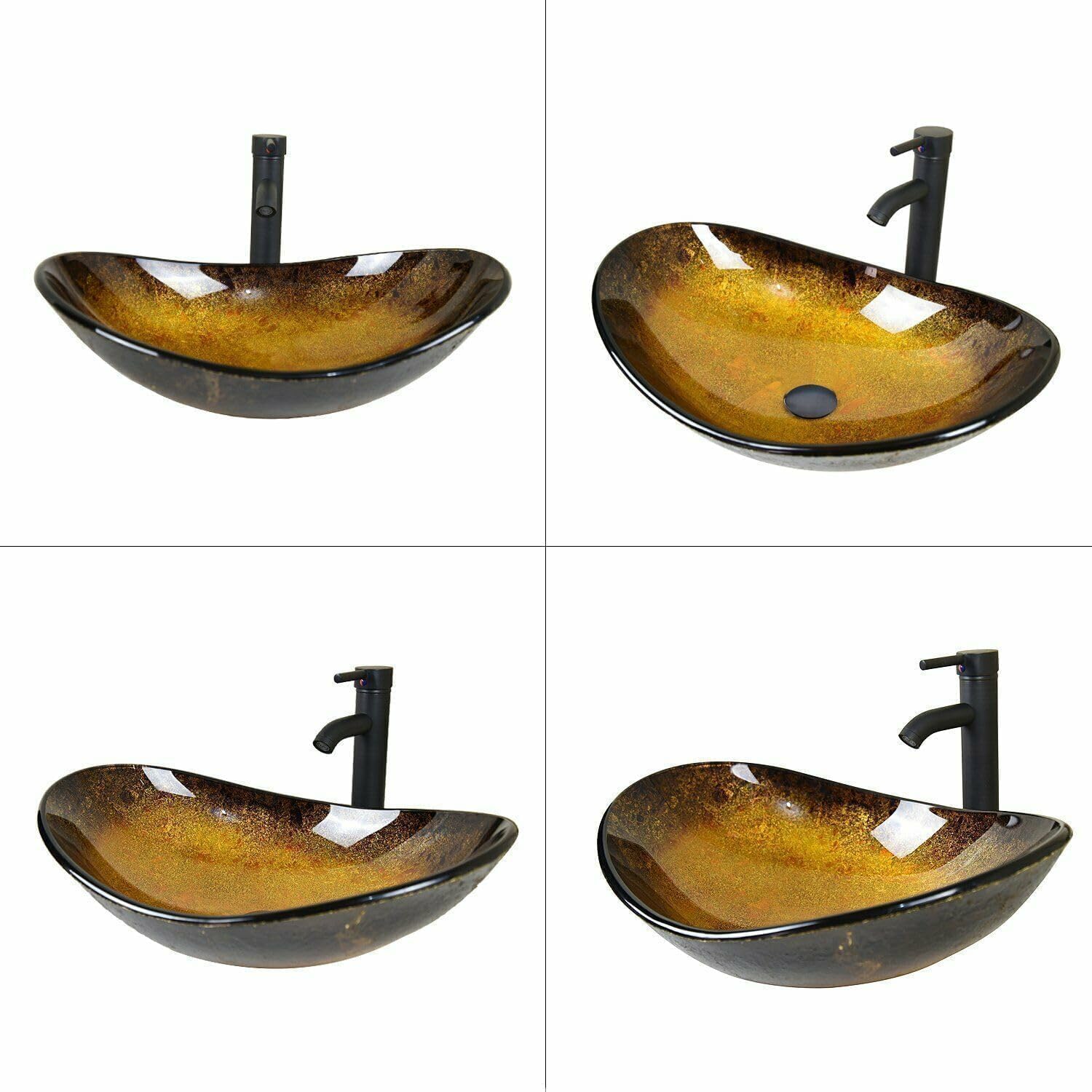

The overall dimensions of the vanity are approximately 24 inches (Width) x 19 inches (Depth) x 32.3 inches (Height). The cabinet is constructed from E1 grade MDF board, providing water resistance and durability. The vessel sink measures 16.5 inches (Length) x 5.5 inches (Height) and is made from 0.5-inch ultra-clear tempered glass.
Key Features:
- Durable Construction: Made from 15mm thick wood panels with sealed edges to prevent water leakage.
- Quality Hardware: Hinges and handles are constructed from stainless steel for longevity.
- Ample Storage: Features side-by-side opening cabinet doors and two internal storage shelves.
- Floor Protection: Equipped with four chrome pads on the base to protect flooring and provide stability.
Setup and Assembly
Follow these steps for proper assembly and installation of your bathroom vanity.
Tools Required (Not Included):
- Phillips Head Screwdriver
- Adjustable Wrench
- Level
- Drill (if wall mounting is desired, though this is a freestanding unit)
- Sealant/Silicone (for sink installation)
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts listed in the "Package Contents" section are present.
- Assemble Cabinet Frame: Follow the included diagram to connect the side panels, back panel, and base using the provided hardware. Ensure all connections are secure.
- Install Shelves: Insert the shelf supports into the pre-drilled holes at your desired height and place the shelves onto the supports. The cabinet includes two shelves for flexible storage.
- Attach Doors: Secure the cabinet doors to the frame using the stainless steel hinges. Adjust hinges as needed to ensure proper door alignment and smooth operation.
- Install Handles: Attach the chrome handles to the cabinet doors.
- Position Vanity: Place the assembled vanity in its desired location in the bathroom. Ensure it is level. The four chrome pads on the base provide stability and floor protection.
- Install Vessel Sink: Apply a bead of silicone sealant around the drain hole on the vanity top. Carefully place the glass vessel sink over the hole, ensuring it is centered. Allow sealant to cure as per manufacturer's instructions.
- Install Faucet and Pop-Up Drain: Follow the specific instructions provided with the faucet and pop-up drain for their installation. Connect the water supply lines to the faucet and your home's water supply. Ensure all connections are tight to prevent leaks.
Eco-Waterproof Wood Finish
Chrome Handles
Full 304 Stainless Steel Hinge
Operating Instructions
The YOURLITE Bathroom Vanity is designed for straightforward use.
- Faucet Operation: Turn the faucet handle to control water flow and temperature. Refer to the faucet's specific manual for detailed operation if needed.
- Pop-Up Drain: Use the pop-up mechanism to open and close the drain for filling or emptying the sink.
- Storage Access: Open the double cabinet doors to access the internal storage shelves. These shelves are ideal for storing bathroom essentials.
Internal storage and plumbing access design.
Maintenance and Care
Proper care will extend the life and appearance of your vanity.
- Cleaning the Cabinet: Wipe the cabinet surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Dry immediately after cleaning.
- Cleaning the Sink: The tempered glass sink can be cleaned with mild soap and water. For stubborn stains, use a non-abrasive glass cleaner. Rinse thoroughly and dry to prevent water spots.
- Faucet Care: Clean the faucet with a soft cloth and mild soap. Do not use abrasive cleaners, polishes, or waxes as they may damage the finish.
- Preventing Water Damage: Always wipe up spills and standing water promptly, especially around the sink and cabinet edges, to prevent water penetration and damage to the wood.
- Hardware Inspection: Periodically check all screws and connections for tightness. Tighten if necessary to maintain stability.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose plumbing connections; improper sealant application around sink. | Check all water supply and drain connections for tightness. Reapply silicone sealant around the sink if necessary, ensuring a continuous, watertight seal. |
| Cabinet Doors Misaligned | Hinges need adjustment; cabinet not level. | Adjust the screws on the hinges to align the doors. Ensure the vanity is placed on a level surface. |
| Slow Drainage | Drain partially clogged; pop-up drain not fully open. | Clear any debris from the pop-up drain. Ensure the pop-up mechanism is functioning correctly and fully opening. |
| Vanity Wobbles | Uneven floor; loose assembly screws. | Adjust the leveling feet (if applicable) or place shims under the base to stabilize. Tighten all assembly screws. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | YOURLITE |
| Model Number | USBA20079 |
| Product Dimensions (D x W x H) | 19"D x 24"W x 32.3"H |
| Color | White cabinet with Red&black Glass Sink |
| Material | E1 Grade MDF Board (Cabinet), Tempered Glass (Sink) |
| Mounting Type | Floor Mount / Freestanding |
| Number of Shelves | 2 |
| Assembly Required | Yes |
| Country of Origin | China |
Warranty and Support
For warranty information and customer support, please contact YOURLITE directly or refer to the product listing on Amazon. While specific warranty details are not provided in this manual, YOURLITE is committed to customer satisfaction.
For assistance with parts, assembly, or troubleshooting, please visit the official YOURLITE Store on Amazon or contact their customer service through the platform.
