BROLEO 7L Digital Thermostatic Water Bath Heater User Manual

Important Safety Information

Please read all instructions carefully before operating the BROLEO 7L Digital Thermostatic Water Bath Heater. Failure to follow these instructions may result in injury or damage to the equipment.

• Always ensure the unit is placed on a stable, level surface.
• Do not operate the water bath without sufficient water in the chamber.
• Use only distilled or deionized water to prevent mineral buildup.
• Avoid direct contact with heated surfaces and water to prevent burns.
• Ensure the power cord is properly connected and not damaged.
• Disconnect power before cleaning or maintenance.
• Keep the unit away from flammable materials.
• The protective frame helps prevent spills, but caution should always be exercised.

Product Overview

The BROLEO 7L Digital Thermostatic Water Bath Heater is designed for precise temperature control in laboratory applications. It features a 7-liter capacity, digital display, and a wide temperature range from room temperature to 100℃.

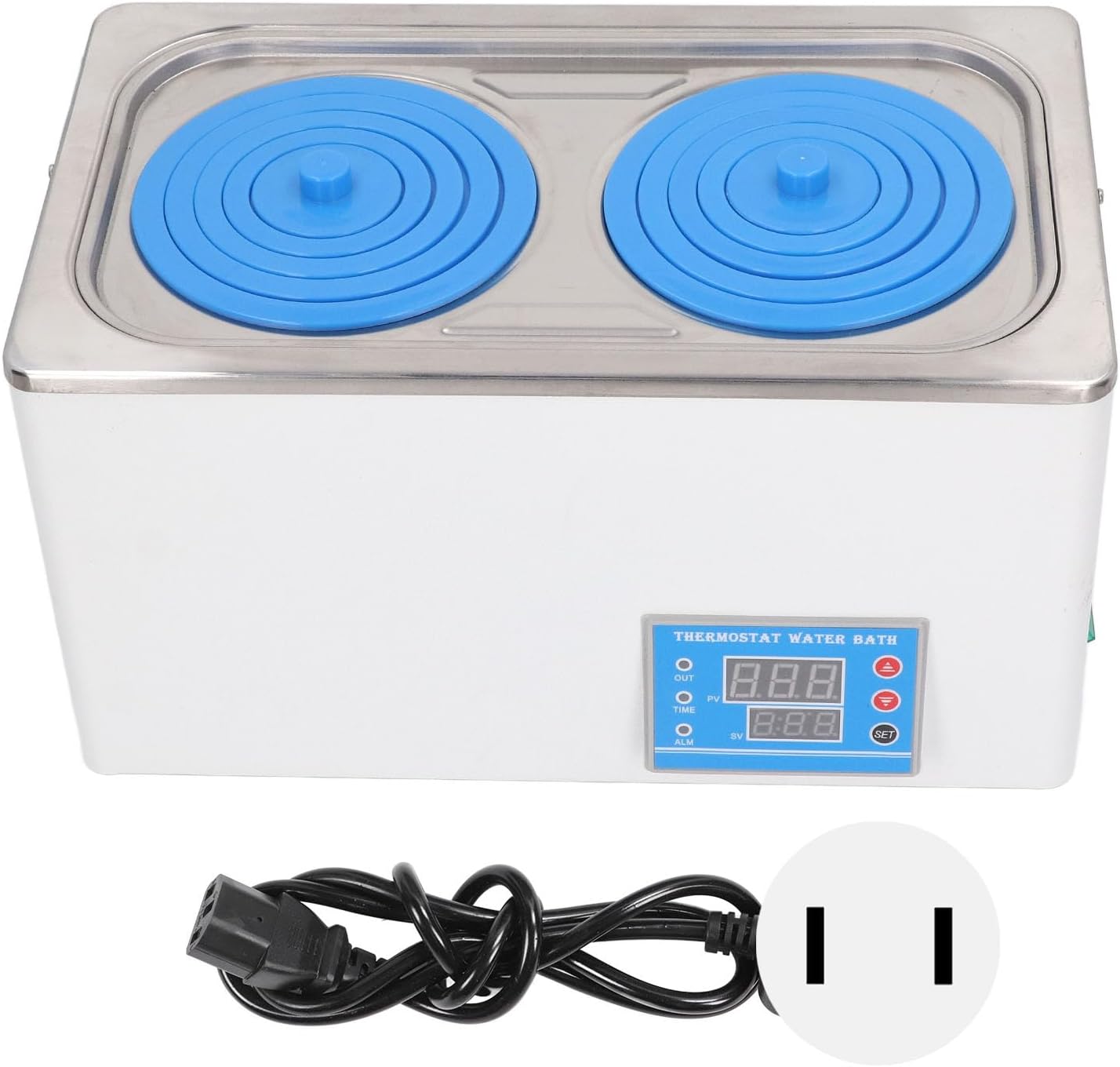

Image: BROLEO 7L Digital Thermostatic Water Bath Heater, showing the main unit with two blue lid rings on top, suitable for various measuring cup sizes. The digital control panel is visible on the front.

Key Features:

• Digital Display: Dual LED display for PV (Process Value) and SV (Set Value) for clear temperature and time readings.
• Temperature Control: Wide range from room temperature to 100℃ with 0.1℃ separability and ≤1℃ accuracy.
• Integrated Timer: Adjustable timing range from 1 to 999 minutes.
• Spill-Proof Design: Protective frame and tilted control panel for enhanced user comfort and safety.
• Durable Construction: Outer box made of baking-painted plate for rust resistance; inner chamber of stainless steel for durability and easy cleaning.
• Efficient Heating: Steel and brass tube thermal components for fast heat transfer and high sensitivity.
• Versatile Lids: Rubber rings on the cover accommodate various sizes of measuring cups.

Package Contents

Verify that all items are present in the package:

• 1 x Water Bath Unit
• 10 x Water Bath Lid Accessories (rubber rings)
• 1 x User Manual (this document)
• 1 x Power Cord (US Plug 110V)

Setup

Unpacking and Placement:

1. Carefully remove the water bath from its packaging.
2. Place the unit on a stable, level, and heat-resistant surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
3. Inspect the unit for any signs of damage during transit. If damaged, do not operate and contact customer support.

Filling the Water Bath:

1. Ensure the unit is unplugged from the power source.
2. Fill the inner chamber with distilled or deionized water. Do not use tap water as it can lead to mineral buildup and damage the heating elements.
3. Fill the water bath to a level that will adequately immerse your samples, but do not overfill. Ensure the water level is above the heating elements but below the top edge of the chamber.

Image: Top view of the water bath showing the two openings with blue rubber lid rings and the power cord connection point. This illustrates where to place samples and connect power.

Power Connection:

1. Connect the provided power cord to the power inlet on the rear of the unit.
2. Plug the other end of the power cord into a grounded 110V AC power outlet.

Image: Rear view of the water bath unit, highlighting the power inlet socket where the power cord connects.

Operation

Control Panel Overview:

Image: Close-up of the digital control panel, showing the dual LED displays for PV (Process Value) and SV (Set Value), along with indicator lights for OUT, PV, TIME, ALM, and the SET button.

• PV Display: Shows the current water temperature (Process Value).
• SV Display: Shows the set target temperature or timer value (Set Value).
• OUT Indicator: Illuminates when the heating element is active.
• TIME Indicator: Illuminates when the timer function is active.
• ALM Indicator: Illuminates when an alarm condition is met.
• SET Button: Used to enter setting mode and confirm selections.
• Up/Down Buttons (Red): Used to adjust values in setting mode.

Setting Temperature:

1. Turn on the main power switch located on the side of the unit. The digital display will illuminate.
2. Press the SET button once. The SV display will start flashing, indicating it's in temperature setting mode.
3. Use the Up and Down (red) buttons to adjust the desired target temperature. The temperature range is from room temperature to 100℃.
4. Press the SET button again to confirm the temperature setting. The SV display will stop flashing and show the set temperature. The unit will begin heating, and the OUT indicator will light up.

Setting the Timer:

1. With the unit powered on, press and hold the SET button for approximately 3-5 seconds until the display changes to show timer settings (e.g., "t" or "time" on the PV display, and a numerical value on the SV display).
2. Use the Up and Down (red) buttons to set the desired operating time in minutes (range: 1-999 minutes).
3. Press the SET button again to confirm the timer setting. The TIME indicator will light up, and the timer will begin counting down once the set temperature is reached.
4. Once the timer completes, the heating will stop, and an alarm may sound (if configured).

Using Lid Rings:

The water bath comes with multiple rubber lid rings. Select the appropriate size ring to fit your measuring cups or sample containers. This helps to minimize heat loss and evaporation during operation.

Maintenance

Cleaning the Unit:

1. Always unplug the unit and allow it to cool completely before cleaning.
2. Drain the water from the chamber.
3. Wipe the inner stainless steel chamber with a soft cloth and a mild, non-abrasive detergent. Rinse thoroughly with distilled water to remove any residue.
4. Clean the exterior surfaces with a damp cloth. Do not use harsh chemicals or abrasive cleaners, as they may damage the baking paint finish.
5. Ensure all surfaces are dry before reconnecting power.

Preventing Mineral Buildup:

To prolong the life of the heating elements and ensure accurate temperature control, always use distilled or deionized water. Regularly inspect the inner chamber for any signs of mineral deposits and remove them promptly.

Storage:

When not in use for extended periods, ensure the water bath is clean, dry, and stored in a cool, dry place away from direct sunlight and dust.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: BROLEO

Model Number: BROLEO6sbp5dowz9-11
