Import brand 2SD5036 D5036 TO-3PF Power Transistor Instruction Manual

Introduction

This manual provides essential information for the proper handling, installation, and operation of the Import brand 2SD5036 D5036 TO-3PF power transistor. Please read these instructions carefully before use to ensure safe and effective integration into your electronic circuits.

Product Overview

The 2SD5036 D5036 is a power transistor supplied in a TO-3PF package. These components are critical in various electronic circuits, often utilized in power switching applications, amplifiers, and voltage regulation due to their ability to handle significant power and current.

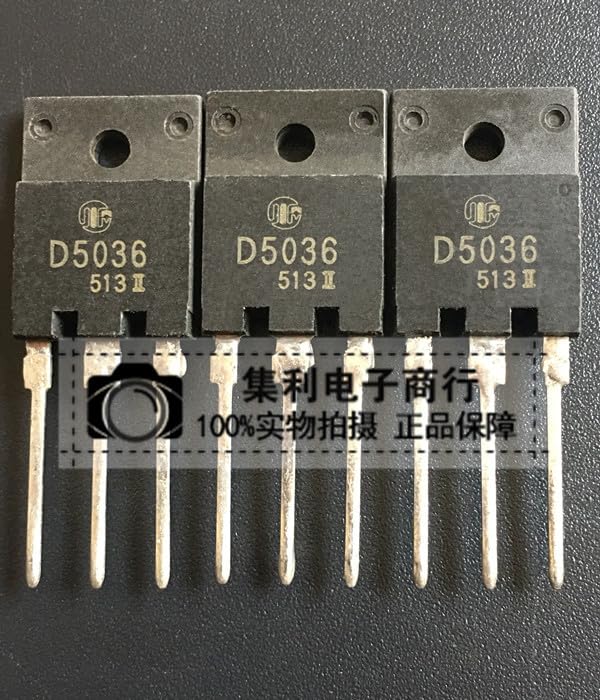

Image: Three 2SD5036 D5036 power transistors, showcasing their TO-3PF package and markings. These components are designed for high-power applications.

Setup and Installation

Proper installation is crucial for the reliable operation and longevity of the 2SD5036 D5036 transistor. Always observe static discharge precautions when handling electronic components.

1. Safety Precautions

• Ensure power is disconnected from the circuit before installation.
• Wear anti-static wrist straps and use an anti-static mat to prevent electrostatic discharge (ESD) damage.
• Avoid touching the pins directly to prevent contamination or damage.

2. Mounting the Transistor

• The TO-3PF package is designed for through-hole mounting. Insert the pins into the designated holes on the Printed Circuit Board (PCB).
• Ensure proper alignment of the transistor with the PCB footprint.
• For applications requiring heat dissipation, mount the transistor to an appropriate heatsink using thermal paste or a thermal pad to ensure efficient heat transfer. Secure it with a screw through the mounting hole.

3. Soldering

• Use a soldering iron with appropriate temperature settings for electronic components.
• Apply solder to create strong, reliable electrical connections without excessive heat exposure to the component.
• Inspect solder joints for cold joints, bridges, or insufficient solder.

Operating Principles

The 2SD5036 D5036 is a bipolar junction transistor (BJT) designed for power applications. It functions as a current-controlled current source, where a small current applied to the base terminal controls a larger current flow between the collector and emitter terminals.

• Collector (C): The terminal through which the main current flows into the transistor.
• Base (B): The control terminal; a small current here controls the collector-emitter current.
• Emitter (E): The terminal through which the main current flows out of the transistor.

When a sufficient current is applied to the base, the transistor turns on, allowing current to flow from the collector to the emitter. The amount of current flow is proportional to the base current, within the transistor's operating limits.

Maintenance

Power transistors like the 2SD5036 D5036 are generally robust and require minimal maintenance once properly installed. However, periodic checks can ensure continued optimal performance.

• Thermal Management: Regularly inspect heatsink connections and ensure proper airflow around the component to prevent overheating. Dust accumulation can impede heat dissipation.
• Visual Inspection: Check for any signs of physical damage, discoloration (indicating overheating), or loose connections on the PCB.
• Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature component degradation.

Troubleshooting

If the circuit incorporating the 2SD5036 D5036 transistor is not functioning as expected, consider the following common troubleshooting steps:

• No Output/Incorrect Output:
  • Verify all power supply voltages are correct and stable.
  • Check for proper base drive signal (voltage and current).
  • Inspect all solder joints for continuity and shorts.
  • Test the transistor for shorts or open circuits using a multimeter (in diode test mode).
• Overheating:
  • Ensure the heatsink is adequately sized and properly attached with thermal paste.
  • Check for excessive load on the transistor.
  • Verify that the transistor is not operating outside its specified voltage and current limits.
  • Ensure proper ventilation in the enclosure.
• Intermittent Operation:
  • Look for loose connections or cold solder joints.
  • Check for fluctuating input signals or power supply.
  • Consider environmental factors like temperature variations.

If issues persist, consult a qualified electronics technician or refer to the complete circuit schematic for further diagnosis.

Specifications

The following specifications are general for the 2SD5036 D5036 TO-3PF power transistor. Specific parameters may vary slightly between manufacturers. Always refer to the manufacturer's datasheet for precise values.

Note: Due to multiple manufacturers for some electronic components, the production date and specific characteristics may differ. Always verify with the component's datasheet for the most accurate information.

Warranty and Support

This product is supplied by Import brand. For specific warranty information, please refer to the seller's policies at the point of purchase. General return policy allows for refund/replacement within 30 days from the date of purchase.

For technical support or inquiries regarding the 2SD5036 D5036 transistor, please contact your supplier or the manufacturer directly. When contacting support, provide the product model number and any relevant purchase details.

Seller: Jiecheng Jingke Semiconductor
