Suuim Aluminium Foldable Transit Travel Wheelchair User Manual

Product Overview

This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your Suuim Aluminium Foldable Transit Travel Wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.

The Suuim Transit Travel Wheelchair features a lightweight aluminium alloy frame, designed for portability and ease of use. It is equipped with removable footrests, a safety belt, and rear hand brakes for attendant control. The design emphasizes user comfort and convenience for both the occupant and the attendant.

Image: The Suuim Aluminium Foldable Transit Travel Wheelchair in yellow and black, showcasing its compact design and features.

Key Features

• Aluminium Alloy Frame: Lightweight and durable, with an anode curing process for rust protection.
• Comfortable Armrests: Imitation leather decompression fixed armrests with built-in sponge for comfort and hand pressure relief.
• Ergonomic Hand Grips: Designed with anti-slip strips and wavy edges for a secure and comfortable grip for attendants.
• User-Friendly Foldable Design: Innovative technology for convenient storage and portability.
• Durable Wheels: Shockproof, wear-resistant, and thick wheels with good flexibility and strong carrying capacity. Note: These are not pneumatic tires.
• Safety Features: Includes a protection belt and rear hand brakes for enhanced safety.

Setup Instructions

Follow these steps to set up your wheelchair for first use:

1. Unfolding the Wheelchair:

   Place the folded wheelchair on a flat, stable surface. Gently pull the armrests outwards until the frame fully expands and locks into place. Ensure all locking mechanisms are engaged securely.
2. Attaching Footrests:

   Align the footrest posts with the receiving tubes on the front of the wheelchair frame. Insert the posts and push down firmly until they click into place. Ensure both footrests are securely attached and can be adjusted if necessary.

3. Checking Brakes:

   Before use, test the rear hand brakes. Engage the brakes and attempt to push the wheelchair. It should not move. Disengage the brakes and ensure the wheels spin freely.



   Image: Close-up view of the rear hand brakes, designed for convenient emergency braking by the attendant.
4. Adjusting Safety Belt:

   Ensure the protection belt is accessible and can be fastened securely around the user. Adjust the length for a snug, comfortable fit.



   Image: Detail of the safety belt buckle, ensuring secure travel for the user.

Operating Instructions

1. Seating the User:

   Ensure the wheelchair brakes are engaged before assisting the user into the seat. Once seated, fasten the protection belt securely.

2. Propelling the Wheelchair:

   This is an attendant-propelled wheelchair. The attendant should grasp the push handles firmly. To move forward, push the handles. To turn, apply more pressure to one handle while slightly releasing the other.



   Image: The universal front wheel, designed for 360-degree rotation, enhancing maneuverability.
3. Using Brakes:

   The attendant can engage the rear hand brakes to slow down or stop the wheelchair. For parking, fully engage both brakes until they lock into position.

4. Navigating Obstacles:

   When encountering small obstacles or inclines, use caution. The footrest design allows for convenient care when lifting uphill.

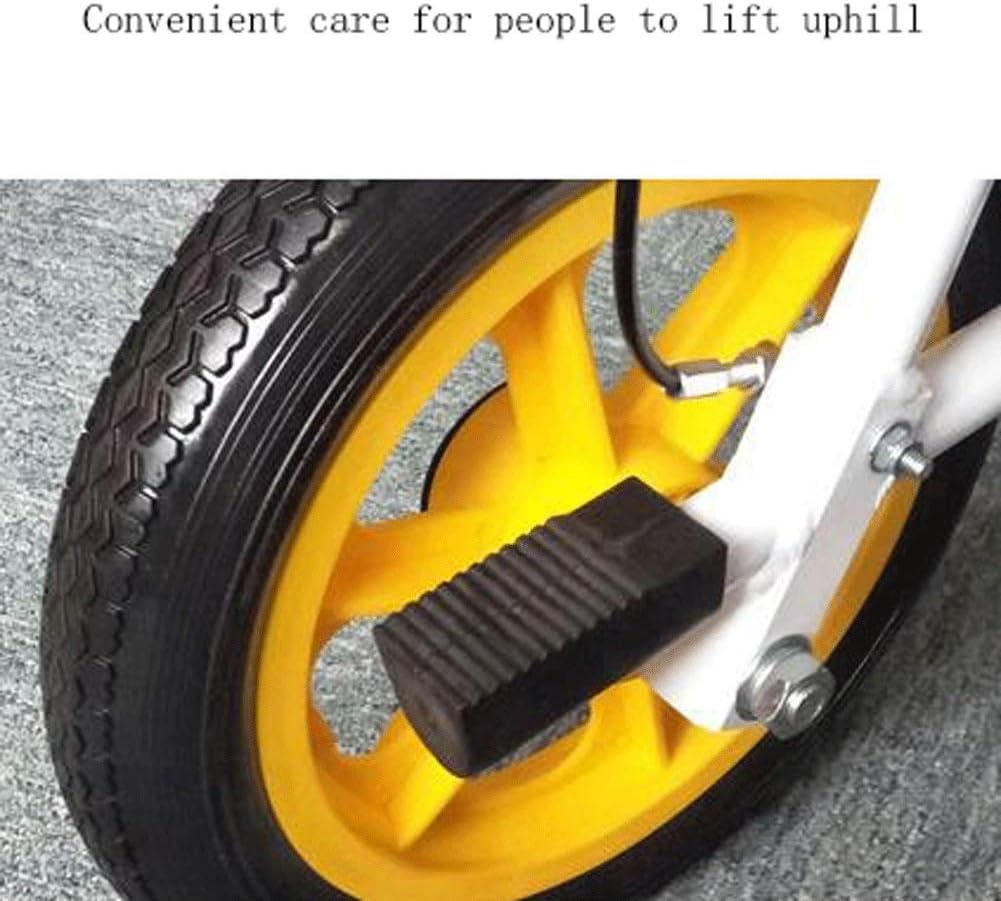

   Image: Detail of the wheelchair wheel and footrest, highlighting the design for navigating inclines.
5. Folding for Storage/Transport:

   To fold the wheelchair, first ensure the user has exited. Remove the footrests. Locate the folding mechanism (usually a strap or lever on the seat) and pull upwards. Gently push the armrests inwards until the wheelchair folds compactly.



   Image: The Suuim wheelchair shown in a folded configuration, demonstrating its portability for travel.

Maintenance

• Cleaning:

  Wipe down the frame and seat with a damp cloth and mild soap. Avoid abrasive cleaners. The imitation leather armrests are easy to clean.

• Frame Inspection:

  Regularly inspect the aluminium alloy frame for any signs of damage, cracks, or loose connections. The anode curing process helps protect against rust, but visual checks are important.

• Wheel and Brake Check:

  Check the wheels for wear and tear. Ensure the brakes engage and disengage smoothly and effectively. Keep the wheel axles free from debris.
• Fastener Check:

  Periodically check all screws, bolts, and fasteners to ensure they are tight. Do not overtighten.

Troubleshooting

Specifications

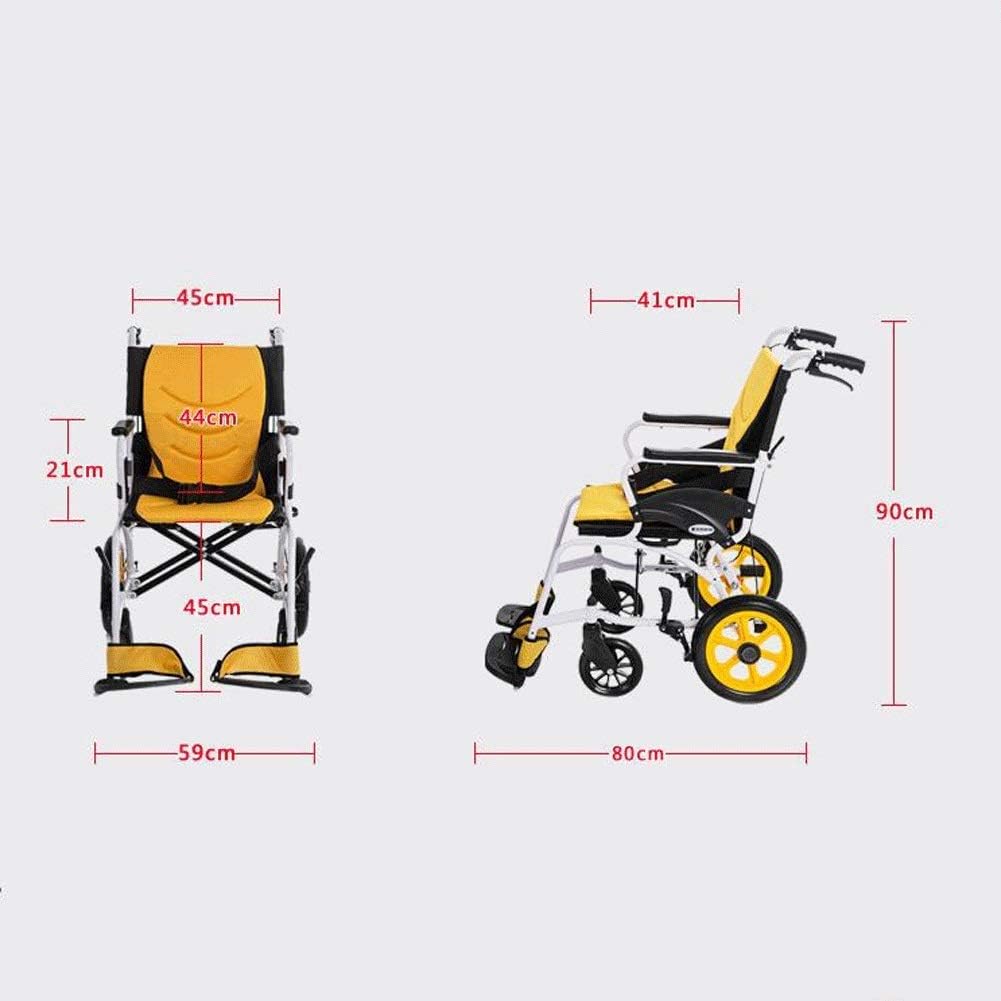

Image: Diagram illustrating the dimensions of the Suuim wheelchair in both unfolded and folded states.

Note: Dimensions and weight may vary slightly based on specific measurement methods. Refer to the product packaging for precise details.

Warranty and Support

Specific warranty information for your Suuim Wheelchair is typically provided by the manufacturer or seller at the time of purchase. Please refer to any documentation included with your product or contact the seller directly for details regarding warranty coverage, terms, and conditions.

For technical support, spare parts, or service inquiries, please contact the retailer or manufacturer through the contact information provided on your purchase receipt or the product packaging.
