Bellababy Electric Breast Pump User Manual

Introduction

Thank you for choosing the Bellababy Electric Breast Pump. This portable double breast pump is designed to provide efficient and comfortable milk expression for mothers. It features multiple modes and suction levels, a user-friendly touch control LED display, and is rechargeable for on-the-go convenience. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance of your device.

Safety Information

Please read all instructions carefully before using the breast pump. Failure to follow these instructions may result in injury or damage to the product.

• Always inspect all components for damage before each use. Discard and replace any damaged parts.
• Do not immerse the main pump unit, adapter, or power cord in water or other liquids.
• Keep the pump and its accessories out of reach of children.
• Use only Bellababy original parts and accessories. Using unauthorized parts may void your warranty and cause malfunction.
• Do not use the pump while bathing or showering.
• Unplug the pump from the power source when not in use and before cleaning.
• Consult a healthcare professional or lactation consultant if you experience pain or discomfort during pumping.
• Ensure proper flange size for comfortable and efficient pumping. The pump includes 21mm, 24mm, and 27mm flanges.

Product Components

The Bellababy Electric Breast Pump package includes the following components:

Image: Overview of the Bellababy Electric Breast Pump system, showing the main pump unit, two collection bottles, and two blue milk storage bag adapters.

• Main Pump Unit with Touch Control LED Display
• Breast Flanges (21mm, 24mm, 27mm sizes included)
• Collection Bottles with Lids
• Tubing and Connectors
• Milk Storage Bags (10 pcs)
• Milk Storage Bag Adapters (2 pcs)
• USB Charging Cable
• User Manual

Setup

Follow these steps to set up your Bellababy Electric Breast Pump:

1. Clean and Sanitize: Before first use, disassemble all parts that come into contact with breast milk (flanges, connectors, bottles, valves, diaphragms). Wash them thoroughly with warm soapy water, rinse, and then sterilize according to manufacturer's instructions (e.g., boiling for 5 minutes or using a sterilizer). Allow all parts to air dry completely.
2. Assemble the Flange and Bottle:
   • Insert the silicone diaphragm into the breast shield connector.
   • Attach the valve to the bottom of the breast shield connector.
   • Screw the collection bottle onto the breast shield connector.
   • Select the appropriate flange size (21mm, 24mm, or 27mm) for your comfort and milk flow.


   Image: Illustration showing the different flange sizes (21mm, 24mm, 27mm) included with the pump for personalized fit.
3. Connect Tubing: Connect one end of the silicone tubing to the breast shield connector and the other end to the main pump unit's air inlet. For double pumping, use both tubes and connectors. For single pumping, cap the unused air inlet on the main unit.
4. Charge the Pump: Before first use, fully charge the main pump unit using the provided USB charging cable. The battery indicator on the LED display will show charging status.

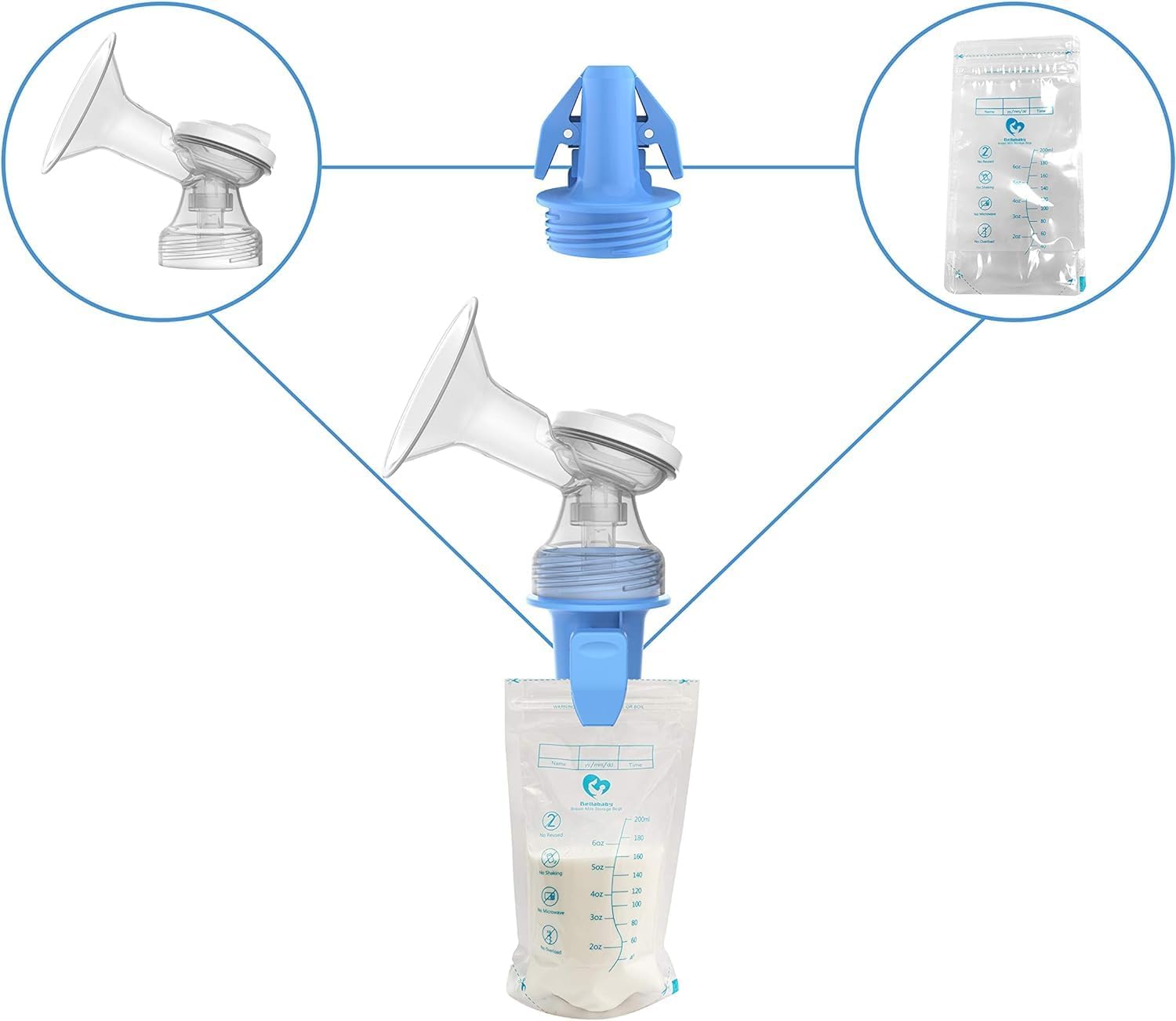

5. Optional: Pumping to Storage Bags: If you wish to pump directly into milk storage bags, attach the milk storage bag adapter to the breast shield connector instead of the bottle, and then secure a milk storage bag to the adapter.


   Image: Visual guide demonstrating the assembly for direct pumping into a milk storage bag using the provided adapter.

Operating Instructions

The Bellababy Electric Breast Pump features a sensitive touch screen and offers 4 working modes with 9 levels of suction.

Image: Detailed view of the pump's control panel, indicating the power button, mode selection buttons (Massage, Normal Suck, Continuous Suck, Frequency Conversion), level display, battery status, and time display.

1. Power On/Off: Press the Power Button (circular icon) on the touch screen to turn the pump on or off. The LED display will illuminate.
2. Mode Selection: The pump has 4 modes. Press the respective mode icon on the touch screen to switch between them:
   • Massage Mode: (Droplet icon) Simulates a baby's gentle suckling to stimulate milk let-down. Recommended to start with this mode for 2-3 minutes.
   • Normal Suck Mode: (Wave icon) Standard expression mode for efficient milk collection.
   • Continuous Suck Mode: (Multiple waves icon) Provides a continuous suction for faster milk flow.
   • Frequency Conversion Mode: (Heartbeat icon) Alternates between different suction patterns to mimic a baby's natural feeding rhythm.
3. Adjust Suction Level: Each mode has 9 adjustable suction levels. Use the '+' and '-' buttons (not explicitly shown in image but implied by "Level display") to increase or decrease the suction intensity. Start with a lower level and gradually increase to a comfortable yet effective setting.
4. Pumping Session: Position the breast shield centrally over your nipple, ensuring a good seal. Begin pumping. The display shows the current level, time elapsed, and battery status. The pump will automatically shut off after 30 minutes of continuous use.
5. Single/Double Pumping: The pump can be used for single or double pumping. If using for single pumping, ensure the unused air inlet on the main unit is capped.

Maintenance and Cleaning

Proper cleaning and maintenance are crucial for hygiene and the longevity of your breast pump.

1. After Each Use:
   • Disconnect all parts that come into contact with breast milk (flanges, connectors, bottles, valves, diaphragms).
   • Wash these parts immediately in warm soapy water. Use a dedicated brush for cleaning pump parts.
   • Rinse thoroughly with clean water.
   • Allow parts to air dry completely on a clean drying rack. Do not use a cloth towel as it may leave lint.
2. Sterilization: Sterilize all milk-contacting parts at least once a day, or as recommended by your healthcare provider. Methods include:
   • Boiling: Place parts in a pot of boiling water for 5 minutes.
   • Steam Sterilizer: Use a microwave or electric steam sterilizer.
   • Dishwasher: Some parts may be top-rack dishwasher safe (check product manual for specifics).
3. Main Pump Unit: Wipe the main pump unit with a clean, damp cloth. Do not immerse it in water.
4. Tubing: The tubing does not typically need cleaning unless milk or condensation enters it. If this occurs, wash with warm soapy water, rinse, and hang to air dry completely before reattaching.
5. Storage: Store all clean and dry pump parts in a clean, dry place when not in use.

Troubleshooting

If you encounter issues with your Bellababy Electric Breast Pump, refer to the following common problems and solutions:

Specifications

Warranty and Support

Bellababy products are manufactured with high-quality standards. For specific warranty details and duration, please refer to the warranty card included in your product packaging or contact Bellababy customer support directly.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please visit the official Bellababy store or contact their customer service team. You can find more information and contact details on the Bellababy Brand Store on Amazon.
