MELLCOM 14'x22' Hardtop Gazebo Instruction Manual

1. Introduction and Overview

The MELLCOM 14'x22' Hardtop Gazebo is designed to enhance your outdoor living space with durability and functionality. This permanent pavilion features a robust galvanized steel double roof and a rustproof aluminum frame, providing a stable and comfortable environment for various outdoor activities.

Key Features:

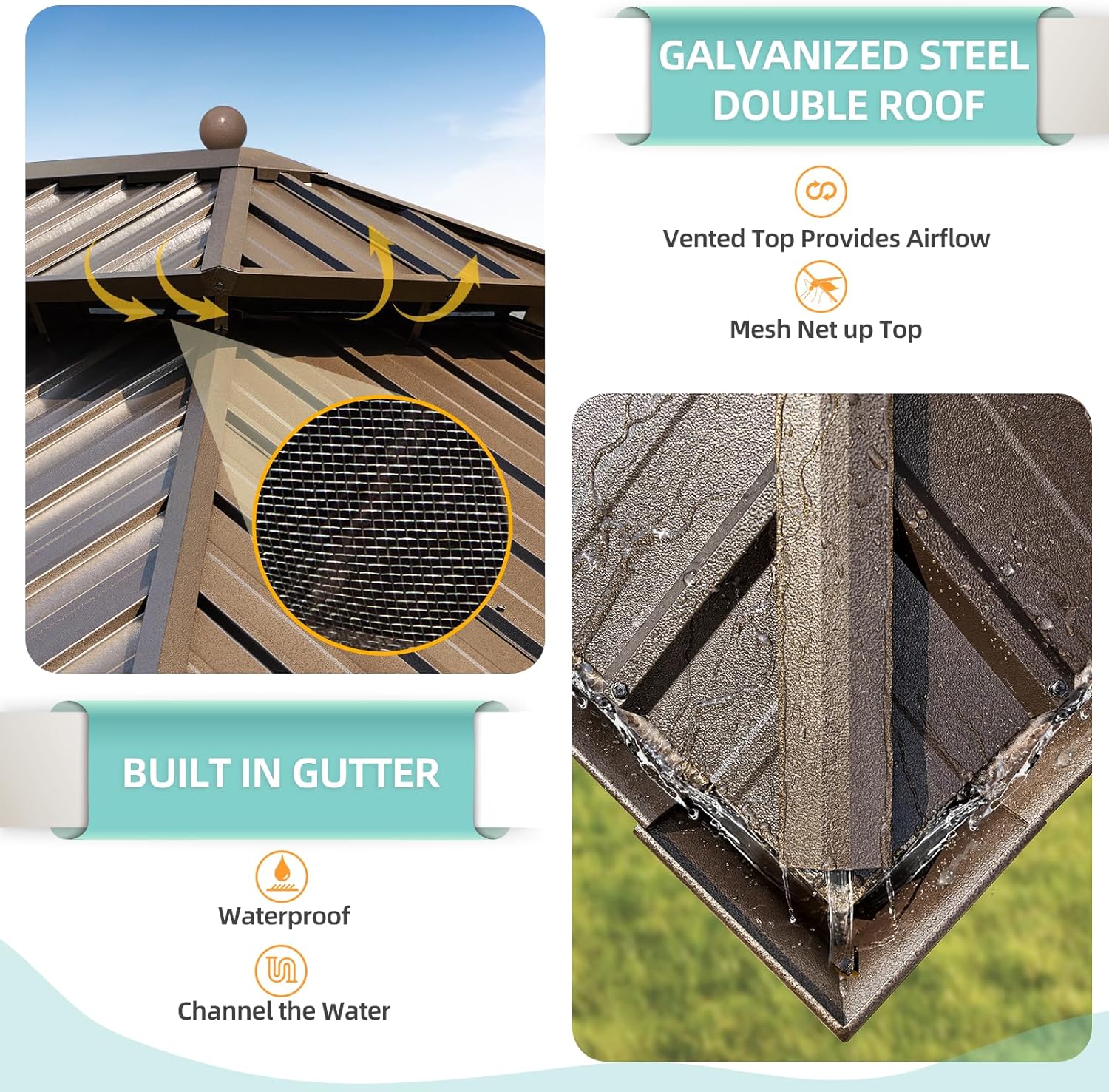

• Galvanized Steel Double Roof: Replaces traditional fabric or polycarbonate roofs with fade-resistant and rust-resistant galvanized steel. The vented double roof design improves ventilation and reduces the impact of strong winds. A water gutter system ensures efficient rainwater drainage, preventing pooling.
• Rustproof Aluminum Frame: Constructed with a powder-coated aluminum frame for superior stability and durability. Pre-drilled bases and accompanying bolts are included for secure ground installation.
• Netting & Curtains & Hooks: Features fully enclosed, zippered, and removable curtains and netting. The durable PBV coating on the curtains offers UV protection, privacy, and resistance against wind and rain. Integrated hooks on the top roof allow for hanging lights and fans.
• Spacious Design: Offers ample space for dining or relaxation, accommodating various outdoor furniture arrangements.

2. Safety and Important Notes

Before beginning assembly or use, please carefully review the following:

• Carefully review all instructions and verify all accessories are present before installation.
• Assembly requires a team effort of 3-5 people.
• Use ladders and wear gloves during installation for safety.
• Waterproofing depends on tight and correct installation.
• Dark colors and aluminum components can heat up quickly in direct sunlight.
• Gazebo dimensions are measured from eave edge to eave edge.
• Ensure anchoring stands are firmly secured to the ground.

3. Setup and Assembly

The hardtop gazebo comes in 6 boxes. Please ensure all boxes are gathered before beginning installation. An estimated completion time of 6-8 hours is suggested for a team of 3-5 people.

Assembly Steps Overview:

1. Prepare Components: Unpack all boxes and identify parts according to the included manual.
2. Assemble Poles with Base: Attach the base plates to the main support poles.
3. Connect Beams: Assemble the width and length beams, connecting joint bars and sidewall tracks.
4. Connect Poles and Beams: Erect the main frame by connecting the assembled poles and beams.
5. Affix Frame with Solidifying Bars: Install the triangular solidifying bars for added stability.
6. Install Hanging Hooks: Attach the hanging hooks to the roof frame for future accessories.
7. Assemble Roof Bars and Connectors: Construct the inner and outer roof frame structure.
8. Assemble Roof Panels: Carefully install the galvanized steel roof panels, ensuring proper overlap and sealing.
9. Attach Top Mosquito Netting: Secure the mosquito netting to the upper roof vent.
10. Hang Curtains and Nettings: Install the privacy curtains and insect netting onto the tracks.

Assembly Videos:

4. Operating Features

The MELLCOM Hardtop Gazebo offers versatile features to adapt to your needs and preferences.

Curtains and Netting:

The gazebo includes a double-track system for both bug mesh netting and privacy curtains. These are fully enclosed, zippered, and removable, allowing you to adjust for ventilation, privacy, and protection from insects or weather.

• Bug Mesh: Provides good ventilation and mosquito protection.
• Privacy Curtains: Offers sun shade, blocks wind, and enhances privacy.
• Velcro Straps: Securely tie back curtains and netting to the posts when not in use.

Integrated Hooks:

The top roof structure is equipped with sturdy hooks. These can be utilized to hang various accessories such as outdoor lights or ceiling fans, allowing you to customize the ambiance and comfort of your gazebo.

5. Maintenance

Proper maintenance ensures the longevity and continued performance of your MELLCOM Hardtop Gazebo.

Weather Considerations:

The gazebo is designed to withstand various weather conditions, but certain precautions should be taken.

• Snow Load: The hardtop roof can hold up to 6 inches of snow. In areas with heavy snowfall, it is recommended to regularly clear accumulated snow to prevent excessive weight.
• Wind Rate: The structure is designed to withstand wind rates up to 45 MPH. In extreme wind conditions, it is advisable to secure or remove curtains and netting to minimize wind resistance.
• Anchoring: Always ensure the gazebo is securely anchored to the ground, especially in windy conditions.

Cleaning and Care:

• Regularly inspect all bolts and connections to ensure they remain tight.
• Clean the galvanized steel roof and aluminum frame with mild soap and water. Avoid abrasive cleaners.
• Curtains and netting can be removed and cleaned according to fabric care instructions.

6. Troubleshooting

This section addresses common issues that may arise during or after assembly.

Roof Panel Installation Difficulties:

Some users have reported challenges with roof panel installation, particularly with clips and alignment.

• Ensure Proper Overlap: The upper (smaller) panel of each section must be above (on top of) the lower (larger) panel to prevent leaks.
• Tighten Centerpieces First: When assembling the roof, ensure center pieces are tightened before moving to side panels to maintain structural integrity and alignment.
• Use Team Effort: Having multiple people can significantly ease the process of aligning and securing roof panels.

Water Seepage:

If water seepage occurs, it is often related to improper roof panel installation or sealing.

• Check Panel Overlap: Re-verify that all roof panels are correctly overlapped as per instructions.
• Seal Seams: Consider applying a silicone sealant to roof seams during construction for enhanced waterproofing.

7. Specifications

8. Warranty & Support

For warranty information, replacement parts, or technical assistance, please contact MELLCOM customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Our after-sales service is always here to assist you as needed.
