1. Introduction
Thank you for choosing the VAVOFO Rechargeable Foldable LED Desk Lamp, Model KM-6779A. This versatile and portable lamp is designed to provide adjustable illumination for various tasks and environments. Featuring a built-in 6000mAh battery, multiple lighting modes, and a compact foldable design, it offers convenience and eye-caring light wherever you need it.
2. Package Contents
Please verify that all items listed below are included in your package:
- VAVOFO Foldable LED Desk Lamp (KM-6779A)
- USB-C Charging Cable
- USB-A to USB-C Cable
- User Manual
Image: Contents of the VAVOFO Desk Lamp package, including the lamp, charging cables, and user manual.
3. Product Features
- Rechargeable & Portable: Built-in 6000mAh lithium-ion battery for cordless operation.
- Foldable Design: Compact and easy to carry, ideal for travel or small spaces.
- Eye-Caring LED: Features 48 high-quality LED beads (24 yellow, 24 white) providing flicker-free and glare-free illumination.
- Adjustable Lighting: 3 color temperature modes (Warm White, Natural White, Sunshine White) and stepless brightness adjustment (5% to 100%).
- USB-C Charging & Output: Equipped with a USB-C input for charging and a USB-A output for reverse charging of mobile devices.
- Integrated Phone Holder: A pull-out stand at the base can hold a mobile phone.
- Night Light Function: A soft 'rabbit' shaped night light for ambient illumination.

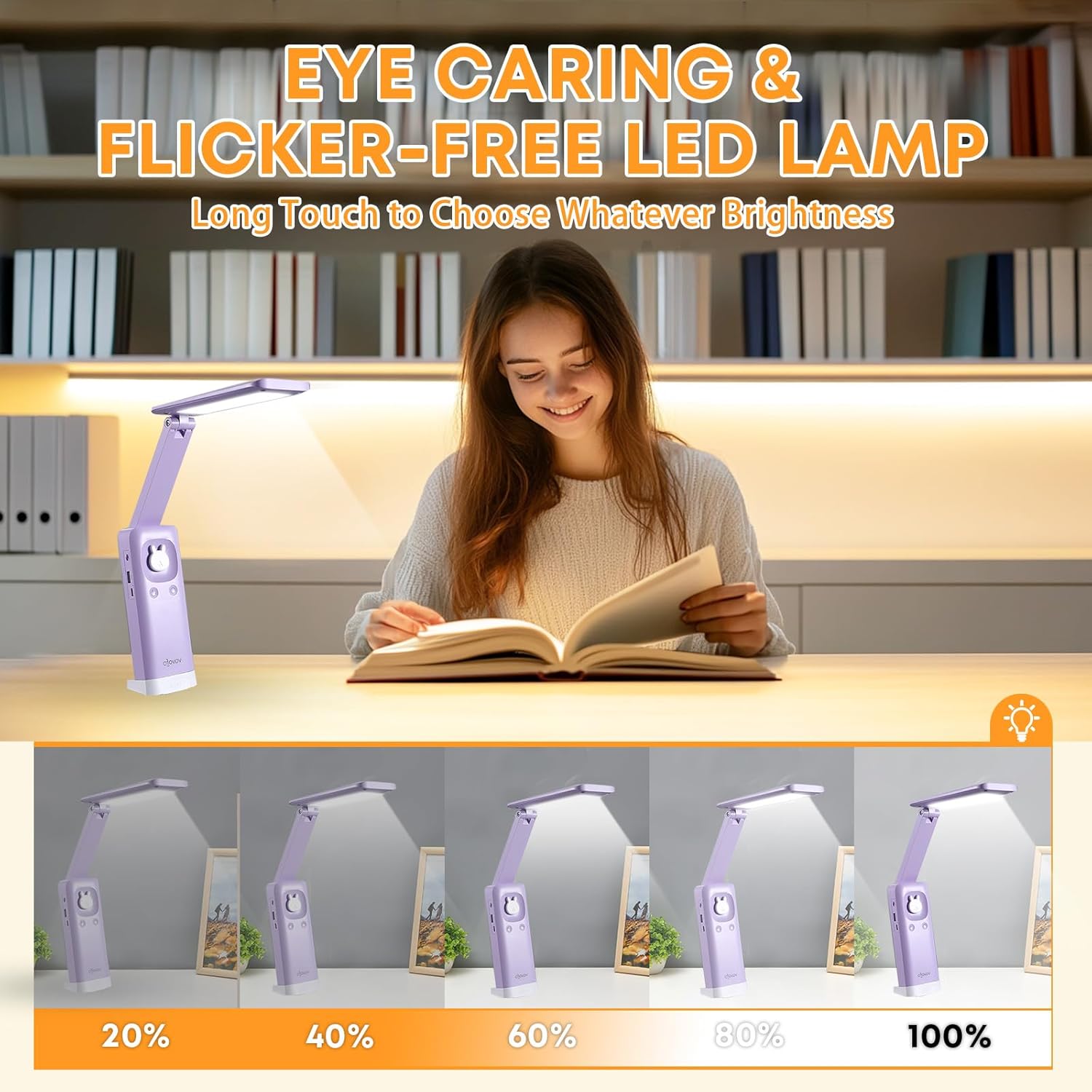

Image: Illustration of the lamp's eye-caring, flicker-free LED light and various brightness levels from 20% to 100%.
Image: The lamp's dimensions (14.96in height, 2.44in width) and its compact, foldable nature, showing it fitting into a bag.
Image: Visual representation of the three color temperature modes: Warm White (2800-3200K), Natural White (3500-4800K), and Sunshine White (6000-7000K).
4. Setup
4.1 Initial Charging
- Before first use, fully charge the lamp.
- Connect the provided USB-C charging cable to the USB-C port on the lamp.
- Connect the other end of the cable to a compatible USB power adapter (not included) or a computer USB port.
- The charging indicator light will show charging status. A full charge typically takes 8-9 hours and provides extended use.
4.2 Unfolding the Lamp
- Gently unfold the lamp from its compact, folded position.
- Adjust the arm and light panel to your desired angle. The lamp is designed with flexible joints for optimal positioning.
- Ensure the lamp is placed on a stable, flat surface to prevent tipping.
Image: The VAVOFO Desk Lamp in its fully unfolded, operational position, emitting light.
5. Operating Instructions
5.1 Power On/Off
- Locate the touch-sensitive power button on the lamp's base.
- Short press the power button to turn the lamp ON or OFF.
5.2 Brightness Adjustment
- When the lamp is ON, long press the power button to adjust the brightness.
- The brightness will cycle smoothly from minimum (5%) to maximum (100%). Release the button at your desired brightness level.
5.3 Color Temperature Adjustment
- When the lamp is ON, short press the dedicated color temperature button (usually indicated by a sun or color icon) to cycle through the three color modes: Warm White, Natural White, and Sunshine White.
5.4 Night Light Function
- To activate the 'rabbit' shaped night light, locate its dedicated touch control.
- Short press to turn the night light ON/OFF.
- Long press to adjust the night light's brightness.
5.5 Mobile Phone Charging (Power Bank Function)
- Connect your mobile phone's charging cable to the USB-A output port on the lamp.
- The lamp's internal battery will provide power to charge your device.

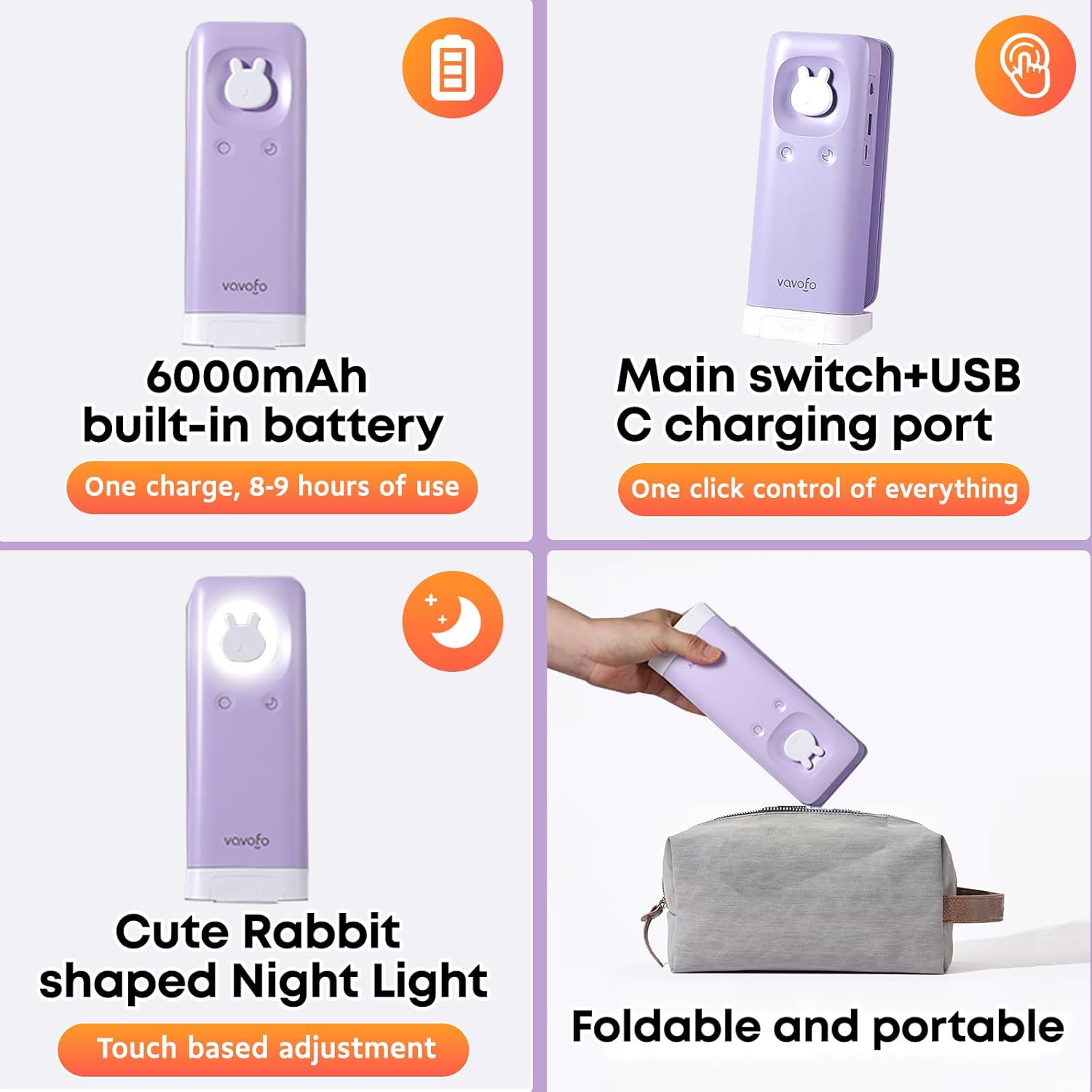

Image: Detailed view of the lamp's controls, highlighting the 6000mAh battery, USB-C charging port, main switch, and the 'rabbit' shaped night light with touch adjustment.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the lamp's surface. Avoid abrasive cleaners or solvents.
- Storage: When not in use for extended periods, fold the lamp into its compact form and store it in a cool, dry place.
- Battery Care: To prolong battery life, avoid completely draining the battery frequently. Recharge the lamp regularly, even if not in constant use.
- Environmental Protection: Dispose of the product and its battery responsibly according to local regulations.
7. Troubleshooting
- Lamp not turning on: Ensure the lamp is charged. Connect it to a power source using the USB-C cable and allow it to charge for a few minutes before attempting to turn it on.
- Lamp not charging: Verify that the USB-C cable is securely connected to both the lamp and the power adapter. Try a different USB-C cable or power adapter if available.
- Lamp is unstable/tips over: Ensure the lamp is placed on a flat, stable surface. Extend the pull-out phone stand at the base for added stability, especially when the lamp arm is extended or angled.
- Light flickers or dims unexpectedly: The battery may be low. Recharge the lamp fully.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | KM-6779A |
| Brand | VAVOFO |
| Battery Capacity | 6000mAh Lithium Ion (included) |
| Light Source Type | LED (48 beads: 24 yellow, 24 white) |
| Color Temperatures | 3 Modes (Warm, Natural, Sunshine White) |
| Brightness Adjustment | Stepless (5% - 100%) |
| Input Voltage | 5 Volts |
| Product Dimensions | 1.57"D x 2.53"W x 7.09"H (folded) |
| Item Weight | 0.8 Pounds (12.8 ounces) |
| Material | Plastic (Shade), Metal (Base) |
| Switch Type | Push Button, Touch |
| Special Features | Cordless, Dimmable, Phone Holder, Night Light |
| Indoor/Outdoor Usage | Indoor |
| Water Resistance Level | Waterproof |
9. Warranty and Support
VAVOFO offers a 12-month free product service for this desk lamp. For any inquiries, technical assistance, or warranty claims, please contact VAVOFO customer support through the retailer where the product was purchased or visit the official VAVOFO website for contact information.
We are committed to providing friendly customer consultation and ensuring your satisfaction with our products.
