ZHIWHIS AN-10 External Radio Antenna User Manual
Model: AN-10 | Brand: ZHIWHIS
1. Product Overview
The ZHIWHIS AN-10 External Radio Antenna is designed to enhance the signal reception of your FM, SW, VHF, and AIR band radios. It is particularly useful in environments where indoor radio signals are weak or shielded. This antenna features a crocodile clip for easy connection and comes with a convenient storage case.
Image 1.1: The ZHIWHIS AN-10 External Radio Antenna, showing the blue cable, gold antenna spring, crocodile clip, and the included black storage case.

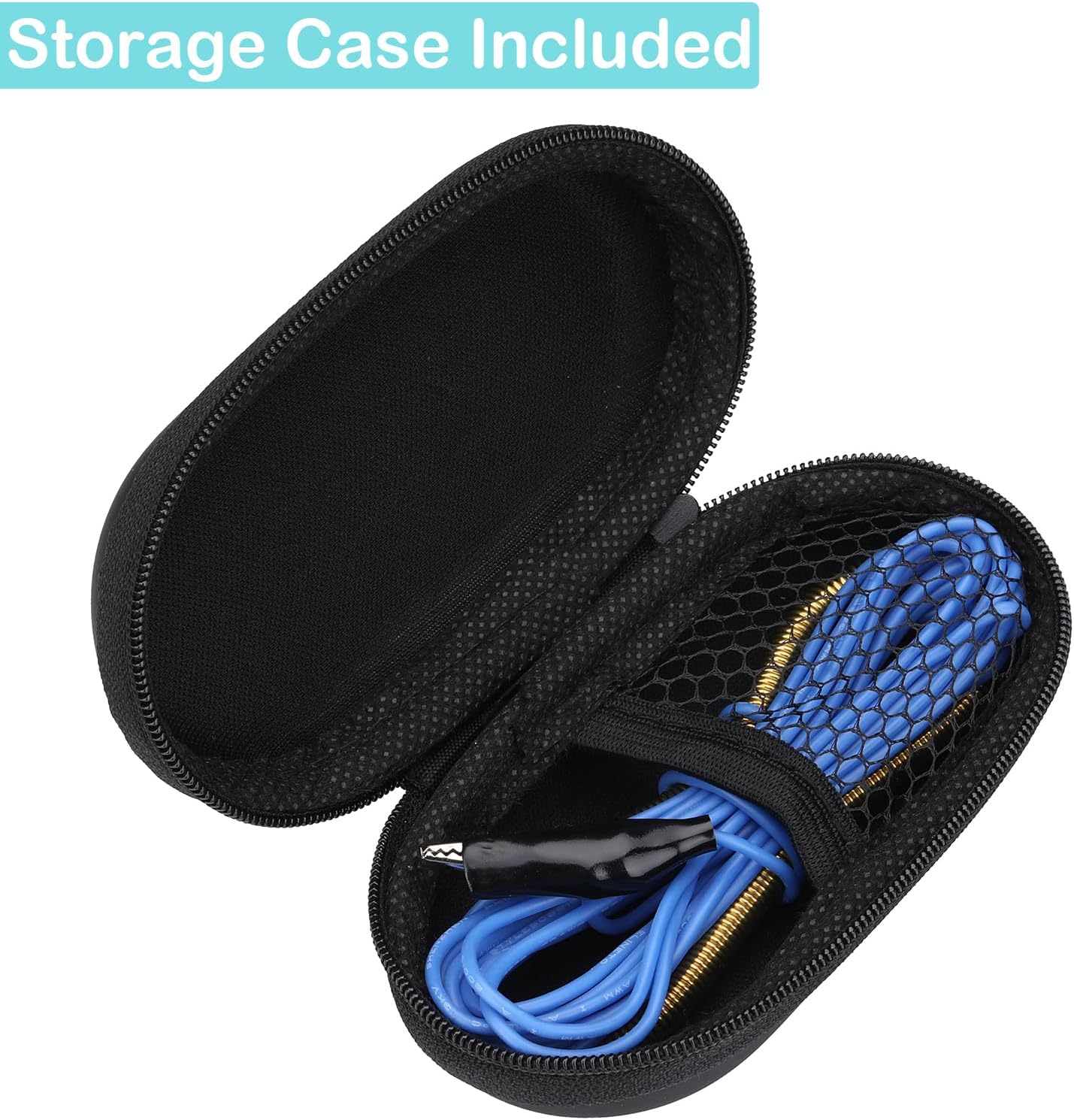

Image 1.2: The ZHIWHIS AN-10 antenna neatly stored within its compact black zippered case, highlighting its portability.
2. Setup and Installation
Follow these steps to properly set up and install your ZHIWHIS AN-10 external antenna for optimal signal reception.
- Positioning the Antenna Spring: First, carefully take out the antenna spring. Fix it outside the room, ideally by hanging it near a window or in an open area. Ensure it is not used during thunderstorms.
- Stretching the Cord: After securing the antenna spring, gently stretch the entire length of the antenna cord (3 meters / 9.85 feet) to maximize its reach and effectiveness.
- Connecting to Your Radio: Attach the crocodile clip of the antenna to the telescopic antenna rod or antenna head of your radio. Ensure a secure connection for best performance.
Image 2.1: A visual guide demonstrating the three steps for setting up the ZHIWHIS AN-10 antenna: hanging the spring outside, stretching the cord, and clipping it to a radio's antenna.
Image 2.2: Detailed view of the antenna spring and the crocodile clip, illustrating the key components of the ZHIWHIS AN-10 antenna.
3. Operating Instructions
The ZHIWHIS AN-10 antenna is designed for simple operation to improve your radio's reception.
- Signal Enhancement: Once connected and properly positioned, the antenna will enhance the receiving capacity of FM, SW, VHF, and AIR bands, leading to improved audio clarity and station availability.
- Flexible Placement: The antenna's design allows for flexible placement, making it easy to find the optimal position for signal reception in various environments.
- Indoor Signal Improvement: This antenna is particularly effective in areas with signal shielding or poor indoor reception, helping your radio pick up weaker signals.
4. Compatibility
The ZHIWHIS AN-10 external antenna is compatible with various radios that feature telescopic antennas. This includes, but is not limited to, the following ZHIWHIS radio models:
- ZHIWHIS ZWS-A320
- ZHIWHIS C919
- ZHIWHIS 310
- ZHIWHIS 700
- ZHIWHIS 701
- ZHIWHIS 702
- ZHIWHIS 702X
- ZHIWHIS 206
- ZHIWHIS 757
- ZHIWHIS G18
- ZHIWHIS 777
Image 4.1: A diagram illustrating how the ZHIWHIS AN-10 antenna connects to various ZHIWHIS radio models (ZWS-787, ZWS-702, ZWS-A320) via their telescopic antennas.
5. Maintenance
The ZHIWHIS AN-10 antenna requires minimal maintenance. To ensure its longevity and performance:
- Storage: When not in use, store the antenna in its included storage case to prevent tangling and damage to the cable or clip.
- Cleaning: If necessary, gently wipe the cable and clip with a dry, soft cloth. Avoid using harsh chemicals or abrasive materials.
- Environmental Conditions: Do not expose the antenna to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. As noted in the setup, avoid use during thunderstorms.
6. Troubleshooting
If you experience issues with signal reception, consider the following troubleshooting steps:
- Poor Signal Reception:
- Ensure the antenna spring is positioned as high and as openly as possible, ideally outside a window or in an elevated location.
- Verify that the entire 3-meter cord is fully stretched and not coiled or obstructed.
- Check the connection of the crocodile clip to your radio's telescopic antenna. Ensure it is firmly attached.
- Try repositioning the antenna to different locations to find the best signal strength. Obstacles like concrete walls or large metal objects can interfere with reception.
- Antenna Not Improving Signal:
- While the AN-10 significantly improves reception in many cases, extreme signal shielding or very remote locations might still pose challenges.
- Ensure your radio's internal antenna is fully extended before attaching the external antenna.
- Confirm your radio is tuned to the correct frequency band (FM, SW, VHF, AIR).
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | AN-10 |
| Antenna Type | External Clip-Type Antenna |
| Cable Length | 3 meters (9.85 feet) |
| Supported Bands | FM, SW, VHF, AIR |
| Connection Type | Crocodile Clip |
| Product Dimensions | 4.3 x 1.3 x 1.3 inches (packaged) |
| Item Weight | 1.7 ounces |
| Manufacturer | HRD |
| Country of Origin | China |
| Included Accessories | Storage Case |
Image 7.1: A visual representation confirming the 3 meters (9.85 feet) line length of the ZHIWHIS AN-10 antenna.
8. Warranty and Support
ZHIWHIS is committed to providing high-quality products. For any issues or inquiries regarding your AN-10 antenna, please contact our customer support team.
- Customer Support: If you encounter any issues with the product, please contact us directly. We are dedicated to providing a satisfactory solution.
- Warranty Information: Specific warranty details may vary. Please refer to the product packaging or contact ZHIWHIS customer service for comprehensive warranty terms and conditions.
