LEYSRIS SL-X1-60 Mini Tankless Water Heater

1. Important Safety Instructions

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury. Keep this manual for future reference.

• Electrical Safety: Ensure the main circuit capacity and leakage protector are rated equal to or greater than the device's rated power (6000W, 110V). All electrical connections must be performed by a qualified electrician.
• Water Connection: Always connect the water source to the unit before connecting the power supply. Ensure all water connections are secure and leak-free.
• Damaged Power Cord: If the power cord is damaged, it must be replaced by professional technicians to avoid hazards.
• Installation Location: Install the water heater in a location protected from freezing temperatures and direct water spray.
• Children and Supervision: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Internal Protection: The unit features multiple safety protections including anti-dry boiling, fault self-checking, intelligent temperature control, intelligent electricity protection, water and electricity separation, 0.1-second power outage protection, leakage self-checking, and splash/moisture resistance (IPX4).

2. Product Overview

The LEYSRIS SL-X1-60 is a compact, 6000W mini tankless electric water heater designed for instant hot water delivery. Its microcomputer control and cast aluminum heating element ensure efficient and consistent performance for various applications such as kitchens, RVs, bars, and schools.

Key Features:

• Instant Heating: Provides hot water in approximately 3 seconds due to its 6000W power and high thermal conductivity cast aluminum heater.
• Energy Saving: Heats water only when needed, eliminating standby heat loss associated with traditional tank water heaters.
• Multi-Protection System: Incorporates eight levels of safety features for enhanced user protection.
• Easy Operation: Features one-touch control and a large LED display for clear temperature indication and simple adjustments.
• Variable Frequency Thermostat: Maintains a constant water temperature at your desired setting through an intelligent frequency conversion control system.

Image 2.1: Front view of the LEYSRIS SL-X1-60 Mini Tankless Water Heater.

3. Installation and Setup

Professional installation by a qualified electrician and plumber is highly recommended to ensure proper and safe operation.

3.1 Package Contents:

Verify that all components are present before beginning installation:

• Instantaneous Water Heater Unit
• English Manual
• Inlet Pipe (60cm/23.62in)
• Outlet Pipe (1.2m/3.94ft)
• Leakage Protector
• Shower Head
• Installation Accessories (screws, anchors, connectors)

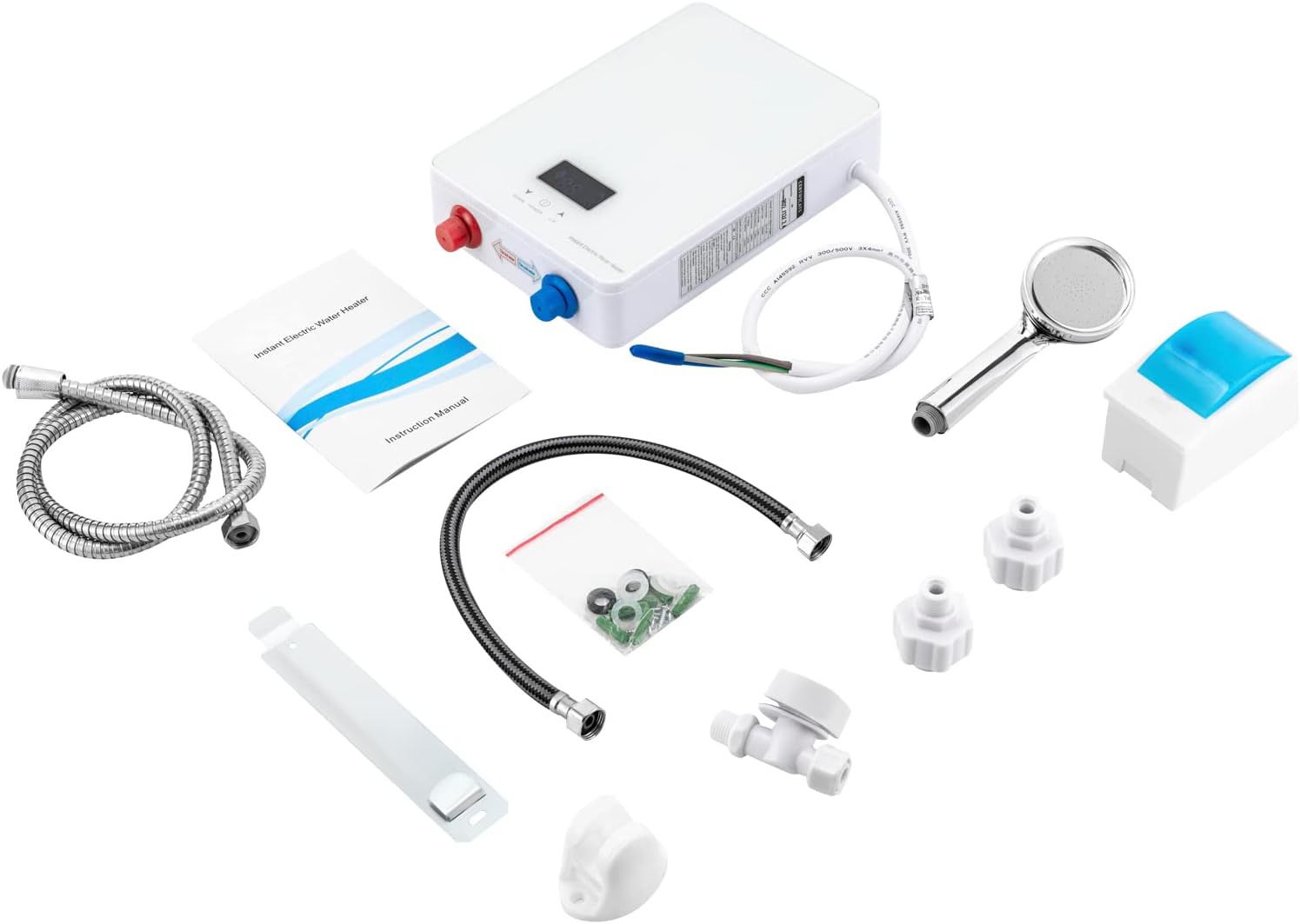

Image 3.1: All included accessories and the water heater unit.

3.2 Mounting the Unit:

1. Choose a suitable vertical mounting location, ensuring sufficient space for water and electrical connections.
2. Mark the drilling points on the wall using the unit as a template.
3. Drill holes and insert appropriate wall anchors.
4. Securely mount the water heater unit to the wall.

3.3 Water Connections:

The unit features a downward water inlet. The inlet and outlet hose connectors are G1/2 size.

1. Connect the cold water supply to the inlet port (typically marked blue or with a 'C').
2. Connect the hot water outlet to the desired fixture (e.g., shower head, faucet) using the provided outlet pipe (typically marked red or with an 'H').
3. Ensure all connections are tightened securely to prevent leaks.
4. Open the cold water supply valve and allow water to flow through the unit and out of the hot water tap until all air is purged from the system. This is crucial before electrical connection.

3.4 Electrical Connections:

WARNING: Risk of electric shock. Electrical work must be performed by a qualified electrician.

• Ensure the power supply is OFF at the main breaker before making any electrical connections.
• The unit requires a 110V, 60Hz power supply.
• Wire requirements: Sub wire 2.5mm² copper core special wire, Main wire 4mm² copper core special wire.
• Connect the live (brown), neutral (blue), and ground (yellow/green) wires from your electrical supply to the corresponding terminals on the water heater.
• Install the leakage protector as per local electrical codes and manufacturer instructions.
• Once all connections are secure and verified, restore power at the main breaker.

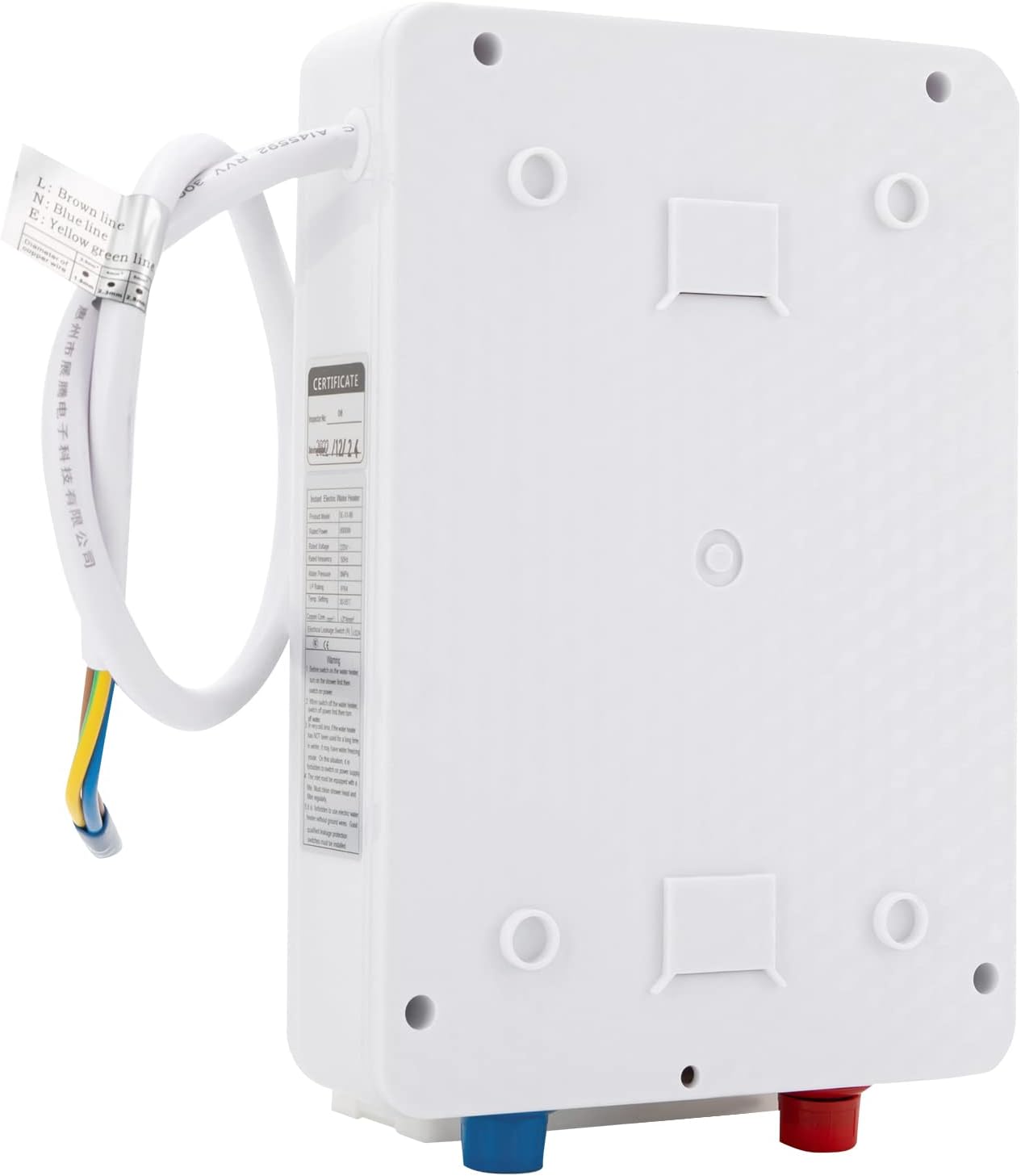

Image 3.2: Rear view of the unit with connection points for water and electricity.

4. Operating Instructions

The LEYSRIS SL-X1-60 features a user-friendly touch control interface and a large LED display.

4.1 Powering On/Off:

• After successful installation and power connection, the unit will enter standby mode.
• Press the Power button (often indicated by a circle with a vertical line) to turn the unit on or off.

4.2 Setting Temperature:

• Once powered on, the LED display will show the current water temperature or the last set temperature.
• Use the Up (▲) and Down (▼) touch buttons to adjust the desired water temperature. The temperature range is up to 55°C / 131°F.
• The intelligent frequency conversion thermostat will automatically adjust heating power to maintain the set temperature.

4.3 Water Flow Activation:

• The heater will activate automatically when water flow is detected and the unit is powered on.
• Ensure sufficient water pressure for optimal performance.

Image 4.1: The water heater in operation, supplying hot water to a shower.

Image 4.2: The water heater installed in a kitchen or utility area, providing hot water for a sink.

5. Maintenance

Regular maintenance ensures the longevity and efficient operation of your water heater.

• Cleaning: Periodically wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Inlet Filter: Check and clean the inlet water filter screen regularly to prevent blockages and maintain water flow. Turn off the water supply and power before accessing the filter.
• Leak Inspection: Periodically inspect all water connections for any signs of leaks. Address any leaks immediately.
• Professional Check: Consider having a qualified technician inspect the unit annually, especially for electrical connections and heating element condition.
• Winterization: If the unit is in an area prone to freezing and will not be used for an extended period, drain the water from the unit and pipes to prevent damage from freezing.

6. Troubleshooting

If you encounter issues with your water heater, refer to the following common problems and solutions. For complex issues, contact a qualified technician or customer support.

7. Specifications

Detailed technical specifications for the LEYSRIS SL-X1-60 Mini Tankless Water Heater.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please contact LEYSRIS customer service through your purchase platform or the contact information provided with your product packaging. Please have your model number (SL-X1-60) and purchase date available when contacting support.
