Hzuaneri BC08201X Bathroom Storage Cabinet Instruction Manual

1. Introduction

Thank you for choosing the Hzuaneri BC08201X Bathroom Storage Cabinet. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and proper use of your new cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Children are not allowed to climb on or play with the floor cabinet.
• Please attach the corner cabinet to the wall with the included anti-tip kit for safety.
• Ensure all screws and fasteners are securely tightened before use.
• Do not overload shelves; adhere to the specified weight limit.

2. Package Contents

Before assembly, verify that all components listed below are present and undamaged. Each component is carefully labeled with a serial number.

• 1 x Slim Bathroom Storage Cabinet (Rustic Brown)
• 1 x Accessory Kit (includes screws, dowels, and other hardware)
• 1 x Anti-Tip Kit
• 1 x Instructions Manual

Note: An included two-headed screwdriver is provided for convenience during assembly.

3. Assembly Instructions

Assembly typically takes 20-30 minutes for one adult. Follow the steps carefully, referring to the diagrams and video for visual guidance.

Assembly Video Guide

Step-by-Step Assembly

1. Assemble the Metal Base: Attach the metal legs (N) to the connecting bars (O) using the provided screws. Ensure all connections are secure. Then, attach the adjustable feet to the bottom of the legs.
2. Assemble the Lower Cabinet Section: Connect the side panels (H, I) to the bottom panel (L) using the provided screws. Ensure the pre-drilled holes align.
3. Attach the Back Panel: Slide the back panel (J) into the grooves of the assembled lower section.
4. Assemble the Upper Shelf Section: Connect the side panels (B, C) to the top panel (D) and the middle shelf (A) using the provided screws.
5. Install the Door Mechanism: Attach the door catch (119) to the designated spot on the lower cabinet section (G).
6. Connect Upper and Lower Sections: Carefully align the upper shelf section with the lower cabinet section and secure them together using the provided fasteners.
7. Install Adjustable Shelves: Insert the shelf pins into the desired height holes within the cabinet. Place the adjustable shelves (C) onto the pins.
8. Attach the Door: Secure the door (M) to the lower cabinet section using the hinges and screws. Install the door knob.
9. Install Anti-Tip Kit: For safety, attach the anti-tip kit to the top rear of the cabinet and secure it to a wall stud according to the instructions provided with the kit.

Figure 3.1: Product dimensions and internal measurements.

Figure 3.2: Detail of the cabinet's legs, door knob, and anti-tip kit.

4. Operating Instructions

The Hzuaneri BC08201X cabinet is designed for versatile storage in small spaces.

Adjustable Shelves

The shelf behind the cabinet door can be adjusted up or down to accommodate items of various sizes. Simply remove the shelf pins, reposition them to the desired height, and place the shelf back on the pins.

Figure 4.1: Adjustable shelf mechanism.

Storage Compartments

• Top Compartment: Ideal for displaying small potted plants or placing your cellphone.
• Middle Compartment: Suitable for toiletries, small towels, or decorative items.
• Bottom Cabinet: Designed for hiding spare toilet paper, cleaning supplies, or other personal items.

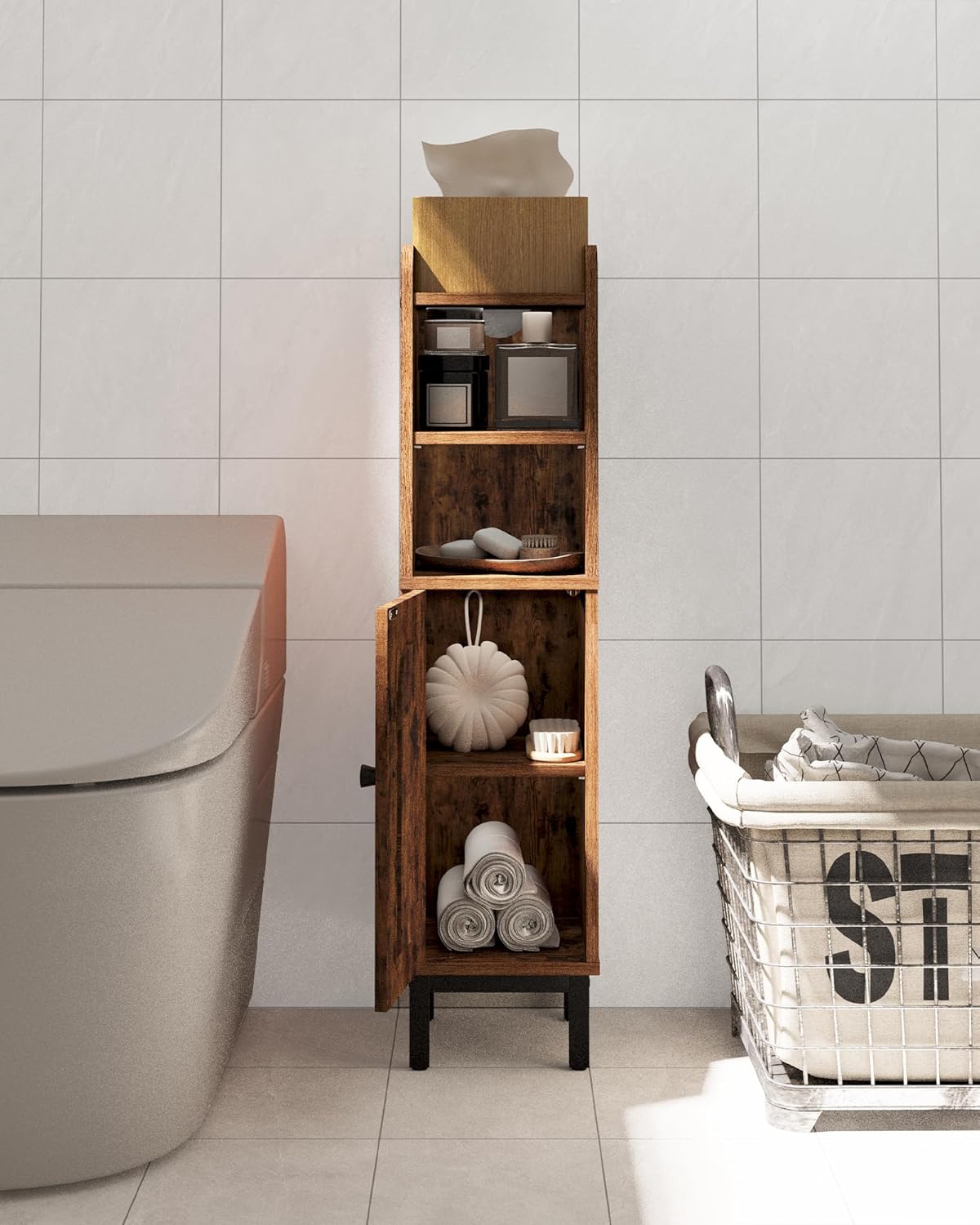

Figure 4.2: Example of cabinet storage.

5. Maintenance

To maintain the appearance and longevity of your cabinet, follow these simple care instructions:

• Wipe clean with a damp cloth and mild cleaner.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
• Periodically check and tighten all screws and fasteners to ensure stability.
• Keep the cabinet away from direct sunlight and excessive moisture to prevent warping or discoloration.

6. Troubleshooting

Common Issues and Solutions

• Issue: Cabinet feels wobbly or unstable.
  Solution: Ensure all screws are fully tightened. Adjust the leveling feet at the bottom of the metal base to compensate for uneven floors. Verify the anti-tip kit is securely installed to the wall.
• Issue: Door does not close properly.
  Solution: Check the alignment of the hinges and the door catch. Adjust if necessary. Ensure no obstructions are preventing the door from closing fully.
• Issue: Missing parts during assembly.
  Solution: Double-check the package contents against the parts list in Section 2. If parts are still missing, please contact Hzuaneri customer support for assistance.

7. Specifications

8. Warranty and Support

For any questions, concerns, or to report missing/damaged parts, please contact Hzuaneri customer support. Refer to your purchase documentation for specific warranty details.

You can often find support information on the official Hzuaneri website or through the retailer where the product was purchased.
