Gas Dryer Flat Igniter Glow Bar Instruction Manual

Introduction

This manual provides essential information for the installation and maintenance of your new Samoser Gas Dryer Flat Igniter Glow Bar. This component is designed as an aftermarket replacement part for a wide range of gas dryers, including models from Inglis, Whirlpool, Kenmore, Maytag, and KitchenAid. Proper installation and understanding of its function are crucial for the safe and efficient operation of your dryer.

The igniter is a critical part of a gas dryer's heating system, responsible for igniting the gas that produces heat for drying clothes. If your dryer is not heating, or if it takes multiple attempts to start, a faulty igniter may be the cause.

Product Overview

The Samoser Gas Dryer Flat Igniter is a flat-style silicon carbide igniter. It consists of a heating element, a ceramic base, and electrical lead wires with a connector. When power is applied, the igniter heats up to a high temperature, glowing red to ignite the gas in the dryer's burner assembly.

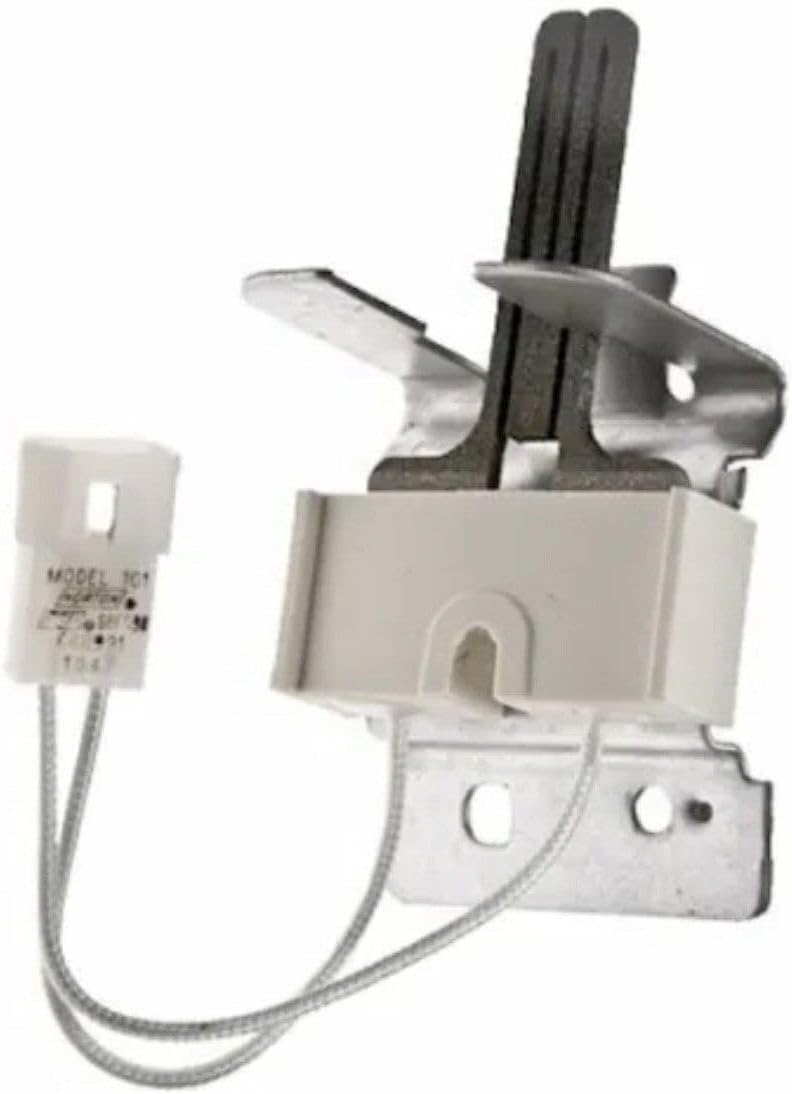

Figure 1: A close-up view of the Samoser gas dryer flat igniter glow bar, showing its ceramic base, metal heating element, and electrical connectors. The igniter is white with a dark grey heating element and two grey electrical wires leading to a white plastic connector.

Compatibility

This aftermarket igniter is compatible with a wide range of gas dryer models. Please verify your dryer's model number against the list below to ensure compatibility. You can typically find your dryer's model number on a label inside the dryer door, on the back, or on the control panel.

Compatible Brands: Whirlpool, Kenmore, Maytag, KitchenAid, Inglis.

Partial List of Compatible Models:

• IGD4100SQ0
• IGD4300SQ0
• IGD4300TQ0
• IGD4400SQ0
• IGD4400TQ0
• IGD4400VQ1
• IGD4400VQ2
• IGD7300WW0
• IGD7300WW1
• IGS5000RQ0
• IGS5000RQ1
• IGX3000RQ0
• IGX3000RQ1
• IJ70001
• IJ70002
• IJ70003
• IJ72000
• IJ72001
• IJ72003
• IM70000
• IP70000
• IP72000
• IP72001
• IS72000

Note: This list is not exhaustive. If your model number is not listed, please compare your existing igniter to the product image or contact the seller for confirmation.

Installation Instructions

Safety First: Before attempting any repair or installation, always disconnect the dryer from its power source (unplug it) and turn off the gas supply to the dryer. Failure to do so can result in serious injury or death.

1. Prepare the Dryer: Disconnect the dryer from the electrical outlet and turn off the gas shut-off valve.
2. Access the Igniter: Depending on your dryer model, you may need to remove the front panel, lower access panel, or rear panel to gain access to the burner assembly where the igniter is located. Refer to your specific dryer's service manual for detailed access instructions.
3. Locate the Igniter: The igniter is typically mounted near the gas burner tube. It will have two wires connected to it.
4. Disconnect the Old Igniter: Carefully disconnect the electrical connector from the old igniter. Note how it is routed.
5. Remove the Old Igniter: Unscrew or unclip the old igniter from its mounting bracket. Handle it with care as it can be fragile.
6. Install the New Igniter: Mount the new Samoser igniter onto the bracket using the original screws or clips. Ensure it is securely fastened and positioned correctly.
7. Connect the Wiring: Connect the electrical connector of the new igniter to the dryer's wiring harness. Ensure a secure connection.
8. Reassemble the Dryer: Carefully reassemble any panels or components that were removed to access the igniter. Ensure all screws are tightened and panels are properly aligned.
9. Restore Power and Gas: Turn on the gas supply to the dryer and plug the dryer back into the electrical outlet.
10. Test Operation: Start a drying cycle on your dryer and observe if the igniter glows and the gas burner ignites. Listen for the characteristic "whoosh" sound of the gas igniting.

If you are unsure about any step of the installation process, it is recommended to consult a qualified appliance technician.

Troubleshooting

If your dryer is still not heating after replacing the igniter, consider the following common issues:

• No Heat:
  • Igniter Not Glowing: Check electrical connections. Ensure the gas supply is on. The thermal fuse or flame sensor might be faulty.
  • Igniter Glows but No Flame: The gas valve coils might be defective, preventing gas flow. The flame sensor might be faulty, not signaling the gas valve to open.
• Dryer Not Starting: This igniter is for heating, not starting the dryer motor. If the dryer doesn't start at all, check the door switch, start button, or motor.
• Weak Heat: Could be a partially clogged vent, a faulty thermostat, or a restricted gas flow.

For complex issues, professional diagnosis and repair are recommended.

Specifications

Maintenance

The igniter itself does not require routine maintenance. However, to ensure the longevity of your dryer and its components, consider the following general maintenance tips:

• Clean Lint Filter: Clean the lint filter before every load to maintain airflow and prevent overheating.
• Inspect Venting: Periodically check and clean the dryer's exhaust vent to prevent lint buildup, which can restrict airflow and cause the dryer to overheat or take longer to dry.
• Professional Inspection: Consider a professional dryer inspection every few years to ensure all components, including the igniter and gas system, are functioning correctly and safely.

Warranty and Support

As an aftermarket replacement part, specific warranty details may vary. Please refer to the seller's return policy or contact the seller directly for information regarding warranty coverage and support for this product. If you have questions about compatibility or installation, the seller can provide assistance.

For general dryer repair advice or if you are unsure about performing a repair yourself, it is always best to consult a certified appliance technician.
