Introduction
Thank you for choosing the KUAKE Upholstered Bed. This functional double bed features a modern vintage design with a comfortable padded headboard, integrated LED lighting, and convenient USB charging ports. It also offers flexible storage solutions to optimize your bedroom space. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new bed.
Safety Information
- Delivery: Due to the item's weight, please ensure you are present for delivery and have assistance to move the packages.
- Moving the Bed: When relocating the assembled bed, always lift it. Do not drag the bed across the floor, as this can cause damage to the frame or flooring.
- Assembly: Follow all assembly instructions carefully. Ensure all components are securely fastened before use.
- Weight Capacity: Do not exceed the maximum user weight of 300 kg.
- Returns: If you need to return the product, please contact the seller first for proper instructions.
Product Overview
The KUAKE Upholstered Bed is designed for both comfort and functionality, integrating several features to enhance your sleeping environment.
Figure 1: Full view of the KUAKE Upholstered Bed with integrated LED lighting activated, showcasing its modern design and ambient glow.
Figure 2: Angled perspective of the bed, highlighting the LED strips along the base and headboard, contributing to a modern aesthetic.
Figure 3: Front view of the bed, showing the robust slatted frame made from 100% solid wood and metal, designed for high load capacity and comfort.
Figure 4: The bed with its gas spring lift mechanism engaged, revealing the spacious under-bed storage compartment, ideal for bedding or other items.
Key Features:
- Modern Vintage Design: Upholstered in cotton and linen fabric with vintage-patterned wooden panels and colorful LEDs. The padded headboard is filled with high-density foam for comfort.
- LED Headboard with USB Charging: LEDs at the head and foot of the bed provide modern ambiance. A remote control allows for changing colors and brightness. Integrated USB ports in the headboard enable convenient charging of mobile devices.
- Flexible and Spacious Storage: A shelf on the headboard can hold phones or tablets. The gas spring lift mechanism allows easy access to ample under-bed storage. A non-woven fabric layer at the bottom helps keep dust out.
- Durable Construction: Features mattress stoppers to prevent mattress slippage. The slatted frame, made from 100% solid wood and metal, ensures high load capacity and sleeping comfort.
Setup and Assembly
Your KUAKE Upholstered Bed is shipped in two separate packages, which may arrive on different days. Please ensure you have received all packages and components before beginning assembly.
Before You Begin:
- Unpack all components and verify against the parts list provided in your assembly guide (not included in this digital manual).
- Clear a spacious area for assembly.
- Gather necessary tools (typically a screwdriver and Allen wrench, often included).

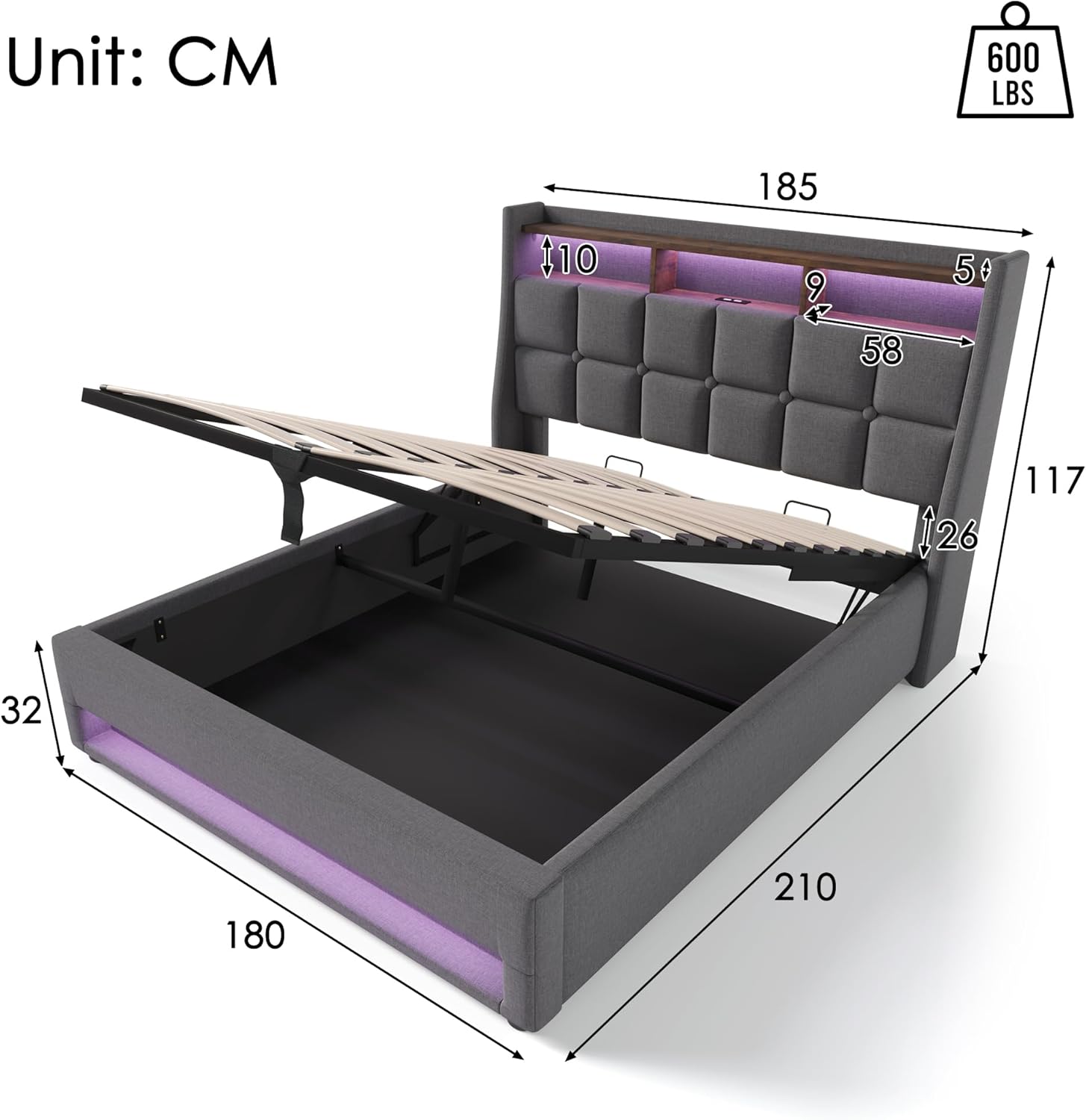

Figure 5: Dimensional overview of the bed frame (180x200 cm variant), showing key measurements in centimeters. This diagram is crucial for understanding the bed's footprint and component sizes during assembly.
Assembly Steps (General Guidance):
While specific step-by-step instructions are provided in the physical assembly manual included with your product, the general process involves:
- Assemble the main bed frame components (side rails, footboard, headboard).
- Install the slatted frame onto the bed frame.
- Attach the gas spring lift mechanism for the storage compartment.
- Connect the LED lighting and USB charging components.
- Place the non-woven fabric at the bottom of the storage area.
- Ensure all screws and fasteners are tightened securely.
Note: It is recommended to have two people for assembly due to the size and weight of the components.
Operating Instructions
LED Lighting System:
The integrated LED lighting system can be controlled via the included remote control. Point the remote at the LED receiver (usually located near the headboard or power unit) to operate.
- Power On/Off: Use the power button on the remote.
- Color Selection: Choose from various preset colors using the color buttons.
- Brightness Adjustment: Increase or decrease the light intensity.
- Mode Selection: Cycle through different lighting modes (e.g., flash, fade, strobe) if available.
USB Charging Ports:
Figure 6: Detail of the dual USB charging ports integrated into the headboard's shelf, alongside the wireless remote control for the LED lighting system.
Two USB charging ports are conveniently located on the headboard's shelf. Simply plug your USB charging cable into one of these ports to charge your mobile phone, tablet, or other USB-powered devices.
- Ensure the bed's power supply is connected to a wall outlet for the USB ports to function.
- The USB ports are designed for charging devices and may not support data transfer.
Under-Bed Storage Access:
Figure 7: Angled view demonstrating the slatted frame lifted by the gas spring mechanism, providing full access to the spacious storage area beneath the bed.
To access the under-bed storage, gently lift the slatted frame from the foot end of the bed. The gas spring mechanism will assist in lifting and holding the frame in an open position. To close, gently push the frame down until it locks into place.
- Ensure no objects obstruct the lifting mechanism when opening or closing.
- Do not place excessive weight on the lifted frame.
Maintenance
- Cleaning:
- For the linen fabric, use a soft brush or vacuum cleaner with an upholstery attachment to remove dust and debris.
- For spills, blot immediately with a clean, damp cloth. Avoid harsh chemicals or excessive moisture.
- Wipe wooden panels with a soft, dry cloth.
- Frame Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.
- Gas Spring Mechanism: The gas springs are designed for long-term use. If you notice difficulty in lifting or closing the frame, inspect for obstructions. Do not attempt to lubricate or disassemble the gas springs.
- Dust Protection: The non-woven fabric at the bottom of the storage area helps prevent dust accumulation. Ensure it remains intact.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working. | Power cable disconnected; remote control battery low; LED receiver obstructed. | Ensure power cable is securely plugged in. Replace remote control battery. Clear any obstructions to the LED receiver. |
| USB ports not charging. | Bed not powered; device cable faulty. | Verify the bed is plugged into a working power outlet. Try a different USB cable or device. |
| Slatted frame difficult to lift/close. | Obstruction in storage area; gas springs stiff (new bed). | Remove any items blocking the mechanism. For new beds, the gas springs may be stiff initially; operate them a few times to loosen. |
| Missing parts after delivery. | Components shipped in separate packages; packaging overlooked. | Check all packages thoroughly. If still missing, contact customer service immediately. |
| Bed feels unstable or creaks. | Loose fasteners. | Re-tighten all assembly screws and bolts. |
Specifications
| Feature | Detail |
|---|---|
| Brand | KUAKE |
| Model | Bettrahmen |
| ASIN | B0CLV2G7H3 |
| Color | Grey |
| Product Dimensions (L x W x H) | 210 x 185 x 117 cm (for 180 x 200 cm mattress size) |
| Item Weight | 60 kg |
| Maximum Load Capacity | 300 kg |
| Upholstery Fabric Type | Cotton, Linen |
| Special Features | LED with USB charging function, Flexible storage solution, Padded headboard |
| Assembly Required | Yes |
Support
For any questions, missing parts, or issues not covered in this manual, please contact KUAKE customer support or the seller directly through your purchase platform. Please have your product model and ASIN (B0CLV2G7H3) ready when contacting support.
Note: Specific warranty information is not provided in the product details. Please refer to your purchase documentation or contact the seller for warranty details.
