1. Introduction
This manual provides essential instructions for the assembly, operation, maintenance, and safety of your vidaXL Pet Bicycle Trailer. Please read this manual thoroughly before initial use to ensure safe and correct handling of the product. Keep this manual for future reference.

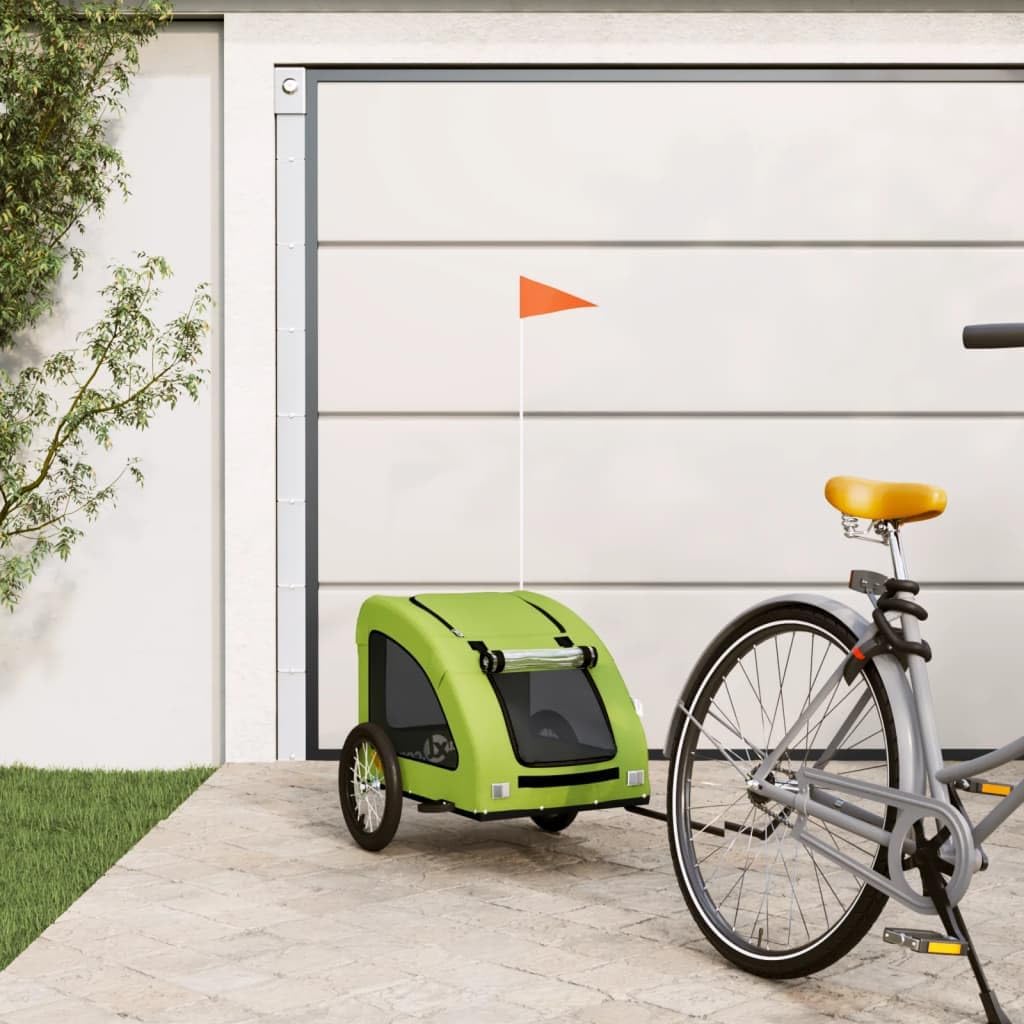

Image 1.1: The vidaXL Pet Bicycle Trailer ready for use.
Product Features:
- Durable Frame: Constructed with a robust iron frame for stability and reliability during travel.
- Comfortable Design: Made from Oxford fabric with a PVC cover to protect your pet from rain. Features a black support panel at the bottom for enhanced comfort.
- Practical Access: Equipped with zippered front and rear doors for easy entry and exit. Mesh windows and a zippered roof provide excellent air circulation, keeping your pet cool.
- Enhanced Safety: Features two large wheels for smooth and secure travel across various terrains. External reflectors and a safety flag increase visibility, especially in low light conditions.
- Versatile Use: Ideal for transporting small dogs and other pets. Can also be utilized for carrying groceries, camping gear, sports equipment, or other items.
2. Safety Information
Your safety and the safety of your pet are paramount. Please adhere to the following guidelines:
- Weight Limits: Do not exceed the maximum load capacity of 45 kg (99 lbs). The maximum load capacity on the drawbar is 3-11 kg (6.6-24 lbs). Overloading can compromise stability and safety.
- Pet Security: Always ensure your pet is securely fastened inside the trailer using a harness or leash attachment point to prevent them from jumping out or shifting unexpectedly.
- Pre-Ride Checks: Before each use, inspect the trailer for any damage. Check tire pressure, ensure wheels are securely attached, and verify that the hitch mechanism is properly connected to your bicycle. Confirm all reflectors and the safety flag are in place and visible.
- Speed and Maneuvering: Ride at a moderate speed, especially when turning or on uneven terrain. Avoid sudden stops or sharp turns, as this can cause the trailer to tip. Be aware of the increased length and weight of your bicycle with the trailer attached.
- Visibility: The included safety flag and reflectors are crucial for visibility. Ensure they are always clean and unobstructed. Consider adding additional lighting for night riding.
- Pet Comfort: Monitor your pet for signs of distress, overheating, or discomfort, especially during long rides or in warm weather. Ensure adequate ventilation.
- Assembly: Ensure all components are correctly assembled according to the instructions to prevent structural failure.

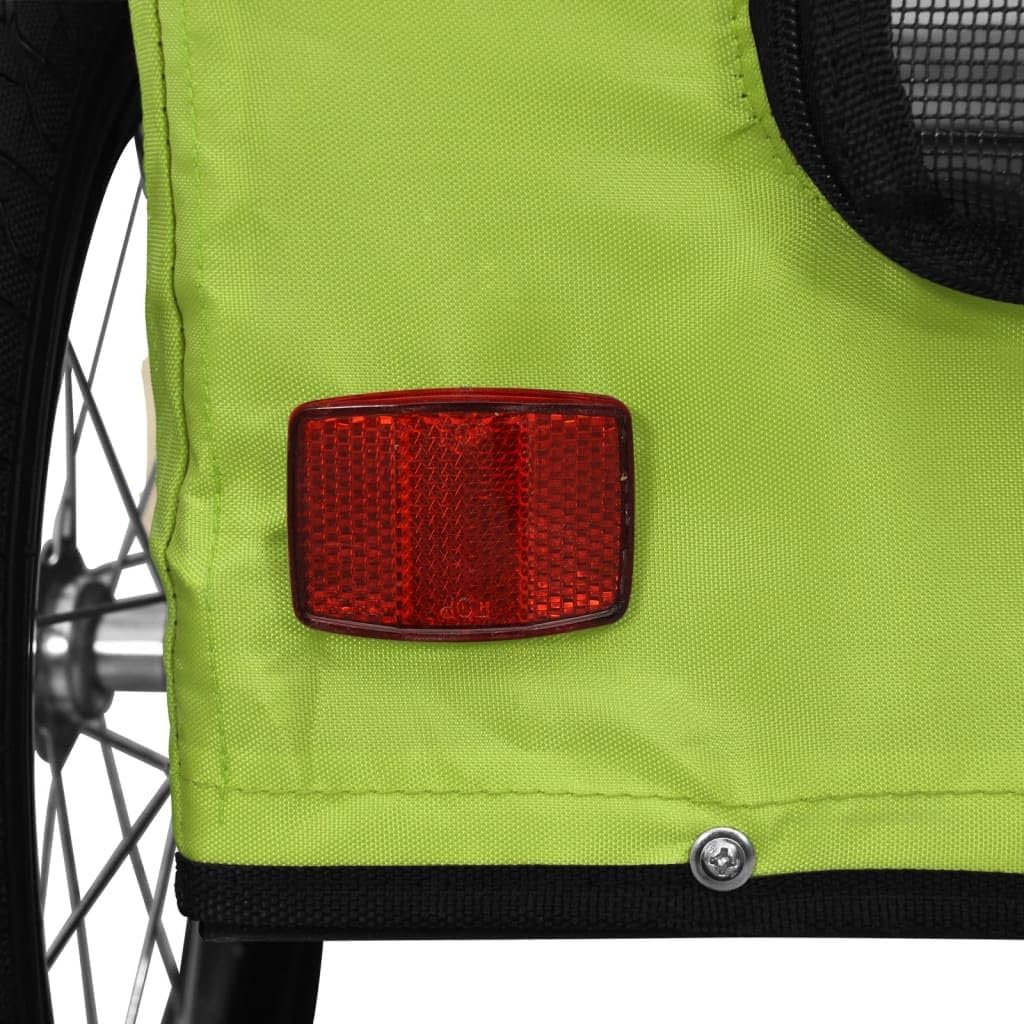

Image 2.1: Rear reflector for enhanced visibility.
3. Setup and Assembly
Follow these steps to assemble your vidaXL Pet Bicycle Trailer:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the parts list (not provided in this manual, refer to product packaging) are present and undamaged.
- Assemble the Frame: If the trailer frame is collapsible, unfold it and secure all locking mechanisms until they click into place. Ensure the frame is rigid and stable.
- Attach Wheels: Insert the wheel axles into the designated slots on the trailer frame. Secure them with the provided pins or quick-release mechanisms. Ensure wheels spin freely and are firmly attached.
- Install Fabric Cover: Drape the Oxford fabric cover over the frame. Secure it using any zippers, Velcro straps, or snaps. Ensure the PVC rain cover is correctly positioned.
- Insert Support Panel: Place the black support panel at the bottom of the cabin for your pet's comfort and to provide a stable base.
- Attach Drawbar: Connect the drawbar to the front of the trailer frame. Ensure it is securely fastened with the appropriate bolts and nuts.
- Mount Safety Flag: Insert the safety flag pole into its designated holder on the trailer. The flag should be clearly visible above the trailer.
- Connect to Bicycle: Attach the trailer's hitch mechanism to the rear axle of your bicycle. Follow the specific instructions for your hitch type to ensure a secure connection. Always use the secondary safety strap or chain provided.
Image 3.1: Front view of the trailer with safety flag.
4. Operating Instructions
4.1 Loading Your Pet
- Open the front or rear zippered door.
- Gently guide your pet into the trailer.
- Secure your pet using an internal leash attachment point to prevent movement during transit.
- Close the door securely.
Image 4.1: Interior view with mesh window for ventilation.
4.2 Attaching to Bicycle
Ensure the trailer hitch is firmly attached to your bicycle's rear axle. Always use the secondary safety strap or chain provided with the hitch system. Double-check all connections before starting your ride.
4.3 Riding with the Trailer
- Practice riding with the empty trailer first to get accustomed to the added weight and length.
- Maintain a slower speed than usual, especially when cornering or braking.
- Allow for longer braking distances.
- Be mindful of the trailer's width when navigating narrow paths or doorways.
- Ensure mesh windows are open for ventilation in warm weather. Use the PVC cover in rainy conditions.
5. Maintenance
Regular maintenance will extend the life of your pet trailer and ensure continued safe operation.
- Cleaning: Clean the Oxford fabric with a damp cloth and mild soap. Avoid harsh chemicals. Allow to air dry completely before storage.
- Wheel Inspection: Regularly check tire pressure and inflate to the recommended PSI (usually found on the tire sidewall). Inspect tires for wear and tear. Ensure wheel axles are clean and lubricated if necessary.
- Frame and Hitch: Periodically inspect the iron frame for any signs of rust, bends, or cracks. Check all bolts, nuts, and quick-release mechanisms on the hitch and frame for tightness.
- Reflectors and Flag: Keep reflectors clean and ensure they are securely attached. Verify the safety flag is intact and visible.
- Storage: When not in use, store the trailer in a dry, protected area to prevent weather damage. The trailer can be partially disassembled or folded for more compact storage (refer to assembly steps in reverse if applicable).
Image 5.1: Trailer roof with mesh and rain cover for versatile use and maintenance access.
6. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheels rub against the trailer body. | Incorrect wheel installation; axle not fully seated; bent axle. | Ensure wheels are correctly installed and secured. Check if the axle is fully seated. If the axle is bent, it may need replacement. |
| Reflectors fall off. | Loose or missing fasteners; improper installation. | Check if reflectors are secured with bolts or appropriate fasteners. Re-attach or replace missing fasteners. Ensure proper installation. |
| Trailer feels unstable or wobbly. | Loose hitch connection; uneven tire pressure; overloaded trailer. | Verify the hitch is securely attached to the bicycle. Check and equalize tire pressure. Ensure the trailer is not overloaded and weight is distributed evenly. |
| Difficulty attaching to bicycle. | Hitch not compatible; incorrect installation. | Ensure the hitch is compatible with your bicycle's rear axle. Review the assembly instructions for correct hitch installation. |
7. Specifications
Key technical details for the vidaXL Pet Bicycle Trailer (Model 93962):
- Color: Green
- Materials: Oxford fabric, Iron, PVC
- Overall Dimensions (L x W x H): 125 x 63 x 66 cm (49.2 x 24.8 x 26 inches)
- Cabin Dimensions (L x W x H): 50 x 70 x 50 cm (19.7 x 27.6 x 19.7 inches)
- Safety Flag Length: 139 cm (54.7 inches)
- Maximum Load Capacity: 45 kg (99 lbs)
- Load Capacity on Drawbar: 3-11 kg (6.6-24 lbs)
- Item Weight: 7.95 kg (17.5 lbs)
- Model Number: 93962

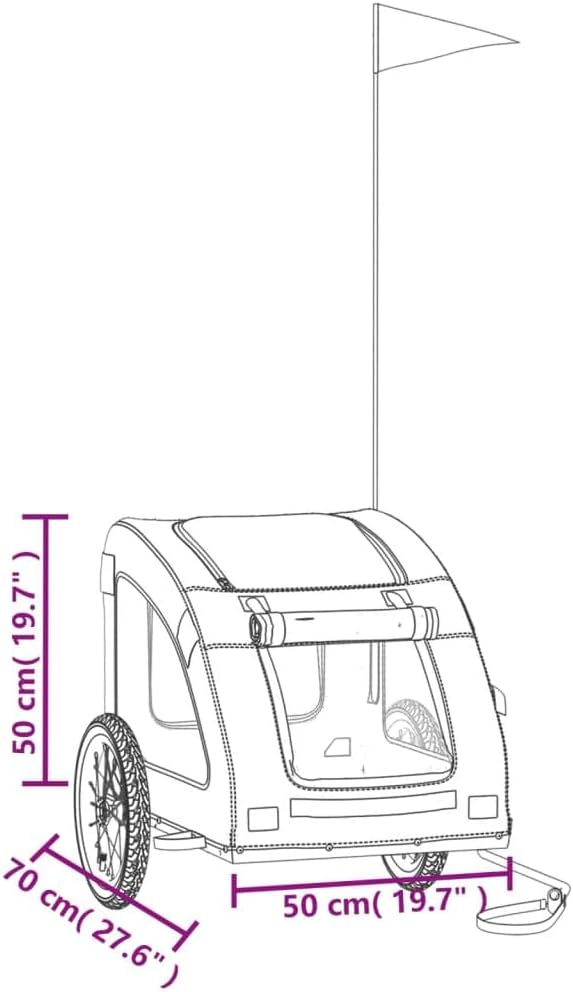

Image 7.1: Dimensional diagram of the pet bicycle trailer.
8. Warranty and Support
8.1 Returns and Warranty
If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the retailer's return policy. For defective or damaged products, please refer to the retailer's help page on returns and refunds. Specific information regarding purchases made through a marketplace should be obtained from the marketplace's help resources.
8.2 Customer Support
For further assistance, technical support, or inquiries not covered in this manual, please contact vidaXL customer service or the retailer from whom you purchased the product. Please have your model number (93962) and purchase details ready when contacting support.
