Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your VESTAR 1.5 Ton 3 Star Inverter Split AC, Model VASKV183IKDG. Please read this manual thoroughly before using your air conditioner and retain it for future reference.
Image: VESTAR 1.5 Ton 3 Star Inverter Split AC Indoor Unit. This image shows the sleek white indoor unit of the VESTAR air conditioner, designed for efficient cooling.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance uses R32 refrigerant, which is mildly flammable. Ensure proper ventilation during installation and servicing.
- Ensure the power supply matches the rating label.
- Do not operate with wet hands.
- Keep children away from the unit.
- Do not block air inlets or outlets.
- Only qualified personnel should perform installation and maintenance.
- In case of abnormal operation, switch off the unit and disconnect power.
What's in the Box
Upon unpacking, verify that all components are present:
- 1 Indoor Unit
- 1 Outdoor Unit
- 1 Remote Control
- User Manual (this document)
- Warranty Card
- 3m Interconnecting Pipe
Setup and Installation
The VESTAR 1.5 Ton Inverter Split AC requires professional installation. Do not attempt to install the unit yourself. Contact an authorized service technician for proper installation to ensure safety and optimal performance.
Installation Overview
- Site Selection: Choose a location for both indoor and outdoor units that allows for proper airflow, drainage, and accessibility for maintenance.
- Mounting: Securely mount the indoor unit on a wall and the outdoor unit on a stable surface or wall bracket.
- Piping Connection: Connect the indoor and outdoor units using the provided 3m copper interconnecting pipe. Ensure all connections are tight to prevent refrigerant leaks.
- Electrical Wiring: Connect the power supply according to local electrical codes. Ensure proper grounding.
- Drainage: Install the drainage pipe to allow condensate water to flow away freely.
- Vacuuming and Refrigerant Charging: Evacuate the system to remove air and moisture, then charge with the correct amount of R32 refrigerant.
- Test Run: Perform a test run to verify proper operation and check for any leaks or abnormalities.
Image: VESTAR 1.5 Ton 3 Star Inverter Split AC Outdoor Unit. This image displays the outdoor unit of the VESTAR air conditioner, which houses the compressor and condenser coil.
Operating Instructions
Your VESTAR AC is controlled via the included remote control. Ensure the remote has batteries installed and is pointed towards the indoor unit when operating.
Remote Control Functions

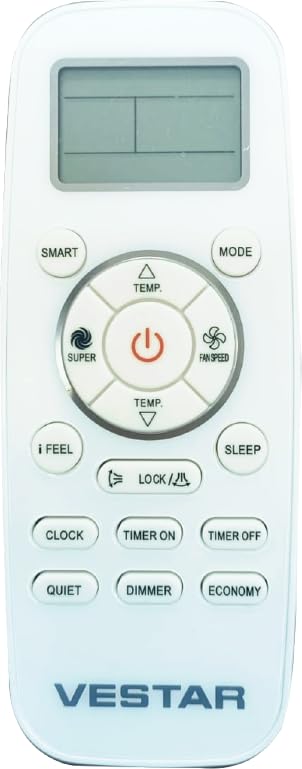

Image: VESTAR AC Remote Control. This image shows the remote control with various buttons for mode selection, temperature adjustment, fan speed, and special features.
- Power Button: Turns the unit ON/OFF.
- MODE Button: Cycles through operating modes: Auto, Cool, Dry, Fan, Heat (if applicable).
- TEMP ▲/▼ Buttons: Adjusts the desired temperature.
- FAN SPEED Button: Selects fan speed (Auto, Low, Medium, High).
- SMART Mode: Automatically adjusts operation based on ambient conditions for optimal comfort and energy saving.
- i FEEL Mode: The remote control senses the temperature around it and transmits the signal back to the indoor unit, allowing the AC to adjust the temperature for localized comfort.
- TURBO Cooling: Activates maximum cooling capacity for rapid temperature reduction.
- SLEEP Mode: Adjusts temperature and fan speed for comfortable sleep and energy efficiency.
- TIMER ON/OFF: Sets a specific time for the unit to turn ON or OFF.
- DIMMER: Adjusts the brightness of the display on the indoor unit.
- ECONOMY Mode: Operates the AC in an energy-saving mode.
- QUIET Mode: Reduces fan speed for quieter operation.
- LOCK Button: Locks the remote control buttons to prevent accidental changes.
Operating Modes
Your VESTAR AC offers several operating modes to suit your comfort needs:
- Cool Mode: Provides cooling by lowering the room temperature to the set value.
- Dry Mode: Reduces humidity in the room while maintaining a comfortable temperature.
- Fan Mode: Circulates air without cooling or heating.
- Eco/Power Saving Mode: Optimizes operation to reduce power consumption while maintaining comfort.
Image: VESTAR AC Features Overview. This graphic highlights key features such as 100% Copper Coil, High Density Filter, Self-Clean & Coated Fins, V0 Grade Fire Proof, Corrosion Resistance Blue Evaporator, Turbo Cooling, and I Feel - Intelligent Convertible.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your VESTAR AC. Always disconnect power before performing any maintenance.
Air Filter Cleaning
The air purification and dust filters should be cleaned every two weeks or more frequently depending on usage and air quality.
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters with a vacuum cleaner or wash them with lukewarm water (below 40°C).
- Allow filters to dry completely in a shaded area before reinstalling.
- Close the front panel.
Indoor Unit Cleaning
Wipe the indoor unit with a soft, dry cloth. For stubborn dirt, use a damp cloth with a mild detergent, then wipe dry. Do not use harsh chemicals or abrasive cleaners.
The unit features a Self-Clean function. This function helps to dry the internal components of the indoor unit, preventing mold and odors. Refer to your remote control instructions for activating this feature.
Outdoor Unit Maintenance
Periodically check the outdoor unit for any obstructions (leaves, debris) around the condenser coils and fan. Clear any blockages to ensure proper airflow. For thorough cleaning of the outdoor unit, it is recommended to contact a professional service technician.
The 100% Copper Coil and Corrosion Resistance Blue Evaporator are designed for durability and efficient heat transfer, requiring less frequent professional cleaning compared to aluminum coils.
Troubleshooting
Before contacting customer support, refer to the following common issues and solutions. Your VESTAR AC also features Auto Diagnosis, which can help identify certain problems.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power, circuit breaker tripped, remote batteries low. | Check power supply, reset breaker, replace remote batteries. |
| Insufficient cooling | Dirty air filters, blocked outdoor unit, doors/windows open, temperature setting too high. | Clean air filters, clear outdoor unit, close openings, lower temperature setting. |
| Unusual noise | Loose parts, foreign objects in fan, unit not level. | Check for loose parts, remove obstructions, ensure unit is level. If noise persists, contact service. |
| Water leakage from indoor unit | Blocked drain pipe, improper installation. | Check and clear drain pipe. If issue persists, contact professional installer. |
| Remote control not working | Dead batteries, obstruction, remote out of range. | Replace batteries, remove obstructions, ensure remote is within range and pointed at the unit. |
If the problem persists after attempting these solutions, please contact VESTAR customer support.
Specifications
Detailed technical specifications for the VESTAR 1.5 Ton 3 Star Inverter Split AC, Model VASKV183IKDG.
| Brand | Vestar |
| Model Name/Number | VASKV183IKDG |
| Capacity | 1.5 Tons |
| BEE Star Rating | 3 Star |
| Cooling Power | 1610 Kilowatts |
| Annual Energy Consumption | 1610 Kilowatts |
| Seasonal Energy Efficiency Ratio (SEER) | 14 |
| Refrigerant | R32 |
| Inverter Type | Has Inverter |
| Compressor Type | Rotary Scroll |
| Core Material | Copper (Condenser Coil) |
| Special Features | Air Purification Filter, Dust Filter, Hidden Display, Eco/Power Saving Mode, Self-Clean, Blue Evaporator |
| Noise Level | 40 Decibels |
| Voltage | 230 Volts (AC) |
| Item Dimensions (D x W x H) | 80D x 22W x 29H Centimeters (Indoor Unit) |
| Item Weight | 35 Kilograms (Total/Outdoor Unit, approximate) |
| Control Method | Remote Control |
Image: VESTAR AC Energy Savings Guide Label. This label indicates the BEE 3-star rating and energy efficiency details for the VESTAR air conditioner.
Image: VESTAR AC Indoor Unit Dimensions. This image illustrates the dimensions of the indoor unit: 80cm (Width) x 22cm (Depth) x 29cm (Height).
Warranty Information
Your VESTAR 1.5 Ton 3 Star Inverter Split AC comes with the following warranty:
- Product Warranty: 1 Year on the entire product.
- Compressor Warranty: 5 Years on the compressor.
Please retain your purchase receipt and warranty card for any warranty claims. The warranty covers manufacturing defects under normal use conditions. For full terms and conditions, refer to the warranty card included with your product.
Customer Support
For technical assistance, service requests, or any inquiries regarding your VESTAR AC, please contact the manufacturer or authorized service center.
- Manufacturer: Star Eltech Manufacturing Private Limited, VESTAR
- Manufacturer Contact: 18602583003
- Marketed by: Eltech Appliances Private Limited
When contacting support, please have your model number (VASKV183IKDG) and purchase details ready.
