1. Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your RAREELECTRICAL Starter Motor, Model 19048-Z8. This starter motor is designed as a replacement part compatible with Scion XD 1.8L vehicles manufactured between 2008 and 2009.
Please read this manual thoroughly before attempting any installation or service to ensure safe and correct usage. Keep this manual for future reference.
2. Safety Information
WARNING: Improper installation or handling of automotive electrical components can result in serious injury, electrical shock, fire, or damage to the vehicle. Always follow safety precautions.
- Always disconnect the vehicle's battery (negative terminal first) before beginning any work on the electrical system.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands if working underneath.
- Do not work on a hot engine. Allow the engine to cool completely.
- Refer to your vehicle's service manual for specific procedures and torque specifications.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning). Wash hands after handling.
3. Product Overview and Specifications
The RAREELECTRICAL Starter Motor (Model 19048-Z8) is an aftermarket replacement unit designed to meet or exceed OEM specifications for compatible vehicles. It is a PMDD (Permanent Magnet Gear Reduction) type starter.

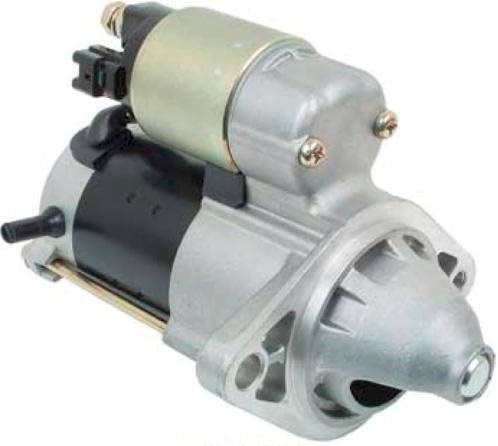

Image 1: The RAREELECTRICAL Starter Motor, Model 19048-Z8. This image displays the complete starter motor assembly, including the solenoid, motor housing, and drive gear assembly.
Key Specifications:
- Item Description: Starter
- Unit Type: Denso (compatible)
- Starter Type: PMDD (Permanent Magnet Gear Reduction)
- Voltage: 12V
- Rotation: Clockwise
- Tooth Count: 10 teeth on drive / splines
- Weight: Approximately 12.0 lbs (5.44 kg)
- Dimensions: Approximately 11 x 7 x 7 inches (27.94 x 17.78 x 17.78 cm)
- Exterior Finish: Machined
- Manufacturer Part Number: 19048-Z8
- Replaces OEM Part Numbers:
- Denso: 428000-4940, 4280004940
- Toyota: 28100-37040, 2810037040
- Applications: Scion XD 1.8L (2008-2009)
Important: Always verify the OEM part number from your original unit to ensure proper fitment before installation.
4. Installation (Setup)
The following steps provide a general guide for starter motor replacement. Specific procedures may vary by vehicle model. Consult your vehicle's service manual for detailed instructions.
- Preparation:
- Park the vehicle on a level surface and engage the parking brake.
- Ensure the engine is cool.
- Disconnect the negative (-) battery terminal first, then the positive (+) terminal.
- If necessary, raise the vehicle safely using a jack and secure it with jack stands.
- Locate the Starter Motor: The starter motor is typically located on the engine block, often near the transmission bell housing.
- Disconnect Wiring:
- Carefully disconnect the main battery cable (large wire) from the starter solenoid terminal.
- Disconnect the smaller ignition switch wire (solenoid signal wire) from the starter solenoid.
- Note the position of all wires for correct reinstallation.
- Remove Mounting Bolts: Remove the bolts that secure the starter motor to the engine block or transmission. These are typically 2 or 3 bolts.
- Remove Old Starter: Carefully maneuver and remove the old starter motor from its mounting position. It may be heavy.
- Install New Starter:
- Position the new RAREELECTRICAL starter motor into place.
- Install the mounting bolts and tighten them to the vehicle manufacturer's specified torque. Do not overtighten.
- Reconnect Wiring:
- Reconnect the smaller ignition switch wire to the solenoid terminal.
- Reconnect the main battery cable to the main power terminal on the solenoid. Ensure connections are clean and tight.
- Final Steps:
- Lower the vehicle if it was raised.
- Reconnect the positive (+) battery terminal, then the negative (-) battery terminal.
- Test the starter motor by attempting to start the vehicle.
If you are unsure about any step, it is recommended to seek assistance from a qualified automotive technician.
5. Operation
The starter motor is an integral component of your vehicle's starting system. When the ignition key is turned to the "START" position, or the start button is pressed, the following sequence occurs:
- An electrical signal is sent from the ignition switch to the starter solenoid.
- The solenoid engages, pushing the starter's pinion gear forward to mesh with the engine's flywheel ring gear.
- Simultaneously, the solenoid completes the circuit, allowing high current from the battery to flow to the starter motor.
- The starter motor spins, rotating the flywheel and cranking the engine.
- Once the engine starts, the ignition switch is released, disengaging the solenoid and retracting the pinion gear from the flywheel. The starter motor then stops spinning.
The RAREELECTRICAL starter motor is designed to perform this function reliably, providing the necessary torque to crank your Scion XD 1.8L engine.
6. Maintenance
Starter motors are generally low-maintenance components. However, regular checks of related systems can prolong its life and ensure reliable starting.
- Battery Condition: Ensure your vehicle's battery is in good condition, fully charged, and its terminals are clean and tight. A weak battery can strain the starter motor.
- Cable Connections: Periodically inspect the battery cables and the starter motor's electrical connections for corrosion, looseness, or damage. Clean and tighten as necessary.
- Engine Condition: A well-maintained engine that starts easily reduces the workload on the starter motor. Ensure regular engine tune-ups.
- Avoid Excessive Cranking: Do not crank the engine for more than 10-15 seconds at a time. If the engine does not start, wait at least 30 seconds before attempting again to prevent overheating the starter.
7. Troubleshooting
If your vehicle experiences starting issues, consider the following common troubleshooting steps before assuming the starter motor is faulty.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine does not crank, no sound or a single click. | Dead or weak battery, loose or corroded battery terminals, faulty starter solenoid, faulty ignition switch. | Check battery charge and terminals. Test battery. Check starter solenoid connections. Test ignition switch. |
| Engine cranks slowly or weakly. | Weak battery, corroded battery cables, high resistance in starter circuit. | Charge or replace battery. Clean and tighten battery and starter cable connections. Inspect cables for damage. |
| Starter spins but engine does not crank (whirring sound). | Faulty starter drive (bendix) not engaging flywheel, damaged flywheel ring gear. | Inspect starter drive and flywheel. Starter replacement may be necessary if drive is faulty. |
| Grinding noise during cranking. | Misaligned starter, damaged starter pinion gear, damaged flywheel ring gear. | Inspect starter mounting. Check starter pinion and flywheel for damage. |
If these steps do not resolve the issue, professional diagnosis by a qualified mechanic is recommended.
8. Warranty and Support
RAREELECTRICAL stands behind the quality of its products. This starter motor is typically covered by a limited warranty against defects in materials and workmanship.
- Return Policy: Products are generally eligible for a refund or replacement within 30 days of purchase, subject to the seller's return policy.
- For specific warranty details, claims, or technical support, please contact the seller, Rareelectrical, directly through your purchase platform or their official website.
- When contacting support, please have your purchase information, vehicle details (make, model, year, engine size), and the product model number (19048-Z8) ready.
For further assistance, you may visit the Rareelectrical Store on Amazon.
