Samoser Oven Lower Bake Heating Element Instruction Manual

Introduction

This manual provides essential information for the safe and correct installation, operation, and maintenance of your Samoser Oven Lower Bake Heating Element. This replacement part is designed for specific GE and Kenmore range models. Please read all instructions carefully before proceeding with installation.

Important Safety Information

WARNING: To reduce the risk of electric shock, personal injury, or death, always disconnect power to the appliance at the circuit breaker or fuse box before attempting any service or installation. Failure to do so can result in serious injury or death.

• Always wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• Ensure the appliance is completely cool before beginning work.
• If you are unsure about any part of these instructions, consult a qualified appliance technician.
• Do not operate the oven if the heating element is damaged or improperly installed.

Compatibility

This Samoser Oven Lower Bake Heating Element is an aftermarket replacement part compatible with various GE and Kenmore range models. Please verify your oven's model number to ensure compatibility. Compatible models include, but are not limited to, the following series and specific models:

• GE Models: JBP35DIM3WW, JBP35DIM6WW, JBP35DJ1BB, JBP35DJ2WW, JBP35DK1BB, JBP35DK2CC, JBP35DK3WW, JBP35DK4BB, JBP35DKBB, JBP35DKWW, JBP35DM1BB, JBP35DM2WW, JBP66BB2WH, JBP79BB4BB, JBP35DM3BB, JBP35DM4BB, JBP35DMB, JBP35DXM1WW, JBP79BB1BB, JBP79BB2BB, JBP79BB5BB, JBP66BB1AD, JBP66BB4AD, JBP66BB5WH, JB905BH1BB, JBP78BB4BB, JBP66DM2BB, JBP66DM2CC, JBP66DM2WW, JBP68SH2SS, JBP35BH2WH, JBP81SK1SS, JBP81SK2SS, JBP30WB4WW, JBP35CD2CC, JBP70WK3WW, JBP69WH3WW, JBP80BH1BB, JBP67BK4WH, JBP72SM2SS, JBP72BK2BB, JBP66SH1SS, JBP66SH2SS, JBP66SH3SS, JBP66SK1SS, JBP66SK2SS, JBP66SK3SS, JBP66SK4SS, JBP66SKS, JBP66SM1SS, JBP66SM2SS, JBP66SM3SS, JBP66SM4SS, JBP66SM5SS, JBP66SM6SS, JBP66SM7SS, JBP66SM8SS, JBP66SM9SS, JBP68DM2BB, JBP68DM2CC, JBP68DM2WW, JBP28DR1BB, JBP28DR1CC, JBP28DR2BB, JBP28DR2CC, JBP28DR2WW, JBP28DR3BB, JBP28DR3CC, JBP28DR4BB, JBP28DR4CC, JBP28DR4WW, JBP35DD1BB, JBP35DD1WW, JB250DF1BB, JB250DF4WW, JB250DF5BB, JB250DF6BB, JB630DF1BB, JB630DF2WW, JB630DF4BB, JB630DF5WW, JB630RF1SS, JB630RF2SS, JB630RF4SS, JB630RF5SS, JB640DP1BB, JB640DP1WW, JBS60DF1BB, JBS60DF2WW, JBS60DF3WW, JBS60DF4BB, JB700WD1WW, JB700WD2WW, ECBP70SK1SS, ECBP70SK4SS, ECBP70WK1WW, ECBP82SK2SS, ECBP82WJ1WW, ECBP82WK1WW, EER2000C00BB, EER3000D01BB, EER3000F01BB, EER3000K02BB, EER3001D00SS, EER3002H01CC, EER4000N01BB, EER4001N01SS, JB250GF1SA, JB250RIF1SS, JB250RK1SS, JB258DM1BB, JB258GM2SA, JB258RM1SS, JB350DF1BB, JB350DF4BB, JB350RF1SS, JB620DF1BB, JB620DF4BB, JB620GF1SA, JB620RF1SS, JB640DF1BB, JB640DF2BB, JB640MP1BS, JB640RF1SS, JB640SF1SS, JB640SP1SS.

To confirm compatibility, locate your oven's model number, typically found on a label around the oven door frame or storage drawer. If you are uncertain, please contact Samoser customer support for assistance.

Package Contents

Your package should contain the following item:

• 1x Samoser Oven Lower Bake Heating Element

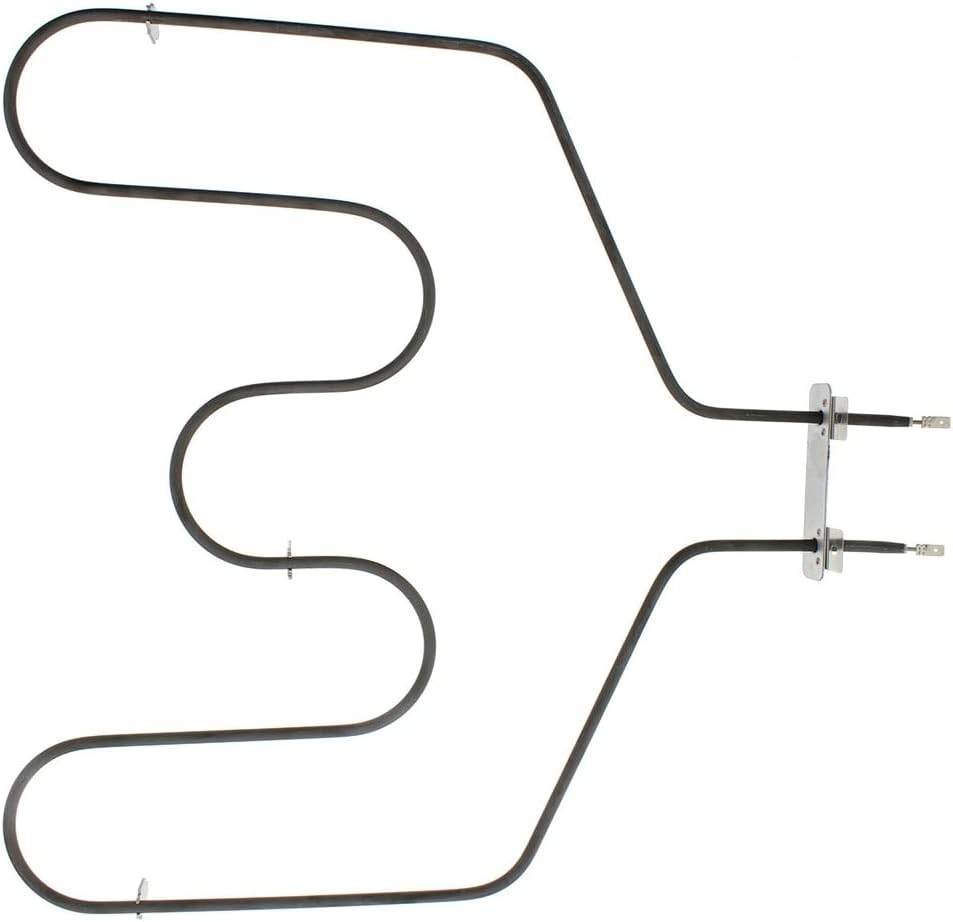

An image showing the Samoser oven lower bake heating element, featuring its coiled metal structure and two terminal connections at one end.

Setup and Installation

Follow these steps carefully to replace your oven's lower bake heating element. Basic tools such as a screwdriver (Phillips or flathead, depending on your oven's fasteners) and possibly pliers may be required.

1. Disconnect Power: Before beginning, ensure the oven is completely cool. Locate your home's circuit breaker panel or fuse box and turn off the power supply to the oven. Verify that the power is off by attempting to turn on the oven light or controls.
2. Access the Oven Interior: Open the oven door. Remove any oven racks to provide clear access to the lower bake element.
3. Remove the Old Element: The lower bake element is typically held in place by two screws at the back of the oven cavity. Carefully remove these screws.
4. Gently Pull the Element: Once the screws are removed, gently pull the element forward a few inches into the oven cavity. This will expose the electrical terminals at the back.
5. Disconnect Wires: Carefully disconnect the two electrical wires from the terminals of the old heating element. Note their orientation if necessary, though they are usually interchangeable. Avoid letting the wires retract into the back wall of the oven; you may need to secure them with tape or clips to prevent them from falling back.
6. Remove Old Element: Once the wires are disconnected, remove the old heating element from the oven.
7. Install New Element: Connect the two electrical wires to the terminals of the new Samoser heating element. Ensure connections are secure.
8. Position and Secure: Carefully push the new element back into its position, aligning the mounting brackets with the screw holes at the back of the oven cavity. Reinsert and tighten the screws to secure the element.
9. Replace Racks: Return the oven racks to their positions.
10. Restore Power: Go back to your circuit breaker panel or fuse box and restore power to the oven.
11. Test Operation: Turn on the oven to the bake setting and observe if the new element heats up properly. It should begin to glow red.

Operating Instructions

Once the Samoser Oven Lower Bake Heating Element is correctly installed, your oven will operate as designed by the manufacturer. Refer to your oven's original user manual for specific operating instructions, temperature settings, and cooking functions.

Maintenance

The Samoser Oven Lower Bake Heating Element is designed for durability and requires minimal maintenance. Periodically inspect the element for any visible signs of damage, such as cracks or breaks. If any damage is observed, discontinue use and replace the element immediately. Ensure the oven cavity remains clean to prevent debris from accumulating on the element, which could affect performance or pose a fire hazard.

Troubleshooting

If your oven does not heat after replacing the bake element, consider the following:

• No Power: Double-check that the circuit breaker for the oven is in the 'ON' position.
• Loose Connections: Disconnect power again and re-check the electrical connections to the heating element terminals. Ensure they are secure.
• Incorrect Element: Verify that the installed element is the correct part for your specific oven model.
• Other Oven Components: If the element is correctly installed and receiving power but still not heating, the issue may lie with other oven components such as the thermostat, control board, or wiring. In such cases, professional diagnosis is recommended.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Samoser customer service. If you are unsure about compatibility or have any questions, Samoser aims to resolve your problem within 24 hours.
