Samoser Range Oven Lower Bake Heating Element User Manual

1. Introduction

This manual provides essential information for the safe and effective installation, maintenance, and troubleshooting of your Samoser Range Oven Lower Bake Heating Element. This product is an aftermarket replacement part designed for various Maytag, Magic Chef, Jenn-Air, and Crosley range models. Please read this manual thoroughly before attempting any installation or repair.

2. Safety Information

• Disconnect Power: Always disconnect power to the appliance at the circuit breaker or fuse box before attempting any service or repair. Failure to do so can result in serious injury or death from electrical shock.
• Qualified Personnel: Installation and service should only be performed by a qualified technician.
• Wear Protective Gear: Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• Handle with Care: Heating elements can be fragile. Handle the new element carefully to avoid damage.
• Check Connections: Ensure all electrical connections are secure and properly insulated after installation.

3. Product Overview

The Samoser Range Oven Lower Bake Heating Element is a replacement component for the lower heating element in compatible ovens. It is designed to restore proper baking function by providing consistent heat from the bottom of the oven cavity.

Package Contents:

• 1x Oven Bake Element

Compatibility:

This aftermarket element is compatible with various Maytag, Magic Chef, Jenn-Air, and Crosley range models. Please verify your specific model number against the list below or consult the product description for a comprehensive list.

Compatible Models Include: MER5730AGW, MER5730BAB, MER5770BAB, MER5770BAW, MER5770BCQ, MER5770BCW, MER5775AAB, MER5775AAQ, MER5780BAS, MER5780BAW, MER5870AAA, MER5870AAB, PER5710BAW, MES5770AAB, MER5730AAA, MER5750AAW, MER5730AAW, MER5750BAB, MER5730AAQ, MER5710AAW, MER5510AAW, MER5870ACB, MER5870ACW, MER5870BAW, and others.

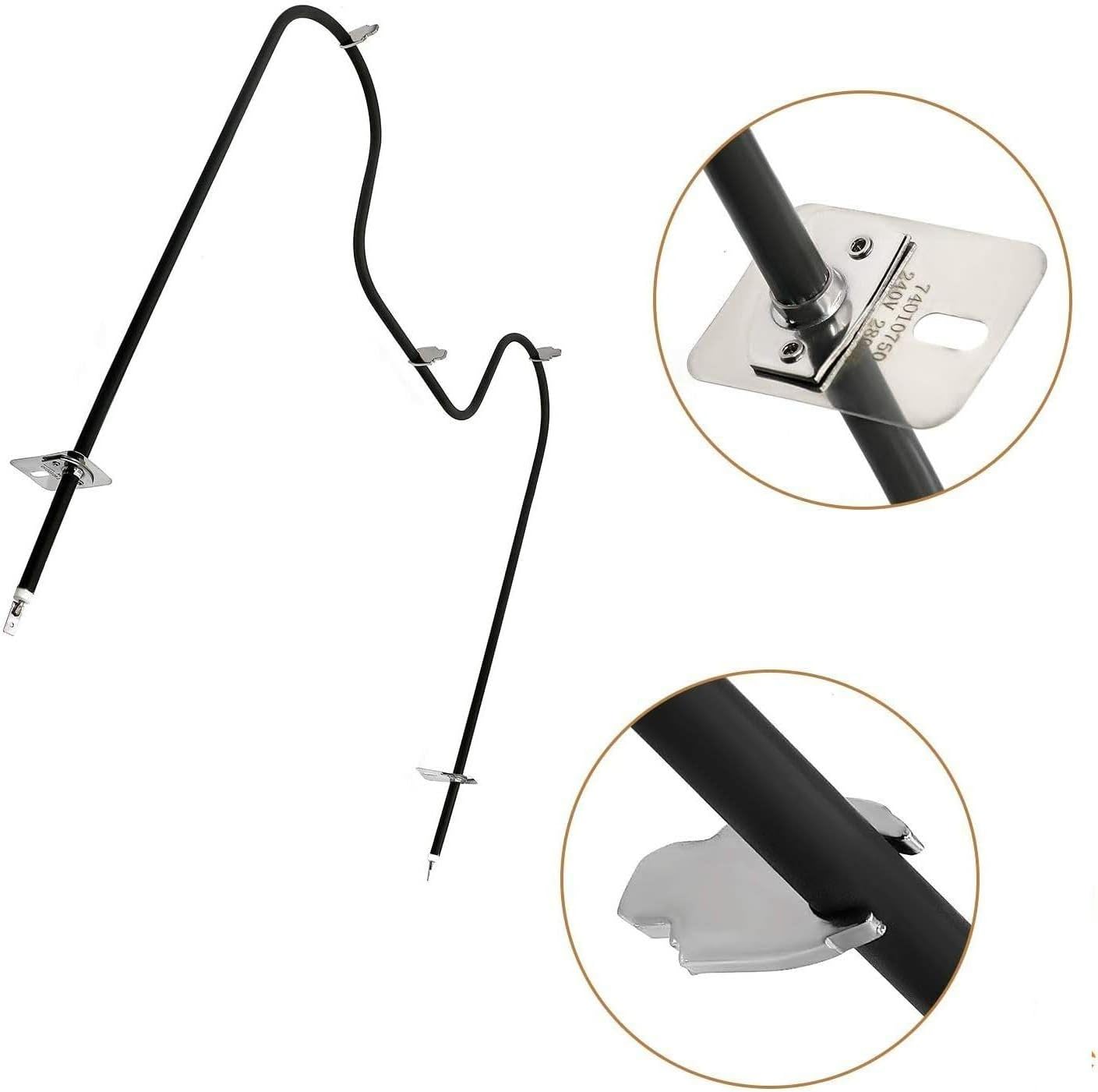

Figure 1: Full view of the Samoser Range Oven Lower Bake Heating Element. This image shows the complete element with its characteristic coiled shape and terminal connections.

4. Setup and Installation

The following steps outline a general procedure for replacing a lower bake heating element. Specific appliance models may vary, so always refer to your appliance's service manual for detailed instructions.

1. Disconnect Power: Turn off the power to the oven at the main circuit breaker or fuse box. Verify that the power is off before proceeding.
2. Access Oven Interior: Open the oven door and remove any oven racks.
3. Locate and Remove Old Element: The lower bake element is typically secured by screws at the back of the oven cavity. Unscrew these fasteners. Carefully pull the element forward a few inches to expose the electrical terminals.
4. Disconnect Wiring: Note the position of the wires connected to the old element's terminals. Disconnect the wires, being careful not to let them retract into the oven wall. You may need to use needle-nose pliers or tape the wires to prevent them from falling back.
5. Remove Old Element: Once wires are disconnected, carefully remove the old heating element from the oven.
6. Install New Element: Insert the new Samoser heating element into the oven cavity. Connect the electrical wires to the terminals of the new element. Ensure connections are secure.
7. Secure New Element: Push the element back into place and secure it with the screws removed earlier.
8. Test Installation: Replace oven racks. Close the oven door. Restore power to the oven at the circuit breaker. Test the oven's bake function to ensure the new element heats properly.

Figure 2: Close-up view of the Samoser Range Oven Lower Bake Heating Element terminals. This image highlights the connection points where electrical wires attach to the element.

5. Operating Instructions

Once correctly installed, the Samoser Range Oven Lower Bake Heating Element operates as an integral part of your oven's heating system. There are no specific operating instructions for the element itself beyond its proper installation. Refer to your oven's user manual for instructions on how to operate your specific oven model, including setting temperatures and cooking modes.

6. Maintenance

The bake heating element typically requires minimal maintenance. However, to ensure its longevity and optimal performance:

• Keep Clean: Avoid excessive spills or food debris directly on the element. If spills occur, clean the oven interior after it has cooled completely and power is disconnected.
• Inspect Periodically: During routine oven cleaning, visually inspect the element for any signs of damage, such as cracks, blisters, or discoloration. If damage is observed, the element may need replacement.
• Avoid Impact: Do not strike the element with cookware or cleaning tools, as this can cause damage.

7. Troubleshooting

If your oven is not heating correctly after replacing the bake element, consider the following:

• Oven Not Heating:
  • No Power: Check if the circuit breaker for the oven has tripped. Reset if necessary.
  • Loose Connections: Disconnect power and re-check the electrical connections to the element. Ensure they are tight and properly seated.
  • Faulty Element (Rare): Although new, a manufacturing defect is possible. If all other checks fail, the element itself might be faulty.
• Uneven Heating:
  • Element Not Fully Engaged: Ensure the element is fully pushed into its receptacles and secured properly.
  • Other Components: Uneven heating can also be caused by issues with the oven's temperature sensor or control board, which are not related to the bake element itself.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

8. Specifications

9. Support and Returns

For questions regarding compatibility or any issues with your Samoser Range Oven Lower Bake Heating Element, please contact the seller for assistance. The seller aims to resolve problems within 24 hours.

This product is subject to a 30-day return policy from the date of purchase. Please refer to the retailer's return policy for specific terms and conditions.
