TIMBERLAND HENNIKER II Watch User Manual

1. Product Overview

The Timberland Henniker II is a sophisticated men's watch featuring a multifunction movement, stainless steel case, and a durable leather strap. Designed for both style and functionality, it includes sub-dials for date, day, and 24-hour time, making it a versatile accessory for daily wear.

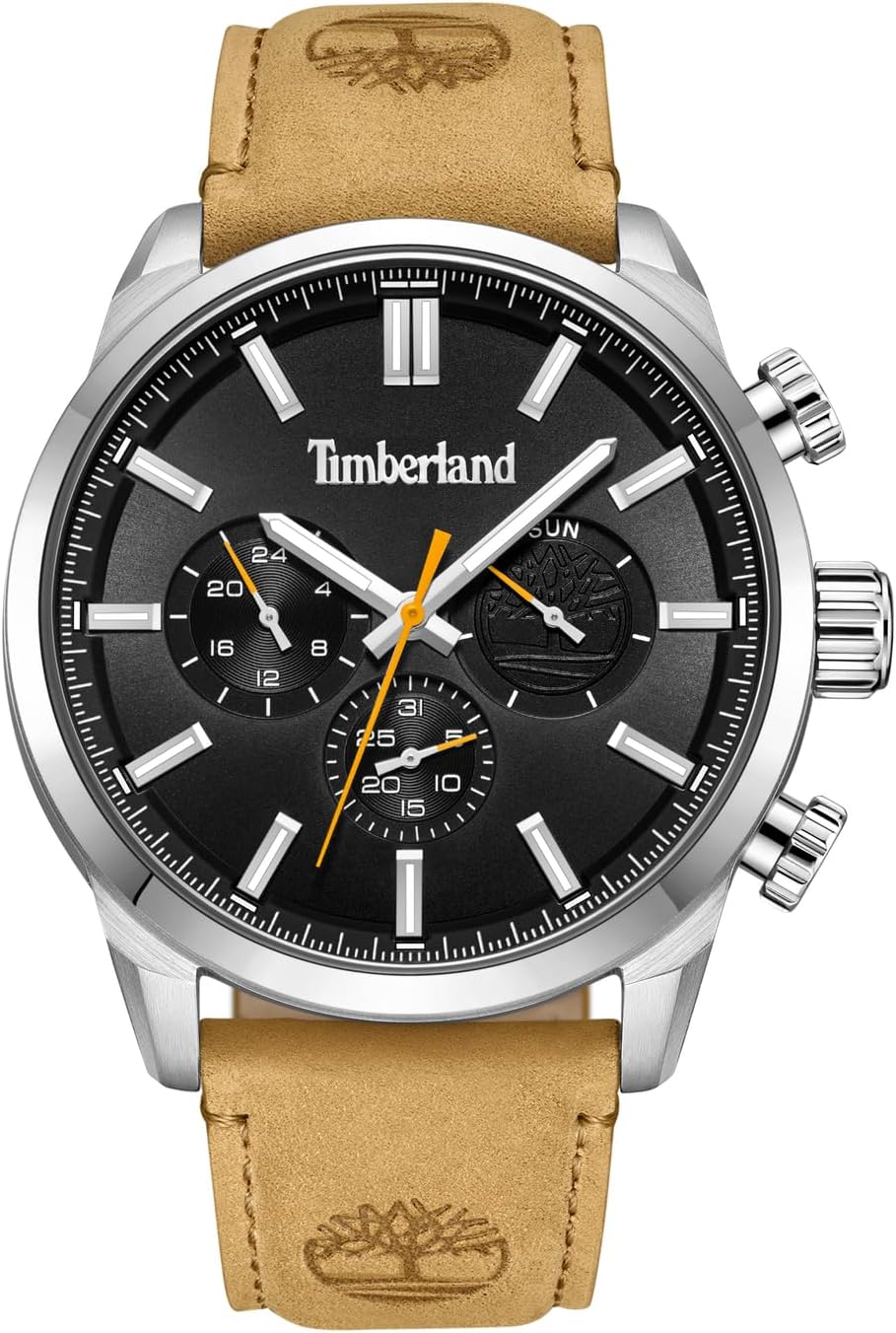

Figure 1.1: Front view of the Timberland Henniker II watch, showcasing its black dial, white hour markers, and brown leather strap with the Timberland tree logo.

2. Key Features

• Multifunction Movement: Displays date, day, and 24-hour time.
• Water Resistance: Designed to be water resistant (5 ATM).
• Durable Construction: Features a stainless steel case and a high-quality leather strap.
• Distinctive Design: 46mm case with grooved crown and pushers, and a matt black dial with contrasting hour markers.
• Comfortable Wear: Padded cut-edge leather strap for enhanced comfort.

3. Setup Guide

3.1 Setting the Time

1. Pull the crown out to position 2 (the outermost position).
2. Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time. Ensure AM/PM is correctly set if applicable to the 24-hour sub-dial.
3. Push the crown back into position 0 (normal operating position) to start the watch.

3.2 Setting the Date and Day

1. Pull the crown out to position 1 (the first click).
2. Turn the crown to adjust the date and day sub-dials. Refer to the specific sub-dial markings for correct adjustment.
3. Once set, push the crown back into position 0.

Figure 3.1: Angled view of the watch, highlighting the crown and pushers used for setting time and functions.

4. Operating Instructions

The Henniker II watch features a multifunction movement with dedicated sub-dials for enhanced timekeeping. The two pushers on the side of the case are typically used in conjunction with the crown for adjusting these functions.

4.1 Reading the Sub-Dials

• Date Sub-dial: Indicates the current day of the month.
• Day Sub-dial: Indicates the current day of the week.
• 24-Hour Sub-dial: Displays time in a 24-hour format, useful for distinguishing AM/PM.

Figure 4.1: Close-up view of the watch dial, showing the three functional sub-dials clearly.

5. Maintenance and Care

5.1 Water Resistance

This watch is water resistant up to 5 ATM (50 meters). This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is not suitable for swimming, diving, or showering with hot water, as steam can penetrate the seals.

• Always ensure the crown is fully pushed in before exposing the watch to water.
• Do not operate the crown or pushers when the watch is wet or submerged.

5.2 Leather Strap Care

The leather strap is a natural material and requires proper care to maintain its appearance and longevity.

• Avoid prolonged exposure to direct sunlight, extreme temperatures, and moisture.
• If the strap gets wet, gently wipe it with a soft, dry cloth and allow it to air dry naturally, away from direct heat.
• Clean the strap periodically with a damp cloth and mild soap, then wipe dry. Do not use harsh chemicals.

5.3 General Cleaning

To clean the watch case and crystal, use a soft, lint-free cloth. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Avoid abrasive materials or harsh cleaning agents.

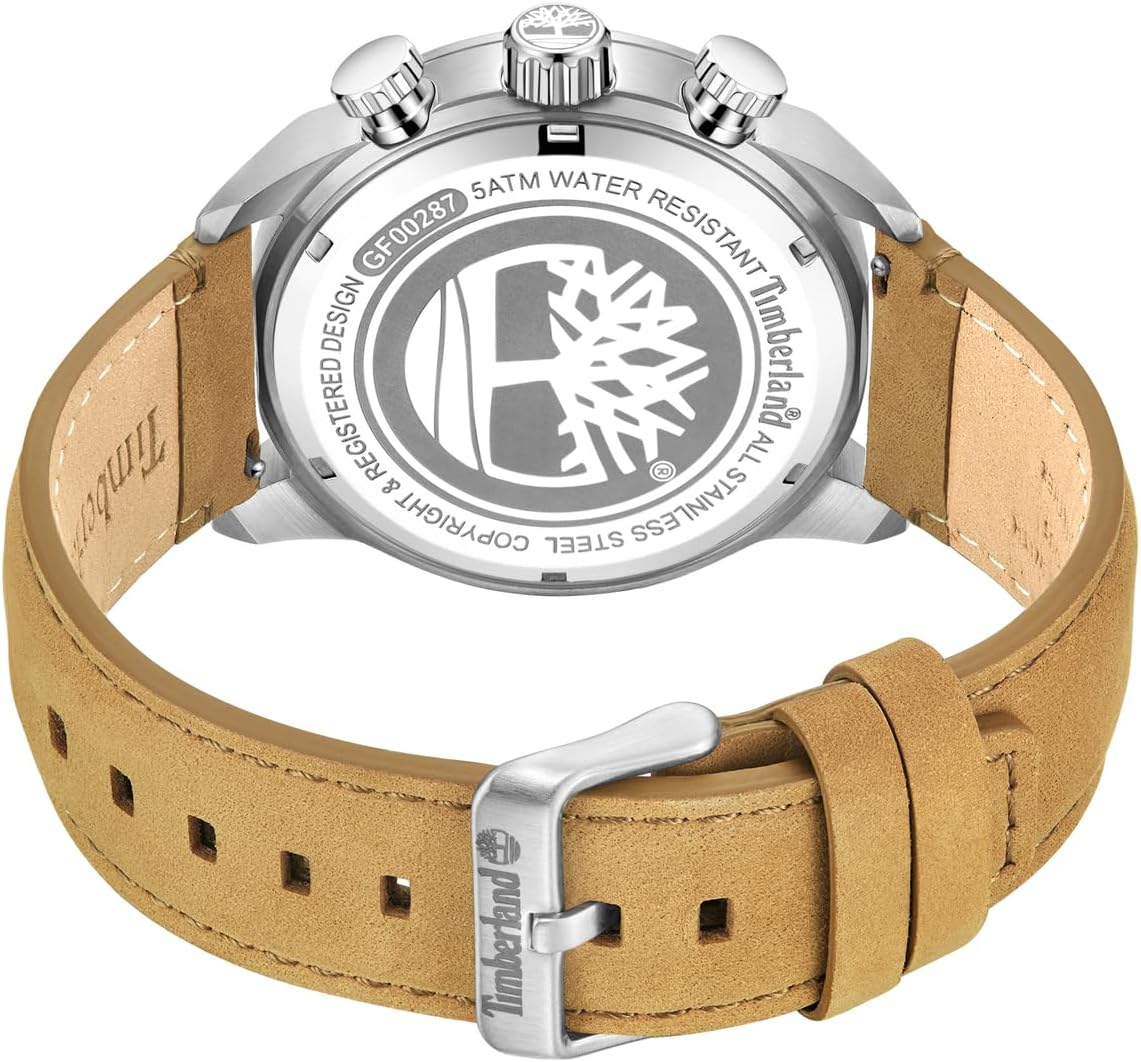

Figure 5.1: Rear view of the watch, displaying the engraved case back with water resistance rating and Timberland logo.

6. Troubleshooting

6.1 Watch Not Running

• Check Crown Position: Ensure the crown is fully pushed in to position 0.
• Battery: If the watch suddenly stops, the battery may need replacement. Contact an authorized service center.

6.2 Incorrect Time/Date

• Reset Time/Date: Follow the instructions in Section 3.1 and 3.2 to reset the time, date, and day.
• Impact: A strong impact may affect the movement. If issues persist, seek professional service.

6.3 Condensation Under Crystal

• Small amounts of condensation may appear temporarily with sudden temperature changes. If it persists or large droplets form, this indicates a seal issue. Contact an authorized service center immediately.

7. Specifications

Figure 7.1: The Timberland Henniker II watch displayed on a wrist, illustrating its size and fit.

8. Warranty and Support

The Timberland Henniker II watch comes with an International Warranty of 2 years from the date of purchase. This warranty covers manufacturing defects under normal use.

• Warranty Coverage: Covers defects in materials and workmanship.
• Exclusions: Does not cover normal wear and tear, damage caused by improper use, accidents, unauthorized repairs, or battery replacement.
• Claiming Warranty: For warranty service, please refer to the warranty card included in your product packaging or contact an authorized Timberland service center.

8.1 Luminous Display

The watch features luminous hands and hour markers for improved readability in low-light conditions. Exposure to light charges the luminous material, allowing it to glow in the dark.

Figure 8.1: The watch dial in low light, demonstrating the luminous properties of the hands and hour markers.
