NASTIMA 6V 12Ah 72Wh LiFePO4 Rechargeable Battery User Manual

1. Introduction

Thank you for choosing the NASTIMA 6V 12Ah 72Wh LiFePO4 Rechargeable Battery. This manual provides essential information for the safe and efficient use of your battery. Please read it thoroughly before installation and operation.

The NASTIMA 6V 12Ah LiFePO4 battery is designed for various applications, offering a lightweight and long-lasting power solution. It features an integrated Battery Management System (BMS) for enhanced safety and reliability.

2. Safety Guidelines

Adhering to these safety guidelines is crucial for preventing damage to the battery and ensuring user safety.

• The charging current must not exceed the specified maximum charging current of 12A.
• The charging voltage must not exceed the specified nominal voltage of 7.3V. The maximum charging voltage is 7.4V.
• Reverse charging is prohibited. Ensure the battery is connected with correct polarity.
• Do not immerse the battery in water or allow it to get wet.
• Do not use or store batteries near heat sources such as fire or radiators.
• Do not strike, throw, or subject the battery to physical shock.
• Do not disassemble, crush, or puncture the battery.
• Do not short external contacts.
• Do not dispose of the battery in fire or water.
• Do not use this battery in series or in parallel with other batteries.

Image Description: This image displays a cutaway view of the NASTIMA 6V 12Ah LiFePO4 battery, highlighting its internal structure and the integrated Battery Management System (BMS). The diagram points out various safety features including over-voltage protection, short-circuit protection, over-discharge protection, over-current protection, over-charge protection, and over-heat protection. This illustrates the comprehensive safety measures built into the battery design.

3. Setup and Installation

The NASTIMA 6V 12Ah LiFePO4 battery is designed for ease of installation due to its lightweight nature, approximately 1/3 the weight of a traditional lead-acid battery.

3.1 Initial Inspection

• Upon receiving the battery, inspect it for any visible damage.
• Verify that the battery terminals are clean and free from corrosion.

3.2 Connection

• Ensure all connections are secure and correctly polarized (positive to positive, negative to negative).
• Avoid short-circuiting the terminals during connection.
• This battery is not designed for series or parallel connections. Connect it as a single 6V power source.

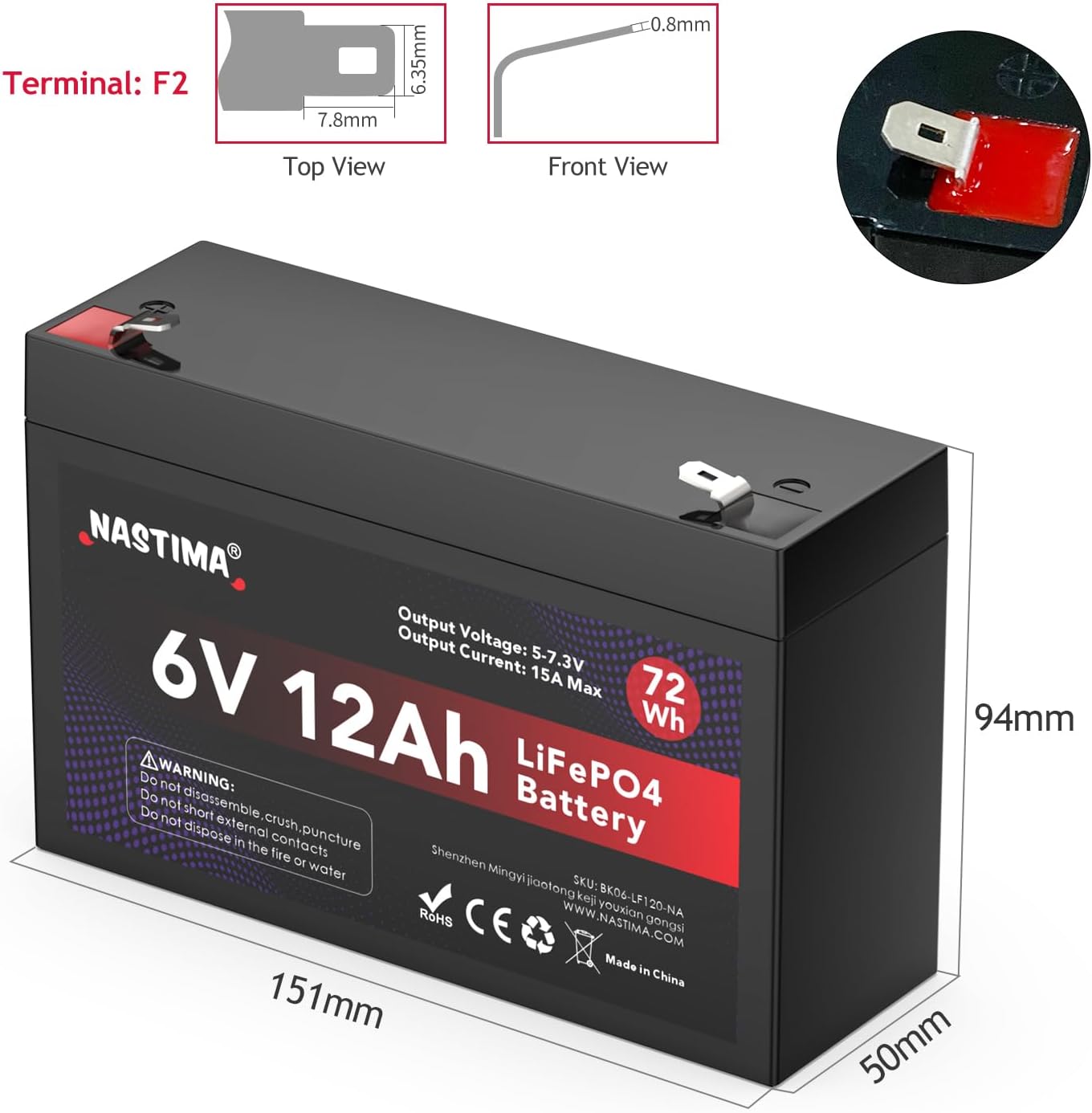

Image Description: This image provides a detailed view of the NASTIMA 6V 12Ah LiFePO4 battery, highlighting its physical dimensions (151mm length, 50mm width, 94mm height) and the specifications of its F2 terminal type. The top and front views of the F2 terminal are shown with measurements (7.8mm width, 6.35mm height, 0.8mm thickness), which is important for proper connection.

4. Operating Instructions

4.1 Charging the Battery

• Use a compatible LiFePO4 charger. A 7.3V 2A charger is recommended.
• Ensure the charging voltage does not exceed 7.4V and the charging current does not exceed 12A.
• Connect the charger to the battery terminals, ensuring correct polarity.
• Monitor the charging process. The integrated BMS will protect against overcharge.

4.2 Discharging the Battery

• The nominal operating voltage range is 5-7.3V (nominal 6.4V).
• The BMS will protect the battery from over-discharge, automatically cutting off power if the voltage drops too low.

4.3 Applications

This LiFePO4 battery is suitable for a wide range of applications, including:

• Energy storage systems
• Outdoor camping equipment
• Children's toy vehicles
• Fish finders
• Solar panel systems
• Emergency lighting
• Backup UPS systems
• Kayaks and small motorboats

Image Description: This image displays a collage of nine different scenarios where the NASTIMA LiFePO4 battery can be used. These include powering children's ride-on toy cars, small motorboats, solar panel installations, security cameras, electric scooters, camping setups, fish finders, and emergency backup lighting systems. This visually demonstrates the versatility and broad applicability of the battery.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your NASTIMA LiFePO4 battery.

• Regular Charging: For optimal lifespan, avoid prolonged storage in a fully discharged state. Charge the battery periodically if not in use.
• Cleaning: Keep the battery terminals clean and free from dust or corrosion. Use a dry cloth for cleaning.
• Storage: Store the battery in a cool, dry place, away from direct sunlight and heat sources. Ensure it is not exposed to moisture.
• Cycle Life: The NASTIMA LiFePO4 battery is designed for over 4000 charge cycles, offering a lifespan of up to 10 years under proper conditions. This is significantly longer than traditional lead-acid batteries (300-400 cycles, 3 years lifespan).

Image Description: This bar graph visually compares the cycle life of the NASTIMA LiFePO4 battery with a traditional lead-acid battery. The NASTIMA LiFePO4 battery shows a significantly higher cycle count of 4000 times, while the lead-acid battery shows only 400 times, emphasizing the superior longevity of the LiFePO4 technology.

Image Description: This infographic presents a side-by-side comparison between NASTIMA LiFePO4 batteries and traditional Lead Acid batteries across several key metrics. It highlights that LiFePO4 offers 4000+ cycles versus 300-400 cycles for lead-acid, a 10-year lifespan versus 3 years, is 1.59 lbs (significantly lighter than 3 times the weight of lead-acid), includes a BMS (lead-acid does not), and has no memory effect (unlike lead-acid). This comparison underscores the advantages of LiFePO4 technology.

6. Troubleshooting

The NASTIMA LiFePO4 battery is equipped with an advanced BMS to prevent common issues. If you encounter any problems, consider the following:

• No Power Output: Check all connections for proper polarity and secure contact. Ensure the battery is adequately charged. The BMS may have activated a protection mode (e.g., over-discharge protection); try recharging the battery with a compatible charger.
• Battery Not Charging: Verify that the charger is functioning correctly and is compatible with LiFePO4 batteries (7.3V 2A recommended). Check the charging voltage and current to ensure they are within the specified limits (max 7.4V, max 12A). Ensure the charger is properly connected to the battery.
• Unusual Heat: If the battery becomes unusually hot during operation or charging, immediately disconnect it from the load/charger and allow it to cool down. Review safety guidelines to ensure proper usage and environment.

For persistent issues or concerns not addressed here, please contact NASTIMA customer support.

7. Specifications

Image Description: This image presents a clear infographic of the technical specifications for the NASTIMA 6V 12Ah LiFePO4 battery. Key details include: Battery Type: LiFePO4, Voltage: 6V, Net Weight: 720g/25.40oz, Capacity: 12Ah, Size (L*W*H): 151*50*94mm, and Cycle Life: 4000+. This provides a quick reference for the battery's core characteristics.

Image Description: This image shows the NASTIMA 6V 12Ah 72Wh LiFePO4 battery from a slightly elevated front perspective. The battery's label is clearly visible, displaying key information such as "NASTIMA 6V 12Ah LiFePO4 Battery," "72 Wh," "Output Voltage: 5-7.3V," "Output Current: 15A Max," and a warning section about not disassembling, crushing, puncturing, shorting external contacts, or disposing in fire/water. The dimensions are also indicated on the label.

8. Warranty and Support

NASTIMA is committed to customer satisfaction and product quality.

• Warranty: This product comes with a 1-year warranty from the date of purchase.
• Money-Back Guarantee: We offer a 35-day money-back guarantee if you are not 100% satisfied with your purchase.
• Customer Support: If you encounter any issues or have questions regarding your NASTIMA battery, please contact our customer support team via email. We are available 24 hours a day to assist you.
