1. Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your FysaH 14L-900W Steam Autoclave Sterilizer. Please read this manual thoroughly before operating the device to ensure proper usage and to prevent injury or damage.
Image: The FysaH 14L-900W Steam Autoclave Sterilizer, showcasing its stainless steel exterior, control panel, and internal trays. Accessories like the power cord and a manual are also visible.
2. Safety Information
Important Safety Precautions:
- Always add approximately 800 ml of distilled water before each sterilization cycle. Using tap water can lead to mineral buildup and damage the unit.
- Connect the autoclave to a separate electrical socket. Ensure the socket's output voltage matches the device's requirements (AC110V; 60±1Hz).
- If the pressure gauge pointer enters the red area, immediately open the exhaust steam needle valve to release pressure.
- Do not open the sterilizer door until the pressure gauge reads zero and all steam has been safely exhausted.
- Operate the device within the specified ambient temperature range of 5-40℃.
- Keep hands and face away from the steam exhaust during operation and depressurization.
- Ensure proper ventilation around the unit during operation.
3. Package Contents
Verify that all components are present in the package:
- 1 x Main Autoclave Body
- 3 x Sterilization Plates (Trays)
- 1 x Shelf for Trays
- 1 x Plate Removal Tool
- 1 x Steam Exhaust Pipe
- 1 x User Manual
4. Component Diagram
Familiarize yourself with the main components of the autoclave:

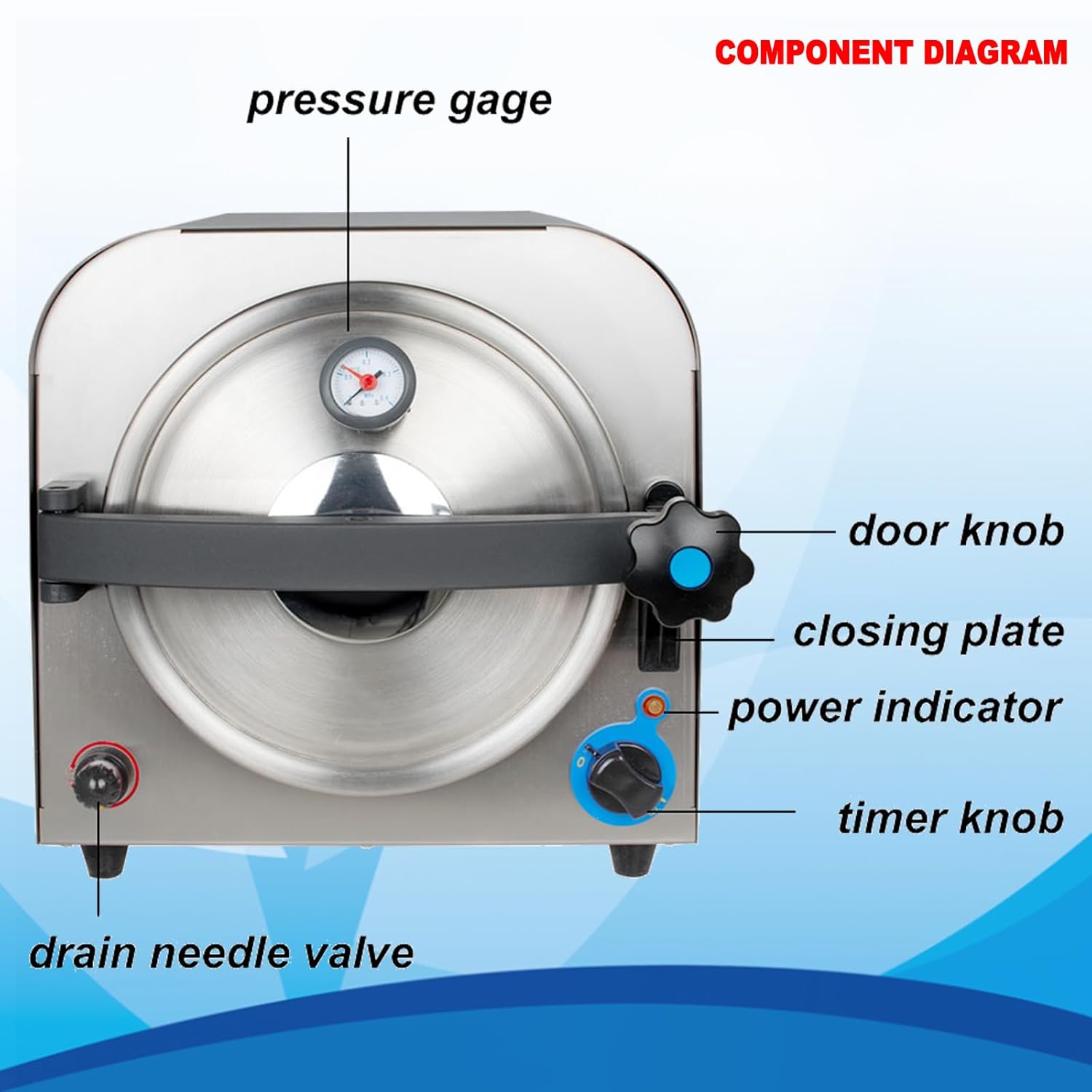

Image: Front panel of the FysaH Autoclave, indicating the locations of the pressure gauge, door knob, closing plate, power indicator light, timer knob, and drain needle valve.
Image: Rear view of the FysaH Autoclave, highlighting the steam outlet and the relief valve, which are located at the back of the machine.
- Pressure Gauge: Displays internal pressure.
- Door Knob: Used to secure and open the sterilizer door.
- Closing Plate: Secures the door when the knob is tightened.
- Power Indicator: Illuminates when the unit is powered on.
- Timer Knob: Sets the sterilization duration.
- Drain Needle Valve: Used to drain water from the chamber.
- Steam Outlet: Point for steam release.
- Relief Valve: Safety mechanism to release excess pressure.
5. Setup and Preparation
- Unpacking: Carefully remove the autoclave and all accessories from the packaging.
- Placement: Place the autoclave on a stable, level, heat-resistant surface with adequate ventilation. Ensure sufficient space around the unit for operation and heat dissipation.
- Initial Cleaning: Before first use, clean the internal chamber and trays with a damp cloth.
- Power Connection: Plug the power cord into the designated power inlet on the autoclave, then connect it to a dedicated AC110V, 60Hz electrical outlet.
- Steam Discharge Pipe: Plug the steam discharge pipe into the No.6 steam outlet (push to the end).
6. Operating Instructions
Follow these steps for a complete sterilization cycle:
Image: The FysaH Autoclave with its door open, revealing the internal sterilization trays. Text overlays describe the operational steps for sterilization.
- Preparation: Open the sterilizer door. Remove the disk and rack, and any other accessories from the sterilizing chamber.
- Add Water: Pour approximately 800 ml of distilled water into the machine bottom. Do not use tap water.
- Load Items: Place the items to be sterilized onto the trays and then into the chamber.
- Close Door: Close the door cover securely.
- Tighten Exhaust Valve: Tighten the steam exhaust valve by turning it clockwise.
- Set Timer: Turn the timer knob to the '121' position. The power light will illuminate, indicating the start of the sterilization process.
- Sterilization Complete: Once the sterilization cycle is finished (after approximately 25 minutes at 121℃), the unit will automatically stop heating.
- Depressurization: Before opening the door, ensure the pressure gauge pointer is at zero. To release steam, open the release valve (turn counter-clockwise) and allow all steam and water to exhaust.
- Remove Items: Once depressurized and cooled, open the door and carefully remove the sterilized items using the plate removal tool.
7. Maintenance
Regular maintenance ensures the longevity and proper functioning of your autoclave:
- Cleaning: Regularly clean the interior of the chamber and trays with a soft cloth and mild detergent. Rinse thoroughly and dry.
- Water Quality: Always use distilled water to prevent mineral buildup, which can affect heating efficiency and damage components.
- Gasket Inspection: Periodically inspect the door gasket for any signs of wear, cracks, or damage. A damaged gasket can lead to steam leaks.
- Exterior Cleaning: Wipe down the exterior with a damp cloth. Do not use abrasive cleaners.
- Storage: When not in use for extended periods, ensure the unit is clean, dry, and stored in a cool, dry place.
8. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | No power supply; faulty power cord; unit malfunction. | Check power connection and outlet. Ensure power cord is securely plugged in. If problem persists, contact support. |
| Steam leaks from door. | Door not properly sealed; damaged door gasket. | Ensure door is closed and knob is tightened securely. Inspect door gasket for damage and replace if necessary. |
| Pressure does not build up. | Insufficient water; steam exhaust valve open; door not sealed. | Add correct amount of distilled water. Ensure steam exhaust valve is closed. Verify door is securely sealed. |
| Sterilization cycle incomplete. | Timer setting incorrect; power interruption. | Ensure timer is set to '121' position. Check for stable power supply. |
9. Specifications
Image: Detailed specifications of the FysaH Autoclave, including electrical input, capacity, power consumption, sterilization parameters, and physical dimensions.
- Input Power: AC110V; 60±1Hz
- Capacity: 14L
- Power: 900VA(W)
- Sterilization Time: 25 minutes at 121℃
- Sterilization Temperature: 121℃
- Operating Ambient Temperature: 5-40℃
- Product Dimensions: 21.3 x 16.9 x 16.9 inches
- Manufacturer: Caredocmall
10. Scope of Application
The FysaH Steam Autoclave Sterilizer is designed for sterilizing various instruments and equipment in professional settings, including but not limited to:

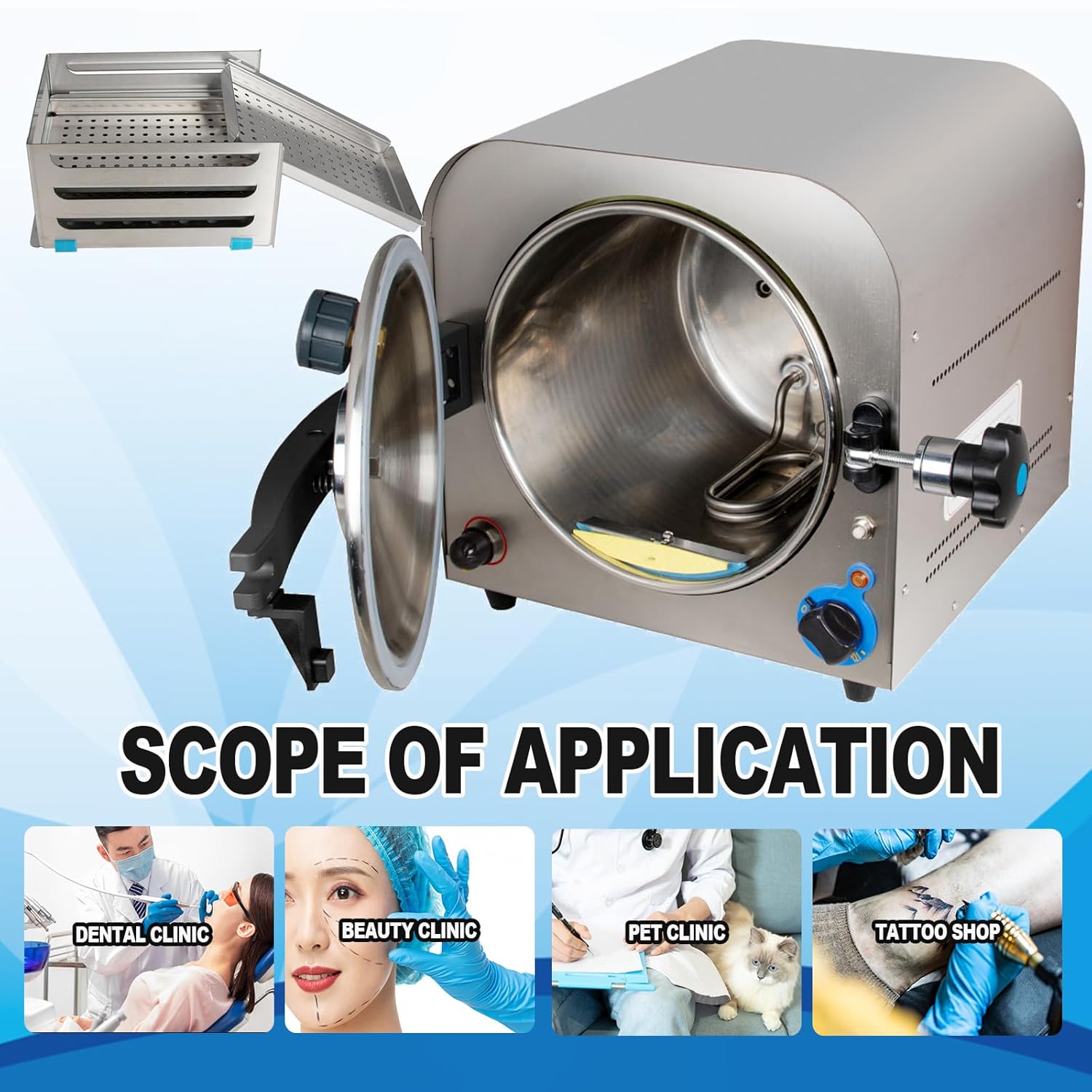

Image: Visual representation of the FysaH Autoclave's diverse applications, including dental clinics, beauty clinics, pet clinics, and tattoo shops, demonstrating its versatility in professional sterilization.
- Stomatological and Ophthalmologic Hospitals
- Pedicure Salons
- Beauty Salons
- Dental Clinics
- Pet Clinics
- Tattoo Shops
- Laboratories
11. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the FysaH official website. Keep your purchase receipt as proof of purchase.
