SEEKONE 1800W Heat Gun User Manual

1. Important Safety Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. Read all instructions before using this heat gun.

• Always wear appropriate personal protective equipment, including safety glasses and heat-resistant gloves.
• Do not direct the heat gun at people or animals.
• Do not use the heat gun near flammable materials or gases.
• Ensure adequate ventilation when operating the heat gun.
• Allow the heat gun to cool down completely before storing. The built-in cooling-down feature helps extend the life of the heating element.
• Do not block the air intake or output nozzles.
• Always unplug the heat gun when not in use or before performing any maintenance.
• This heat gun is equipped with overheat protection to prevent damage to the tool and circuit.

2. Product Overview

2.1 Components

Your SEEKONE 1800W Heat Gun package includes the following items:

• 1 x 1800W Heat Gun (Model: SDL-2818)
• 4 x Nozzle Attachments
• 1 x User Manual

Image: The SEEKONE 1800W Heat Gun, its power cord, and the four included nozzle attachments, along with the user manual, laid out in its packaging.

Image: A visual representation of the heat gun, four distinct nozzles, and the user manual, highlighting them as part of the complete package.

2.2 Key Features

• Compact Design & Powerful: The heat gun features an innovative compact design, approximately 20% smaller than traditional heat guns, making it easy to carry and store. Despite its size, it delivers 1800W of power for efficient work.


Image: The compact design of the heat gun, illustrating its small size (Length: 7.67 inches, Width: 7.28 inches) and highlighting its stability for upright use and ease of carrying.


Image: A graphic emphasizing the heat gun's compact design, stating it is 20% smaller than standard models.

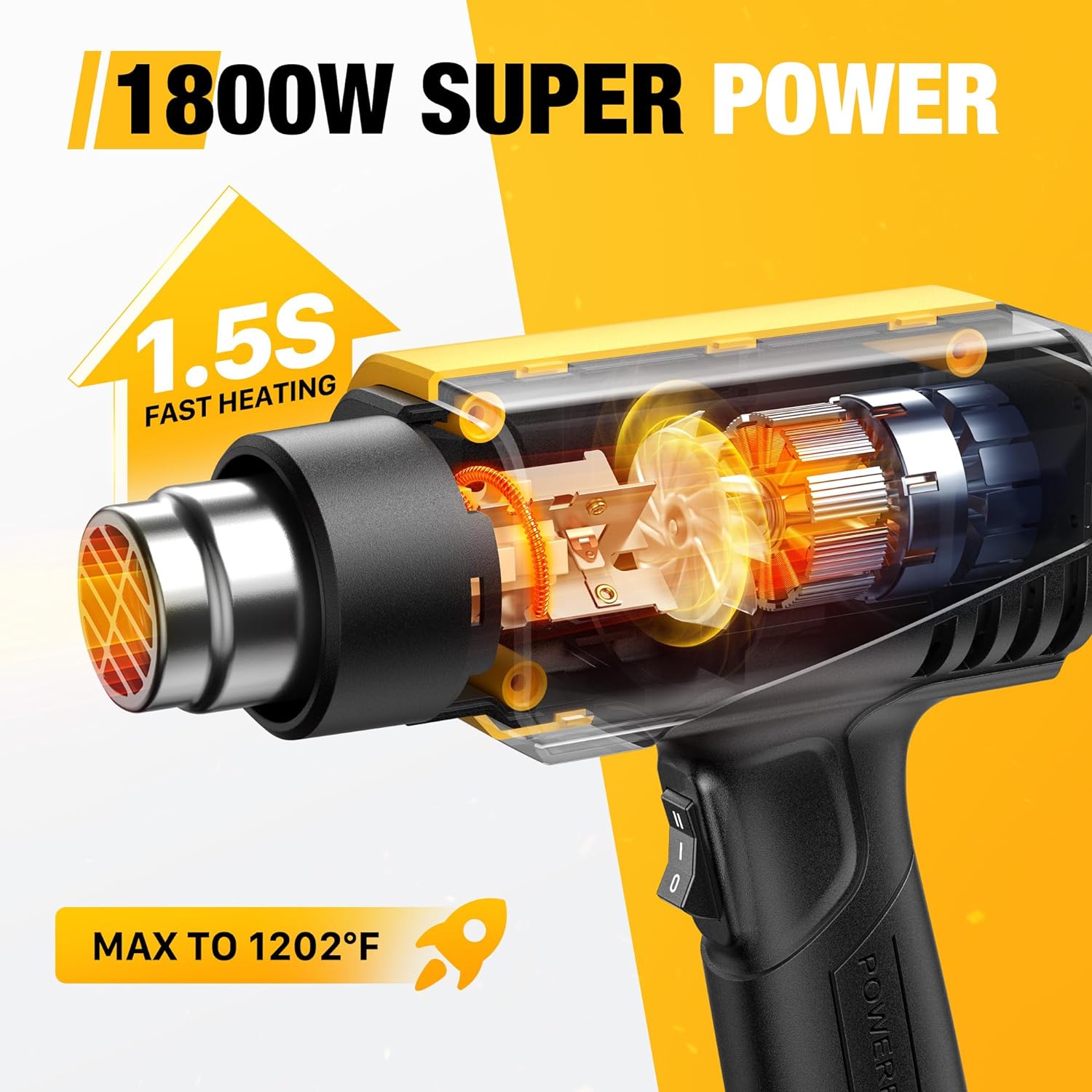

Image: An X-ray view of the heat gun highlighting its 1800W super power and 1.5-second fast heating capability, reaching up to 1202°F.



Image: A graphic showcasing the heat gun's 1800W super power, with an internal view of its motor and fan.

• Variable Temperature & Two-Speed Airflow: Offers stepless heat adjustment from 122℉-1202℉ (50℃-650℃) and two airflow settings:
  • Speed I: 50-350℃, 300L/min
  • Speed II: 50-650℃, 500L/min
  This allows for precise temperature control for various applications.


Image: The heat gun in use, demonstrating its variable temperature control dial ranging from 122°F to 1202°F, with a visual representation of temperature levels.



Image: A graphic detailing the heat gun's variable temperature and airflow settings, including the two speed modes (I and II) with their respective temperature and airflow ranges.

• Durability & Safety: Features a ceramic heating element for high efficiency and stability. Includes built-in overheat protection and UL certification for enhanced safety.

Image: An internal diagram of the heat gun showcasing its ultra-safe system, including UL certification and overheat protection features.


Image: A graphic detailing the heat gun's safety features, such as high temperature resistance, UL certification, and overheat protection, ensuring safe use.

• Wide Applications: Comes with 4 nozzle attachments suitable for various tasks such as heat shrink tubing, heating PVC, electronics repair, cell phone repair, vinyl wrapping, and removing paint or floor tiles.


Image: A collage demonstrating the versatility of the heat gun across multiple applications, including heat shrinking, vinyl wrapping, and paint removal.


Image: A close-up of the 3-layer focusing nozzle, designed for concentrated heat application.


Image: A close-up of the small round nozzle, suitable for precise heating tasks.



Image: A close-up of the deflector nozzle, used to spread heat over a wider area.


Image: A close-up of the reflector nozzle, ideal for heat shrinking around pipes or wires.

3. Setup

1. Unpacking: Carefully remove the heat gun and all accessories from the packaging. Inspect for any damage.
2. Nozzle Attachment: Select the appropriate nozzle for your task. Align the nozzle with the heat gun's output and push it firmly into place. Ensure it is securely attached before operation.
3. Power Connection: Plug the heat gun into a standard AC power outlet (110V, 60Hz). Ensure the power switch is in the "0" (off) position before plugging in.

4. Operating Instructions

1. Power On: Set the power switch to either "I" (low speed) or "II" (high speed) depending on your airflow requirement.
2. Adjust Temperature: Use the stepless temperature control dial located at the rear of the heat gun to set the desired heat level. Turn the dial clockwise to increase temperature and counter-clockwise to decrease it.
3. Application: Direct the hot air stream towards the workpiece. Maintain a safe distance to avoid overheating or damaging the material.
4. Power Off: After use, switch the power to "0" (off). Allow the heat gun to cool down before storing.

5. Maintenance

• Cleaning: Regularly clean the air intake and output nozzles to prevent dust and debris buildup, which can affect performance and safety. Use a soft, dry cloth.
• Cooling Down: Always allow the heat gun to cool down naturally after use. The integrated cooling system helps prolong the life of the heating element.


Image: A graphic explaining the heat gun's cooling system, which automatically reduces temperature to 122°F (50°C) before shutting off, thereby extending the tool's lifespan.

• Storage: Store the heat gun in a dry, safe place, out of reach of children.

6. Troubleshooting

7. Specifications

8. Warranty and Support

SEEKONE is committed to providing high-quality products and customer satisfaction. Our team of professionals is ready to deliver ongoing technical help that extends for the life of your device.

For technical assistance or warranty inquiries, please refer to the contact information provided in your product packaging or visit the official SEEKONE website.
