Shintenchi 6x6.2x7.3 ft Portable Outdoor Storage Shelter Instruction Manual

1. Introduction

Thank you for choosing the Shintenchi Portable Outdoor Storage Shelter. This manual provides essential information for the safe assembly, operation, and maintenance of your new shelter. Please read it thoroughly before use and retain it for future reference.

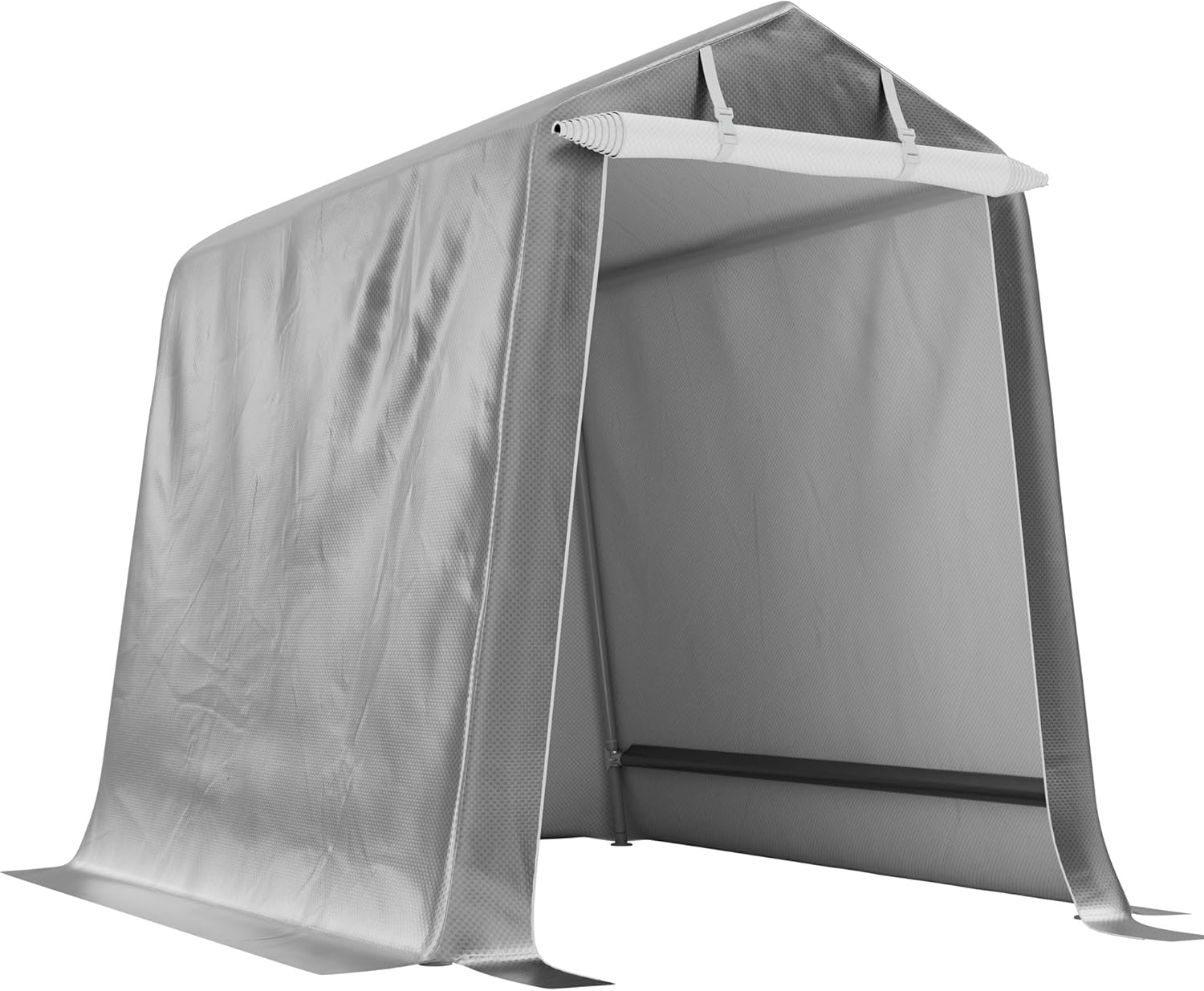

Figure 1: Shintenchi Portable Outdoor Storage Shelter. This image shows the assembled shelter from a front-side angle, highlighting its grey, waterproof cover and the roll-up front opening.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Ensure all components are securely fastened during assembly and before use.
• Do not use this canopy during extreme bad weather conditions such as storms, heavy snowfall, hail, or tornadoes. If severe weather is anticipated, disassemble or secure the shelter appropriately to prevent damage or injury.
• Place the shelter on a level and stable surface.
• Keep children and pets away from the assembly area.
• Do not hang heavy objects from the frame.
• Regularly inspect the shelter for any signs of wear or damage. Replace damaged parts immediately.

Figure 2: Weather Warning. This image illustrates the importance of not using the shelter during blizzards, hail, or tornadoes, showing visual representations of these severe weather conditions.

3. Parts List

Before assembly, verify that all parts are present and undamaged. Refer to the included diagram for identification.

• Powder-coated steel frame poles (various lengths)
• T-connectors
• UV-resistant and waterproof tarp cover
• Roll-up zipper door panels (front and rear)
• Fixing buckles
• Elastic cords
• Ground nails/stakes

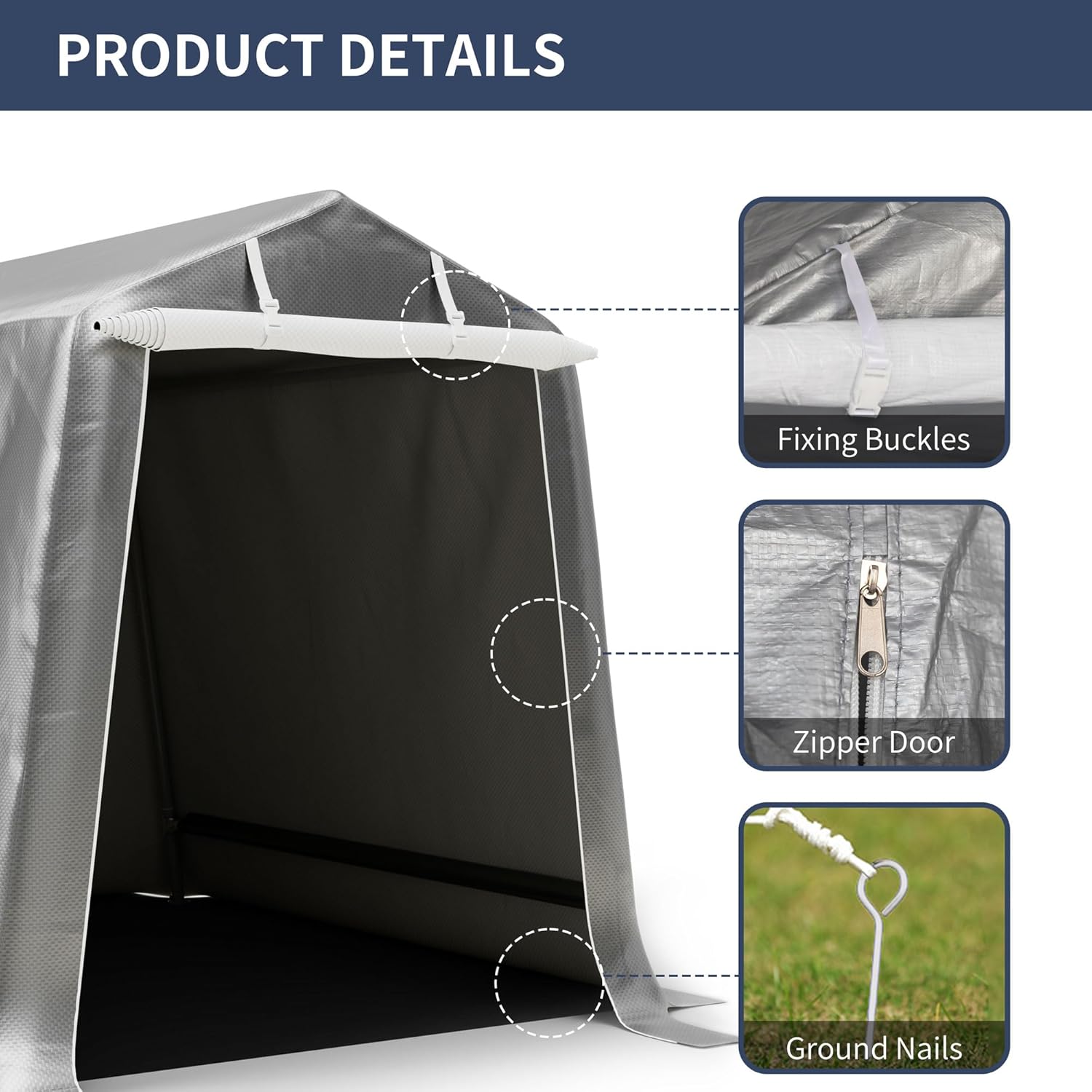

Figure 3: Product Details. This image highlights key components such as the fixing buckles for the roll-up door, the zipper door mechanism, and the ground nails used for securing the shelter.

4. Setup Instructions

No additional tools are required for assembly. Each part is marked with a number for easy identification. Follow these steps for installation:

1. Assemble the Frame: Connect the steel frame poles using the T-connectors. Ensure that the protruding spring on each pole snaps securely into the corresponding hole on the connector. The frame is designed for stability with 3.8 cm diameter and 1.2 mm thick pillars.
2. Attach the Cover: Drape the UV-resistant and waterproof tarp cover over the assembled frame. Ensure it is centered and evenly distributed.
3. Secure the Cover: Pass the elastic cords through the designated holes on the cover and around the frame poles to secure the cover tightly. Utilize the fixing buckles to further secure the cover, especially around the roll-up door areas.
4. Install Ground Nails: Use the provided ground nails/stakes to anchor the shelter firmly to the ground. This enhances stability and resistance against wind.

Figure 4: Fast Installation Guide. This image illustrates three key assembly steps: "Easy to Connect" showing how poles snap together, "Easy to Tie" demonstrating securing the cover with elastic cords, and "Stable Design" highlighting the T-connectors for frame stability.

5. Operating Instructions

The Shintenchi Portable Outdoor Storage Shelter is designed for easy access and versatile storage.

• Roll-Up Zipper Doors: The shelter features roll-up zipper doors at both the front and rear. To open, unzip the door completely and roll it upwards. Secure the rolled door using the attached buckles or ties to keep it open. This provides easy access, improved visibility, and enhanced air circulation.
• Storage: This shelter is suitable for storing motorcycles, ATVs, bicycles, small lawnmowers, firewood, garden tools, and other outdoor equipment.

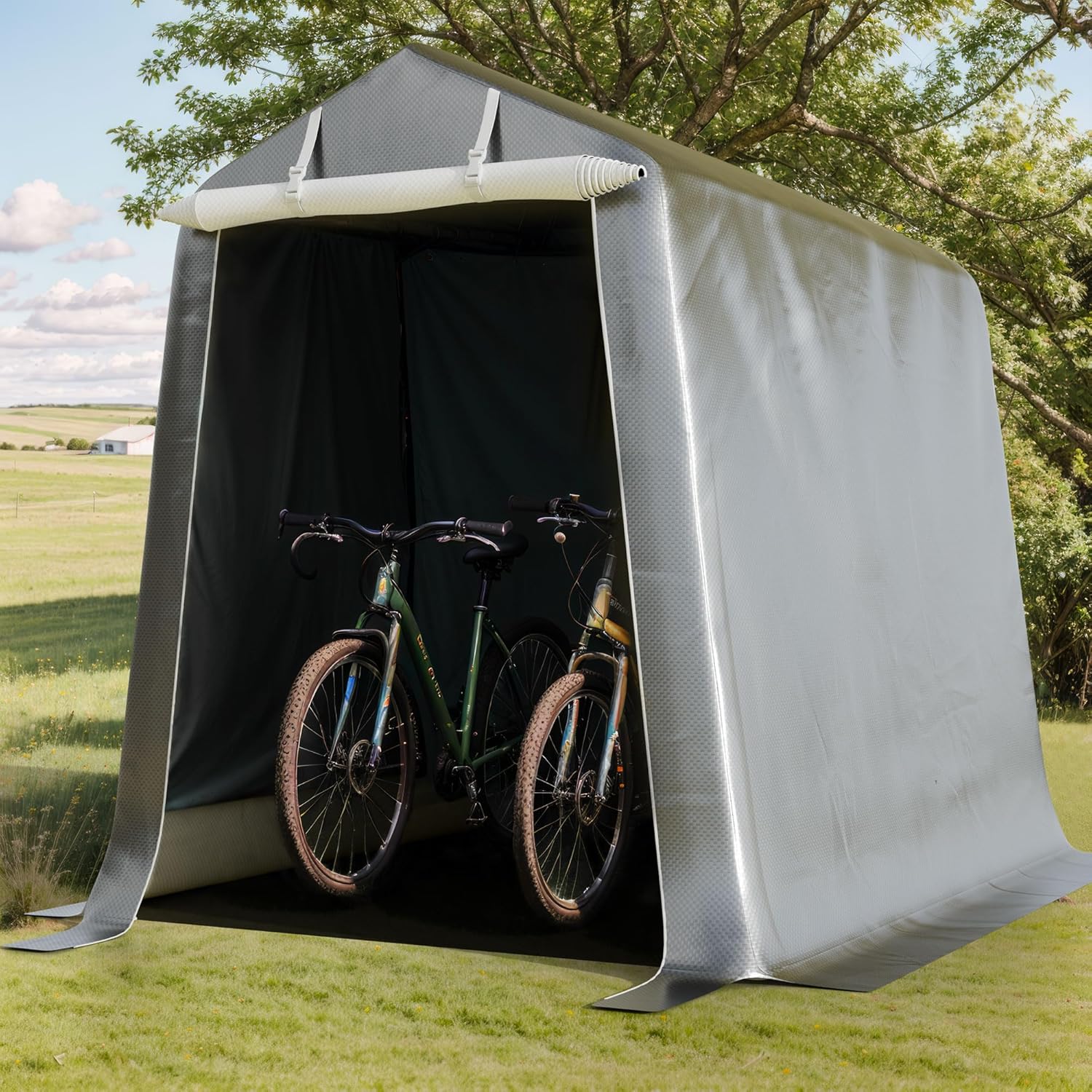

Figure 5: Bicycle Storage. This image shows two bicycles neatly stored inside the shelter, demonstrating its capacity and suitability for bike storage.

Figure 6: Versatile Storage. This image displays the shelter being used to store a variety of items, including a bicycle, lawnmowers, and other garden equipment on shelving, illustrating its multi-purpose utility.

6. Maintenance

• Cleaning: Clean the tarp cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material.
• Frame Inspection: Regularly check the steel frame for any signs of rust, corrosion, or loose connections. The powder-coated finish is designed to resist rust, but prolonged exposure to moisture can still cause issues.
• Cover Inspection: Inspect the tarp cover for tears, punctures, or excessive wear. Small damages can be repaired with appropriate patch kits to maintain waterproofing.
• Ground Anchors: Ensure ground nails/stakes remain firmly in place, especially after strong winds. Re-secure if necessary.
• Winter Storage: In areas with heavy snowfall, it is recommended to remove snow accumulation from the roof to prevent structural damage. For prolonged periods of severe winter weather, consider disassembling and storing the shelter indoors.

7. Troubleshooting

• Shelter Instability:
  • Ensure all frame connections are fully snapped into place.
  • Verify that the cover is taut and evenly secured with elastic cords and buckles.
  • Check that ground nails are firmly anchored into stable ground.
  • Relocate the shelter to a more level surface if necessary.
• Water Leakage:
  • Inspect the tarp cover for any tears or punctures. Repair with a waterproof patch kit.
  • Ensure the cover is properly tensioned to allow water runoff and prevent pooling.
  • Check zipper closures for complete sealing.
• Difficulty with Zipper:
  • Ensure the zipper path is clear of fabric or debris.
  • Apply a silicone-based lubricant to the zipper teeth if it is stiff.
  • Avoid forcing the zipper if it snags.

8. Specifications

Figure 7: Product Dimensions. This image provides a visual representation of the shelter's dimensions: 6 ft width, 6.2 ft depth, and 7.3 ft height.

9. Warranty and Support

Information regarding specific warranty terms and customer support contact details is not provided in the product description. Please refer to the retailer's website or your purchase documentation for warranty information and support contacts.
