NEOVSUNY LED Wall Light Instruction Manual

1. Introduction

Thank you for purchasing the NEOVSUNY LED Wall Light. This versatile and modern wall light features a rechargeable battery, touch and remote control, 360-degree rotation, multiple color temperatures, brightness levels, and RGB color options. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your product.

2. Product Overview and Components

The NEOVSUNY LED Wall Light is designed for various indoor applications, offering flexible lighting solutions. Please ensure all components are present before proceeding with installation.

Included Components:

• 1 x USB Wall Light
• 1 x Type-C Charging Cable
• 1 x Strong 3M Adhesive Pad
• 1 x 360-Degree Rotating Magnetic Ball Mount
• 3 x Screws (for optional screw mounting)
• 1 x User Manual

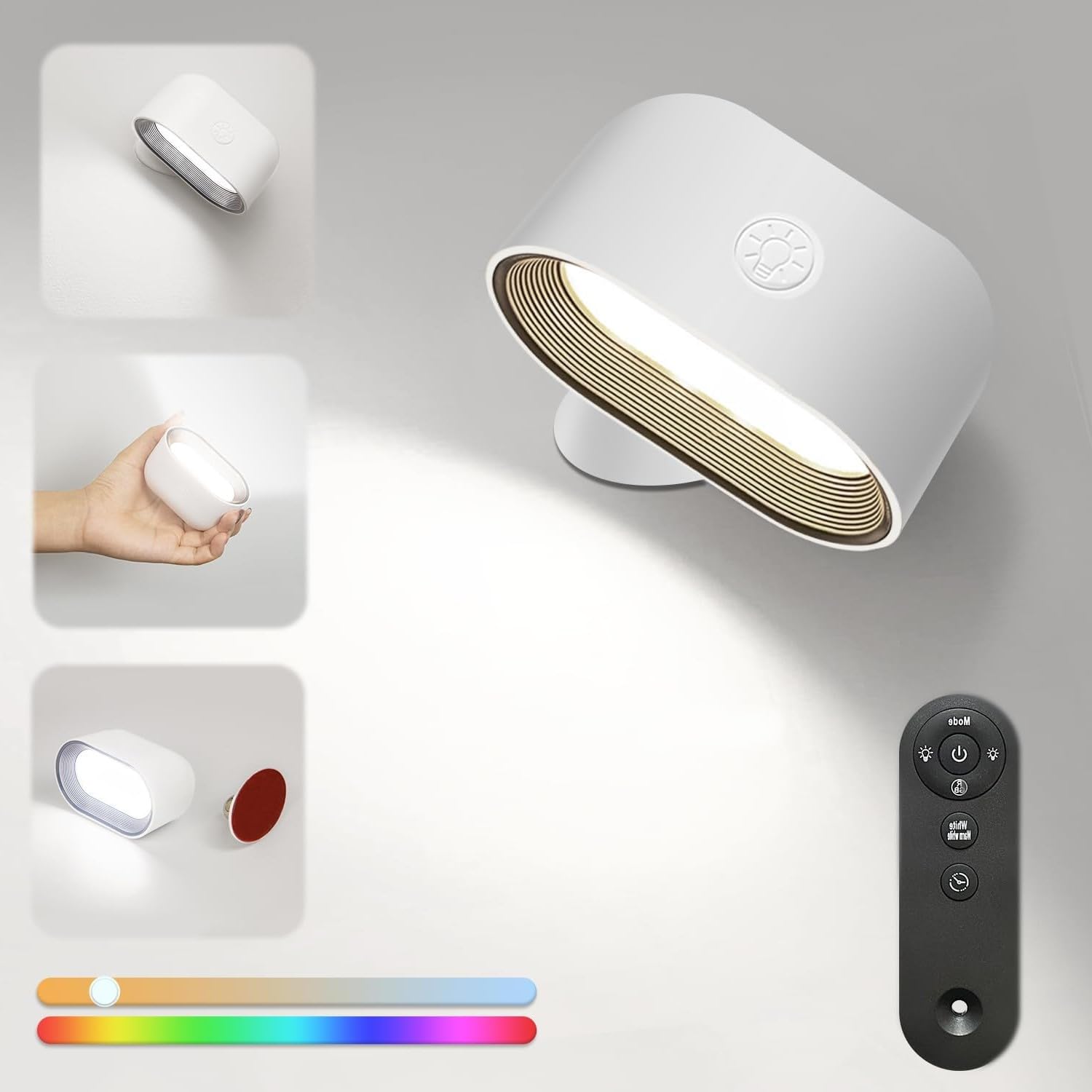

Image: The NEOVSUNY LED Wall Light with its magnetic base and remote control.

3. Setup and Installation

The NEOVSUNY LED Wall Light offers two installation methods: adhesive mounting or screw mounting.

3.1 Adhesive Mounting (Recommended for ease and no wall damage)

1. Clean the Surface: Ensure the desired wall surface is clean, dry, and smooth.
2. Attach 3M Adhesive: Peel off the protective film from one side of the 3M adhesive pad and firmly attach it to the back of the magnetic ball mount.
3. Mount to Wall: Peel off the protective film from the other side of the 3M adhesive pad and press the magnetic ball mount firmly onto the chosen wall surface for at least 30 seconds.
4. Attach Light: The wall light unit can then be magnetically attached to the ball mount.

3.2 Screw Mounting (For a more permanent fixture)

1. Mark Positions: Use the magnetic ball mount as a template to mark the screw positions on the wall.
2. Drill Holes: Drill appropriate holes at the marked positions.
3. Secure Mount: Insert wall anchors (if necessary, not included) and secure the magnetic ball mount to the wall using the provided screws.
4. Attach Light: The wall light unit can then be magnetically attached to the ball mount.

The light unit can be easily removed from the magnetic mount for charging or use as a portable light.

Image: Illustration of the strong magnetic suction and 360-degree free rotation feature, highlighting easy installation without wall damage.

3.3 360-Degree Rotation

Once mounted, the light unit can be freely rotated up to 360 degrees on the magnetic ball mount. This allows you to adjust the direction of the light source to meet your specific lighting needs.

4. Operating Instructions

The NEOVSUNY LED Wall Light can be controlled via its touch interface or the included remote control.

4.1 Remote Control Pairing

Before first use, ensure the remote control is paired with the wall light. Follow the instructions provided with the remote control for pairing. Typically, this involves turning on the light and pressing a specific button combination on the remote within a short timeframe.

4.2 Main Light Functions (White/Natural/Warm Light)

• Color Temperature Adjustment: The main light offers 3 different color temperatures: 6500K (Cool White), 4000K (Natural White), and 3000K (Warm White). Cycle through these options using the touch control or dedicated buttons on the remote.
• Brightness Levels: For each color temperature, there are 5 adjustable brightness levels (20%, 40%, 60%, 80%, 100%). Adjust brightness using the touch control or the dimmer buttons on the remote.

Image: Visual representation of 3 color temperatures (3000K, 4000K, 6500K) and RGB multicolor adjustment options.

4.3 RGB Color Modes

In addition to the main light, the wall light features 6 distinct RGB color lights and 1 gradient light mode. These can be accessed and controlled via the remote control to create various ambient lighting effects.

Image: Demonstrates the 3 color temperatures, 5 brightness levels, and various RGB color options available.

4.4 Memory Function

The wall light includes a memory function. If the light has been on for more than 30 seconds, it will remember the last used color temperature and brightness setting. When you turn the light back on, it will restore these previous settings automatically.

4.5 Timer Function

The remote control allows you to set a timer for the light to automatically turn off after 1, 2, or 3 hours. This feature is useful for bedtime or when you need the light to switch off after a specific duration.

Image: Illustrates the timing function (1h, 2h, 3h) for automatic shut-off, ideal for bedtime.

5. Charging and Battery Life

The NEOVSUNY LED Wall Light is equipped with a built-in 2500 mAh rechargeable lithium battery.

• Charging: Use the provided Type-C charging cable to charge the light. Connect the cable to the light's Type-C port and a suitable USB power adapter (not included).
• Charging Indicator: A red light indicates that the unit is charging. A green light indicates that the battery is fully charged.
• Charging Time: A full charge typically takes 3 to 4 hours.
• Battery Duration: The light can last up to 25 hours on low brightness and approximately 7 hours on maximum brightness, providing long-lasting illumination.

Image: Details the Type-C charging port, red (charging) and green (fully charged) indicator lights, and the timing function.

6. Maintenance

• Cleaning: Wipe the light with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: If storing for an extended period, ensure the battery is partially charged (around 50%) and recharge it every 3-6 months to maintain battery health.
• Environment: Avoid exposing the light to extreme temperatures, direct sunlight, or high humidity.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the seller directly through your purchase platform. Keep your purchase receipt as proof of purchase.
