sccvee 20W Wireless Charging Pad Instruction Manual

Introduction

Thank you for choosing the sccvee 20W Wireless Charging Pad. This manual provides essential information for the safe and efficient use of your new wireless charger. Please read these instructions carefully before use and retain them for future reference.

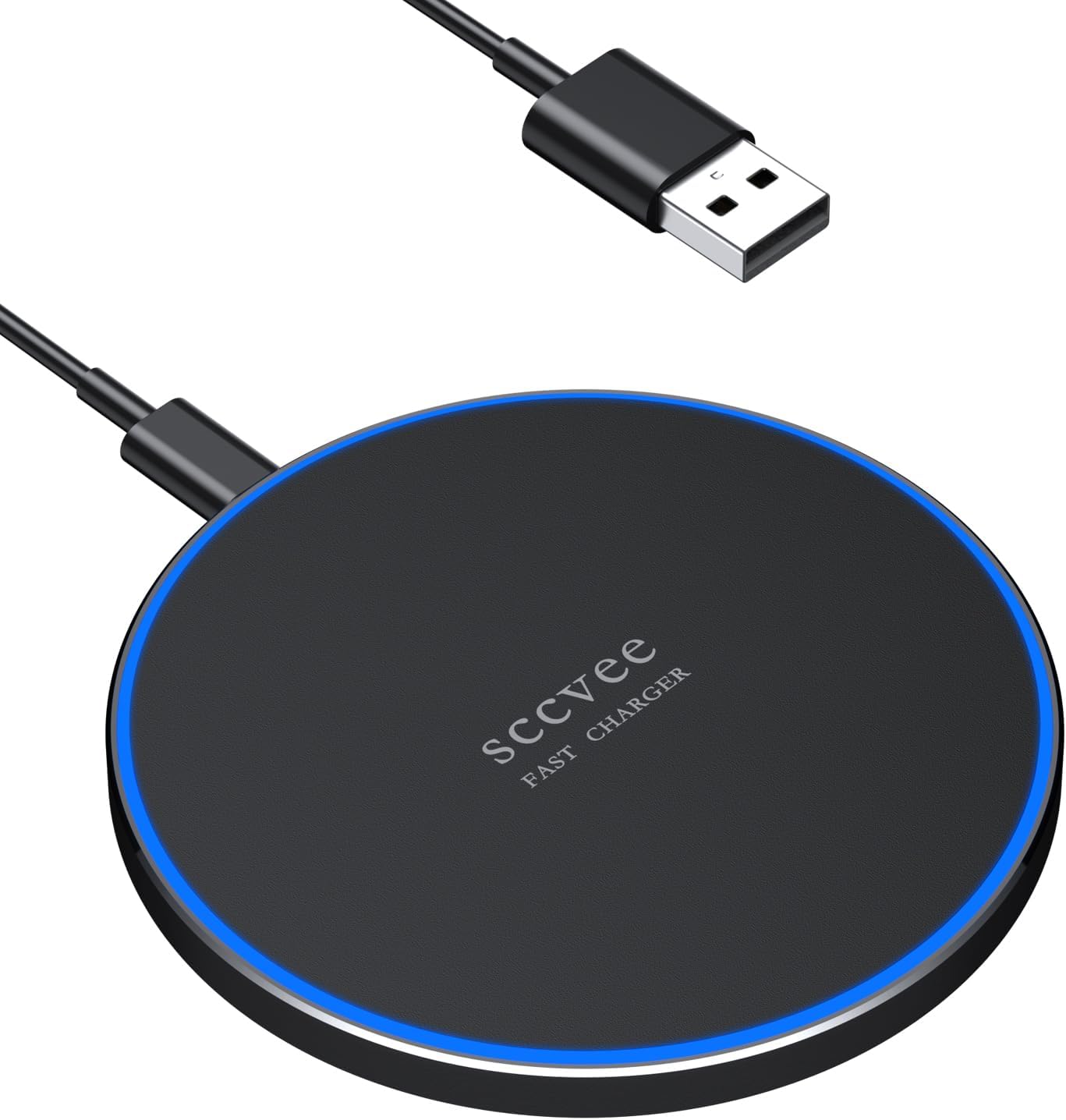

Image: The sccvee 20W Wireless Charging Pad, a circular black pad with a blue LED ring, connected to a USB-A cable.

What's in the Box

Please check the package contents upon opening:

• 1 x sccvee 20W Wireless Charging Pad (black)
• 1 x USB Cable (black)
• 1 x Instruction Manual
• 1 x Package Color Box

Setup

To begin using your sccvee 20W Wireless Charging Pad, follow these steps:

1. Connect the USB Cable: Insert the USB-C end of the provided cable into the charging pad and the USB-A end into a compatible power adapter.
2. Power Adapter Requirement: For optimal performance and fast charging, a QC3.0 USB fast charger adapter (not included) is required. Using a standard adapter may result in slower charging speeds.
3. Power On: Once connected to a power source, the charging pad is ready for use.

Image: A smartphone charging on the sccvee wireless pad, connected to a wall adapter. Text indicates 'Supports QC 3.0/2.0' and 'Adapter (NOT INCLUDED)'.

Operating Instructions

Using the sccvee 20W Wireless Charging Pad is straightforward:

1. Placement: Place your wireless charging-enabled device (smartphone, earbuds, etc.) directly onto the center of the charging pad. Ensure the device is centered for efficient charging.
2. Charging Confirmation: The charging pad's LED indicator will illuminate to confirm that charging has begun. For a sleep-friendly experience, the LED light will turn off after approximately 1 minute while charging continues.

Image: A smartphone charging on the sccvee wireless pad on a bedside table, illustrating the LED turning off after 1 minute for a sleep-friendly environment.

Case Compatibility

The charging pad is designed to work with most lightweight plastic or silicone cases up to 5mm (0.23 inches) thick. However, certain types of cases and attachments can interfere with wireless charging:

• Avoid: Magnetic attachments, metal cases, grips, stands, and credit cards stored in cases will prevent charging.
• Recommendation: For optimal charging, ensure the mobile phone case thickness does not exceed 3mm.

Image: A hand placing a smartphone on the wireless charger. Icons indicate that non-Magsafe, metal cases, grips+stands, and credit cards are not compatible, while cases up to 5mm are compatible.

Device Compatibility and Power Output

The sccvee 20W Wireless Charging Pad supports various power outputs to accommodate different devices:

• 20W Max Fast Charging: Automatically adapts to 20W, 15W, 10W, 7.5W, or 5W output based on the connected device.
• Compatible Devices:
• 20W: Compatible with Google Pixel 6/6 Pro/5/5a, LG 60/50/40/30+
• 15W: Compatible with Samsung Galaxy S24/S23/S22/S21/S20/S10/S9/S8 series, Note 20/10/9/8/7
• 10W: Compatible with iPhone 16/15/14/13/12/11/X/8 series, SE, XR, XS, and other Qi-enabled devices.
• 5W: Compatible with AirPods, Galaxy Buds, and other wireless earbuds.

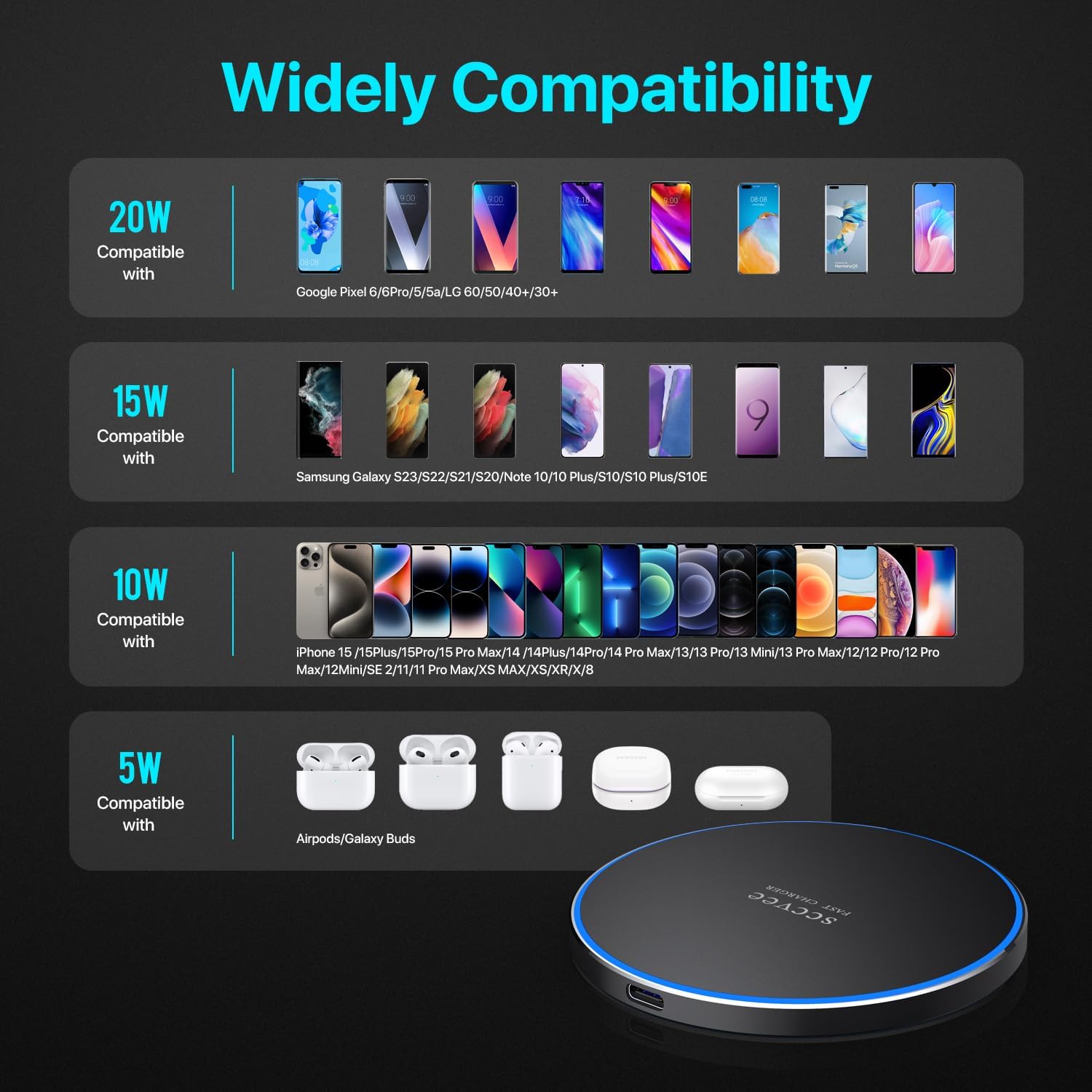

Image: A visual chart detailing the wide compatibility of the sccvee wireless charger, showing different phone models and earbuds categorized by 20W, 15W, 10W, and 5W charging capabilities.

Safety Features

The sccvee 20W Wireless Charging Pad incorporates multiple protection technologies to ensure safe and reliable charging:

• Over-voltage Protection: Safeguards against excessive voltage input.
• Short-Circuit Protection: Prevents damage from short circuits.
• Over-current Protection: Protects against excessive current output.
• Over-temperature Protection: Monitors and regulates the operating temperature to prevent overheating.
• Smart IC Chip Protection: Intelligent chip management for stable and efficient charging.
• Electric Shock Protection: Designed to prevent electrical hazards.

Image: An exploded view diagram of the wireless charger's internal components, highlighting various safety protections such as over-voltage, short-circuit, over-current, and over-temperature protection.

Maintenance

To ensure the longevity and optimal performance of your wireless charging pad, follow these maintenance guidelines:

• Cleaning: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface. Do not use harsh chemicals or abrasive cleaners.
• Storage: When not in use, store the charging pad in a cool, dry place away from direct sunlight and extreme temperatures.
• Handling: Avoid dropping or subjecting the charger to strong impacts, as this may damage internal components.

Troubleshooting

If you encounter issues with your sccvee 20W Wireless Charging Pad, refer to the following common problems and solutions:

• Device Not Charging:
  • Ensure the charging pad is properly connected to a working power source and the QC3.0 adapter is used.
  • Verify that your device is placed correctly on the center of the charging pad.
  • Remove any thick, metal, or magnetic cases, or any foreign objects between the device and the pad.
  • Confirm your device supports wireless charging.
• Slow Charging:
  • Ensure you are using a QC3.0 compatible power adapter. Standard adapters may provide slower charging.
  • Check if your device's case is too thick (over 3mm) or contains incompatible materials.
  • Verify that your device is centered on the charging pad.
• Charger or Device Overheating:
  • Ensure the charging pad is placed on a flat, hard surface with adequate ventilation.
  • Remove the device's case during charging if overheating persists.
  • Avoid charging in direct sunlight or hot environments.

Specifications

Image: A diagram showing the ultra-thin design of the sccvee wireless charger, with dimensions of 6.7 mm (0.26 in) thickness and 85 mm (3.3 in) diameter.

Warranty and Support

sccvee is committed to providing high-quality products. For any questions, concerns, or warranty claims regarding your 20W Wireless Charging Pad, please refer to the contact information provided with your purchase or visit the official sccvee website for customer support.
