1. Introduction
Thank you for choosing the Gorenje GCW951B Built-in Gas Hob. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.
The Gorenje GCW951B is a 90 cm built-in gas hob featuring five high-efficiency burners on a ceramic glass surface. It includes automatic ignition and a full safety system for enhanced user protection. The robust cast iron pan supports provide excellent stability for various cookware sizes.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- Ensure the appliance is installed by a qualified technician in accordance with local regulations and standards.
- Do not store or use flammable materials near this appliance.
- Keep children away from the hob during operation and while it is cooling down.
- Always use appropriate cookware for the burner size.
- Do not leave the hob unattended during cooking.
- In case of a gas leak, immediately turn off the gas supply, open windows, and do not operate any electrical switches. Contact your gas supplier.
- The hob surface can become very hot during use. Avoid touching hot surfaces.
3. Product Overview

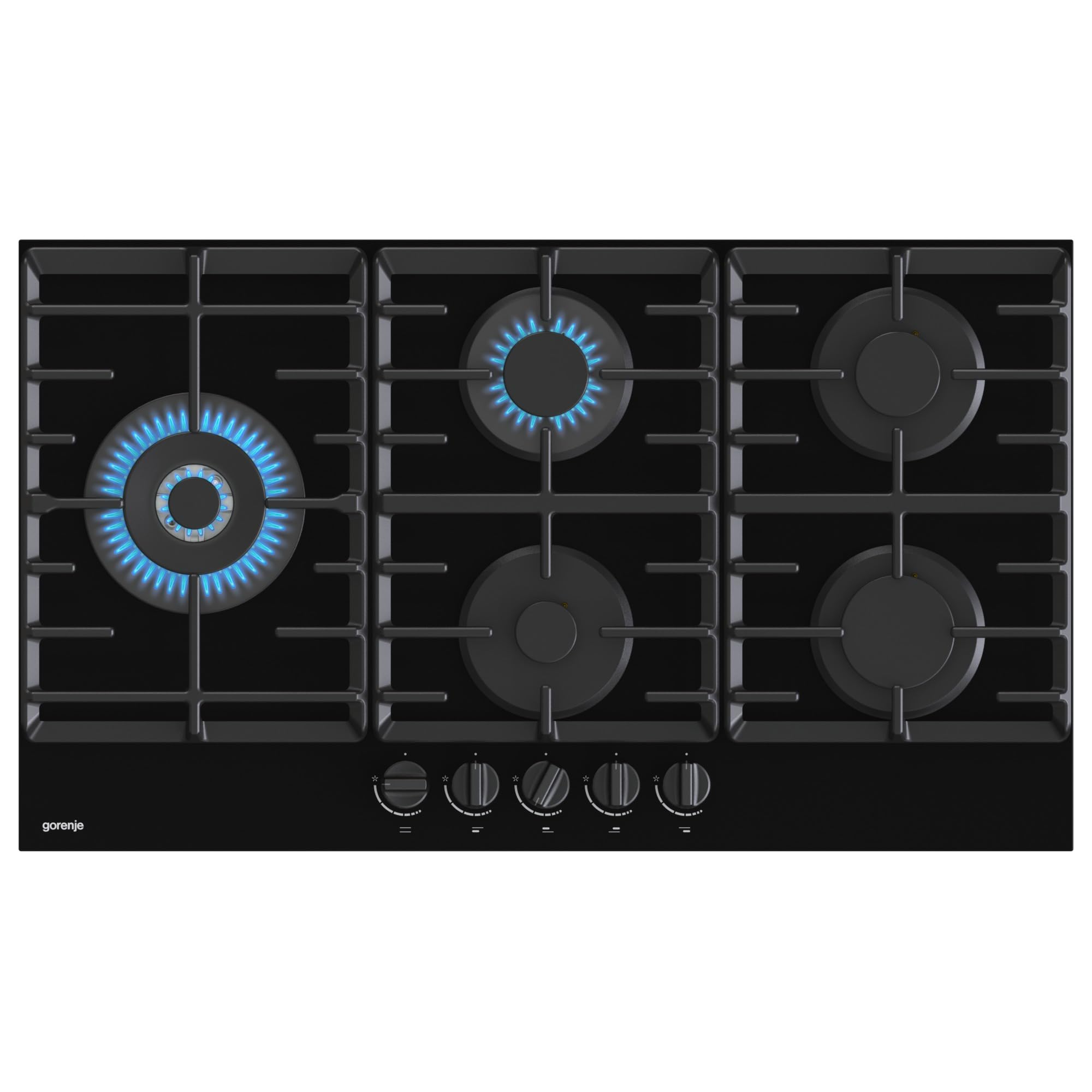

The Gorenje GCW951B gas hob features a sleek ceramic glass surface with five gas burners and front-mounted control knobs.
Components:
- Burners: Five gas burners of varying sizes, including a powerful wok burner.
- Pan Supports: Durable cast iron grids for stable placement of cookware.
- Control Knobs: Front-mounted knobs for precise flame control and ignition.
- Ceramic Glass Surface: A smooth, easy-to-clean black ceramic glass cooking surface.
- Ignition System: Integrated automatic ignition for each burner.
- Safety System: Full safety system (flame failure device) that automatically cuts off gas supply if the flame extinguishes.
4. Installation (Setup)
Installation must be performed by a qualified and authorized technician in compliance with all local codes and regulations. Incorrect installation can lead to hazards.
4.1 Unpacking
- Carefully remove the hob from its packaging.
- Inspect the appliance for any damage. Do not install a damaged appliance.
- Retain packaging materials until you are satisfied with the product.
4.2 Cut-out Dimensions
Ensure the kitchen countertop has the correct cut-out dimensions for the hob. Refer to the diagram below for precise measurements.
4.3 Gas Connection
- The hob is designed for Natural Gas.
- The gas connection must comply with local gas safety regulations.
- Use appropriate gas hoses and fittings.
- Check for gas leaks using soapy water after connection.
4.4 Electrical Connection
- Connect the hob to a grounded electrical outlet (220V).
- Ensure the electrical supply is compatible with the hob's requirements.
5. Operation
5.1 Igniting a Burner
- Push and turn the corresponding control knob counter-clockwise to the maximum flame setting (large flame symbol).
- The integrated igniter will spark, lighting the gas.
- Hold the knob in for a few seconds after ignition to allow the safety device to activate.
- Release the knob. If the flame goes out, repeat the process.
5.2 Adjusting the Flame
Once the burner is lit, you can adjust the flame size by turning the control knob between the maximum and minimum flame settings. The minimum setting is indicated by a small flame symbol.
5.3 Turning Off a Burner
Turn the control knob clockwise until it clicks into the "off" position (dot symbol).
5.4 Wok Burner Usage
The central wok burner provides powerful heat up to 4.0 kW. Use a wok ring (if supplied or purchased separately) for optimal wok cooking. Ensure the wok is centered over the flame for even heating.
6. Cleaning and Maintenance
Always ensure the hob is cool and disconnected from the gas and electrical supply before cleaning.
6.1 Ceramic Glass Surface
- Wipe the ceramic glass surface with a soft cloth and mild detergent.
- For stubborn stains, use a specialized ceramic hob cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch the surface.
- Dry thoroughly to prevent water spots.
6.2 Cast Iron Pan Supports
- Remove the pan supports and wash them in warm soapy water.
- For baked-on food, soak them before cleaning.
- Dry them completely before placing them back on the hob to prevent rust.
6.3 Burner Components
- Periodically clean the burner caps and crowns.
- Ensure the flame holes are clear of food debris. Use a small brush or toothpick if necessary.
- Ensure all burner components are dry and correctly reassembled before use.
7. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite. | No gas supply, power outage, igniter dirty/wet, burner components incorrectly assembled. | Check gas supply, check power, clean igniter, reassemble burner components correctly. |
| Flame is uneven or yellow. | Burner holes clogged, burner components dirty or wet. | Clean burner holes, ensure components are dry and clean. |
| Gas smell detected. | Gas leak. | Immediately turn off gas supply, open windows, do not operate electrical switches, contact gas supplier or qualified technician. |
| Flame goes out after releasing knob. | Safety device not activated, knob not held long enough. | Hold the knob in for a few more seconds after ignition. |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Gorenje |
| Model | GCW951B |
| Type | Built-in Gas Hob |
| Number of Burners | 5 |
| Surface Material | Ceramic Glass |
| Pan Support Material | Cast Iron Grid |
| Ignition Type | One-hand Automatic Ignition |
| Safety Feature | Full Safety (Flame Failure Device) |
| Fuel Type | Natural Gas |
| Voltage | 220 Volts |
| Wok Burner Power | Up to 4.0 kW |
| Product Dimensions (W x D x H) | 90 cm x 52 cm x 13.2 cm |
| Cut-out Dimensions (W x D) | Approx. 85.8-86 cm x 48.8-49 cm |
| Color | Black |
| Country of Origin | Slovenia |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact your local Gorenje dealer or service center. Keep your purchase receipt as proof of purchase.
For technical support, spare parts, or service requests, please contact Gorenje customer service. Contact details can typically be found on the official Gorenje website or in your product documentation.
