Introduction
Thank you for choosing the Yaheetech Double Metal Bed Frame. This manual provides detailed instructions for the assembly, use, and maintenance of your new bed frame. Please read this manual carefully before beginning assembly and retain it for future reference.
This bed frame is designed for adults, offering a sturdy and modern solution for your bedroom. Its metal slat construction and reinforced support legs ensure durability and stability.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Tighten all screws and bolts securely, but do not overtighten.
- Regularly check all connections to ensure they remain tight.
- Do not jump on the bed.
- Maximum weight capacity: 272 kg (approximately 600 lbs).
- Keep small parts away from children during assembly.
Package Contents
Before starting assembly, verify that all components listed below are included in your package:
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Support legs
- Assembly hardware (screws, bolts, L-shaped metal plates, Allen key)
- Instruction manual
Setup and Assembly
Assembly of the Yaheetech Double Metal Bed Frame is designed to be straightforward. It is recommended to have two people for assembly.
Tools Required:
- Included Allen Key
- (Optional) Electric screwdriver for faster assembly (use with care to avoid overtightening).
Assembly Steps:
Step 1: Unpack and Identify Parts. Carefully unpack all components and lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent damage. Identify each part by its corresponding label as per the included parts list.
Image: All components of the Yaheetech Double Metal Bed Frame laid out, showing overall dimensions (209.5 cm length, 167 cm width, 88.5 cm height) and maximum load capacity of 272 kg.
Step 2: Assemble the Headboard and Footboard. Attach the decorative elements and vertical supports to the main headboard and footboard frames using the provided screws and the Allen key. Ensure all connections are firm.
Image: Detail of the elegant headboard design, highlighting the decorative scrollwork.
Step 3: Attach Side Rails. Connect the side rails to the assembled headboard and footboard. Use the L-shaped metal plates for extra stability at these connection points. Ensure the rails are properly aligned and secured.
Image: Illustration demonstrating the use of L-shaped metal plates to fasten and reinforce connections for enhanced stability.
Step 4: Install Support Legs. Attach the central support legs to the bed frame. The bed frame features 10 solid support legs for great stability. Ensure they are evenly distributed and firmly attached.
Image: Diagram illustrating the placement of 10 solid support legs, emphasizing reinforced support for stability.
Step 5: Place Metal Slats. Insert the metal slats into the designated notches on the side rails. Align the iron pipes with the notches and press firmly to fix them in place. These built-in slats help prevent the mattress from sliding.

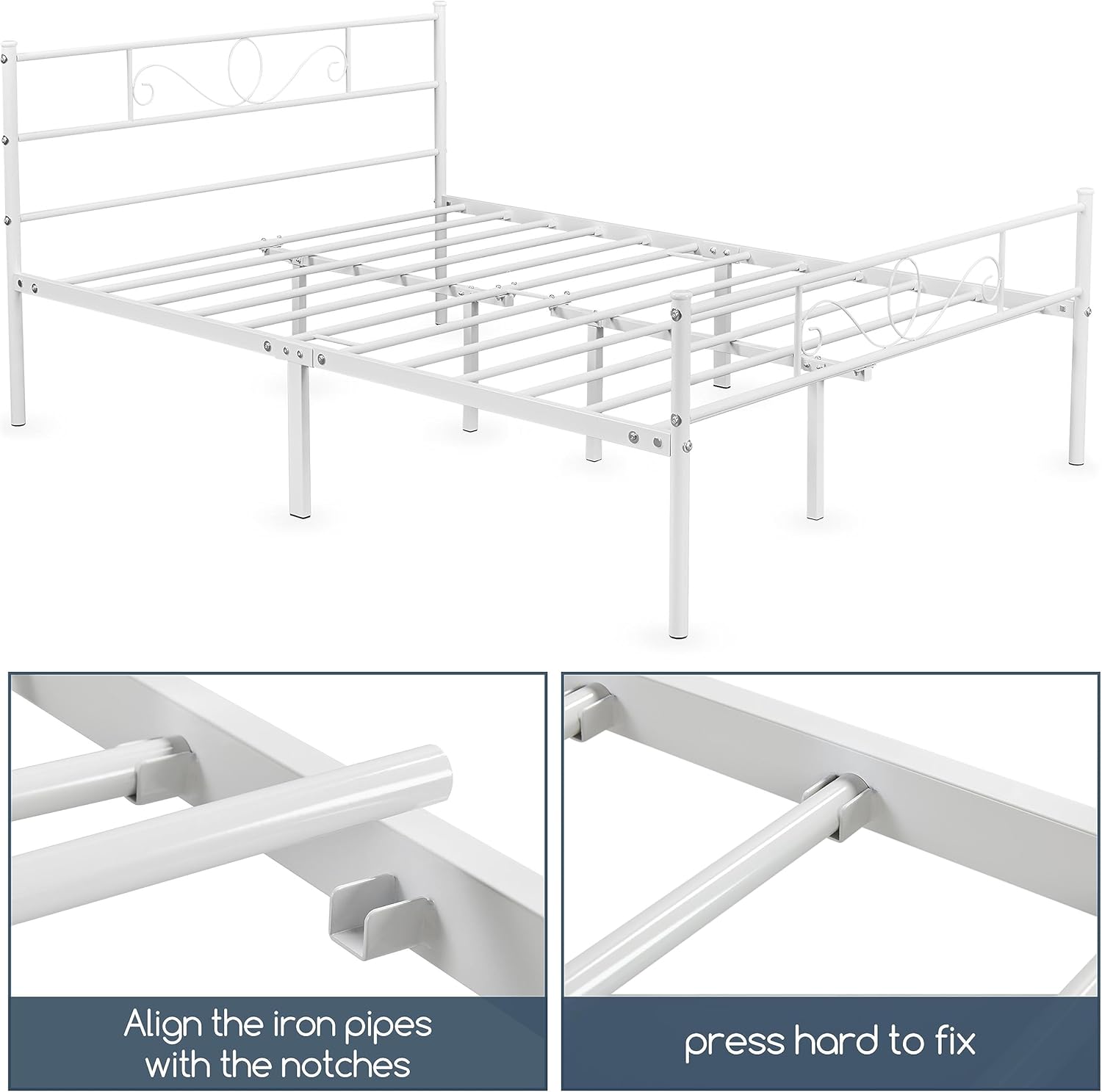

Image: Detailed view demonstrating how to align the iron pipes of the slats with the notches on the bed frame and press hard to secure them.
Step 6: Attach Protective Footpads. Ensure the anti-slip protective footpads are securely attached to the bottom of each leg. These pads protect your floor from scratches and reduce potential sliding.
Image: Close-up of a bed leg showing the black protective footpad attached to its base, designed to prevent floor scratches.
Step 7: Final Check. Once assembled, gently shake the bed frame to ensure all connections are stable and secure. Re-tighten any loose screws if necessary.
Image: A fully assembled Yaheetech Double Metal Bed Frame in white, positioned in a bedroom with a mattress and bedding, showcasing its modern aesthetic and ample under-bed storage space.
Operating Instructions
The Yaheetech Double Metal Bed Frame is designed for straightforward use once assembled.
- Mattress Placement: Place a mattress of compatible size (160 cm x 200 cm / 63 x 78.7 inches) directly onto the metal slats. The built-in slats are designed to hold the mattress securely in place.
- Under-Bed Storage: Utilize the 32.5 cm (approximately 12.8 inches) of clearance under the bed for convenient storage of items like shoes, suitcases, or storage boxes. This feature is ideal for optimizing space in smaller rooms.
- Headboard and Footboard Protection: The elevated headboard and footboard protect your mattress from shifting and provide a barrier against the wall.
Image: A view of the bed frame from the side, highlighting the 32.5 cm clearance underneath, suitable for storing various items.
Maintenance and Care
To ensure the longevity and appearance of your Yaheetech Double Metal Bed Frame, follow these simple maintenance guidelines:
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the powder coating.
- Regular Checks: Periodically (e.g., every 3-6 months) check all screws, bolts, and connections to ensure they are still tight. Re-tighten if necessary to maintain stability and prevent squeaking.
- Protection: The bed frame is designed to be fade-resistant and squeak-resistant. However, avoid prolonged exposure to direct sunlight or extreme temperatures to preserve the finish.
- Moving the Bed: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame and your flooring.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose screws or bolts. Uneven floor. | Check and tighten all assembly hardware. Ensure the bed is on a flat, level surface. |
| Squeaking noises. | Loose connections between frame parts or slats. | Re-tighten all screws and bolts. Ensure slats are properly seated in their notches. |
| Mattress slides on the frame. | Mattress not properly aligned or slats not holding it. | Ensure the mattress is centered on the frame. Verify that the built-in slats are correctly installed and holding the mattress. |
| Missing parts during unboxing. | Packaging error or parts overlooked. | Carefully check all packaging materials. If still missing, contact Yaheetech customer support with your model number and purchase details. |
Specifications
- Brand: Yaheetech
- Model Number: YA-00130702
- Color: White
- Product Dimensions (L x W x H): 209 x 167 x 88.5 cm (82.3 x 65.7 x 34.8 inches)
- Item Weight: 24 kg (52.9 lbs)
- Compatible Mattress Size: 160 cm x 200 cm (63 x 78.7 inches)
- Special Features: Fade-resistant, Squeak-resistant
- Finish Type: Powder Coated
- Components Included: Headboard, Slats
- Under-bed Clearance: Approximately 32.5 cm (12.8 inches)
- Maximum Load Capacity: 272 kg (600 lbs)
Warranty and Support
For warranty information or technical support, please contact Yaheetech customer service. Keep your purchase receipt and model number (YA-00130702) handy for faster service.
Visit the official Yaheetech store for more information: Yaheetech Official Store
