Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Tosuny 50W Speaker Volume Controller. Please read this manual thoroughly before use to ensure proper functionality and safety. Keep this manual for future reference.
Product Overview
The Tosuny 50W Speaker Volume Controller is designed for home speaker systems, offering precise volume adjustment with a 5-speed knob. Its robust construction ensures stable output and lossless sound quality.
Key Features:
- 5-Speed Adjustment: The volume knob offers five adjustable positions for flexible and precise volume control, featuring an anti-slip design for easy operation.
- Lossless Sound Quality: Ensures stable output without reverberation, providing excellent, uncompromised audio quality.
- Fire-Retardant PC Material: Constructed from fire-retardant PC material for safety, reliability, and long-lasting durability.
- Easy Wiring Design: Features a simple and convenient wiring design, making installation straightforward for all users.
- Large Panel Design: Modern, frameless large panel design that integrates seamlessly into home environments.
Package Contents:
- 1 x Tosuny 50W Speaker Volume Controller
- 2 x Mounting Screws
Image: Front view of the Tosuny 50W Speaker Volume Controller, showing the central volume knob and indicator lights.

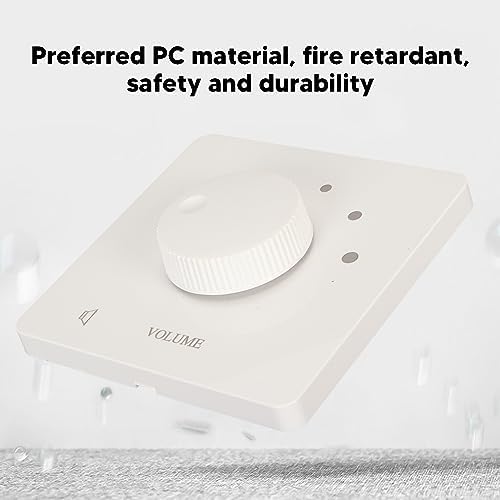

Image: The volume controller, highlighting its construction from preferred PC material, which is fire-retardant for safety and durability.
Setup and Installation
The Tosuny 50W Speaker Volume Controller is designed for DIY installation. Please follow the wiring diagrams carefully to ensure correct and safe setup.
Wiring Terminal Overview:
Image: Close-up of the rear panel of the volume controller, showing the "Fixed impedance tuning" label, 50W power rating, and input/output terminals (1, 2, 3, 4) for speaker connections.
The back of the controller features terminals for input and output connections. Ensure all connections are secure before powering on your audio system.
Wiring Diagrams for Constant Resistance Speakers:
Method 1: One Speaker, Two-Wire Wiring Diagram
Image: Wiring diagram illustrating how to connect one speaker using a two-wire method. The host output connects to terminals 1 and 2 (input), and the speaker connects to terminals 3 and 4 (output).
For connecting a single speaker using a two-wire configuration, connect the audio source's output to the controller's input terminals (labeled 1 and 2). Then, connect the speaker to the controller's output terminals (labeled 3 and 4).
Method 2: Single-Wire Control Wiring Diagram for One Speaker
Image: Wiring diagram showing a single-wire control setup for one speaker. The host output connects to terminals 1 and 2 (input), and the speaker connects to terminals 3 and 4 (output). This image also shows the controller and mounting screws.
This method is similar to Method 1, focusing on a single speaker. Connect the host output to the input terminals (1 and 2) and the speaker to the output terminals (3 and 4).
Method 3: Two Speakers, Single-Wire Control Wiring Diagram
Image: Wiring diagram demonstrating how to connect two speakers using a single-wire control method. Each speaker's host output connects to its respective input terminals on the controller, and the speakers connect to the output terminals.
For connecting two speakers, each speaker's host output should be connected to the corresponding input terminals on the controller. Ensure proper polarity for both speakers.
Operating Instructions
The Tosuny 50W Speaker Volume Controller features a simple rotary knob for volume adjustment.
Image: The volume controller's front panel, illustrating the central knob with "OFF" and "VOLUME" markings, and indicator dots representing the 5 adjustable speed positions for flexible operation.
- Power On/Off: Rotate the knob fully counter-clockwise to the "OFF" position to turn off the sound.
- Adjust Volume: Rotate the knob clockwise to increase the volume. The controller offers 5 distinct adjustment speeds, allowing for precise control over your speaker's output.
- Indicator Lights: The small dots around the knob indicate the current volume level or adjustment position.
Image: The volume controller in a home setting, emphasizing its capability to provide stable output and lossless sound quality when connected to fixed resistance speakers up to 50W.
Maintenance
To ensure the longevity and optimal performance of your volume controller, follow these simple maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the surface of the controller. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Environment: Install the controller in a dry environment, away from direct sunlight, extreme temperatures, and high humidity.
- Connections: Periodically check all wiring connections to ensure they remain secure. Loose connections can lead to poor sound quality or intermittent operation.
Troubleshooting
If you encounter any issues with your Tosuny 50W Speaker Volume Controller, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers. |
|
|
| Distorted or poor sound quality. |
|
|
Specifications
| Type | 50W Speaker Volume Control |
| Brand | Tosuny |
| Model Number | Tosuny4m9gh3uo2p-12 |
| Material | Fire-retardant PC |
| Size | Approx. 86x86mm / 3.39x3.39in |
| Adjustment | Five-speed adjustment |
| Power Rating | 50W |
| Color | WHITE |
| Country of Origin | China |
Warranty and Support
Your Tosuny 50W Speaker Volume Controller comes with a 1 Year Warranty Against Manufacturer Defects.
For technical support, warranty claims, or further assistance, please contact your retailer or the manufacturer directly. Please have your model number (Tosuny4m9gh3uo2p-12) and purchase information ready when contacting support.
