Introduction
Thank you for choosing the SR SUN RISE Filtered Handheld Shower Head. This manual provides essential information for the proper installation, operation, and maintenance of your new shower head. Please read these instructions carefully before use and retain them for future reference.
The SR SUN RISE Filtered Handheld Shower Head in Brushed Nickel finish, demonstrating water flow and the visible filter cartridge.
Product Features
- Water Filtration: Equipped with a powerful filter layer containing KDF, maifanstone, VC ball, magnetic balls, negative ion balls, and carbon balls to help remove chlorine, heavy metals, and other harmful substances.
- High Pressure & Water Saving: Unique boost technology and self-cleaning silicone nozzles ensure strong water pressure even in low-pressure environments, while optimizing water usage.
- 9 Spray Modes: Offers 8 distinct spray settings (Full Rain, Rain, Powerful Rain, Mist+Massage, Massage, Mist, Rain & Massage, Pause) plus a dedicated Power Wash mode (Wide Fan).
- Premium Materials: Constructed from high-quality ABS plastic with a brushed nickel finish, ensuring durability and a lead-free water path.
- Extra Long Hose: Includes a 71-inch (180cm) stainless steel hose for extended reach and flexibility.
Benefits of the shower head's filtration system, including impurity removal, water softening, and health advantages.
Package Contents
Before installation, please verify that all components are present and undamaged.
Illustration of all items included in the package: 1. Shower Head, 2. 71-inch Stainless Steel Hose, 3. Adjustable Mount Holder, 4. Filter Elements (no replacement cartridges included), 5. User Manual, 6. Teflon Tape, 7. Rubber Washer Set, 8. Removable Water Restrictor (1.75 GPM).
- Handheld Shower Head (ABS)
- 71-inch Stainless Steel Hose
- Adjustable Mount Holder
- Filter Elements (pre-installed, no replacement cartridges included)
- Teflon Tape
- Rubber Washer Set
- Removable Water Restrictor (1.75 GPM)
Setup and Installation
Installation typically takes approximately 5 minutes and does not require a professional plumber. The shower head features a universal G1/2" thread, compatible with most standard shower arms.
Installation Steps:
- Prepare: Ensure your existing shower arm is clean and free of debris. Turn off the main water supply to your shower.
- Apply Teflon Tape: Wrap the included Teflon tape clockwise around the threads of your shower arm.
- Install Mount Holder: Screw the adjustable mount holder onto the shower arm. Hand-tighten first, then use a wrench if necessary, being careful not to overtighten.
- Connect Hose to Shower Head: Attach the flared end of the 71-inch stainless steel hose to the handheld shower head. Ensure a rubber washer is inside the connection and hand-tighten securely.
- Connect Hose to Mount Holder: Attach the nut end of the hose to the adjustable mount holder. Ensure a rubber washer is inside this connection and hand-tighten securely.
- Test for Leaks: Turn on the main water supply and check for any leaks. If leaks occur, tighten connections slightly or reapply Teflon tape.
Hose Installation Notes: Attach the flared end to the handheld showerhead and the nut end to the wall bracket. Do not reverse these connections.
Water Restrictor (Optional):
Your shower head comes with a pre-installed 1.75 GPM water restrictor to comply with water efficiency standards. If you experience very low water pressure and wish to increase the flow, you may remove this restrictor. Refer to the 'Troubleshooting' section for guidance.
Operating Instructions
Selecting Spray Modes:
The shower head features 9 distinct spray modes. To switch between modes, rotate the dial on the face of the shower head. The available modes are:
- Full Rain
- Rain
- Powerful Rain
- Mist + Massage
- Massage
- Mist
- Rain & Massage
- Pause
Power Wash Mode (Wide Fan):
To activate the high-pressure Power Wash mode, simply flip the small lever located on the side of the shower head. This mode provides a wide fan spray, ideal for cleaning tasks such as rinsing the tub, tiles, or washing pets.

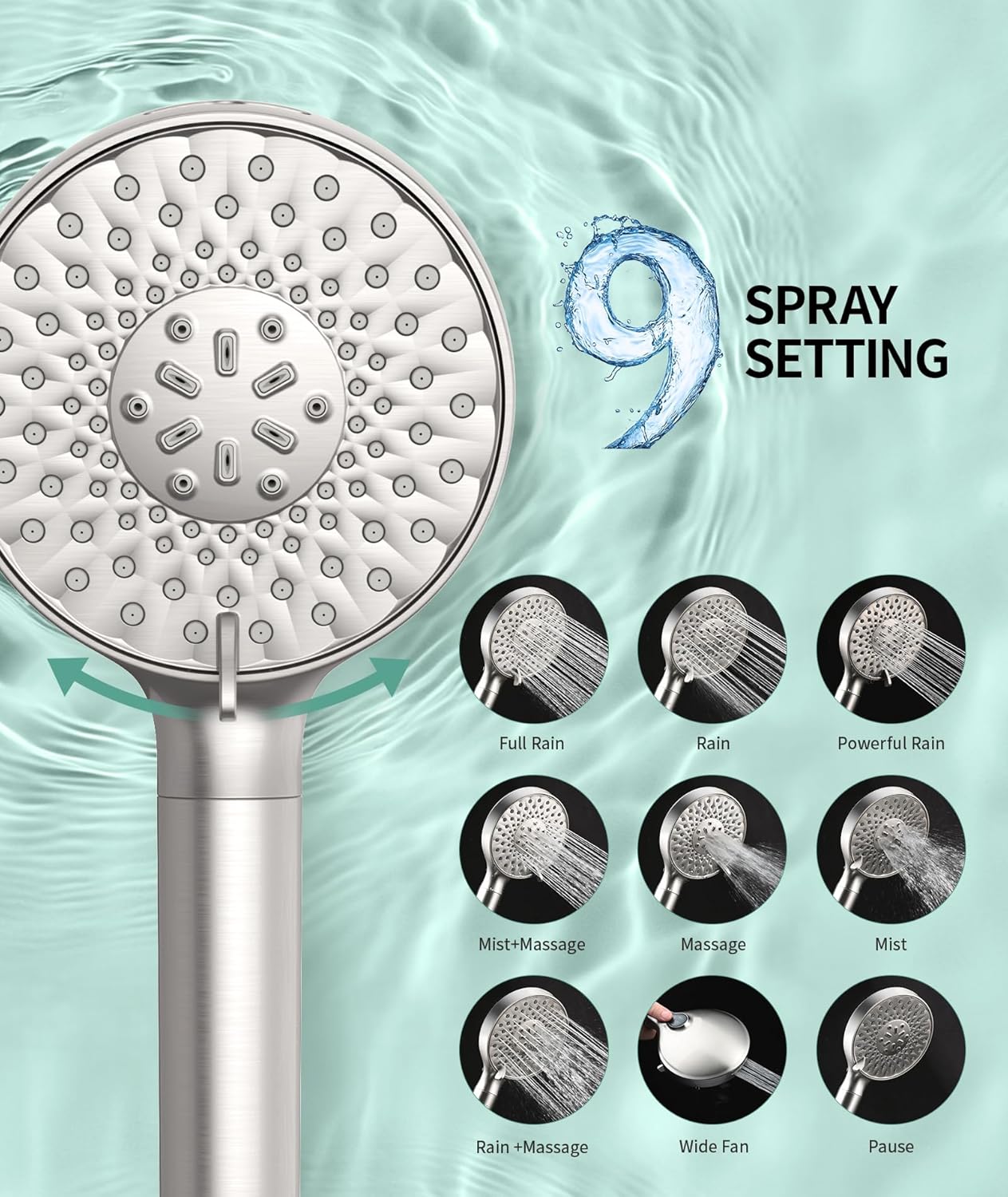

Visual representation of the 9 distinct spray settings available on the shower head.

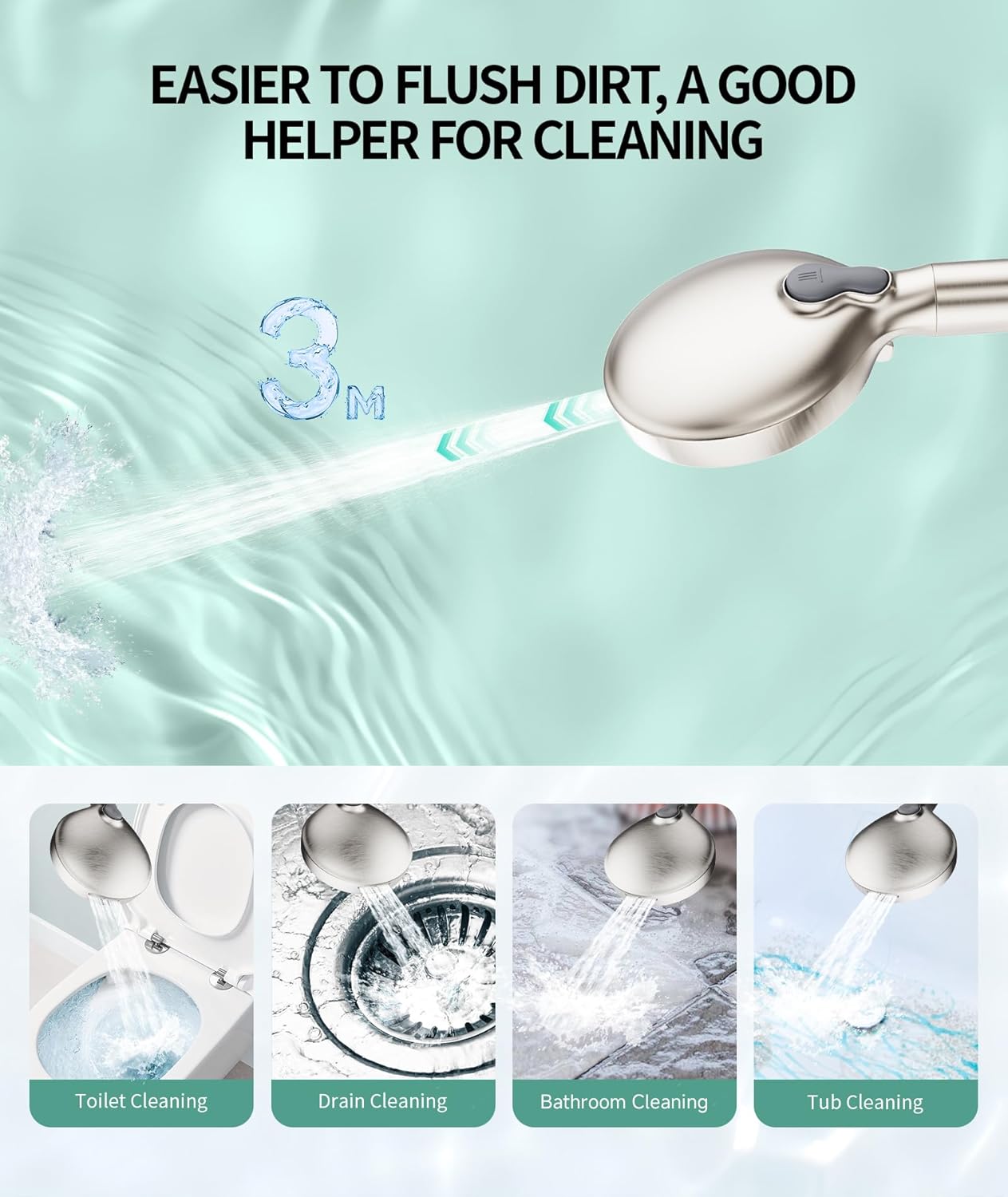

The Power Wash mode (Wide Fan) provides a strong stream for efficient cleaning of bathroom surfaces.
Maintenance
Cleaning the Shower Head:
The shower head features self-cleaning soft silicone nozzles designed to prevent grime and mineral buildup. For general cleaning, simply wipe the nozzles with your finger or a soft cloth to dislodge any deposits. For a more thorough cleaning, use a mild soap solution and a soft brush. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
Filter Replacement:
The filter elements are designed to purify water and will eventually require replacement to maintain optimal performance. The frequency of replacement depends on your local water quality and usage. While this package does not include replacement cartridges, they can be purchased separately from SR SUN RISE. To replace the filter:
- Unscrew the handle of the shower head.
- Carefully remove the old filter cartridge.
- Insert a new filter cartridge, ensuring it is properly seated.
- Screw the handle back on securely.
The water purification effect is evident, showing the transformation from yellowish, chlorinated water to clear, filtered water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Water restrictor installed; mineral buildup in nozzles; clogged filter. | Remove water restrictor (if desired); clean silicone nozzles; replace filter cartridge. |
| Leaking Connections | Loose connections; missing or damaged rubber washers; insufficient Teflon tape. | Ensure all connections are hand-tightened; check for and replace any damaged washers; reapply Teflon tape. |
| Shower Head Not Staying in Position | Mount holder is loose. | Tighten the adjustable mount holder onto the shower arm. |
| Water Not Filtering Effectively | Filter cartridge is old or exhausted. | Replace the filter cartridge. |
High-pressure filtered water performance comparison, highlighting the efficient rinse and powerful flow.
Specifications
| Feature | Detail |
|---|---|
| Brand | SR SUN RISE |
| Model Number | ARB011-GG |
| Style | 1 Filter |
| Shape | Round |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Finish Type | Brushed Nickel |
| Installation Type | Wall Mounted |
| Flow Rate | 1.75 GPM |
| Product Dimensions | 12"L x 2"W |
| Number of Spray Settings | 9 |
| Hose Length | 71 Inches (180 cm) |
| Item Weight | 1.72 pounds |
| UPC | 850066607152 |
Warranty Information
Specific warranty details are not provided in the product information. For warranty inquiries, please contact SR SUN RISE customer support directly.
Customer Support
If you have any questions about your SR SUN RISE Filtered Handheld Shower Head, require assistance with installation, or need to purchase replacement parts, please contact our customer service team. We are committed to providing excellent support.
- Contact Method: You can contact us through the Amazon platform.
- Response Time: We aim to provide customer service within 24 hours.
- Online Store: Visit the SR SUN RISE Store on Amazon for more products and information.
