1. Introduction
This manual provides essential information regarding the Freightliner 18-68767-000 Engine Mount Isolator. It covers product overview, installation guidelines, maintenance, and specifications. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the component.
2. Product Overview
The Freightliner 18-68767-000 Engine Mount Isolator is a critical component designed to support the engine and absorb vibrations, preventing them from transferring to the vehicle's chassis. This particular model is blue, measuring 181 mm x 89 mm, and is engineered for specific Freightliner applications.

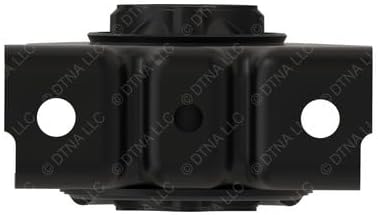

Figure 2.1: Front view of the Freightliner 18-68767-000 Engine Mount Isolator. This component is designed to dampen engine vibrations and secure the engine within the vehicle's frame.
Key features include its robust construction and precise dimensions, ensuring a proper fit and effective vibration isolation for compatible Freightliner vehicles.
3. Setup and Installation
Installation of the engine mount isolator requires specialized tools and technical knowledge. It is highly recommended that installation be performed by a qualified professional or certified mechanic.
3.1. Safety Precautions
- Ensure the vehicle is securely supported on jack stands or a lift.
- Disconnect the battery to prevent accidental electrical discharge.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Refer to the vehicle's specific service manual for detailed engine removal and installation procedures.
3.2. Installation Steps (General)
- Safely support the engine using an engine hoist or suitable support tool.
- Locate and remove the old engine mount isolator, noting its orientation.
- Clean the mounting surfaces thoroughly.
- Position the new Freightliner 18-68767-000 isolator in the correct orientation.
- Install all fasteners, tightening them to the manufacturer's specified torque values.
- Carefully lower the engine onto the new mount.
- Reconnect any disconnected components and the battery.
- Perform a final inspection to ensure all connections are secure.
Note: Improper installation can lead to component failure, vehicle damage, or personal injury. Always consult a professional.
4. Purpose and Function
The Freightliner Engine Mount Isolator serves a crucial role in vehicle dynamics and comfort. Its primary functions are:
- Engine Support: It securely holds the engine in place within the vehicle's frame, preventing excessive movement during acceleration, braking, and cornering.
- Vibration Damping: The isolator's design, often incorporating rubber or other dampening materials, absorbs vibrations generated by the engine. This significantly reduces noise and vibration transmitted to the passenger cabin, enhancing ride comfort.
- Shock Absorption: It helps to absorb shocks and impacts from road conditions, protecting the engine and transmission from undue stress.
This component operates passively, continuously performing its function as long as it is correctly installed and in good condition.
5. Maintenance
Engine mount isolators are wear-and-tear components and do not typically require routine maintenance beyond periodic inspection. Regular inspection can help identify potential issues before they lead to more significant problems.
5.1. Inspection Guidelines
- Visual Check: Inspect the isolator for visible cracks, tears, or deterioration of the rubber material. Look for signs of fluid leaks (if applicable to the specific mount type) or excessive corrosion on metal parts.
- Movement Check: With the engine off and the vehicle safely supported, gently try to rock the engine. Excessive movement or clunking sounds may indicate a worn or failed mount.
- Vibration/Noise Check: Pay attention to increased vibrations or unusual noises (e.g., thumping, clunking) coming from the engine bay, especially during acceleration, braking, or shifting gears.
If any signs of wear or damage are observed, it is recommended to have the component inspected and replaced by a qualified technician.
6. Troubleshooting
Issues with engine mount isolators typically manifest as increased noise or vibration. Here are common symptoms and potential causes:
| Symptom | Possible Cause | Action |
|---|---|---|
| Excessive engine vibration felt in the cabin | Worn or damaged isolator rubber | Inspect isolator; replace if worn. |
| Clunking or banging noises from engine bay | Completely failed isolator, loose fasteners | Inspect isolator and mounting bolts; replace or tighten as necessary. |
| Engine appears to sag or shift excessively | Severely worn or broken isolator | Immediate inspection and replacement recommended. |
| Increased noise during acceleration or braking | Isolator no longer effectively dampening engine movement | Inspect isolator for wear. |
If you experience any of these symptoms, it is advisable to have your vehicle inspected by a professional mechanic to diagnose the issue accurately and perform necessary repairs.
7. Specifications
The following are the technical specifications for the Freightliner 18-68767-000 Engine Mount Isolator:
- Part Number: 18-68767-000
- Brand: Freightliner
- Model: MOUNT
- Dimensions: Approximately 181 mm x 89 mm (as per description)
- Package Dimensions: 5.28 x 3.76 x 1.02 inches
- Item Weight: 2.15 pounds
- Exterior Finish: Machined
- Position: Front (as per specifications)
- Color: Blue (as per description)
8. Warranty and Support
For information regarding the warranty of the Freightliner 18-68767-000 Engine Mount Isolator, please refer to the warranty documentation provided at the time of purchase or contact your authorized Freightliner dealer or the seller directly. Warranty terms and conditions may vary.
For technical support or further inquiries, please contact Freightliner customer service or the retailer from whom the product was purchased. Ensure you have the product model number (18-68767-000) and purchase details available when seeking support.
