NOVARIDE Nova-Bike Air Electric Bike User Manual

1. Introduction

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your NOVARIDE Nova-Bike Air Electric Bike. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

The NOVARIDE Nova-Bike Air is a compact electric bicycle designed for adult use, featuring a 250W motor, 14-inch wheels, and a foldable handlebar design for portability. It is capable of reaching a maximum speed of 25 KM/H and offers an autonomy of approximately 20 KM on a single charge.

Image 1.1: The NOVARIDE Nova-Bike Air Electric Bike in its unfolded state, showcasing its compact design and 14-inch wheels. This image provides a general overview of the product's appearance.

2. Safety Information

Always prioritize safety when operating the electric bike. Failure to follow safety guidelines can result in serious injury or property damage.

• Helmet Use: Always wear a certified helmet when riding the electric bike.
• Local Regulations: Adhere to all local traffic laws and regulations regarding electric bicycles.
• Pre-Ride Check: Before each ride, inspect brakes, tires, battery level, and all fasteners to ensure they are secure and in good working order.
• Weather Conditions: Avoid riding in adverse weather conditions such as heavy rain, snow, or ice. Wet surfaces can reduce braking efficiency.
• Weight Limit: Do not exceed the maximum weight capacity specified for the bike.
• Charging Safety: Use only the provided charger. Do not charge the battery unattended or near flammable materials.
• Age Restriction: This electric bike is designed for adult use.

3. Package Contents

Upon unpacking, please verify that all components are present and undamaged:

• NOVARIDE Nova-Bike Air Electric Bike (Main Unit)
• 1 x Charger
• User Manual (This document)
• Assembly Tools (if applicable, not specified in product data but common)

If any items are missing or damaged, please contact customer support immediately.

4. Setup and Assembly

The NOVARIDE Nova-Bike Air comes largely pre-assembled. Follow these steps to prepare your bike for its first ride:

1. Unfolding the Bike:
   • Carefully remove the bike from its packaging.
   • Locate the main frame hinge and release the safety latch.
   • Unfold the frame until it locks securely into place. Ensure the latch is fully engaged.
2. Handlebar Setup:
   • Raise the handlebar stem to the desired height.
   • Secure the quick-release lever or locking mechanism firmly.
   • Adjust the angle of the handlebars for comfortable riding, then tighten the clamp.
3. Seat Post Adjustment:
   • Loosen the seat post quick-release clamp.
   • Adjust the seat height so your feet can comfortably touch the ground when stopped, or for optimal pedaling efficiency.
   • Tighten the quick-release clamp securely.
4. Initial Battery Charge:
   • Before first use, fully charge the battery. Connect the charger to the bike's charging port and then to a power outlet.
   • The charging indicator on the charger will change (e.g., from red to green) when fully charged. Charging time is approximately 6 hours.

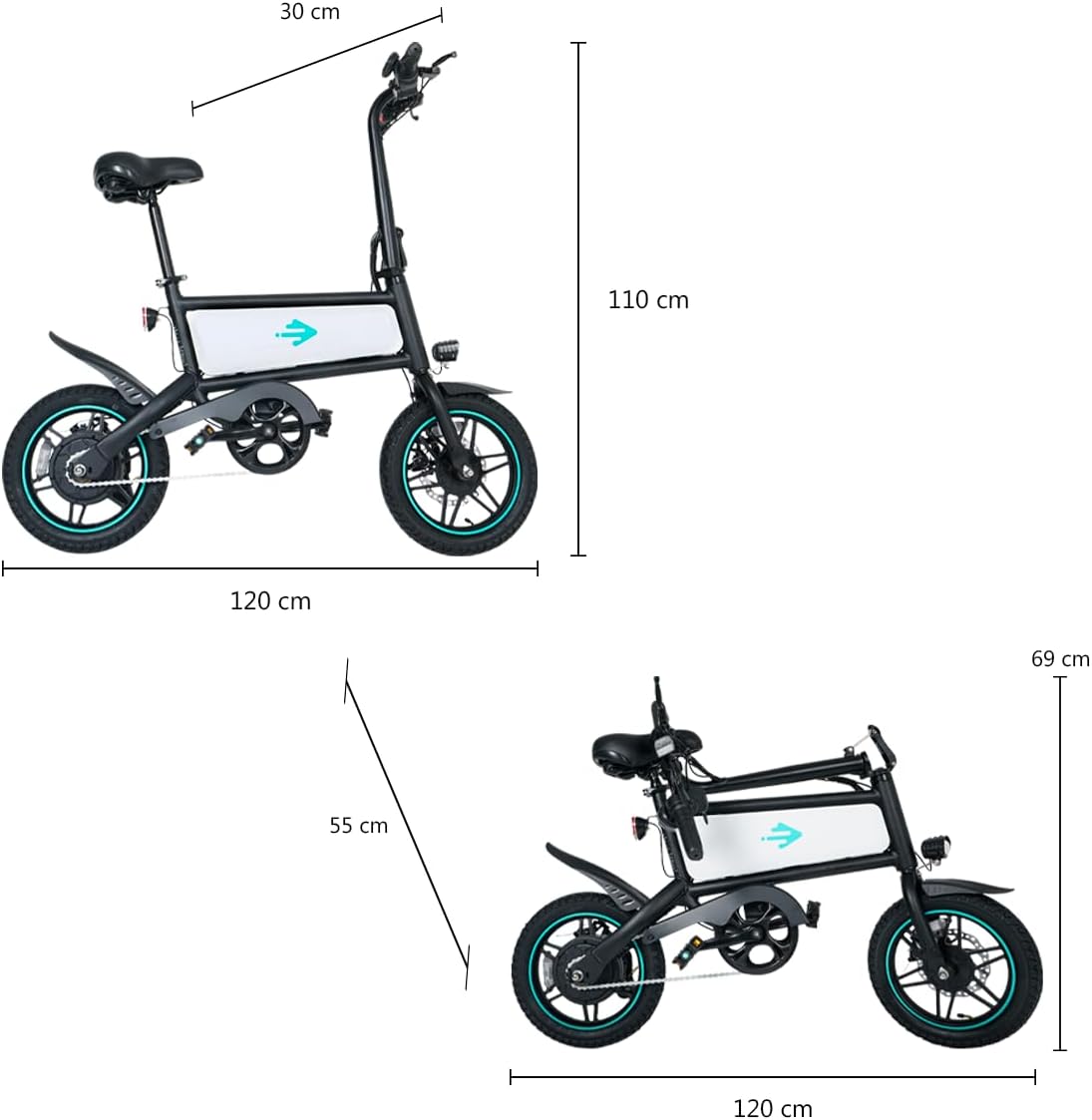

Image 4.1: Dimensions of the NOVARIDE Nova-Bike Air Electric Bike in both unfolded and folded configurations. This image assists in understanding the bike's size for storage and transport.

5. Operating Instructions

Familiarize yourself with the controls and functions of your electric bike before riding.

5.1 Powering On/Off

• To Power On: Press and hold the power button on the control panel (usually located on the handlebars) for a few seconds until the display illuminates.
• To Power Off: Press and hold the power button again until the display turns off.

5.2 Riding Modes

Your Nova-Bike Air offers electric assistance to enhance your riding experience:

• Pedal Assist Mode: The motor provides assistance as you pedal. The level of assistance can typically be adjusted via buttons on the control panel. This mode conserves battery life and provides a natural riding feel.
• Full Electric Mode (if applicable): Some models may feature a throttle for full electric propulsion without pedaling. Refer to your specific model's features.

5.3 Braking System

The bike is equipped with a Linear Shot brake system for reliable stopping power. Always apply both front and rear brakes simultaneously for balanced and effective braking. Practice braking in a safe, open area before riding in traffic.

5.4 Folding the Bike

The folding design allows for easy storage and transport:

1. Ensure the bike is powered off.
2. Lower the seat post to its lowest position.
3. Release the handlebar stem quick-release and fold the handlebars down.
4. Locate the main frame hinge latch and release it.
5. Fold the frame in half until it clicks into its folded position.

Image 5.1: The NOVARIDE Nova-Bike Air Electric Bike in its folded configuration, demonstrating its compact form for storage or transport. This view highlights the folding mechanism.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

6.1 Cleaning

• Wipe the bike with a damp cloth after each ride, especially if ridden in wet or dusty conditions.
• Avoid using high-pressure washers directly on electrical components, bearings, or the motor.
• Clean the chain regularly and apply appropriate chain lubricant.

6.2 Battery Care

• Charge the battery fully after each use, or at least once a month if not used regularly, to prolong its lifespan.
• Store the bike and battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Do not attempt to open or repair the battery pack. Contact qualified service personnel if issues arise.

6.3 Tire Pressure

Check tire pressure before each ride. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance and safety.

6.4 Brake Inspection

Regularly inspect brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust or replace components as needed.

Image 6.1: Close-up view of the rear wheel and motor assembly of the NOVARIDE Nova-Bike Air Electric Bike. This image highlights the hub motor and disc brake components, important for maintenance checks.

7. Troubleshooting

This section addresses common issues you might encounter with your NOVARIDE Nova-Bike Air.

For issues not listed here or if solutions do not resolve the problem, please contact NOVARIDE customer support.

8. Specifications

Key technical specifications for the NOVARIDE Nova-Bike Air Electric Bike:

Image 8.1: Graphic illustrating key features and specifications of the NOVARIDE Nova-Bike Air Electric Bike, including maximum speed, charging time, motor power, and autonomy.

9. Warranty and Support

For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official NOVARIDE website. Keep your proof of purchase for warranty claims.

NOVARIDE Official Website: www.novaride.com

Customer Service Email: support@novaride.com
