1. Introduction
Thank you for choosing the McbeAn 3-Tier Electric Steamer. This appliance is designed to provide efficient and convenient steaming for a variety of foods. With its 40L large capacity, rapid steam production, and intelligent features like appointment and heat preservation, it is an ideal addition to any home kitchen. Please read this manual thoroughly before operation to ensure safe and optimal use of your steamer.

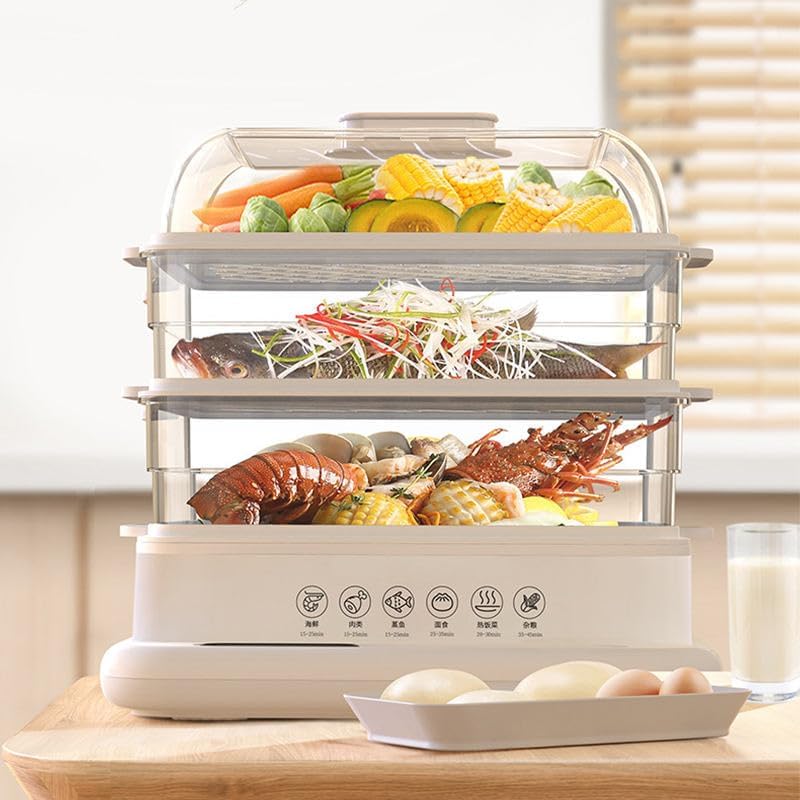

Image 1.1: The McbeAn 3-Tier Electric Steamer in operation, showcasing its multi-level steaming capability with vegetables, fish, and seafood.
2. Product Components
The McbeAn 3-Tier Electric Steamer comes with the following components:
- Host Unit (Base with heating element and control panel) - X1
- Stainless Steel Steamer Tray - X3
- Steamer Cage (Transparent Tiers) - X2
- Top Cover (Lid) - X1
Image 2.1: The steamer highlighting its 40L large capacity, suitable for steaming and boiling various foods.
Image 2.2: A closer view of the large square design of the steamer, indicating its ability to accommodate more food items.
3. Setup and Assembly
Follow these steps to set up your electric steamer:
- Place the Host Unit (base) on a stable, flat, heat-resistant surface.
- Ensure the water reservoir in the base is filled with clean water up to the maximum fill line. Do not overfill.
- Place the first steamer cage onto the host unit.
- Insert a stainless steel steamer tray into the cage if desired, or place food directly on the cage's base.
- Stack additional steamer cages and trays as needed. You can use one, two, or all three tiers depending on your cooking requirements.
- Place the top cover securely on the uppermost steamer cage.
- Plug the power cord into a suitable electrical outlet (220V-50Hz).
Image 3.1: The steamer demonstrating its stackable and customizable tier configuration, allowing for cooking for various group sizes.
4. Operating Instructions
The McbeAn Electric Steamer features an intuitive display touch screen for easy operation.
4.1. Basic Steaming
- Prepare the steamer as described in Section 3.
- Place your food items into the steamer trays or directly onto the steamer cages.
- Close the top cover.
- Select the desired steaming time using the touch screen controls. The steamer can rapidly produce steam in approximately 10 seconds.
- The 360° thermal cycle heating ensures even vapor permeation and consistent cooking across all levels.
- Once steaming is complete, the unit may automatically switch to heat preservation mode or turn off.
4.2. Appointment Function
The 12-hour appointment function allows you to set a delayed start time for your steaming. This is useful for preparing meals in advance.
- Load the steamer with food and water.
- On the touch screen, select the appointment function and set the desired delay time (up to 12 hours).
- The steamer will automatically begin cooking at the set time.
4.3. Heat Preservation
The steamer includes a 12-hour automatic heat preservation function to keep your food warm after cooking is complete.
- After the steaming cycle finishes, the unit will automatically enter heat preservation mode.
- This function maintains the food at a warm temperature for up to 12 hours, ensuring your meal is ready when you are.
Image 4.1: The steamer's control panel, featuring a digital display and touch buttons for various functions like steaming time, appointment, and heat preservation.

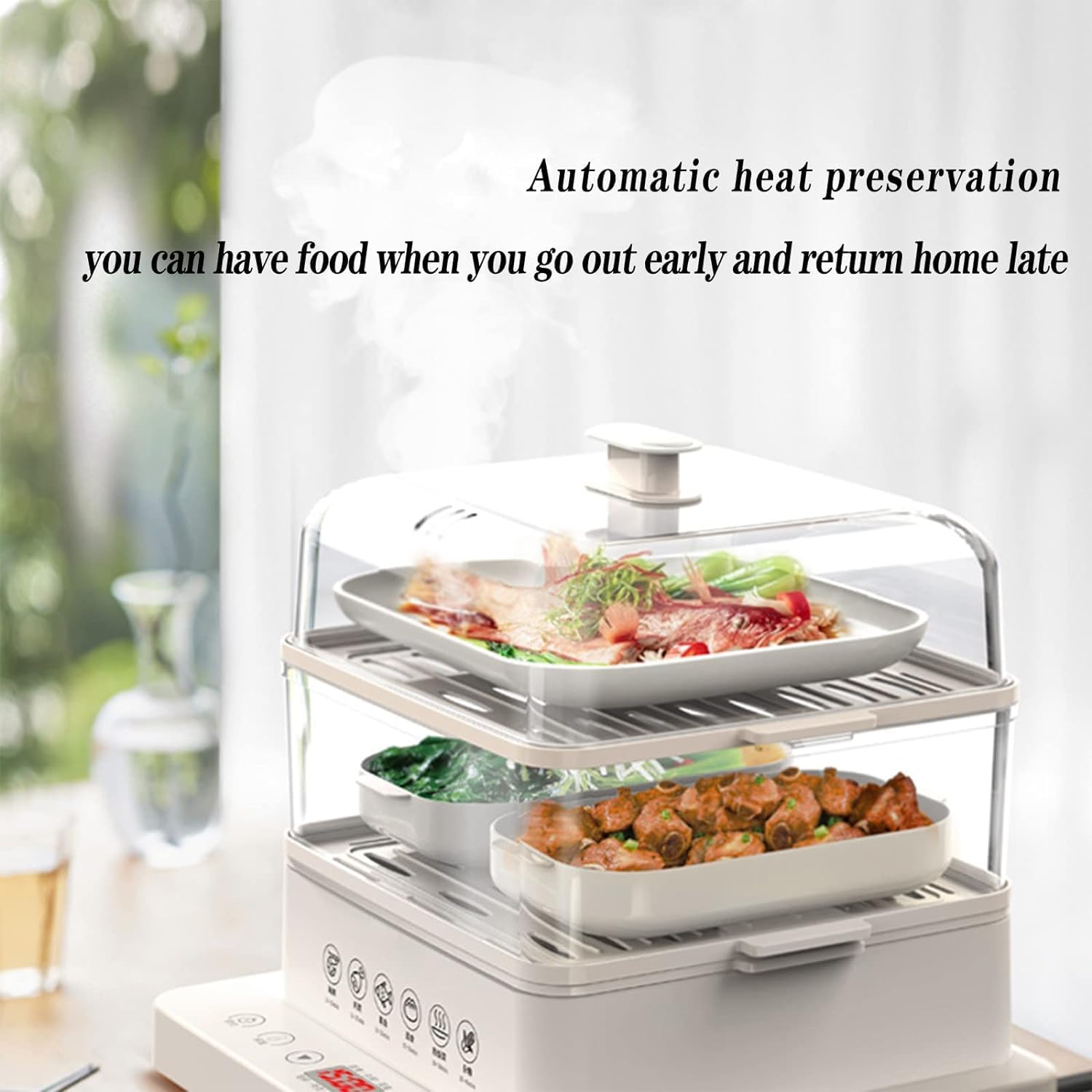

Image 4.2: The steamer with cooked food, demonstrating the automatic heat preservation feature that keeps food warm for extended periods.
Image 4.3: The steamer actively cooking different food items simultaneously on its multiple tiers, showcasing its efficiency.
5. Maintenance and Cleaning
Regular cleaning ensures the longevity and hygienic operation of your steamer. The steamer's components are designed for easy detachment and cleaning.
5.1. Daily Cleaning
- Always unplug the steamer and allow it to cool completely before cleaning.
- Remove the top cover, steamer cages, and stainless steel trays.
- Wash these detachable parts with warm, soapy water. Rinse thoroughly and dry completely.
- Wipe the exterior of the Host Unit with a damp cloth. Do not immerse the Host Unit in water.
- The juice accumulating plate at the bottom of the steamer cages helps prevent dripping and is also easy to clean.
5.2. Descaling
Over time, mineral deposits (limescale) may build up in the water reservoir. Descale your steamer regularly, especially if you live in an area with hard water.
- Fill the water reservoir with a mixture of equal parts white vinegar and water.
- Run the steamer for approximately 20-30 minutes.
- Unplug the unit, allow it to cool, and then carefully empty the reservoir.
- Rinse the reservoir thoroughly with clean water multiple times to remove any vinegar residue.
6. Troubleshooting
If you encounter issues with your steamer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Steamer does not turn on. | Not plugged in; Power outlet issue; Unit malfunction. | Ensure power cord is securely plugged in. Test the outlet with another appliance. If problem persists, contact support. |
| No steam produced. | Insufficient water in reservoir; Limescale buildup. | Add water to the reservoir. Perform descaling as per Section 5.2. |
| Food not cooking evenly or thoroughly. | Overloaded steamer; Incorrect cooking time; Lid not sealed properly. | Do not overload tiers. Adjust cooking time. Ensure lid is securely placed. |
| Water leaking from base. | Overfilled water reservoir; Unit not level. | Do not exceed max fill line. Place steamer on a flat, stable surface. |
7. Specifications
Refer to the following technical specifications for the McbeAn 3-Tier Electric Steamer:
- Product Name: Steamer
- Model: B0CKZGSTC1
- Brand: McbeAn
- Color: Beige White
- Material: Stainless Steel (trays), Plastic (cages, lid, base exterior)
- Rated Power: 800 W
- Rated Voltage/Frequency: 220V-50Hz
- Pot Capacity: 40 Liters
- Dimensions (Approximate): 320mm (Width) x 320mm (Depth) x 270mm (Height with 3 tiers)
Image 7.1: The steamer with approximate dimensions, showing its overall size and the height of each tier.
8. Safety Information
Please observe the following safety precautions when using your electric steamer:
- Always ensure the voltage and frequency of your power supply match the specifications of the appliance.
- Do not immerse the Host Unit (base) in water or any other liquid.
- Keep the appliance out of reach of children and pets.
- Do not operate the steamer if the power cord or plug is damaged. Contact qualified personnel for repair.
- Always unplug the steamer from the power outlet when not in use, before cleaning, or before adding/removing components.
- Be cautious of hot steam escaping from the lid and vents during operation. Use oven mitts or a cloth when handling hot parts.
- Do not operate the steamer without water in the reservoir.
- Ensure the steamer is placed on a stable, level, and heat-resistant surface.
- Do not block the steam vents during operation.
9. Warranty and Support
This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the retailer.
For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact McbeAn customer service through the retailer's platform or the contact information provided on the product packaging.
