8TEN Blade Spindle Kit Instruction Manual

Introduction

This manual provides essential information for the safe and correct installation and maintenance of your 8TEN Blade Spindle Kit. This kit is designed for MTD White Outdoor GT-180 and GT-185 lawn mowers with a 46-inch deck, replacing OEM part numbers 918-0117B, 918-0116C, 942-0543, and 942-0542. Please read all instructions carefully before proceeding with installation.

Safety Information

WARNING: Always disconnect the spark plug wire(s) and remove the ignition key before performing any maintenance or installation on your lawn mower to prevent accidental starting and serious injury.

• Wear appropriate personal protective equipment (PPE), including safety glasses and heavy-duty gloves.
• Ensure the mower is on a flat, stable surface and the parking brake is engaged.
• Use proper lifting techniques or equipment if the mower deck needs to be raised or removed.
• Handle blades with extreme caution; they are sharp and can cause severe cuts.
• Refer to your mower's original owner's manual for specific safety procedures and torque specifications.

Compatibility

This 8TEN Blade Spindle Kit is compatible with the following OEM part numbers and MTD models:

OEM Part Numbers:

• Center Blades: Cub Cadet, MTD, Troy Bilt 742-0543, 942-0543
• Outer Blades: Cub Cadet, MTD, Troy Bilt 942-0542, 742-0542
• Center, Right Spindles: Cub Cadet, MTD 618-0111, 618-0116, 618-0116A, 918-0116, 918-0116B, 918-0116C
• Left Spindles: Cub Cadet, MTD 618-0112, 618-0117, 918-0117, 918-0117A, 918-0117B

Compatible MTD Models:

• GT-180, GT-185
• 143P849H331, 146S848H372, 144Q828H118, 144Q828H119, 144P820H000, 144P828H000, 144P820H352, 144P828H134
• 146W834H401, 145Q849H009, 143W834H401, 143V834H401, 143Y839H019, 146K848H000, 146S843H131, 146S849H722, 146S849H022

Parts Included

Your 8TEN Blade Spindle Kit includes the following components:

• Mower Blades (Quantity and specific types as per kit configuration)
• Spindle Assemblies (Quantity as per kit configuration)

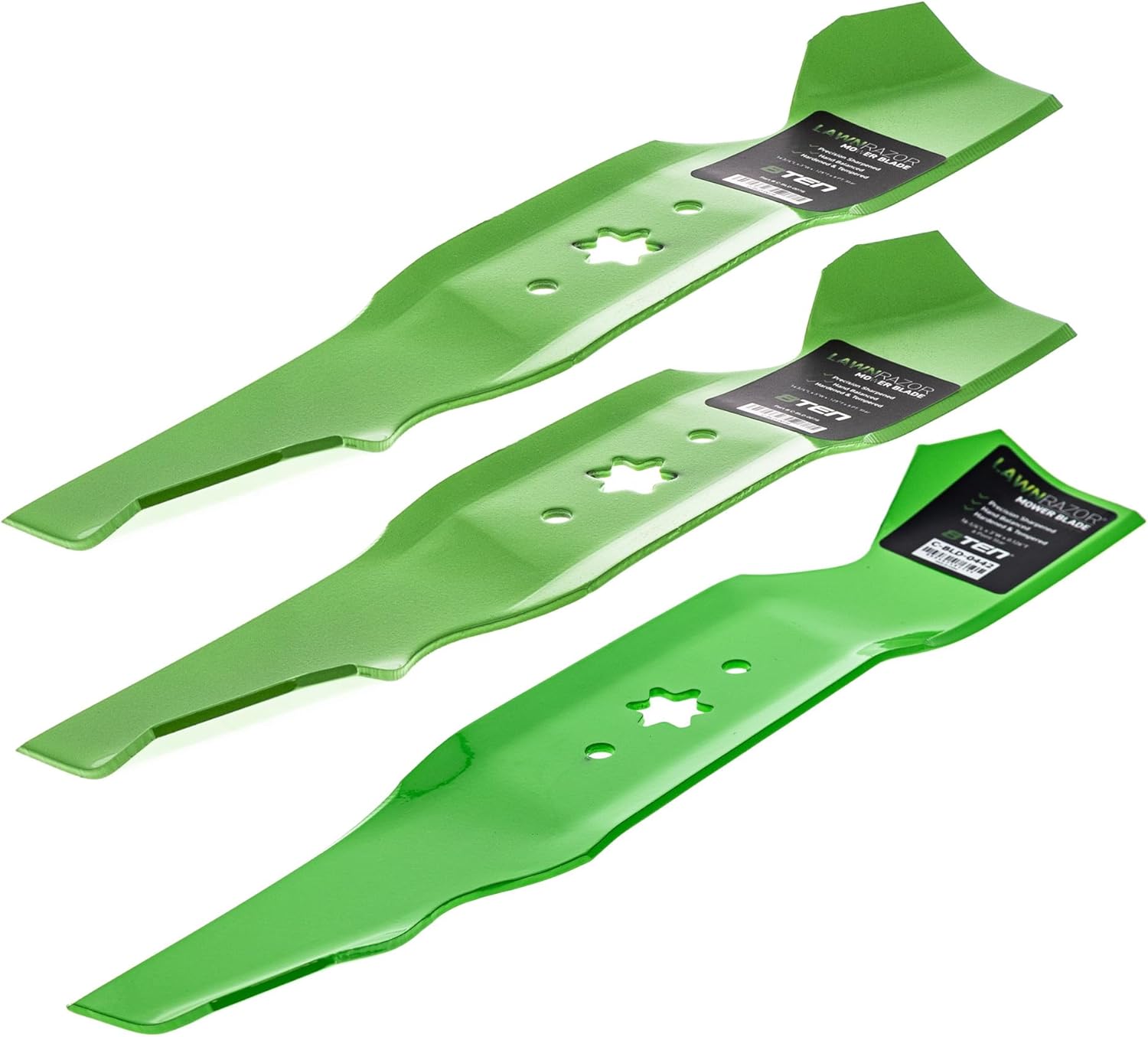

Image: Three green 8TEN LawnRazor mower blades, showing their distinct shape and star-shaped center hole.

Image: Three 8TEN spindle assemblies, each with a black pulley attached, ready for installation.

Setup and Installation

This section outlines the general procedure for replacing mower blades and spindle assemblies. Always consult your mower's specific service manual for detailed instructions and torque specifications.

Tools Required (Typical):

• Socket wrench set
• Torque wrench
• Blade removal tool or wood block
• Wire brush
• Grease gun (for spindles with grease fittings)
• Safety glasses and heavy-duty gloves

Procedure:

1. Prepare the Mower:
   • Park the mower on a level surface.
   • Engage the parking brake.
   • Turn off the engine and remove the ignition key.
   • Disconnect the spark plug wire(s) to prevent accidental starting.
2. Access the Mower Deck:
   • Depending on your mower model, you may need to lower the deck to its lowest setting or remove it entirely for easier access. Refer to your mower's manual.
3. Remove Old Blades:
   • Wear heavy-duty gloves.
   • Use a blade removal tool or a block of wood to prevent the blade from turning.
   • Loosen and remove the blade retaining nut(s) and washer(s). Note the orientation of the blade for correct installation of the new blade.
   • Carefully remove the old blade.
4. Remove Old Spindle Assemblies:
   • Locate the bolts securing the spindle assembly to the mower deck.
   • Remove these bolts and carefully lift the old spindle assembly from the deck.
   • Clean the mounting area on the deck thoroughly with a wire brush to ensure a flat surface for the new spindle.
5. Install New Spindle Assemblies:
   • Position the new 8TEN spindle assembly onto the clean mounting area.
   • Secure it with the appropriate bolts. Tighten bolts evenly and to the manufacturer's specified torque.
   • If your new spindle has a grease fitting, apply a small amount of grease.


   Image: A single 8TEN spindle assembly shown with its packaging, highlighting the product's appearance before installation.
6. Install New Blades:
   • Ensure the new 8TEN blades are installed with the cutting edge facing the correct direction (usually indicated by a stamp or curve).
   • Place the blade onto the spindle shaft, ensuring the star-shaped hole aligns correctly with the spindle.
   • Install the washer(s) and blade retaining nut(s).
   • Use a blade removal tool or wood block to hold the blade.
   • Tighten the blade nut(s) to the mower manufacturer's specified torque using a torque wrench. Overtightening or undertightening can be dangerous.

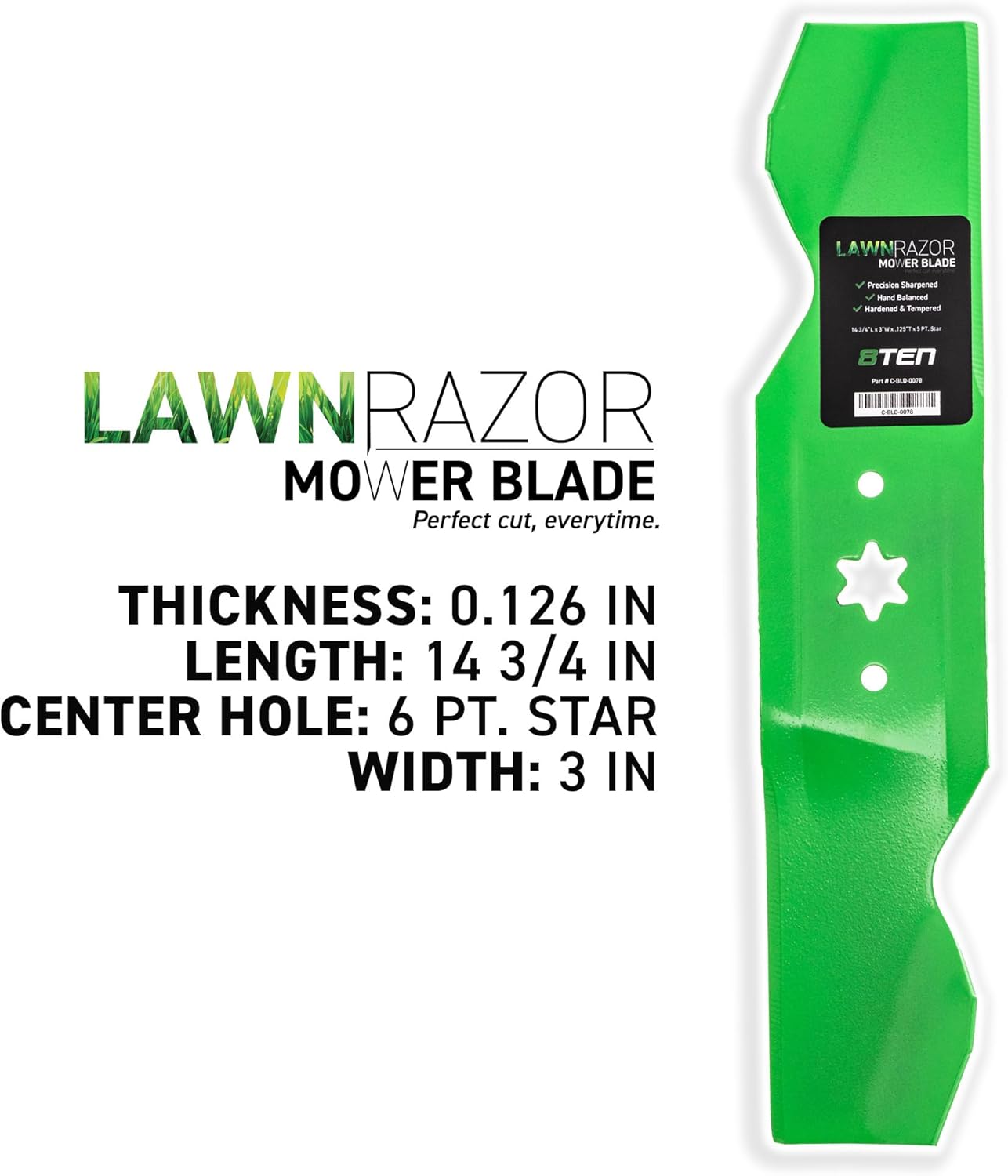

   Image: Detailed view of an 8TEN LawnRazor mower blade, showing its dimensions and star-shaped center hole.



   Image: Another 8TEN LawnRazor mower blade, displaying different length specifications for various applications.
7. Reassemble and Test:
   • Reattach the mower deck if it was removed.
   • Reconnect the spark plug wire(s).
   • Start the mower and engage the blades briefly to ensure smooth operation and no unusual noises or vibrations. If issues occur, immediately shut down the mower and re-check installation.

Operating Considerations

After installing new blades and spindles, observe the following:

• Initial Operation: Run the mower at a low speed for a few minutes to ensure all components are functioning correctly. Listen for any unusual sounds.
• Blade Balance: New blades are typically balanced from the factory. If excessive vibration occurs, check for proper installation and ensure blades are not bent or damaged.
• Cutting Performance: New blades will provide optimal cutting performance. Adjust your mowing height as needed for desired results.

Maintenance

Regular maintenance extends the life of your blades and spindles:

• Blade Sharpening: Sharpen blades regularly (e.g., every 25 hours of operation or seasonally) to maintain cutting efficiency and promote healthy lawn growth. Replace blades if they are bent, cracked, or excessively worn.
• Spindle Lubrication: If your spindles have grease fittings, lubricate them periodically according to your mower's manual, typically every 25-50 hours of operation.
• Deck Cleaning: Keep the underside of the mower deck clean to prevent grass buildup, which can affect cutting performance and put strain on the spindles.
• Inspection: Periodically inspect blades and spindles for wear, damage, or loose fasteners.

Troubleshooting

Specifications

• Product Dimensions: 24 x 8 x 8 inches
• Item Weight: 16.6 pounds
• Item Model Number: MK1009676
• Manufacturer: Mishon Inc
• ASIN: B0CKY3V25S
• Blade Thickness: 0.126 inches (typical, refer to specific blade for exact measurement)
• Blade Center Hole: 6-point star

Warranty Information

8TEN products are backed by an 810-Day Warranty. For specific terms and conditions, please refer to the official 8TEN website or contact customer support.

Image: 8TEN 810 Day Warranty logo, indicating product coverage.

Support and Contact

For further assistance, technical support, or warranty claims, please visit the official 8TEN website or contact their customer service department. You can also find more information on the 8TEN Store on Amazon.

About 8TEN

8TEN Parts is headquartered outside of Detroit, Michigan, specializing in manufacturing and distributing top-tier replacement parts for lawn mowers and outdoor power equipment. They focus on OEM-level precision, strict quality control, and dependable fitment.
