1. Product Overview
The ARCORA Vessel Sink Faucet, Model 1117A2G, is a single-handle tall bathroom faucet designed for vessel sinks. It features a contemporary design with clean lines and a brushed gold finish, adding a modern aesthetic to any bathroom. Constructed from durable stainless steel, this faucet ensures reliability and longevity.
Image: ARCORA Tall Brushed Gold Vessel Sink Faucet, Model 1117A2G.
This faucet is equipped with a ceramic cartridge for smooth operation and a high flow rate aerator for efficient water delivery.
Video: Overview of the ARCORA Vessel Faucet, showcasing its modern design and water flow.
2. Product Features
- 12-inch Tall Design: Contemporary single-handle faucet with clean lines and square features, ideal for vessel sinks.
- Durable Stainless Steel: Faucet body construction ensures long-lasting durability and reliability. The brushed gold finish provides a clean, modern look.
- Single Handle Operation: Ergonomic design for easy control of water temperature and flow.
- Ceramic Cartridge: Reduces leak points and is tested for over 500,000 open and close cycles.
- High Flow Rate: Configured with 1.2 and 2.2 GPM aerators, introducing air into the water stream for a soft, non-splashing flow.
- Easy Installation: Designed for single-hole installation with a sink hole diameter of 1-1.37 inches. Includes 24-inch cUPC supply hoses with 3/8 female compression thread and a pop-up drain without overflow.
3. Package Contents
Please verify that all components are present before beginning installation:

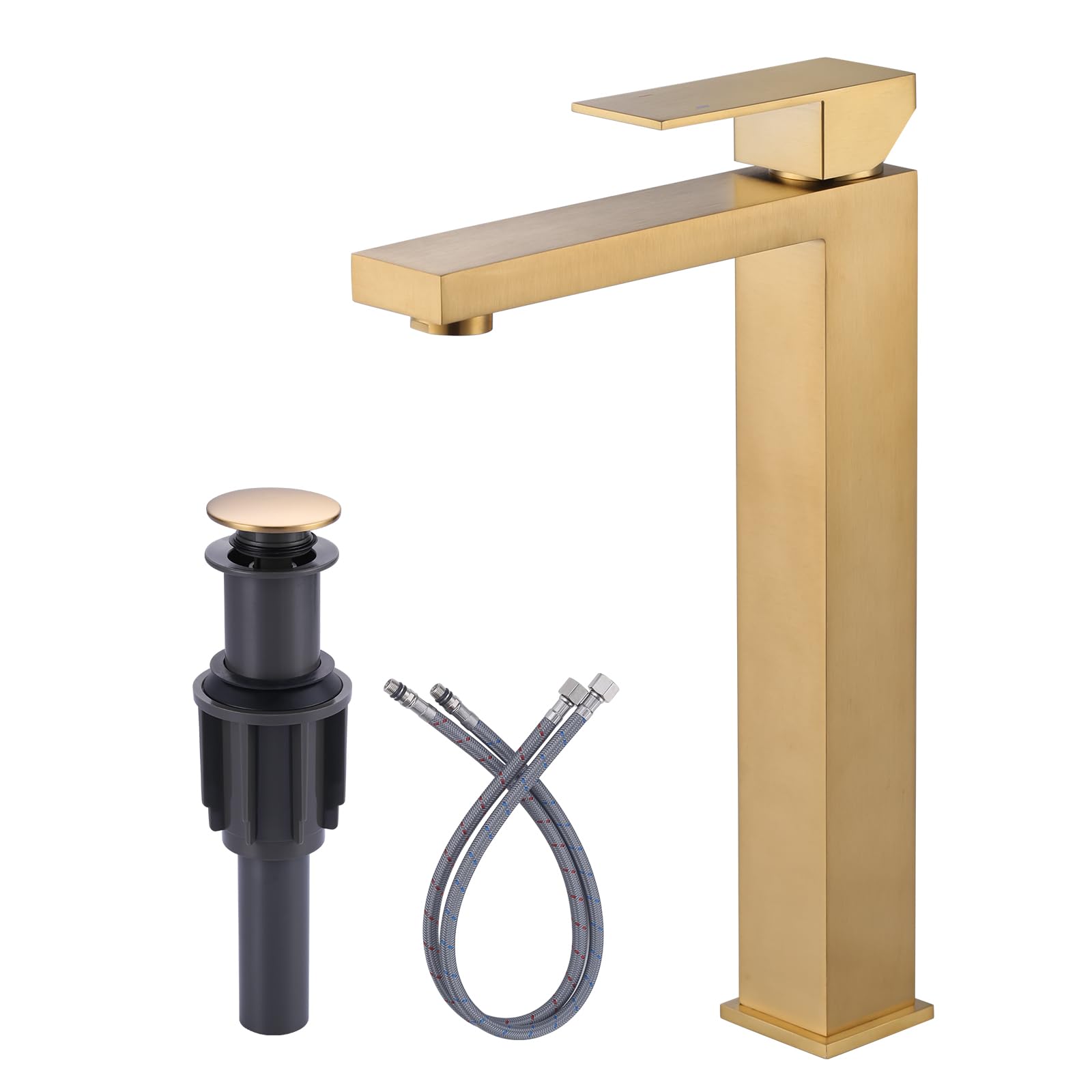

Image: All components included in the ARCORA Faucet package.
- Bathroom Faucet
- Hot/Cold Water Supply Lines (24-inch, cUPC certified, 3/8" female compression thread)
- Pop Up Drain (without overflow)
- Installation Instruction Manual
- Mounting Accessories
- A pair of gloves
4. Specifications
| Feature | Detail |
|---|---|
| Brand | ARCORA |
| Model Name | Vessel Sink Faucet |
| Model Number | 1117A2G |
| Color | Brushed Gold |
| Material | Stainless Steel |
| Finish Type | Brushed |
| Mounting Type | Deck Mount |
| Number of Handles | 1 |
| Hole Count | 1 |
| Valve Type | Ceramic Disc Cartridge |
| Spout Height | 5.2 Inches |
| Spout Reach | 9.6 Inches |
| Item Weight | 1.81 Kilograms |
Image: Detailed dimensions of the ARCORA Vessel Sink Faucet and included pop-up drain.
5. Setup and Installation
Before installation, ensure the water supply is turned off. This faucet is designed for single-hole installation on a vessel sink. The recommended sink hole diameter is 1-1.37 inches.
Installation Steps:
- Ensure the O-ring is properly attached to the base of the faucet body.
- Unscrew the M8 nut from the thread rod and attach the thread rod under the faucet body.
- Connect the cold and hot water hoses to the faucet body and tighten them securely.
- Insert the faucet through the mounting hole in the sink.
- Place the washer and metal plate over the thread rod under the sink.
- Secure the M8 nut to the thread rod using the provided tool.
- Flush angle stops to release any debris prior to connecting the supply lines.
- Connect the supply hoses to the angle valves (use adapters if connections don't match), then open the valves.
- Install the pop-up drain into the sink, ensuring gaskets are in correct position, and screw the mounting nut until secure. Connect the pop-up drain with the drainage hose.
Video: Step-by-step guide on how to install the ARCORA Vessel Sink Faucet.
6. Operating Instructions
The ARCORA Vessel Sink Faucet features a single lever handle for easy operation:
- Water Flow Control: Lift the handle upwards to turn on the water and increase flow. Push the handle downwards to turn off the water.
- Temperature Control: Move the handle to the left for hot water and to the right for cold water. Adjust the handle position between left and right to achieve the desired water temperature.
Image: Close-up of the single handle for water flow and temperature control.
7. Maintenance
To maintain the appearance and functionality of your ARCORA faucet, follow these guidelines:
- Regular Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed gold finish.
- Water Spots: To prevent water spots, wipe the faucet dry after each use.
- Aerator Maintenance: Periodically unscrew the aerator from the spout and clean any mineral deposits or debris to maintain optimal water flow.
Image: Detail of the faucet's aerator, showing how it introduces air for a soft, non-splashing stream.
8. Troubleshooting
If you encounter any issues with your faucet, refer to the following common problems and solutions:
- Low Water Flow: Check if the aerator is clogged with debris. Clean or replace the aerator if necessary. Ensure the water supply valves are fully open.
- Leaks from Faucet Base: Check if the mounting nut under the sink is tightened securely. Ensure the O-ring at the base of the faucet is correctly seated.
- Leaks from Handle: This may indicate a worn-out ceramic cartridge. Contact customer support for a replacement.
- Water Temperature Issues: Verify that both hot and cold water supply lines are correctly connected and that the angle stops are fully open.
For persistent issues not covered here, please contact ARCORA customer support.
9. Warranty and Support
ARCORA products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical assistance, replacement parts, or warranty claims, please visit the official ARCORA website or contact their customer service department. Keep your purchase receipt as proof of purchase.
