Introduction
Thank you for purchasing the LITFAD Nordic Wooden Ceiling Fan Light Fixture. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan light. Please read these instructions thoroughly before installation and retain them for future reference.
Safety Information
Observe the following safety precautions to reduce the risk of fire, electric shock, or personal injury:
- For safe and secure installation, ensure that the electrical box to which this fixture will be mounted is properly attached to a structural member of the building.
- All wires are connected. When unpacking, be careful not to pull with wires as a bad connection may result.
- Do not connect electricity until your fixture is fully assembled.
- To reduce the risk of fire, electrical shock, or personal injury, always turn off and unplug the fixture and allow it to cool prior to replacing the light bulb.
- Do not touch the bulb when the fixture is turned on or look directly at the lit bulb. Keep flammable materials away from the lit bulb.
- Installation should be performed by a qualified electrician.
Package Contents
Verify that all components are present before beginning installation:
- Ceiling Fan Light Fixture
- Bulb (Integrated LED)
- Shade
- Remote Control
- Mounting Hardware and Additional Accessories
- User Manual
Setup and Installation
This ceiling fan light fixture is designed for quick and easy installation. However, due to the electrical nature of the product, professional installation is recommended to ensure safety and proper function.
Pre-Installation Steps:
- Turn off Power: Before starting any installation, ensure the power supply to the installation area is turned off at the circuit breaker.
- Unpack Components: Carefully remove all items from the packaging. Inspect for any damage.
- Identify Parts: Familiarize yourself with all parts and hardware using the provided parts list (if applicable).
Mounting the Fixture:
The fixture is a semi-flush mount type. Ensure the electrical box is securely mounted to a structural ceiling joist. Follow the detailed instructions provided in the included user manual for specific wiring and mounting steps.
Image: Exploded view of the fan motor and internal components, illustrating the assembly structure.
Image: The LITFAD Nordic Wooden Ceiling Fan Light Fixture installed on a ceiling, showcasing its design.
Operating Instructions
Your LITFAD ceiling fan light fixture is controlled via a remote control, offering convenience and versatility.
Remote Control Functions:
Image: The remote control for the ceiling fan light fixture, showing various buttons for light and fan functions.
- Power On/Off: Press the designated button to turn the fan and light on or off.
- Light Control: Adjust the light settings. The fixture offers three kinds of light colors: warm, natural, and white. Cycle through these options to create your desired atmosphere.
- Fan Speed Adjustment: The fan's wind speed can be adjusted through multiple settings. Use the remote to select your preferred speed.
- Fan Direction: The fan blades can rotate forward or reverse, allowing for seasonal use (cooling in summer, circulating warm air in winter).
- Timer Function: The fixture can be shut down regularly using the smart timer function, providing worry-free operation.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan light fixture.
- Cleaning: To clean the fixture, ensure the power is turned off. Use a soft, damp cloth to wipe down the surfaces. Avoid abrasive cleaners or solvents that may damage the finish.
- Blade Cleaning: Periodically clean the fan blades to prevent dust buildup, which can affect performance and balance.
- Bulb Replacement: This fixture uses an integrated LED bulb (SMD type) with an extreme long lifespan. Bulb replacement is generally not required. If the light fails, contact customer support.
- Tighten Fasteners: Periodically check and tighten any loose screws or fasteners on the mounting bracket and fan blades.
Troubleshooting
If you encounter issues with your ceiling fan light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power supply; Loose wiring; Remote control battery low. | Check circuit breaker; Verify wiring connections; Replace remote control batteries. |
| Light does not turn on | No power supply; Loose wiring; Integrated LED failure. | Check circuit breaker; Verify wiring connections; Contact customer support for LED issues. |
| Fan wobbles | Loose fan blades; Uneven blade balance; Loose mounting. | Ensure all blade screws are tight; Use a balancing kit (not included) if necessary; Verify mounting bracket is secure. |
| Remote control not working | Low battery; Obstruction between remote and receiver; Remote not paired. | Replace batteries; Remove obstructions; Refer to remote pairing instructions in the full manual. |
If these steps do not resolve the issue, please contact LITFAD customer support for further assistance.
Specifications
Detailed specifications for the LITFAD Nordic Wooden Ceiling Fan Light Fixture (Model LT1078265B-48"):

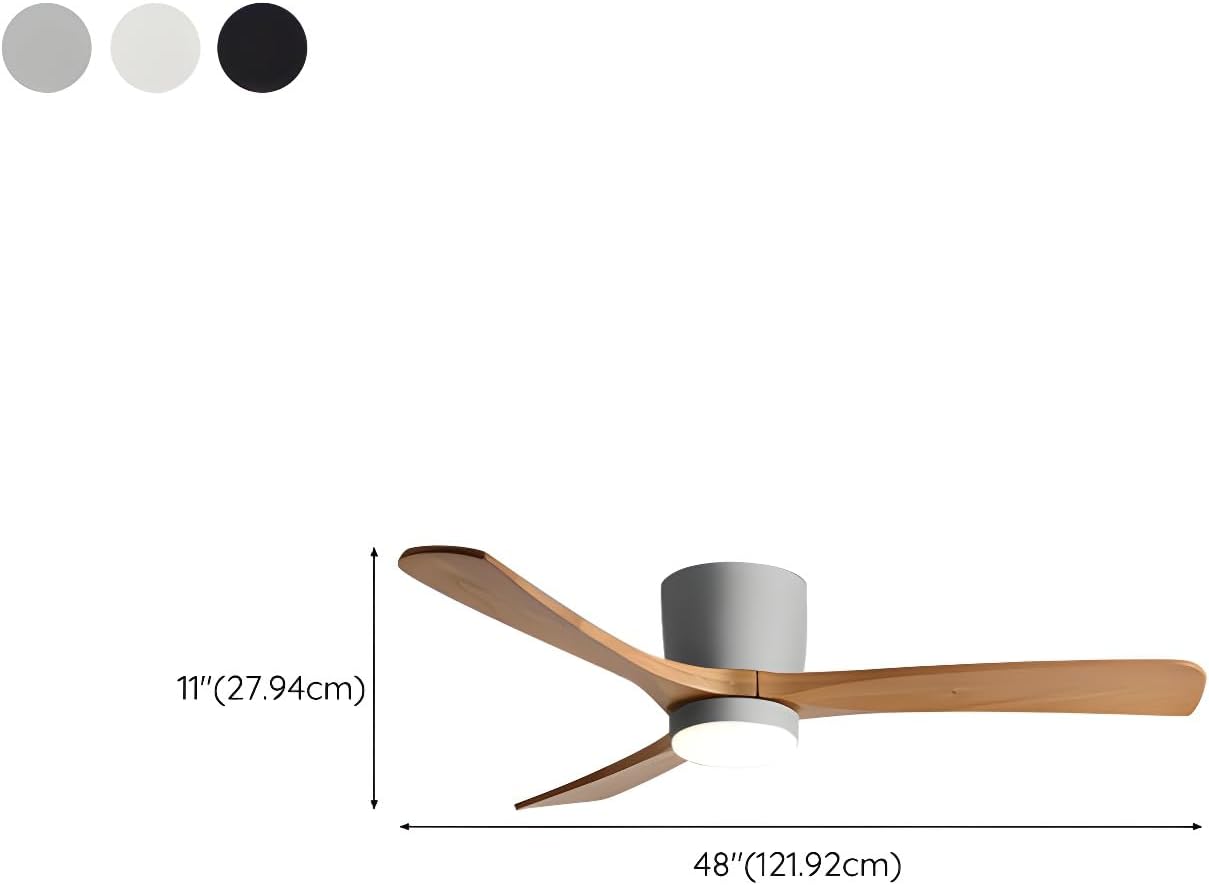

Image: Diagram illustrating the dimensions of the 48-inch (121.92 cm) ceiling fan light fixture, with a height of 11 inches (27.94 cm).
- Brand: LITFAD
- Model Name: LT1078265B-48"
- Fixture Width: 48" (122 cm)
- Fixture Height: 11" (28 cm)
- Product Dimensions: 48"L x 48"W x 11"H
- Material: Wood, Acrylic, Metal
- Color: Black
- Style: Modern / Simple / Creative
- Light Source Type: LED
- Bulb Base: SMD (Bulb Included)
- Wattage: 24W
- Voltage: AC110-120V
- Light Color: 3 Color Light (Warm, Natural, White)
- Brightness: 2000 Lumens (Maximum Light Output)
- Number of Light Sources: 1
- Number of Blades: 3
- Control Method: Remote Control
- Installation Type: Semi Flush Mount
- Indoor/Outdoor Usage: Indoor
- Room Type: All room
- Assembly Required: Yes
- Water Resistance Level: Not Water Resistant
Warranty and Support
LITFAD is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For any questions, suggestions, or issues regarding your LITFAD Nordic Wooden Ceiling Fan Light Fixture, please do not hesitate to contact our customer support. We are dedicated to assisting you promptly.
You can visit the official LITFAD store for more information and contact options: LITFAD Store on Amazon
