Introduction
The Sportneer Foldable Bicycle Lock, Model ALF-01, is a high-security locking solution designed for bicycles, electric bikes, scooters, and motorcycles. Constructed from durable steel alloy, it features an anti-drill lock cylinder and a flexible folding mechanism for enhanced security and ease of use. This manual provides essential information for the proper setup, operation, and maintenance of your Sportneer lock.
Figure 1: Sportneer Foldable Bicycle Lock, showing its compact form, included keys, and ART security certification.
Safety Information
- Always ensure the lock is properly engaged and secured to a fixed object before leaving your vehicle unattended.
- Do not attempt to force the lock if the key is not turning smoothly. Check for obstructions or apply lubricant if necessary.
- Keep keys in a safe place and away from children to prevent accidental loss or misuse.
- Regularly inspect the lock for any signs of wear or damage. Do not use if the lock appears compromised.
Product Features
- Enhanced Security: Features an upgraded anti-drill bolt, an anti-saw deflector, and dust protection for the lock core, ensuring robust protection against common theft methods.
- Flexible Design: The folding mechanism allows the lock to extend up to 95 cm (approximately 3.2 feet), providing ample length to secure multiple bicycles or to various fixed objects like poles or bike racks.
- Durable Construction: Made from high-strength alloy steel with a powder coating finish, offering resistance against corrosion, scratches, and impacts.
- ART 2-Star Certified: This lock has received ART 2-star certification, indicating a high level of security and reliability, capable of withstanding over 50kN of force and torque.
- Key Service: Includes three keys. Sportneer offers a unique global backup key delivery service. Register your key number with customer service upon receipt to receive two free replacement keys in case of loss.
Figure 2: Detailed view of the anti-drill lock cylinder, highlighting its robust internal structure.
Figure 3: Illustration of the lock's double-layer protection, featuring a durable outer layer and a strong inner steel core for maximum security.
Package Contents
Please verify that all items are present in the package:
- 1 x Sportneer Foldable Bicycle Lock (Model ALF-01)
- 3 x Keys
- 1 x Versatile Mount for bicycle frame installation
Setup
The Sportneer Foldable Bicycle Lock comes with a versatile mount for convenient storage and transport on your bicycle.
- Choose Mounting Location: Select a suitable location on your bicycle frame, typically on the down tube or seat tube, where the mount will not interfere with pedaling or other bicycle components.
- Attach the Mount: Use the provided straps or screws to securely fasten the versatile mount to your bicycle frame. Ensure it is tightened firmly to prevent movement during riding.
- Insert the Lock: Slide the folded lock into the mount until it clicks into place. Ensure it is securely seated and does not rattle.

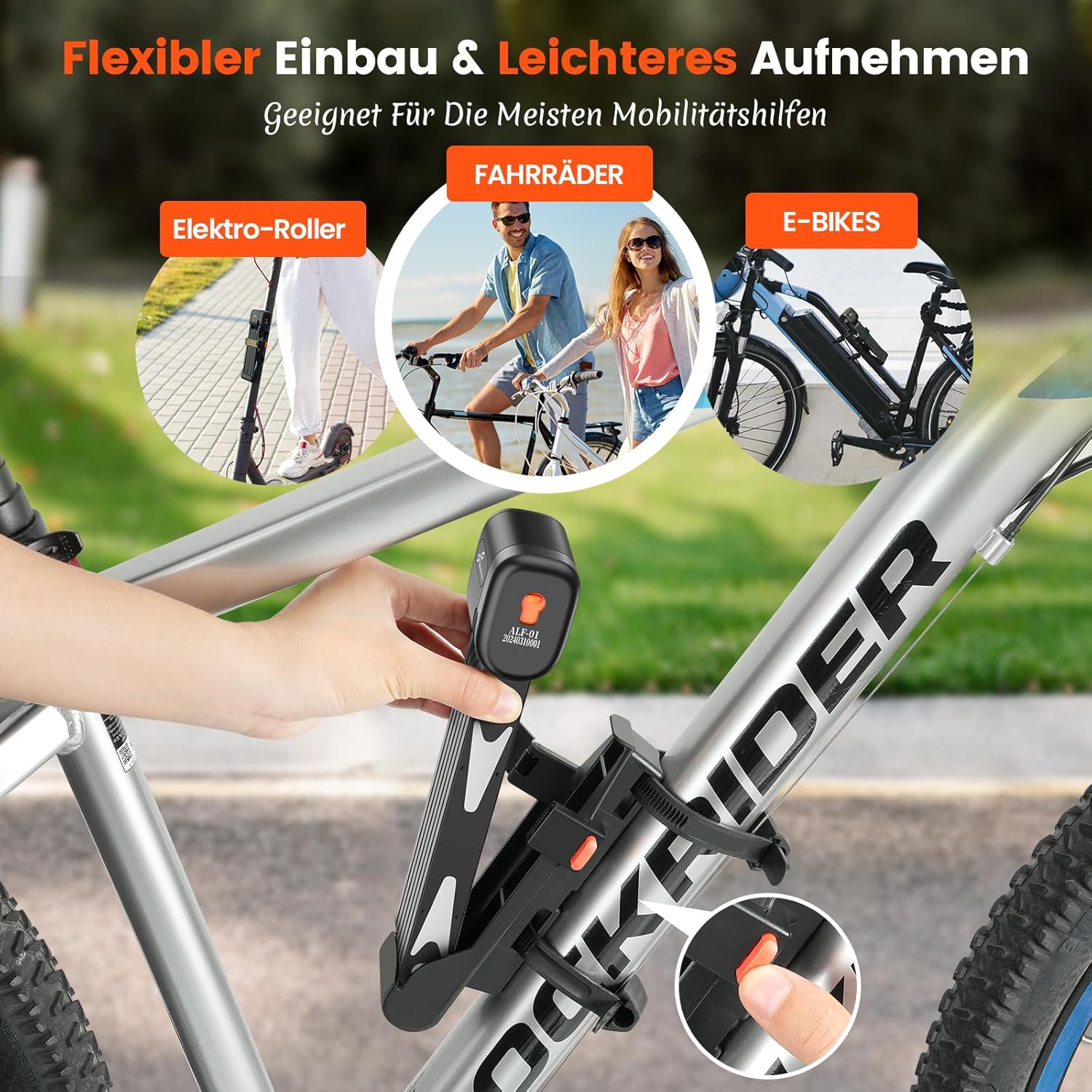

Figure 4: Flexible installation and easy storage on various mobility aids, including bicycles, e-bikes, and electric scooters.
Operating Instructions
Follow these steps to effectively use your Sportneer Foldable Bicycle Lock:
To Lock Your Bicycle:
- Remove from Mount: Press the release button on the mount and slide the lock out.
- Unfold the Lock: Gently unfold the lock segments until it reaches the desired length. The lock can extend up to 95 cm.
- Secure Your Bicycle: Wrap the unfolded lock around your bicycle frame (and wheel, if desired) and a secure, immovable object such as a bike rack, lamppost, or sturdy fence.
- Engage the Lock: Insert the end of the lock bar into the main locking mechanism. Push firmly until you hear a distinct "click," indicating that the lock is securely engaged.
- Remove Key: Once locked, remove the key. Ensure the lock is fully secured before leaving your bicycle.
To Unlock Your Bicycle:
- Insert Key: Insert one of the provided keys into the lock cylinder.
- Turn Key: Turn the key to disengage the locking mechanism.
- Release Lock: Pull the lock bar out of the main mechanism.
- Fold and Store: Fold the lock segments back into their compact form and re-insert it into the versatile mount on your bicycle for easy transport.
Figure 5: The lock's extended length allows for securing multiple bicycles simultaneously. Dimensions of the lock are also shown.

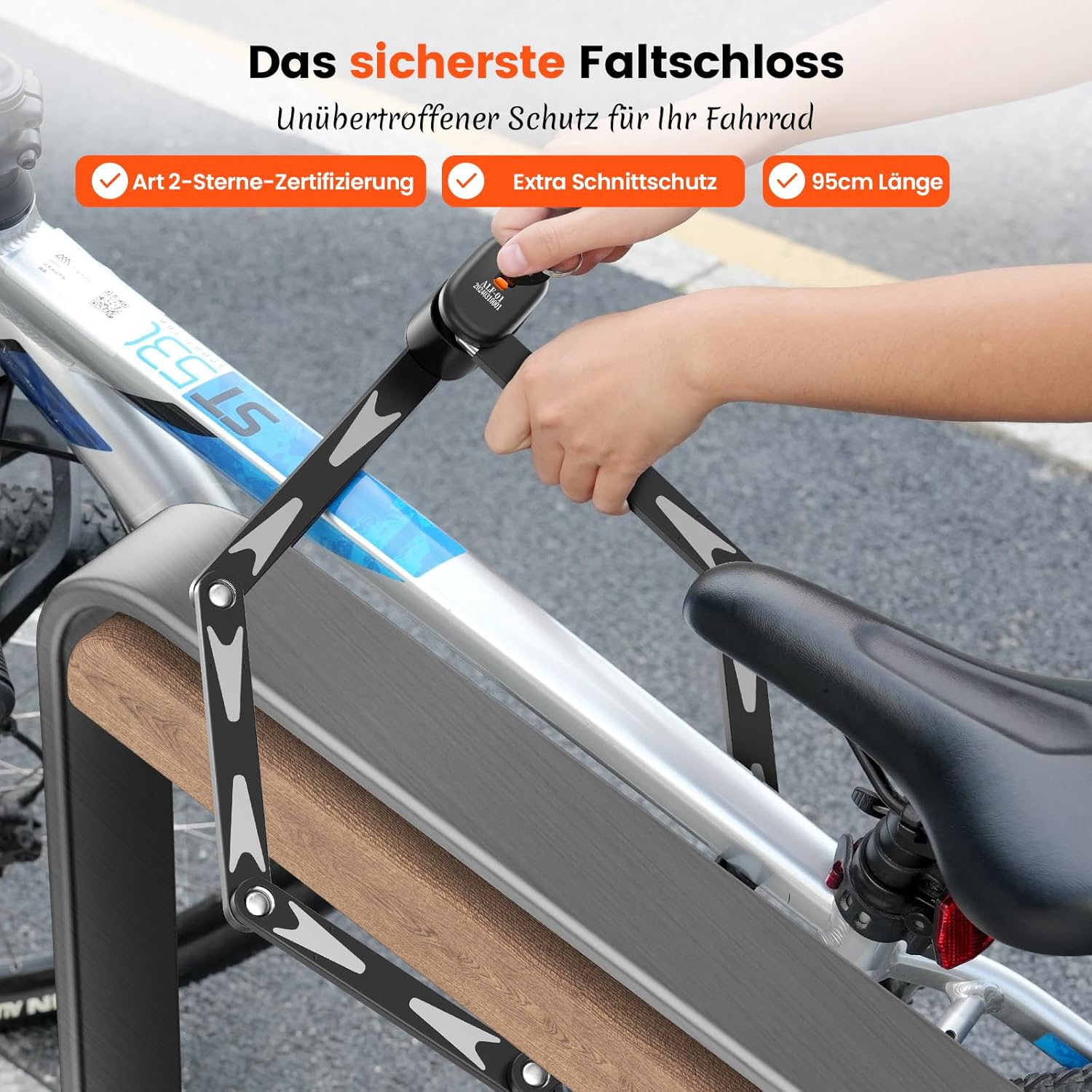

Figure 6: Example of the Sportneer lock in use, demonstrating its flexibility and reach.
Maintenance
Proper maintenance will ensure the longevity and smooth operation of your Sportneer Foldable Bicycle Lock:
- Cleaning: Regularly wipe down the lock body and segments with a soft, damp cloth to remove dirt, dust, and grime. Avoid using abrasive cleaners or solvents that could damage the finish.
- Lubrication: Periodically (e.g., every 3-6 months, or more frequently in harsh conditions) apply a small amount of graphite lubricant or a silicone-based spray to the keyhole and the joints of the folding mechanism. This helps maintain smooth key insertion and lock operation.
- Storage: When not in use, store the lock in a dry environment to prevent rust and corrosion.
Troubleshooting
If you encounter issues with your Sportneer lock, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Key is difficult to insert or turn. | Dirt or debris in the keyhole; lack of lubrication; bent key. | Clean the keyhole with compressed air. Apply graphite lubricant to the keyhole. Ensure the key is not bent. Do not force the key. |
| Lock mechanism is stuck or won't engage/disengage. | Obstruction in the mechanism; lack of lubrication; lock segments misaligned. | Check for any foreign objects. Apply lubricant to the folding joints and locking mechanism. Ensure the lock segments are properly aligned when attempting to engage/disengage. |
| Lock appears damaged after an attempted theft. | External force applied. | If the lock is compromised, it should be replaced immediately. Do not rely on a damaged lock for security. |
Figure 7: Demonstrations of the lock's robustness against various attack methods, including prying, sawing, hammering, and freezing.
Specifications
| Brand | Sportneer |
| Model Number | ALF-01 |
| Material | Alloy Steel |
| Color | Black |
| Product Dimensions (L x W x H) | 22.5 x 6.5 x 3.8 cm (folded) |
| Extended Length | Up to 95 cm |
| Weight | 1.3 kg |
| Special Feature | Cut-resistant, Anti-drill lock cylinder |
| Lock Type | Key (3 keys included) |
| Recommended Uses | Bicycles, Electric Bikes, Mountain Bikes, Scooters, Motorcycles |
| Certifications | ART 2-Star Certified |
Warranty and Support
Sportneer is committed to providing high-quality products and excellent customer service.
Key Replacement Service:
Your Sportneer Foldable Bicycle Lock comes with a unique global backup key delivery service. To utilize this service:
- Upon receiving your lock, locate the unique key number (usually engraved on the keys or a small tag).
- Register this key number with Sportneer customer service. Details on how to register can typically be found on the product packaging or the official Sportneer website.
- In the unlikely event of losing your keys, contact Sportneer customer service, provide your registered key number, and two replacement keys will be sent to you free of charge, anywhere in the world.
General Support:
For any further questions, technical assistance, or warranty claims not covered by the key replacement service, please refer to the contact information provided on the product packaging or visit the official Sportneer website for customer support details.
