GGM Gastro Rmf7B-P Mixing Machine Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your GGM Gastro Rmf7B-P Mixing Machine. Please read this manual thoroughly before operating the appliance and retain it for future reference.

Figure 1: GGM Gastro Rmf7B-P Mixing Machine, a powerful and versatile food processor and kneading machine in pink.

Safety Instructions

Always observe the following safety precautions to prevent injury or damage to the appliance:

• Ensure the machine is placed on a stable, non-slip surface.
• Do not immerse the motor unit in water or other liquids.
• Keep hands, hair, clothing, and utensils away from moving parts during operation.
• Unplug the machine from the power outlet before cleaning, assembling, or disassembling parts.
• Do not operate the machine with a damaged cord or plug.
• This appliance is intended for commercial use in bakeries and pizzerias.
• Supervise children and individuals with reduced capabilities if they are near the appliance.

Package Contents

Verify that all components are present and undamaged upon unpacking:

• GGM Gastro Rmf7B-P Mixing Machine (Main Unit)
• Stainless Steel Mixing Bowl (7 Liters capacity)
• Dough Hook
• Flat Beater
• Whisk
• Splash Guard
• Instruction Manual (this document)

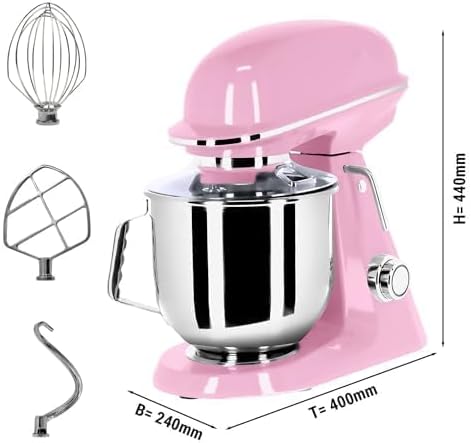

Figure 2: Overview of the mixing machine with its primary attachments and dimensions (Width: 240mm, Depth: 400mm, Height: 440mm).

Setup

1. Unpacking: Carefully remove all packaging materials and inspect the machine for any signs of damage.
2. Placement: Place the mixing machine on a clean, dry, stable, and level surface. Ensure adequate ventilation around the unit.
3. Power Connection: Connect the power cord to a grounded electrical outlet. The machine operates on 230V / 50 Hz.
4. Bowl Installation: Place the stainless steel mixing bowl onto the base, ensuring it is securely locked in position.
5. Attachment Installation:
   • Lift the mixer head.
   • Select the appropriate attachment (dough hook, flat beater, or whisk) for your task.
   • Insert the attachment into the shaft and twist to secure it.
   • Lower the mixer head until it locks into place.
6. Splash Guard: Attach the splash guard to the mixing bowl to prevent ingredients from splattering during operation.

Figure 3: Rear view of the mixing machine, highlighting the power connection point and general construction.

Operating Instructions

General Operation

1. Ensure the machine is properly set up and the desired attachment is installed.
2. Add ingredients to the mixing bowl. The recommended filling quantity is 4.90 kg.
3. Turn the speed control knob to the desired setting. The machine features 11 speed levels, ranging from 100 to 937 rpm.
4. Monitor the mixing process. Do not overload the machine.
5. To stop the machine, turn the speed control knob to the 'OFF' position.
6. Unplug the machine from the power outlet after use.

Using Attachments

• Dough Hook: Ideal for heavy doughs such as yeast dough or bread dough. Use lower speeds for kneading.


  Figure 4: Dough Hook
• Flat Beater: Suitable for medium-heavy mixtures like batters, cakes, and mashed potatoes. Use medium speeds.


  Figure 5: Flat Beater

• Whisk: Best for light mixtures such as creams, egg whites, and light batters. Use higher speeds for aeration.

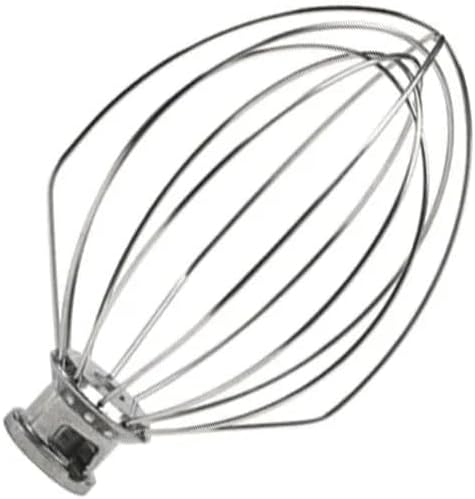

  Figure 6: Whisk

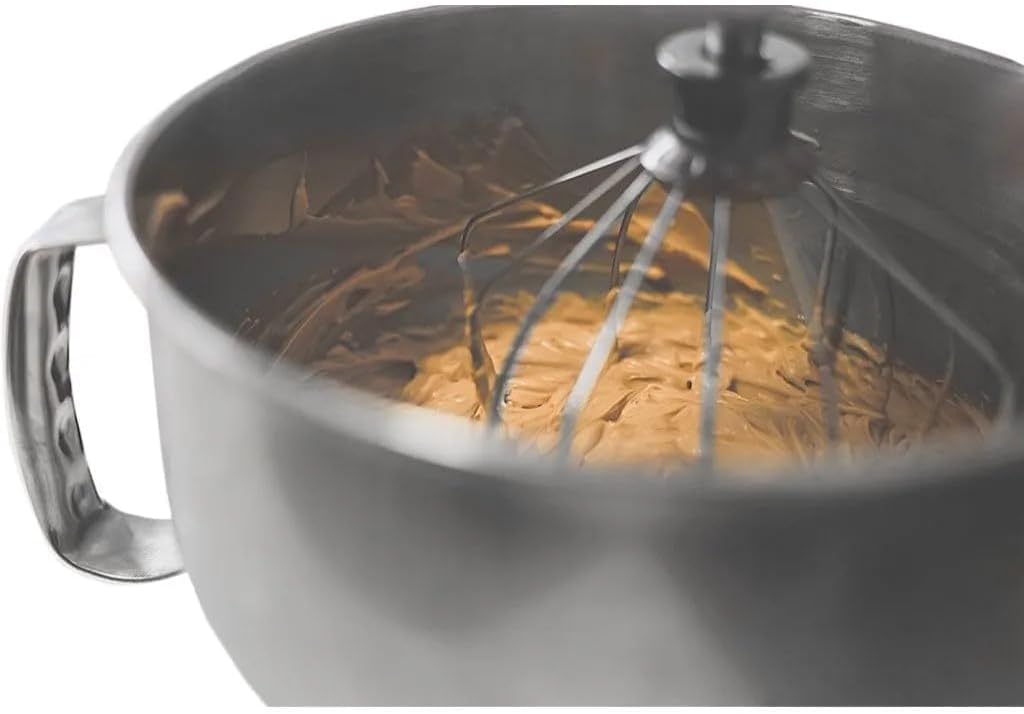

  Figure 7: Whisk attachment in operation within the mixing bowl.

Maintenance and Cleaning

Regular cleaning and maintenance ensure the longevity and optimal performance of your mixing machine.

• Always unplug the machine before cleaning.
• Mixing Bowl and Attachments: The stainless steel mixing bowl and attachments are dishwasher safe. Alternatively, wash them with warm, soapy water and rinse thoroughly. Dry immediately to prevent water spots.
• Main Unit: Wipe the exterior of the motor unit with a damp cloth. Do not use abrasive cleaners or immerse the unit in water.
• Storage: Store the machine and its accessories in a clean, dry place when not in use.

Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

Specifications

• Brand: GGM Gastro
• Model Number: FT84RMF7BY22010009
• Color: Pink
• Capacity: 7 Liters
• Power / Wattage: 350 KW
• Voltage: 240 Volts (DC)
• Material: Stainless Steel
• Number of Speeds: 11
• Speed Range: 100 to 937 rpm
• Electrical Connection: 1N/PE / N / PE 230V / 50 Hz
• Recommended Filling Quantity: 4.90 kg
• Item Dimensions (D x W x H): 24D x 40W x 44H cm
• Item Weight: 18 Kilograms
• Dishwasher Safe Parts: Mixing Bowl, Attachments

Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. GGM Gastro products are designed for durability and performance.

For extended warranty options, please refer to the details provided at the point of purchase or contact Salama Care for 1-Year or 2-Year extended warranty plans.
