AIMADI AM-3041N Kitchen Faucet with Pull Down Sprayer User Manual
Model: AM-3041N | Brand: AIMADI
1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your AIMADI AM-3041N Kitchen Faucet with Pull Down Sprayer. Please read this guide thoroughly before installation and retain it for future reference. This faucet is designed for commercial, RV, laundry, and outdoor kitchen sink applications, featuring a durable stainless steel construction and versatile functionality.
Image 1: AIMADI AM-3041N Stainless Steel Kitchen Faucet with Pull Down Sprayer.
2. Safety Information
Always observe the following safety precautions during installation and use:
- Turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use harsh chemicals or abrasive cleaners on the faucet finish.
3. Package Contents
Verify that all components are present before starting installation:
- AIMADI Kitchen Faucet (main unit)
- Pull Down Sprayer
- Installation Hardware
- Mounting Accessory
- Instruction Manual (this document)
4. Specifications
| Brand | AIMADI |
| Model Number | AM-3041N |
| Material | Stainless Steel (Body), Metal (Handle) |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Hole Count | 1 |
| Mounting Type | Deck Mount, Single Hole |
| Special Features | 360° Swivel, Dual Function Sprayer, Dual Spout, Pull Down Sprayer |
| Spout Height | 6.5 Inches |
| Hose Length | 20 Inches |
| Product Dimensions | 17.5 x 13.3 x 2.7 inches |
| Item Weight | 5.92 pounds |
Image 2: Faucet dimensions and mounting options.
Image 3: Key features including healthy material, water saving, ceramic cartridge, brass construction, and hot/cold compatibility.

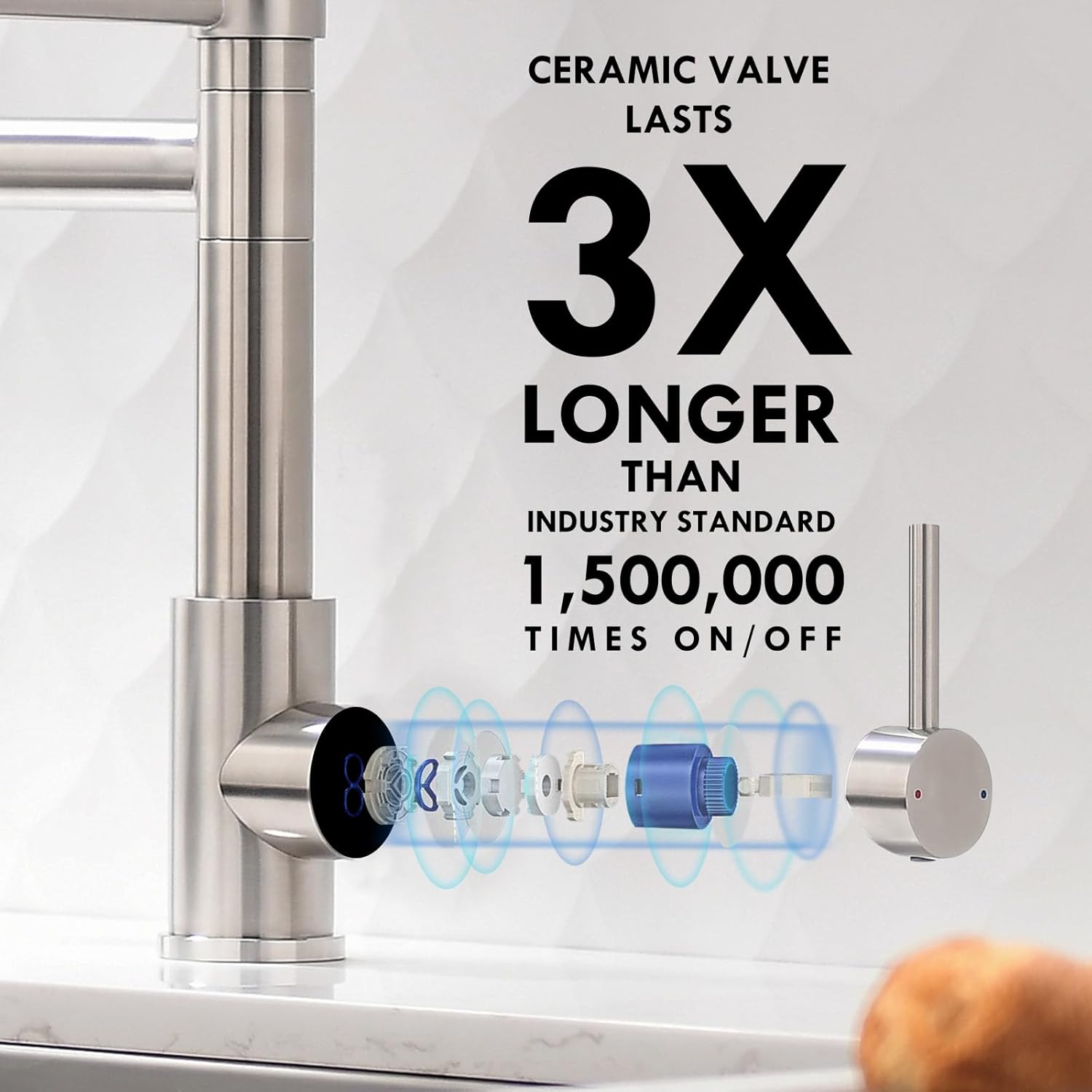

Image 4: Ceramic valve durability diagram.
5. Setup and Installation
Follow these steps for proper installation of your AIMADI kitchen faucet. Ensure the water supply is turned off before starting.
- Prepare for Installation: Clear the installation area and ensure you have all necessary tools (e.g., adjustable wrench, screwdriver, plumber's putty/silicone sealant).
- Install the Mounting Stem: Attach the mounting stem to the faucet body.
- Mount Faucet to Sink: Insert the faucet into the sink hole, ensuring the gasket is correctly positioned.
- Secure the Mounting Nut: From underneath the sink, secure the faucet with the mounting nut and washer. Tighten firmly but do not overtighten.
- Connect the Hoses: Connect the hot and cold water supply lines to the corresponding inlets on the faucet. Connect the pull-down sprayer hose. Ensure all connections are watertight.
Image 5: Visual guide for faucet installation steps.
6. Operating Instructions
Your AIMADI kitchen faucet offers intuitive operation for various tasks.
6.1. Single Handle Control
The single lever handle controls both water temperature and flow volume. Move the handle left for hot water, right for cold water, and up/down to adjust flow intensity. The smart handle design allows for forward rotation, ideal for installations with limited backsplash clearance.
6.2. Dual Mode Sprayer
The pull-down sprayer features two distinct water flow modes:
- Aerated Stream: Ideal for everyday tasks like filling pots and gentle rinsing.
- Powerful Spray: Provides a strong, splash-free spray for heavy-duty cleaning.
Easily switch between these modes using the button or switch on the sprayer head. The sprayer lock design allows for continuous water flow without holding the handle, freeing both hands for cleaning.
Image 6: Dual spray modes: Stream and Spray.
Image 7: Pull-down sprayer in use.
6.3. Retractable Hose
The flexible hose extends the sprayer's reach, making it easy to clean all areas of your sink. The tight spring design effectively isolates the hose from external contact and protects its service life.
7. Maintenance and Care
Proper care will ensure the longevity and appearance of your AIMADI faucet.
7.1. Cleaning the Faucet
- Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for stainless steel finishes.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Avoid using abrasive cleaners, steel wool, or cleaners containing ammonia, bleach, or alcohol, as these can damage the finish.
7.2. Sprayer Nozzle Maintenance
The hard rubber sprayer holes are designed to be splash-free. If mineral deposits build up, gently rub the rubber nozzles to dislodge them and restore optimal spray performance.
7.3. Ceramic Cartridge
The faucet is equipped with a superior-grade ceramic cartridge, tested for over 500,000 open and close cycles, ensuring long-lasting, drip-free performance. No regular maintenance is typically required for the cartridge itself.
8. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; kinked supply line. | Clean the aerator; ensure shut-off valves are fully open; check supply lines for kinks. |
| Leaks from Faucet Base | Loose mounting nut; improper gasket seating. | Tighten mounting nut; re-seat gasket if necessary. |
| Sprayer Not Retracting Fully | Weight on hose is dislodged or insufficient. | Check and adjust the position of the counterweight on the sprayer hose under the sink. |
| Water Temperature Issues | Incorrect handle position; issues with water heater or supply. | Adjust handle; check water heater settings and supply lines. |
9. Warranty and Customer Support
AIMADI is committed to providing high-quality products and excellent customer service.
9.1. Warranty Information
Your AIMADI AM-3041N Kitchen Faucet is covered by a 2-year free repair warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.
9.2. Customer Support
If you have any questions, require assistance with installation, or encounter any issues with your faucet, please do not hesitate to contact us. Our customer support team aims to provide a fast reply within 24 hours.
Contact Method: Message us via Amazon.
