Goplus 10 Gallon Solar Heated Outdoor Shower User Manual

Introduction

Thank you for choosing the Goplus 10 Gallon Solar Heated Outdoor Shower. This freestanding outdoor shower utilizes solar energy to heat water, providing a refreshing and eco-friendly showering experience for your garden, pool area, backyard, or beach house. Designed for convenience and durability, it features a large water capacity, adjustable temperature control, and a practical foot shower.

Image: The Goplus 10 Gallon Solar Heated Outdoor Shower, showcasing its sleek black column design and the shower head spraying water.

Safety Information

• Ensure the shower is securely anchored to a stable, solid outdoor surface such as concrete to prevent tipping.
• Water heated by solar energy can reach temperatures up to 140°F (60°C). Always test the water temperature before showering to avoid scalding.
• Do not attempt to modify the shower's structure or components, as this may compromise safety and performance.
• Disconnect the water supply and drain the shower completely before freezing temperatures to prevent damage.
• Keep children and pets supervised when near the shower, especially when it contains hot water.

Package Contents

Please verify that all components are present before beginning assembly:

• Shower Column (2 sections)
• Shower Head (360° swivel)
• Faucet with Hot/Cold Mixer
• Foot Shower Spigot
• Base Plate
• Anchoring Screws (4 pcs)
• Water Inlet Connector (with G1/2" and standard garden hose options)
• User Manual

Setup and Installation

Follow these steps for proper assembly and installation:

1. Choose a Location: Select a flat, stable outdoor surface that receives ample sunlight for optimal water heating. Concrete or other solid foundations are recommended for stability.
2. Assemble the Column: Connect the two sections of the shower column. Ensure the threaded connection is securely tightened to prevent leaks.


Image: Illustration of the shower's two-section design, durable PVC and chromed ABS material, stable base, and the four anchoring screws for fixation.

3. Attach the Base: Secure the base plate to the bottom of the assembled shower column.
4. Anchor the Shower: Position the shower in your desired location. Use the provided anchoring screws to firmly secure the base to the ground. Drilling into concrete may be required.
5. Install Shower Head and Faucets: Attach the 360° swivel shower head to the top of the column. Install the hot/cold mixer faucet and the foot shower spigot onto their respective ports.
6. Connect Water Supply: Connect a standard garden hose to the water inlet connector at the base of the shower. The shower supports both G1/2" and standard garden hose connections. Ensure all connections are tight to prevent leaks.


Image: Close-up of the water inlet connector, showing options for connecting with a G1/2" water hose or a standard garden hose using quick connectors.

7. Fill the Tank: Turn on the water supply to fill the 10-gallon (38 L) internal tank. Allow the tank to fill completely before use.

Operating Instructions

Using your Goplus Solar Heated Outdoor Shower is simple:

1. Solar Heating: The black column absorbs solar energy, heating the water inside. On a sunny day, water temperature can reach up to 140°F (60°C). The heating time will vary depending on sunlight intensity and ambient temperature.


Image: A man showering under the Goplus solar shower, with callouts indicating 10 Gallon Water Capacity, 3.5 Bar Maximum Water Pressure, 140°F Maximum Water Temperature, and a flexible faucet for hot and cold adjustment.

2. Adjusting Water Temperature: Use the hot/cold mixer faucet to achieve your desired water temperature. Turn the handle towards 'Hot' for warmer water and 'Cold' for cooler water. Always test the water before stepping under the shower.
3. Using the Shower Head: The shower head features a 360° swivel design, allowing you to adjust the spray direction for maximum comfort.
4. Using the Foot Shower: The dedicated foot shower spigot is ideal for rinsing feet, washing off sand, or bathing pets without needing to use the main shower head.

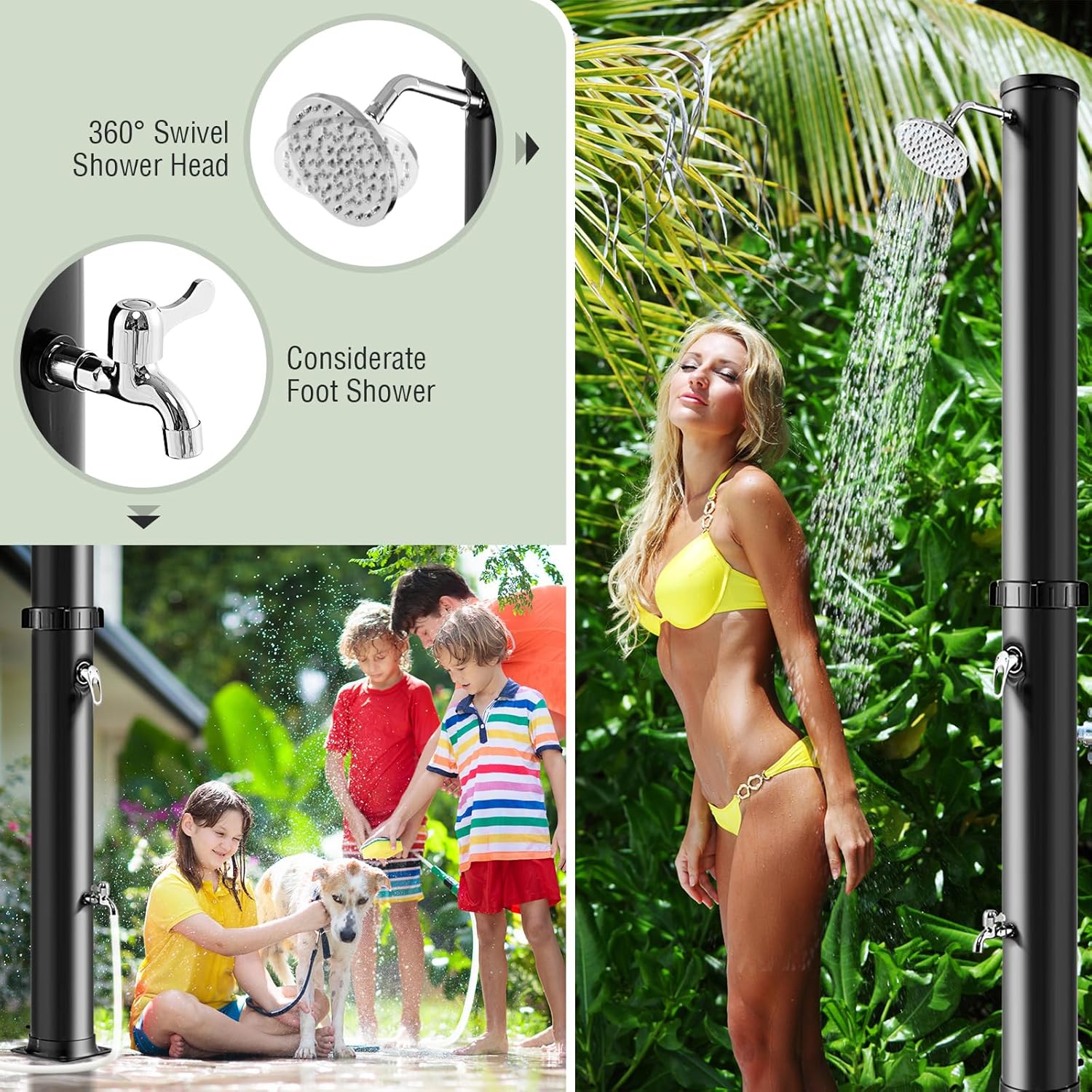

Image: Detailed view of the 360° swivel shower head and the considerate foot shower, with an inset showing children and a dog using the foot shower.

Maintenance

• Cleaning: Clean the exterior of the shower regularly with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Winterization: Before the first frost, completely drain all water from the shower to prevent freezing and potential damage to the internal components and pipes. Disconnect the garden hose and open all faucets (shower head and foot shower) to allow water to escape. Store in a sheltered area if possible.
• Leak Checks: Periodically inspect all connections for leaks. Tighten any loose fittings as needed.

Troubleshooting

Specifications

• Product Dimensions: 7.5 x 7.5 x 85.5 inches (L x W x H)
• Item Weight: 27 pounds
• Water Capacity: 10 Gallons (38 Liters)
• Maximum Water Temperature: Up to 140°F (60°C)
• Material: Durable PVC & Chromed ABS
• Model Number: NP10570
• Manufacturer: Goplus
• Country of Origin: China

Image: Diagram illustrating the key dimensions of the Goplus solar shower, including height, base size, and shower arm length.

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact Goplus customer service directly. Keep your purchase receipt for warranty claims.
