Gustonhon Queen Lift Storage Bed Instruction Manual

1. Important Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Exercise caution around sharp edges during assembly to prevent injury.
• Do not exceed the maximum weight capacity of 700 pounds for this bed frame.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten hardware.
• Keep children away from the hydraulic lift mechanism during operation.

2. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer service.

• Headboard
• Footboard
• Side Rails
• Bed Slats and Support Beams
• Hydraulic Lift Mechanism
• Storage Drawers (x2)
• Hardware Pack (screws, bolts, nuts, Allen wrench)
• Assembly Instruction Guide

3. Specifications

Note: Manual measurements have been used; there may be reasonable error. Product images are taken from actual samples; slight chromatic aberration may occur due to lighting or display.

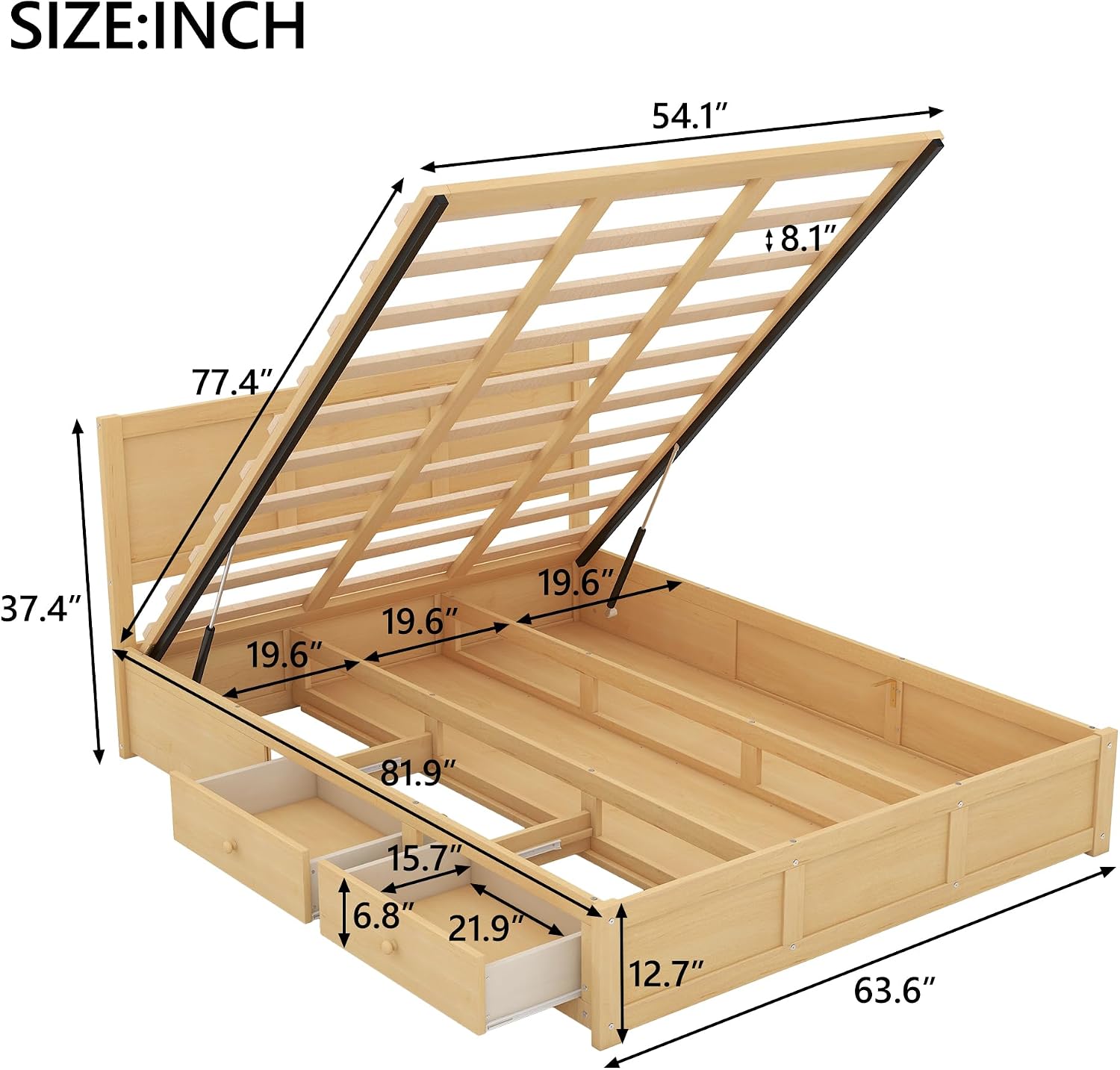

Figure 3.1: Product Dimensions. This image illustrates the length, width, and height measurements of the assembled bed frame, including the headboard and storage drawers.

4. Setup and Assembly Instructions

This bed frame is designed for straightforward assembly. All necessary tools and a detailed assembly instruction guide are included in the package. Follow the step-by-step instructions provided in the separate guide for optimal results.

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Compare parts with the included parts list in your assembly guide.
2. Assemble the Bed Frame: Begin by connecting the headboard, footboard, and side rails according to the assembly guide. Ensure all bolts are finger-tightened initially.
3. Install Support Beams and Slats: Attach the central support beams and then evenly space and secure the wooden slats across the frame.
4. Assemble Storage Drawers: Follow the instructions to assemble the two storage drawers and install their runners into the bed frame.
5. Attach Hydraulic Lift Mechanism: Secure the hydraulic lift mechanism to the bed frame and the slat support system as directed. Ensure it operates smoothly before proceeding.
6. Final Tightening: Once all components are in place, go back and securely tighten all bolts and screws using the provided Allen wrench. Do not overtighten.

Figure 4.1: Assembly Overview. This image displays various stages of the bed's construction, including the frame with slats, the hydraulic lift mechanism, and the integrated storage drawers.

Figure 4.2: Internal Structure. This image provides a detailed view of the bed's internal support structure and the runners for the storage drawers, illustrating how components fit together.

5. Operating Instructions

This bed features a hydraulic lift system for under-bed storage and two integrated drawers.

5.1. Using the Hydraulic Lift Storage

• To access the under-bed storage, firmly grasp the edge of the bed frame (usually at the footboard or side) and lift upwards. The hydraulic mechanism will assist in raising the mattress platform.
• To close, gently push the mattress platform downwards until it fully lowers and locks into place. Ensure no objects are obstructing the closing mechanism.
• Do not place hands or fingers near the hinges or hydraulic pistons during operation.

Figure 5.1: Hydraulic Lift Open. This image shows the bed's mattress platform lifted, providing access to the spacious under-bed storage area and the integrated drawers.

Figure 5.2: Hydraulic Mechanism Detail. A close-up view of the hydraulic piston, which assists in lifting and holding the bed platform for storage access.

5.2. Using the Storage Drawers

• The two drawers are located at the foot of the bed. Pull the handles to open them.
• Push the drawers back in until they are fully closed and flush with the bed frame.
• Avoid overloading the drawers to ensure smooth operation and prevent damage to the runners.

6. Maintenance

Proper care will extend the life and appearance of your Gustonhon bed frame.

• Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and prevent squeaking.
• Drawer Maintenance: Keep drawer runners free of dust and debris. If drawers become stiff, a small amount of silicone lubricant can be applied to the runners.
• Hydraulic System: The hydraulic pistons are designed for long-term use and generally require no maintenance. If you notice a significant change in performance, contact customer support.

7. Troubleshooting

Refer to this section for common issues and their solutions.

• Bed Squeaks:
  Solution: Check all assembly hardware. Loose bolts are a common cause of squeaking. Tighten all connections securely. Ensure the bed is on a level surface.
• Drawers are Stiff or Not Closing Properly:
  Solution: Check for obstructions in the drawer runners. Ensure the drawers are correctly aligned on their tracks. Verify that the drawer assembly is correct and not warped.
• Hydraulic Lift Not Holding Position:
  Solution: Ensure the mattress is within the recommended weight range for the bed. If the issue persists, the hydraulic pistons may need inspection. Contact customer support for assistance.
• Missing or Damaged Parts:
  Solution: If you received the product with missing or damaged parts, do not proceed with assembly. Contact Gustonhon customer service immediately for replacement parts.

8. Warranty and Support

Gustonhon is committed to providing quality products and customer satisfaction.

• Returns: This product is eligible for 90-day easy returns. Refer to your purchase platform's return policy for details.
• Damaged Items: If your item arrives damaged in any way, please contact our customer service team immediately. Provide your order number and details of the damage.
• Customer Service: For any questions, concerns, or assistance with assembly or product issues, please reach out to Gustonhon customer support. We are available to help.
