CYDZSW Universal Rear Shock Absorber (125mm, 1200LBS) Instruction Manual

1. Product Overview

The CYDZSW Universal Rear Shock Absorber is designed to enhance the suspension performance of various vehicles, including electric bikes, mini motorcycles, dirt bikes, ATVs, and MTB bicycles. Constructed from high-quality steel, this shock absorber features an adjustable spring pressure and a maximum load capacity of 1200 lbs, providing improved riding comfort and stability across diverse terrains.

Image 1: The CYDZSW Universal Rear Shock Absorber, featuring a black spring and silver components.

2. Specifications

• Eye Center to Center Distance: Approximately 125mm / 4.92 inches
• Mounting Hole Diameter: Approximately 8mm / 0.31 inches
• Maximum Load Capacity: 1200 lbs
• Material: High-quality Steel (Aluminum + Carbon Steel for exterior finish)
• Auto Part Position: Rear
• Vehicle Service Type: Bicycle, Motorcycle (Universal Fit)
• Item Weight: 12.3 ounces
• Package Dimensions: 6.69 x 1.97 x 1.97 inches

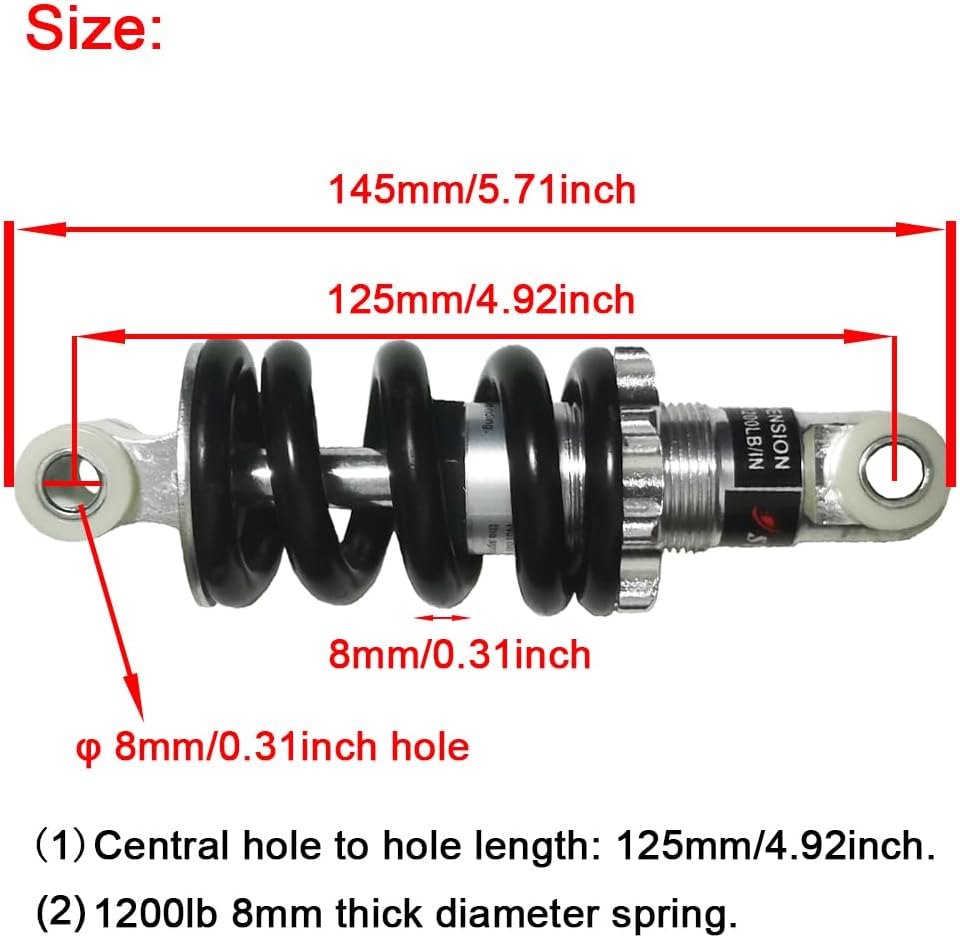

Image 2: Detailed dimensions of the shock absorber, showing a central hole to hole length of 125mm and an 8mm mounting hole diameter.

3. Package Contents

• 1 x CYDZSW Universal Rear Shock Absorber (125mm/4.92inch)

4. Installation Instructions

This shock absorber is designed for straightforward installation without requiring modifications or drilling. It serves as a direct replacement for worn or damaged original shock absorbers.

1. Preparation: Ensure your vehicle is stable and securely supported before beginning installation. Identify the location of the existing rear shock absorber.
2. Removal of Old Shock: Carefully unbolt and remove the original shock absorber from its mounting points. Keep track of any washers or bushings.
3. Compatibility Check: Verify that the eye-to-eye distance (125mm) and mounting hole diameter (8mm) of the new shock absorber match your vehicle's requirements.
4. Installation of New Shock: Align the new CYDZSW shock absorber with the mounting points. Insert the bolts through the 8mm mounting holes and secure them. Do not overtighten initially.
5. Final Tightening: Once both ends are properly aligned and bolted, tighten all fasteners to the manufacturer's recommended torque specifications for your vehicle.
6. Post-Installation Check: Gently lower the vehicle and check for proper fitment and movement. Ensure there is no binding or interference with other components.

Image 3: Example of the shock absorber installed on the rear suspension of a bicycle.

Image 4: Examples of compatible vehicles including ATVs, mini motorcycles, and dirt bikes.

5. Operating and Adjustment

The shock absorber features an adjustable spring pressure, allowing you to fine-tune the damping according to your riding preferences and the terrain. This adjustment helps optimize comfort and control.

1. Spring Preload Adjustment: Locate the adjustment collar on the shock absorber (refer to Image 5). This collar allows you to compress or decompress the spring, thereby adjusting the preload.
2. Adjusting for Rider Weight: For heavier loads or a firmer ride, turn the adjustment collar to compress the spring further. For lighter loads or a softer ride, decompress the spring.
3. Testing: After making adjustments, test the suspension by riding the vehicle in a safe environment. Make small adjustments and re-test until the desired ride quality is achieved.

The shock absorber is designed to handle a maximum load capacity of 1200 lbs. Ensure that the combined weight of the rider and any cargo does not exceed this limit for optimal performance and safety.

Image 5: A close-up view of the shock absorber, showing the adjustable collar for spring preload adjustment.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your shock absorber.

• Cleaning: Periodically clean the shock absorber to remove dirt, mud, and debris. Use a mild soap and water solution, then rinse thoroughly and dry.
• Inspection: Regularly inspect the shock absorber for any signs of damage, such as leaks, bent shafts, cracked springs, or worn bushings. Check mounting bolts for tightness.
• Lubrication: Keep the shock shaft clean and free of grit. While this unit is a spring shock, a light silicone-based lubricant can be applied to the shaft if recommended by your vehicle's manufacturer to prevent seal wear, though direct lubrication of the spring itself is not typically required.
• Storage: If storing the vehicle for an extended period, ensure the shock absorber is clean and dry.

7. Troubleshooting

If you experience issues with your shock absorber, consider the following common troubleshooting steps:

• Poor Damping/Bouncy Ride: This could indicate insufficient spring preload. Try increasing the spring preload by adjusting the collar. If the issue persists, the shock may be worn and require replacement.
• Excessive Stiffness/Harsh Ride: The spring preload might be too high for your weight or riding conditions. Reduce the spring preload.
• Noise (Squeaking/Clunking): Check all mounting bolts to ensure they are securely tightened. Inspect bushings for wear or damage. Clean the shock absorber to remove any trapped debris.
• Visible Leaks: Any visible fluid leaks indicate a damaged seal. The shock absorber should be replaced.

For persistent issues or complex problems, it is recommended to consult with a qualified mechanic or contact customer support.

8. Warranty and Support

Specific warranty information for this product is not provided in the available documentation. Please retain your proof of purchase for any warranty claims.

For product support, technical assistance, or warranty inquiries, please contact the seller or manufacturer directly through the platform where the product was purchased. Provide your product model number (Shock Absorber-125mm) and purchase details for efficient service.
