Amplify Zodiac Series True Wireless Earphones User Manual

1. Introduction

Thank you for choosing the Amplify Zodiac Series True Wireless Earphones. These earphones are designed to provide a superior audio experience with the convenience of true wireless technology, touch controls, and hands-free calling. This manual will guide you through the setup, operation, and maintenance of your new earphones.

Image 1.1: Amplify Zodiac Series Earphones highlighting key features.

2. Safety Information

• Do not use the earphones at high volume for extended periods to prevent hearing damage.
• Keep the device away from water, moisture, and extreme temperatures.
• Do not attempt to disassemble or modify the earphones or charging case. This will void the warranty.
• Keep out of reach of children and pets.
• Dispose of the product responsibly according to local regulations.

3. Package Contents

Please ensure all items are present in your package:

• 1 x Pair of Amplify Zodiac Series True Wireless Earphones
• 1 x Charging Case
• 1 x USB Charging Cable
• Multiple sizes of Ear Tips (S, M, L)
• User Manual

4. Product Overview

Earphones

• Touch Control Area: For managing playback, calls, and voice assistant.
• Microphone: For hands-free calling.
• Charging Contacts: Connects with the charging case.
• Ear Tip: Ensures a comfortable and secure fit.

Charging Case

• Earbud Slots: Holds and charges the earphones.
• Charging Port: For connecting the USB charging cable.
• LED Indicator: Shows charging status of the case and earphones.

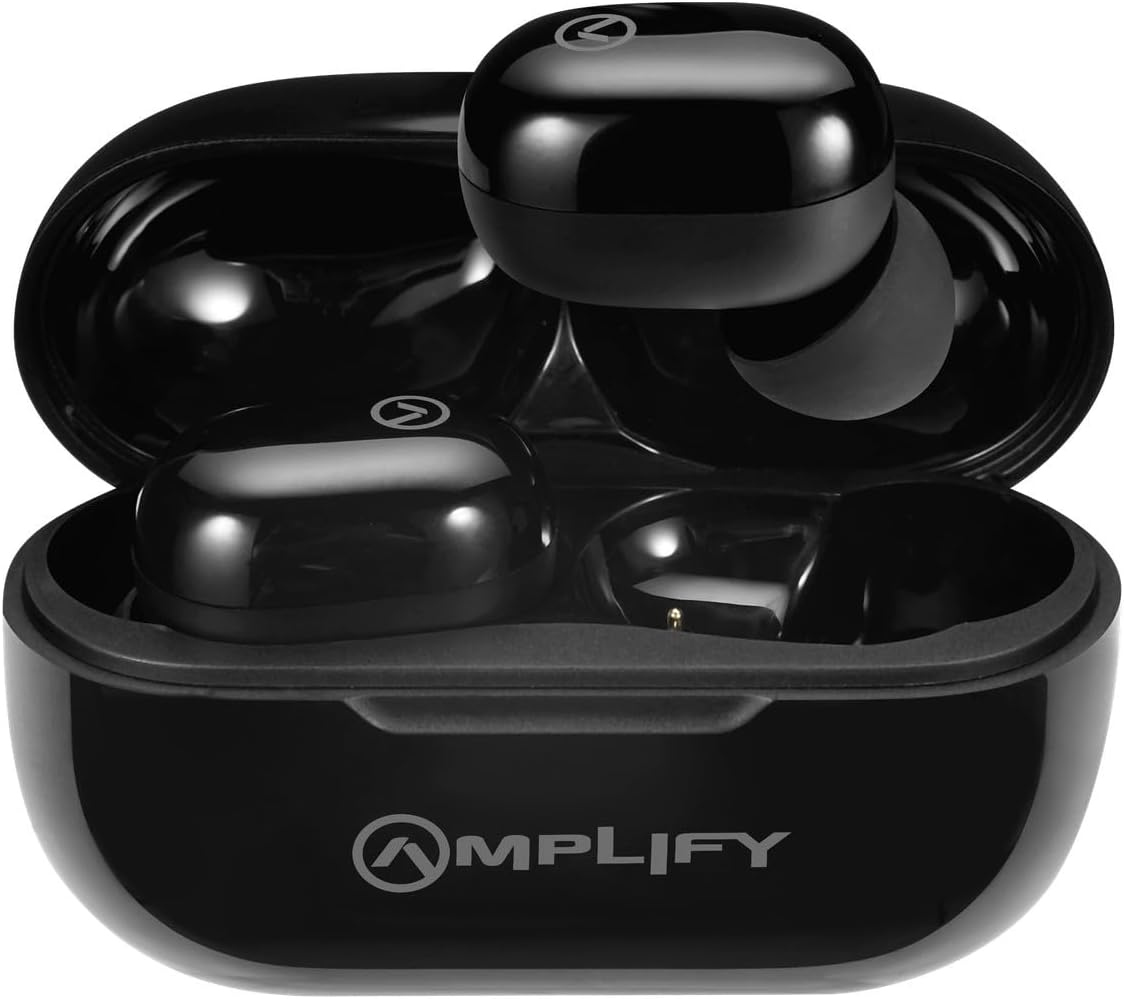

Image 4.1: Earphones placed inside the charging case.

Image 4.2: The closed charging case.

5. Setup

5.1 Charging the Earphones and Case

Before first use, fully charge both the earphones and the charging case.

1. Charging the Case: Connect the provided USB charging cable to the charging port on the case and to a USB power source (e.g., wall adapter, computer USB port). The LED indicator on the case will show the charging status. A full charge takes approximately 1.5 hours.
2. Charging the Earphones: Place the earphones into their respective slots in the charging case. Ensure the charging contacts align. The earphones will automatically begin charging. The LED indicators on the earphones (if present) or case will confirm charging.

Image 5.1: Charging case features and charge time.

5.2 Pairing with a Bluetooth Device

1. Ensure the earphones are charged and inside the charging case.
2. Open the charging case. The earphones will automatically enter pairing mode, indicated by a flashing LED on one or both earphones.
3. On your device (smartphone, tablet, etc.), enable Bluetooth and search for new devices.
4. Select "Amplify Zodiac" from the list of available devices.
5. Once connected, the earphone LEDs will stop flashing, and you will hear a confirmation tone.

Note: The earphones will automatically reconnect to the last paired device when taken out of the case, if Bluetooth is enabled on the device.

6. Operating the Earphones

6.1 Power On/Off

• Power On: Open the charging case, and the earphones will power on automatically. Alternatively, press and hold the touch control area on both earphones for 3 seconds.
• Power Off: Place the earphones back into the charging case and close the lid. They will power off automatically. Alternatively, press and hold the touch control area on both earphones for 5 seconds.

6.2 Wearing the Earphones

For optimal sound quality and comfort, choose the ear tips that best fit your ears. Insert the earphones gently into your ear canal and rotate them slightly until they feel secure and comfortable.

Image 6.1: Proper way to wear the earphones.

6.3 Touch Controls

The Amplify Zodiac Series earphones feature intuitive touch controls:

7. Maintenance

• Cleaning: Regularly clean the ear tips and charging contacts with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.
• Storage: When not in use, always store the earphones in their charging case to protect them and keep them charged.
• Battery Care: To prolong battery life, avoid fully discharging the earphones and charging case frequently. Charge them regularly, even if not in constant use.

8. Troubleshooting

8.1 Earphones Not Pairing

• Ensure both earphones are charged.
• Turn off Bluetooth on your device and turn it back on.
• Forget/delete "Amplify Zodiac" from your device's Bluetooth list and try pairing again.
• Place earphones back in the case, close the lid, wait 10 seconds, then open to re-enter pairing mode.

8.2 Only One Earphone Working

• Ensure both earphones are charged.
• Place both earphones back into the charging case, close the lid, and then open it again.
• Try resetting the earphones (refer to the full product support page for specific reset instructions if available).

8.3 No Sound

• Check the volume level on both your device and the earphones.
• Ensure the earphones are properly connected to your device via Bluetooth.
• Try playing audio from a different application or source.

9. Specifications

10. Warranty and Support

Amplify products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included in your package or visit the official Amplify website. Keep your proof of purchase for warranty claims.
